| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_091T01_9000002368_16024cztM0_level2.evt | modeM0/AS1T02_091T01_9000002368_16024cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,206,080 | 82,586,880 |
| Size | 457.0 MB | 78.8 MB |
| Events in quadrant A | 3,448,677 | 520,950 |
| Events in quadrant B | 3,709,585 | 528,006 |
| Events in quadrant C | 3,510,999 | 511,429 |
| Events in quadrant D | 3,417,386 | 502,307 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14062 | 3 |
| B | 0 | 15008 | 2 |
| C | 0 | 14275 | 2 |
| D | 0 | 14221 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6284 | 113 | 1.798218% |
| B | 6284 | 161 | 2.562062% |
| C | 6284 | 155 | 2.466582% |
| D | 6284 | 108 | 1.718651% |

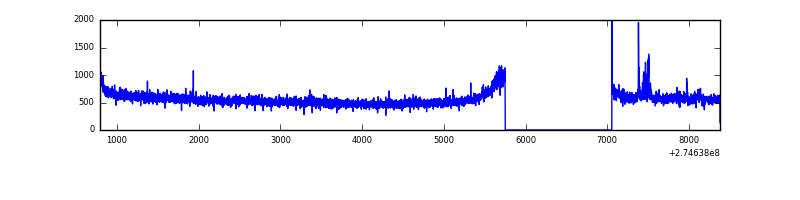

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 6285 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7590 | 6285 | 27 | 27 | 0.36% | 0.43% |  |
| C | 7590 | 6285 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7590 | 6285 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 10906 | 56.53 | 887 | 873 | 177.5 |
| A | 9 | 143 | 9224 | 47.06 | 887 | 873 | 177.5 |
| A | 12 | 96 | 8009 | 40.21 | 887 | 873 | 177.5 |
| B | 7 | 220 | 139073 | 840.48 | 880 | 863 | 164.4 |
| B | 15 | 222 | 36138 | 214.51 | 880 | 863 | 164.4 |
| B | 0 | 189 | 30738 | 181.68 | 880 | 863 | 164.4 |
| C | 14 | 238 | 132874 | 667.64 | 853 | 862 | 197.7 |
| C | 3 | 233 | 46749 | 232.07 | 853 | 862 | 197.7 |
| C | 10 | 22 | 7147 | 31.79 | 853 | 862 | 197.7 |
| D | 2 | 152 | 45036 | 203.67 | 876 | 852 | 216.9 |
| D | 12 | 233 | 37947 | 170.99 | 876 | 852 | 216.9 |
| D | 2 | 234 | 22402 | 99.34 | 876 | 852 | 216.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

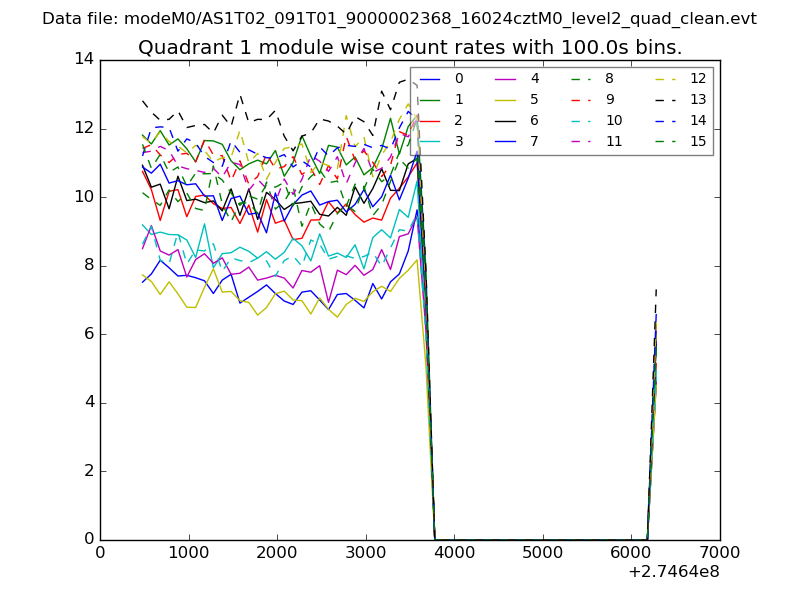

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

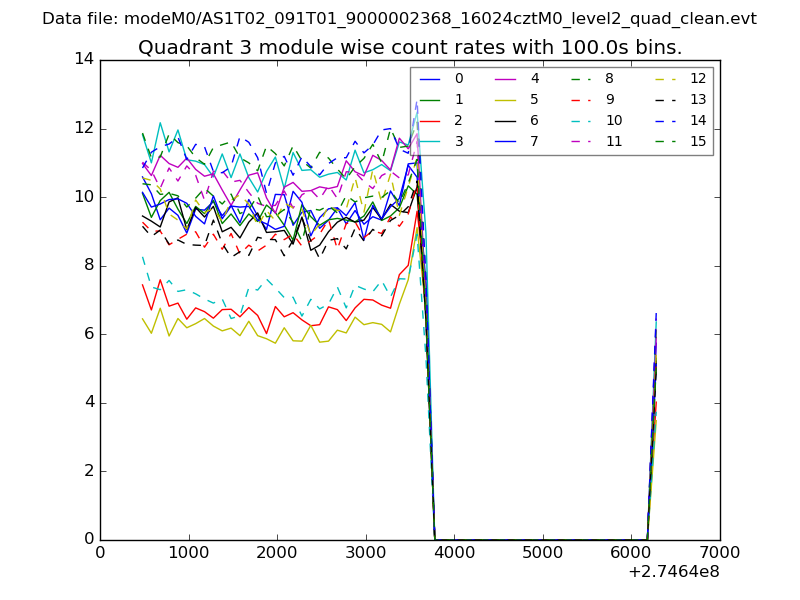

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

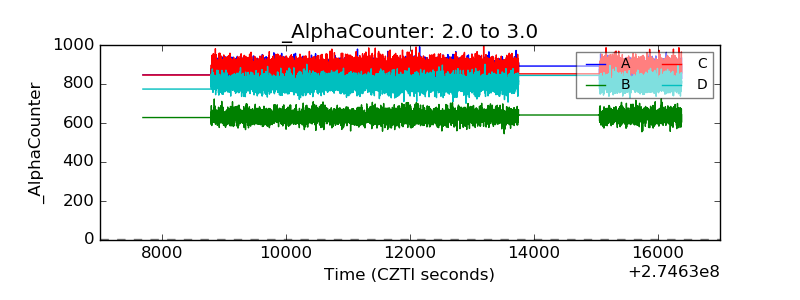

| Alpha Counter |  |

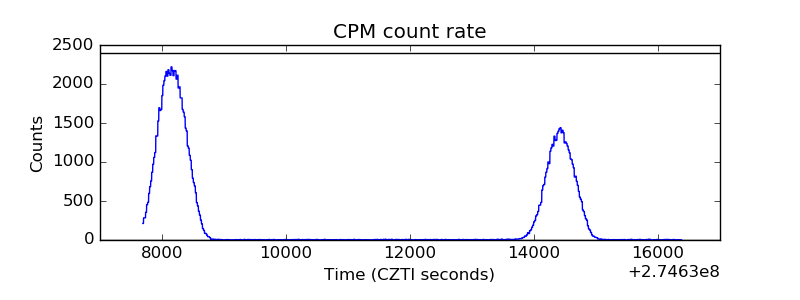

| _CPM_Rate |  |

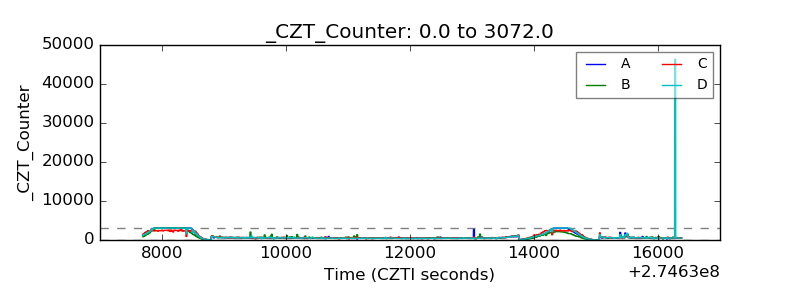

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

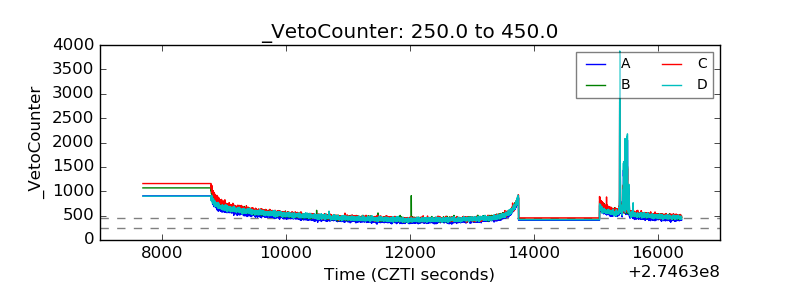

| Veto Counter |  |
