| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_012T01_9000002370_16036cztM0_level2.evt | modeM0/AS1G08_012T01_9000002370_16036cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,915,840 | 71,426,880 |
| Size | 438.6 MB | 68.1 MB |
| Events in quadrant A | 3,358,327 | 434,635 |
| Events in quadrant B | 3,460,203 | 440,427 |
| Events in quadrant C | 3,429,987 | 424,705 |
| Events in quadrant D | 3,251,807 | 422,809 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14097 | 3 |
| B | 0 | 14441 | 2 |
| C | 0 | 14107 | 2 |
| D | 0 | 13796 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6306 | 75 | 1.189343% |
| B | 6306 | 84 | 1.332065% |
| C | 6306 | 112 | 1.776086% |
| D | 6306 | 59 | 0.935617% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

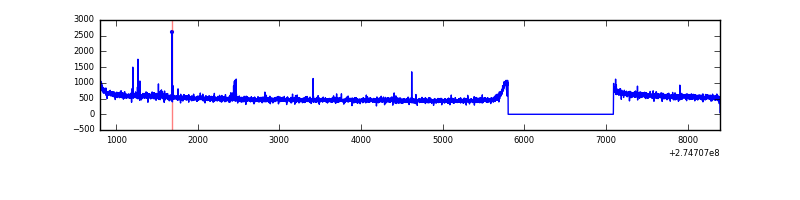

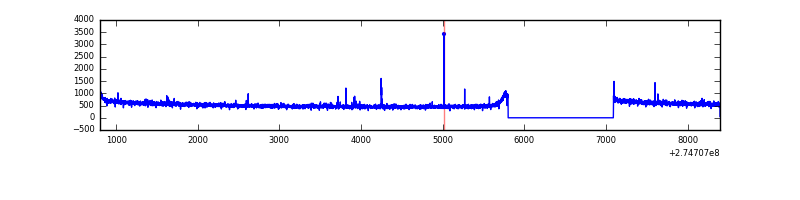

| A | 7597 | 6307 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7597 | 6307 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7597 | 6307 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7597 | 6307 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 20738 | 115.64 | 866 | 851 | 172.0 |
| A | 12 | 96 | 10331 | 55.13 | 866 | 851 | 172.0 |
| A | 0 | 226 | 7494 | 38.63 | 866 | 851 | 172.0 |
| B | 0 | 230 | 50441 | 303.55 | 862 | 842 | 163.4 |
| B | 0 | 229 | 46625 | 280.2 | 862 | 842 | 163.4 |
| B | 12 | 111 | 18410 | 107.52 | 862 | 842 | 163.4 |
| C | 14 | 238 | 130664 | 677.25 | 831 | 841 | 191.7 |
| C | 3 | 233 | 58205 | 299.25 | 831 | 841 | 191.7 |
| C | 13 | 61 | 5929 | 26.54 | 831 | 841 | 191.7 |
| D | 2 | 152 | 23557 | 109.31 | 847 | 826 | 208.0 |
| D | 2 | 234 | 20917 | 96.61 | 847 | 826 | 208.0 |
| D | 13 | 172 | 9788 | 43.1 | 847 | 826 | 208.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

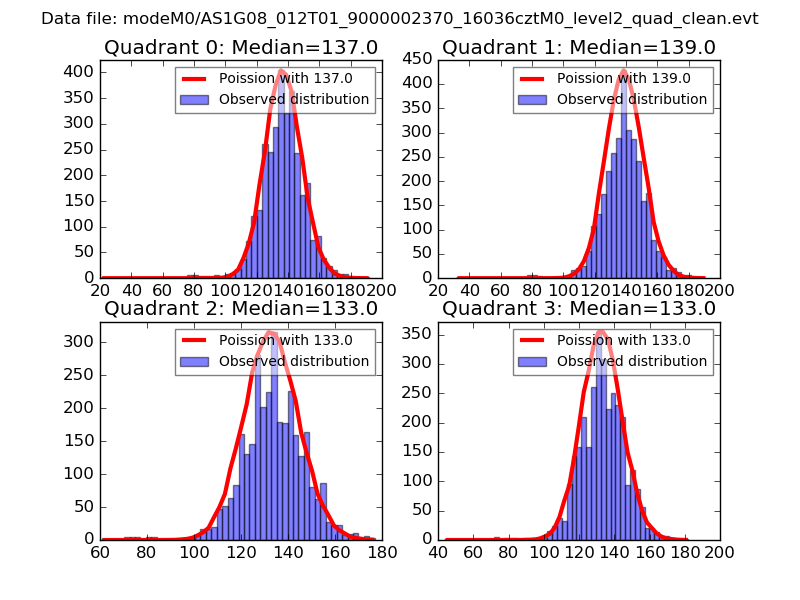

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

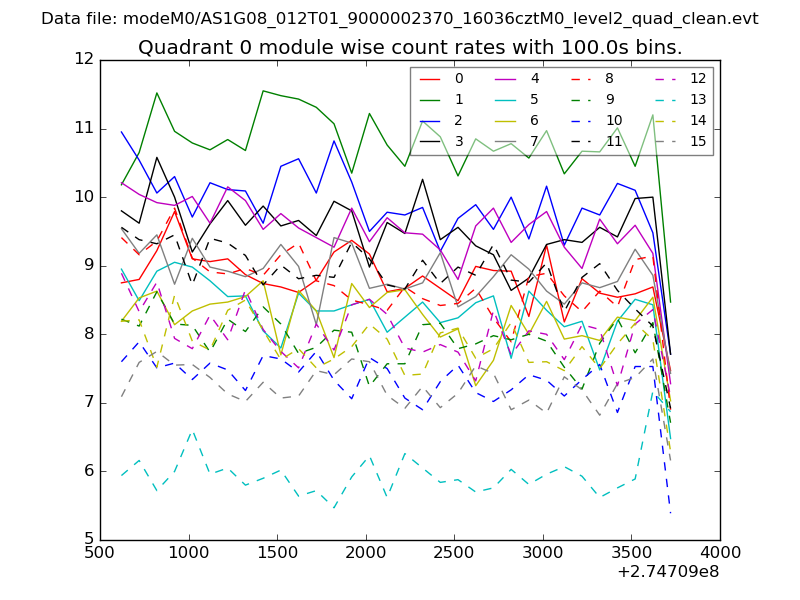

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

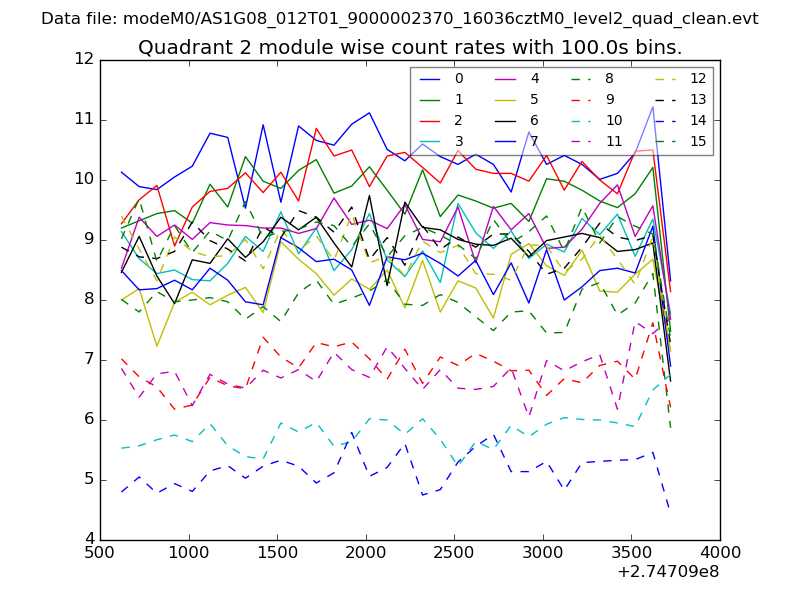

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

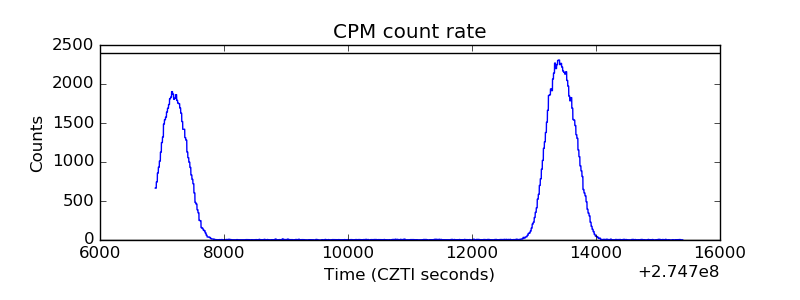

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

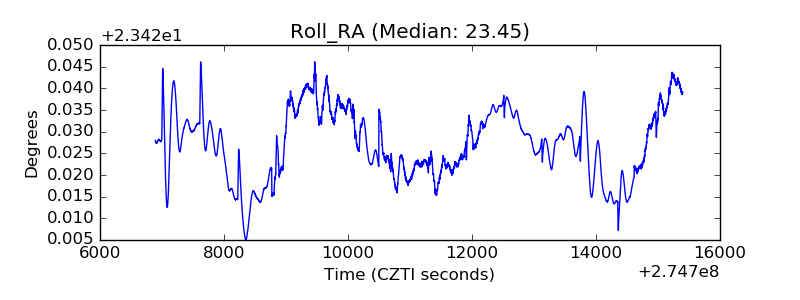

| _Roll_RA |  |
| Veto Counter |  |
