| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_012T01_9000002370_16049cztM0_level2.evt | modeM0/AS1G08_012T01_9000002370_16049cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,266,240 | 65,805,120 |
| Size | 470.4 MB | 62.8 MB |
| Events in quadrant A | 3,387,098 | 391,363 |
| Events in quadrant B | 3,377,826 | 397,466 |
| Events in quadrant C | 3,540,244 | 379,237 |
| Events in quadrant D | 4,190,403 | 369,162 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14202 | 3 |
| B | 0 | 14031 | 2 |
| C | 0 | 14545 | 2 |
| D | 0 | 16642 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6527 | 80 | 1.225678% |
| B | 6527 | 89 | 1.363567% |
| C | 6527 | 143 | 2.190899% |
| D | 6527 | 183 | 2.803738% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

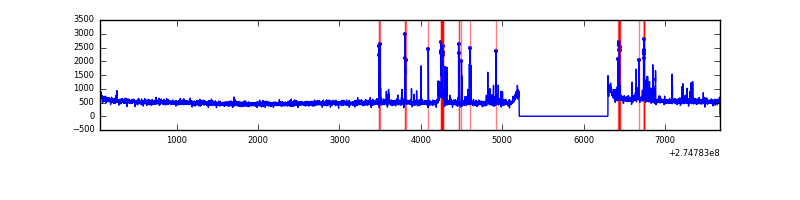

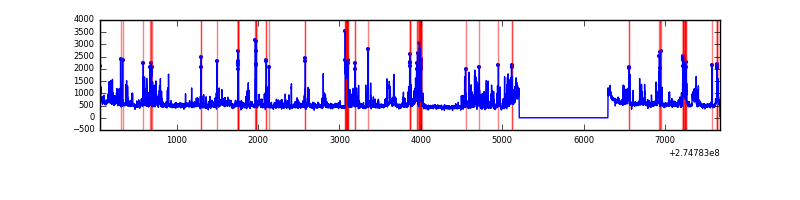

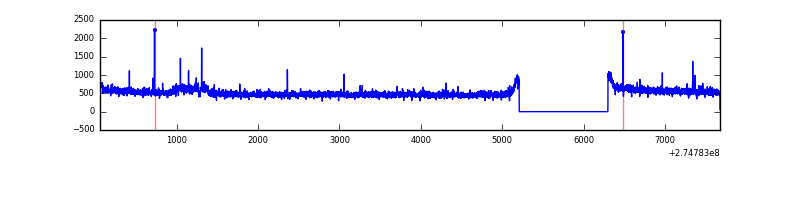

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6528 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7618 | 6528 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7618 | 6528 | 41 | 41 | 0.54% | 0.63% |  |
| D | 7618 | 6528 | 103 | 103 | 1.35% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 97746 | 572.63 | 847 | 830 | 169.2 |
| A | 12 | 96 | 21635 | 122.93 | 847 | 830 | 169.2 |
| A | 9 | 143 | 11207 | 61.31 | 847 | 830 | 169.2 |
| B | 4 | 48 | 42190 | 258.23 | 837 | 817 | 160.2 |
| B | 0 | 230 | 30619 | 186.01 | 837 | 817 | 160.2 |
| B | 12 | 111 | 18734 | 111.83 | 837 | 817 | 160.2 |
| C | 15 | 48 | 152010 | 810.66 | 800 | 804 | 186.5 |
| C | 14 | 238 | 125025 | 665.99 | 800 | 804 | 186.5 |
| C | 9 | 236 | 83255 | 442.04 | 800 | 804 | 186.5 |
| D | 13 | 232 | 508086 | 2533.7 | 815 | 791 | 200.2 |
| D | 1 | 52 | 488303 | 2434.89 | 815 | 791 | 200.2 |
| D | 2 | 152 | 64038 | 315.89 | 815 | 791 | 200.2 |

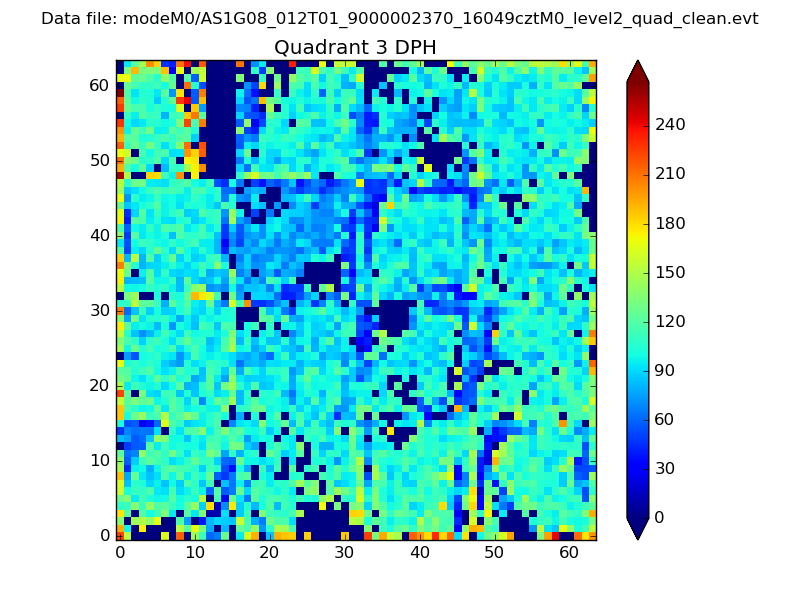

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

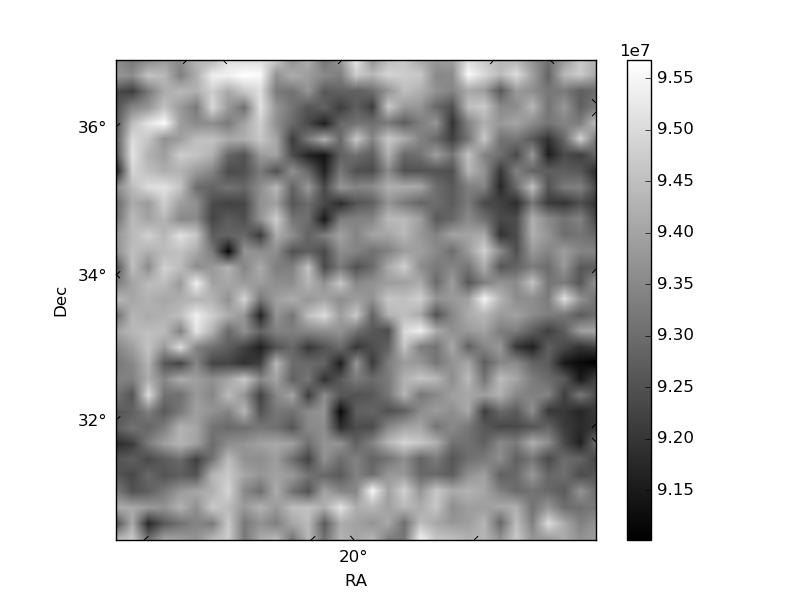

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

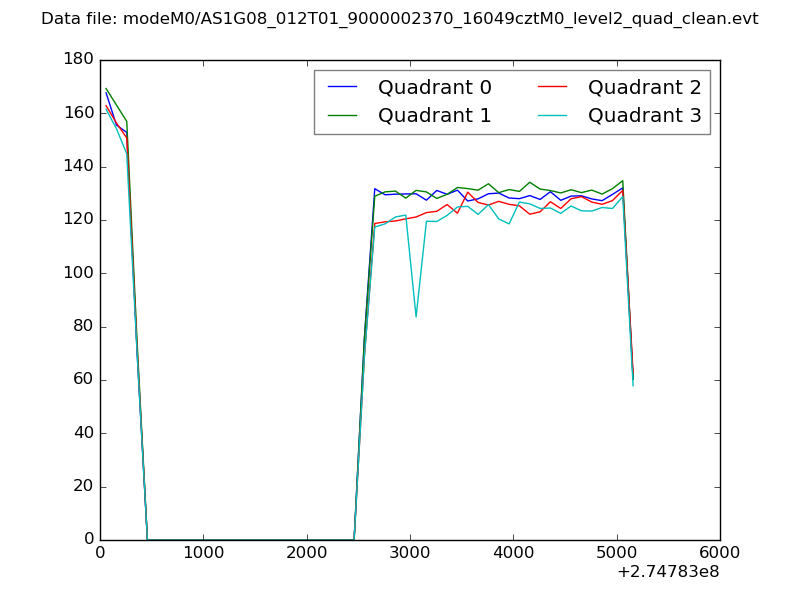

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

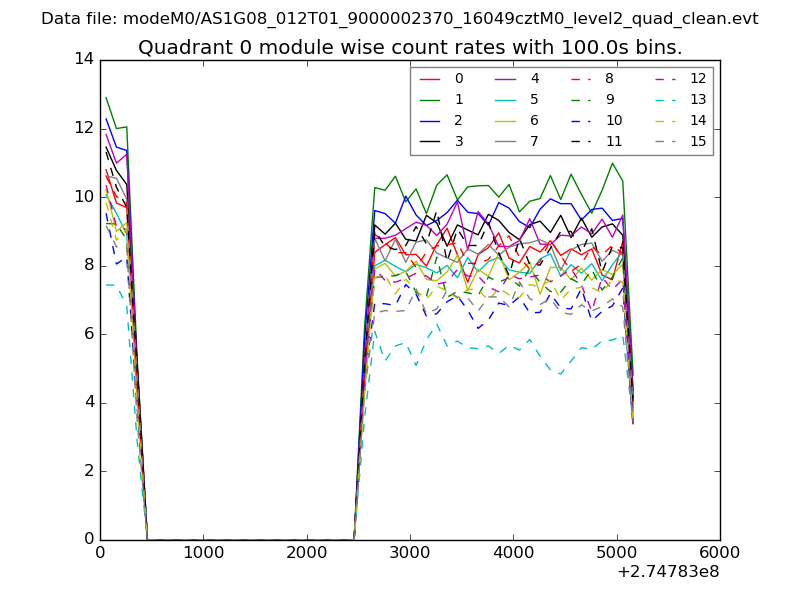

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

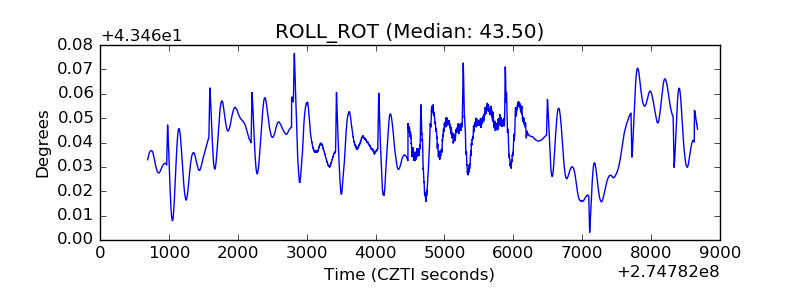

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
