| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_012T01_9000002370_16053cztM0_level2.evt | modeM0/AS1G08_012T01_9000002370_16053cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,641,280 | 96,537,600 |
| Size | 452.7 MB | 92.1 MB |
| Events in quadrant A | 3,478,178 | 624,517 |
| Events in quadrant B | 3,364,418 | 639,253 |
| Events in quadrant C | 3,800,179 | 615,304 |
| Events in quadrant D | 3,308,643 | 609,428 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14389 | 3 |
| B | 0 | 14010 | 2 |
| C | 0 | 15314 | 2 |
| D | 0 | 13857 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6236 | 79 | 1.266838% |
| B | 6236 | 107 | 1.715843% |
| C | 6236 | 269 | 4.313663% |
| D | 6236 | 81 | 1.298910% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8922 | 6238 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8922 | 6237 | 8 | 8 | 0.09% | 0.13% |  |
| C | 8922 | 6237 | 82 | 82 | 0.92% | 1.31% |  |
| D | 8922 | 6238 | 15 | 15 | 0.17% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 237011 | 1430.99 | 829 | 812 | 165.1 |
| A | 15 | 222 | 34929 | 206.69 | 829 | 812 | 165.1 |
| A | 15 | 223 | 11160 | 62.69 | 829 | 812 | 165.1 |
| B | 0 | 182 | 69980 | 441.88 | 833 | 813 | 156.5 |
| B | 12 | 111 | 18182 | 110.96 | 833 | 813 | 156.5 |
| B | 4 | 216 | 17211 | 104.76 | 833 | 813 | 156.5 |
| C | 3 | 233 | 277965 | 1485.16 | 807 | 816 | 186.6 |
| C | 9 | 236 | 250144 | 1336.07 | 807 | 816 | 186.6 |
| C | 14 | 238 | 125346 | 667.32 | 807 | 816 | 186.6 |
| D | 12 | 218 | 97275 | 489.08 | 822 | 802 | 197.3 |
| D | 2 | 152 | 50824 | 253.59 | 822 | 802 | 197.3 |
| D | 2 | 120 | 32669 | 161.55 | 822 | 802 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

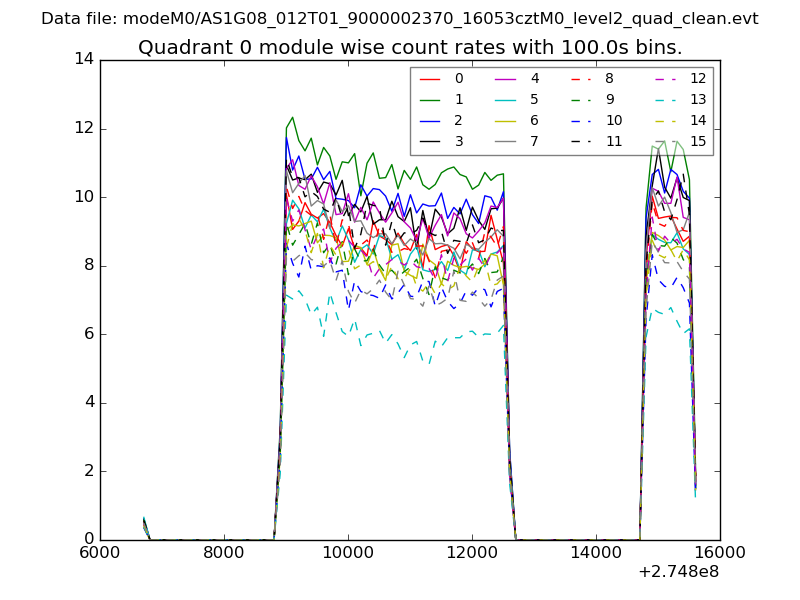

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

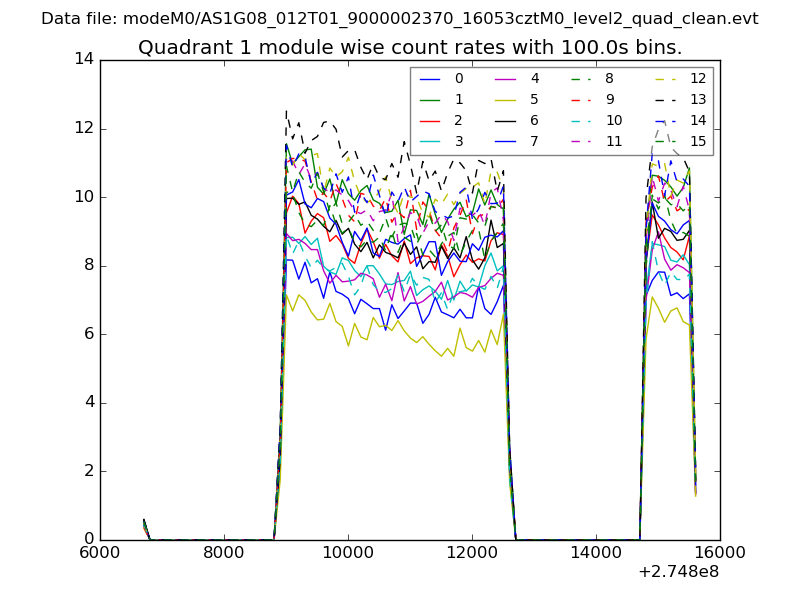

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

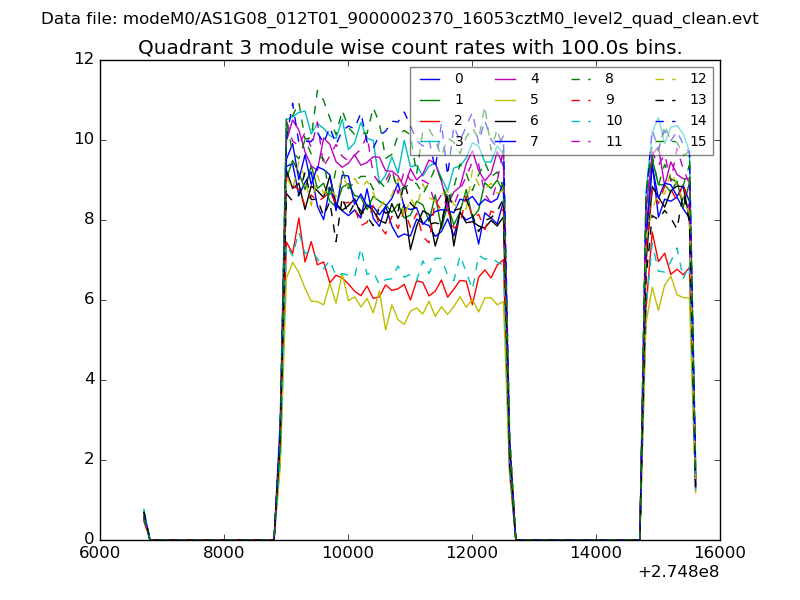

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

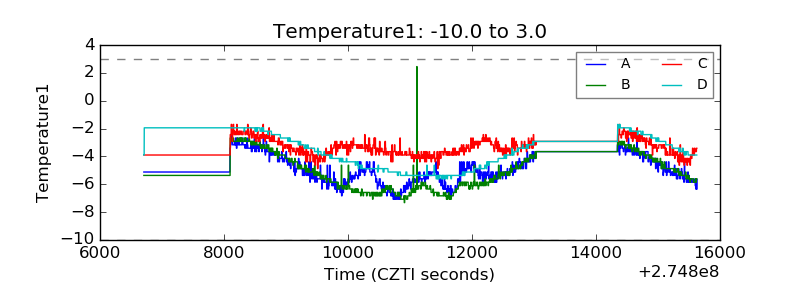

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

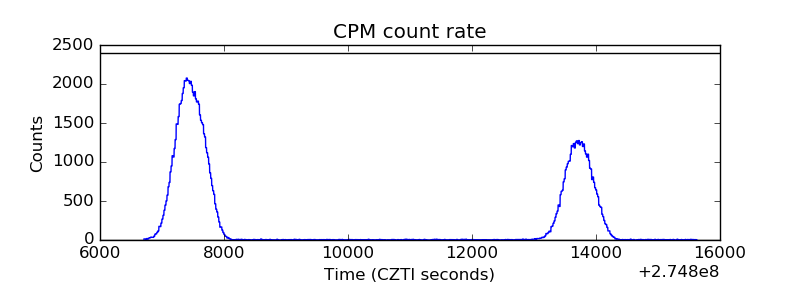

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

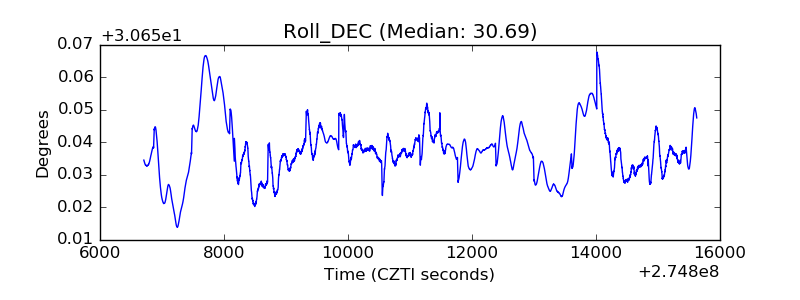

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
