| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_230T01_9000002374_16067cztM0_level2.evt | modeM0/AS1A04_230T01_9000002374_16067cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,974,080 | 93,323,520 |
| Size | 463.5 MB | 89.0 MB |
| Events in quadrant A | 3,417,279 | 624,415 |
| Events in quadrant B | 3,678,701 | 618,876 |
| Events in quadrant C | 3,160,942 | 589,776 |
| Events in quadrant D | 4,039,952 | 560,230 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14069 | 3 |
| B | 0 | 15037 | 2 |
| C | 0 | 13139 | 2 |
| D | 0 | 16045 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6193 | 57 | 0.920394% |
| B | 6193 | 105 | 1.695463% |
| C | 6193 | 86 | 1.388665% |
| D | 6193 | 331 | 5.344744% |

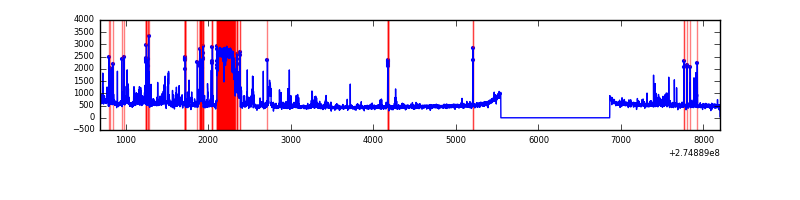

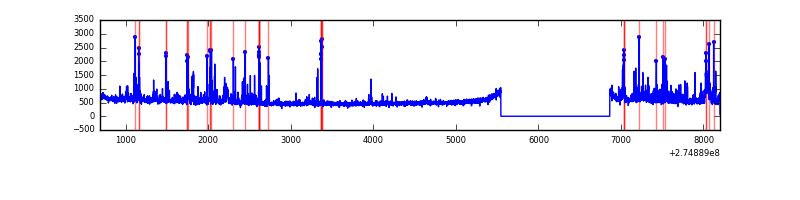

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 6194 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7514 | 6195 | 37 | 37 | 0.49% | 0.60% |  |
| C | 7514 | 6195 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7514 | 6194 | 261 | 261 | 3.47% | 4.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 287508 | 1804.0 | 799 | 784 | 158.9 |
| A | 13 | 210 | 31173 | 191.2 | 799 | 784 | 158.9 |
| A | 9 | 143 | 22209 | 134.8 | 799 | 784 | 158.9 |
| B | 7 | 220 | 232177 | 1569.17 | 795 | 778 | 147.5 |
| B | 4 | 216 | 83078 | 558.09 | 795 | 778 | 147.5 |
| B | 0 | 189 | 76497 | 513.47 | 795 | 778 | 147.5 |
| C | 14 | 238 | 118610 | 660.74 | 764 | 769 | 178.3 |
| C | 0 | 207 | 38042 | 208.99 | 764 | 769 | 178.3 |
| C | 3 | 233 | 12127 | 63.68 | 764 | 769 | 178.3 |
| D | 7 | 38 | 771193 | 4095.38 | 763 | 743 | 188.1 |
| D | 1 | 52 | 203984 | 1080.34 | 763 | 743 | 188.1 |
| D | 12 | 233 | 33362 | 173.39 | 763 | 743 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

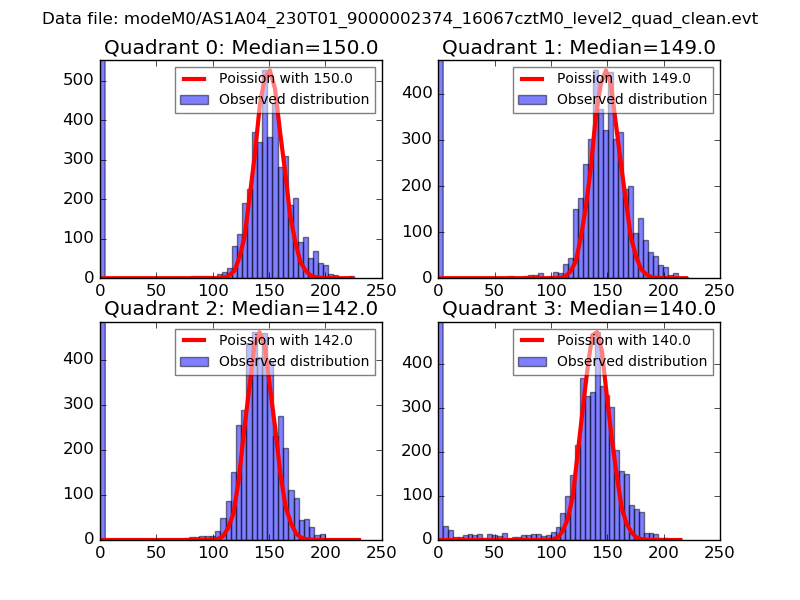

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

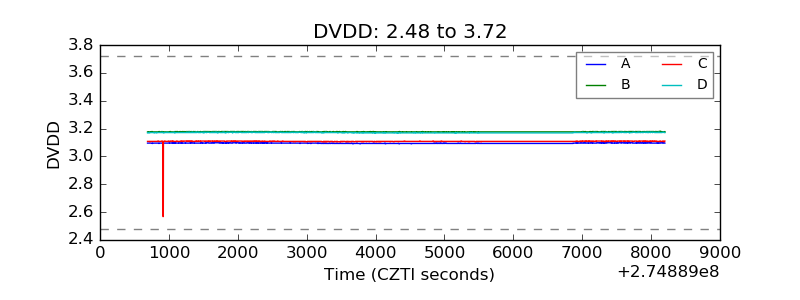

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

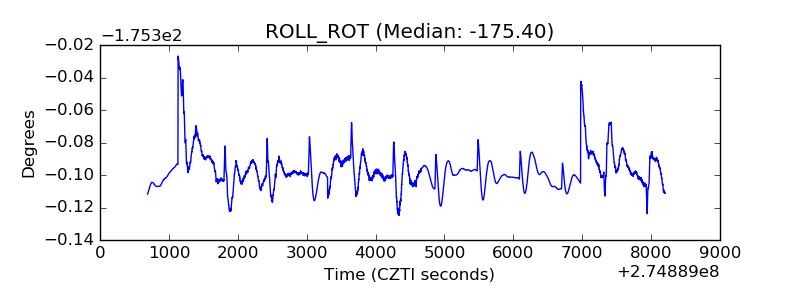

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

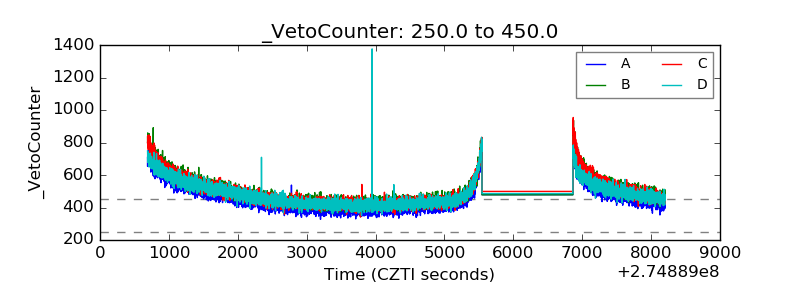

| Veto Counter |  |
