| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_230T01_9000002374_16072cztM0_level2.evt | modeM0/AS1A04_230T01_9000002374_16072cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,589,440 | 86,958,720 |
| Size | 521.3 MB | 82.9 MB |
| Events in quadrant A | 3,651,096 | 543,166 |
| Events in quadrant B | 3,996,036 | 542,209 |
| Events in quadrant C | 3,656,511 | 523,306 |
| Events in quadrant D | 4,733,327 | 495,056 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15739 | 3 |
| B | 0 | 16897 | 2 |
| C | 0 | 15754 | 2 |
| D | 0 | 19332 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7611 | 67 | 0.880305% |
| B | 7611 | 149 | 1.957693% |
| C | 7611 | 97 | 1.274471% |
| D | 7612 | 305 | 4.006831% |

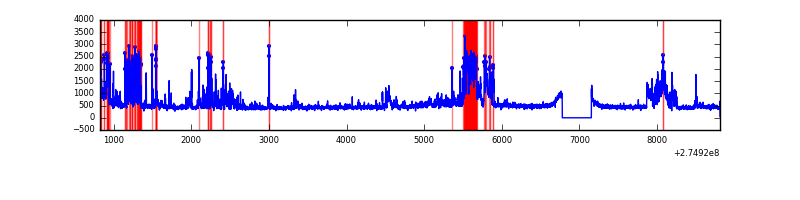

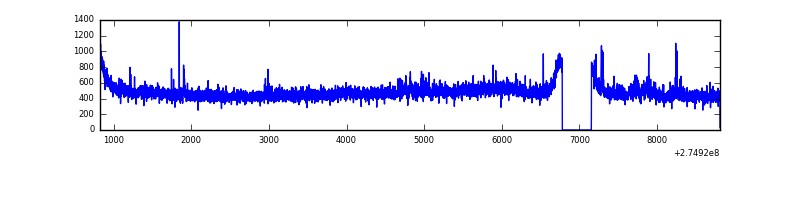

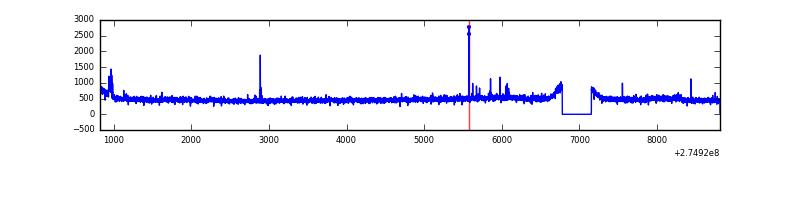

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7987 | 7612 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7987 | 7612 | 38 | 38 | 0.48% | 0.50% |  |
| C | 7987 | 7612 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7988 | 7613 | 196 | 196 | 2.45% | 2.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 145474 | 783.92 | 905 | 885 | 184.4 |
| A | 9 | 143 | 11911 | 59.78 | 905 | 885 | 184.4 |
| A | 15 | 174 | 8433 | 40.92 | 905 | 885 | 184.4 |
| B | 7 | 220 | 110843 | 627.06 | 908 | 885 | 175.4 |
| B | 4 | 173 | 110036 | 622.46 | 908 | 885 | 175.4 |
| B | 0 | 189 | 68325 | 384.59 | 908 | 885 | 175.4 |
| C | 14 | 238 | 131807 | 630.62 | 877 | 884 | 207.6 |
| C | 3 | 233 | 39448 | 185.75 | 877 | 884 | 207.6 |
| C | 10 | 22 | 30714 | 143.68 | 877 | 884 | 207.6 |
| D | 1 | 52 | 943210 | 4432.78 | 866 | 840 | 212.6 |
| D | 13 | 232 | 458366 | 2152.14 | 866 | 840 | 212.6 |
| D | 2 | 234 | 29900 | 136.69 | 866 | 840 | 212.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

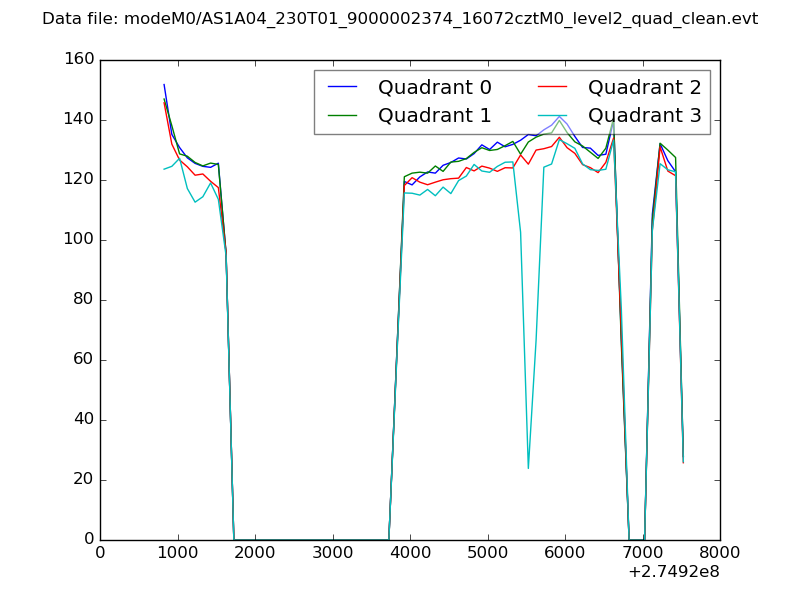

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

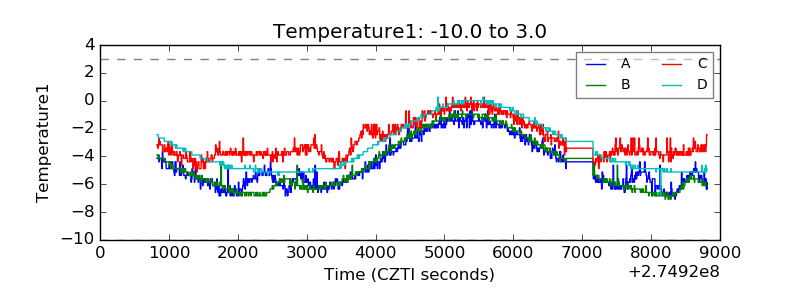

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

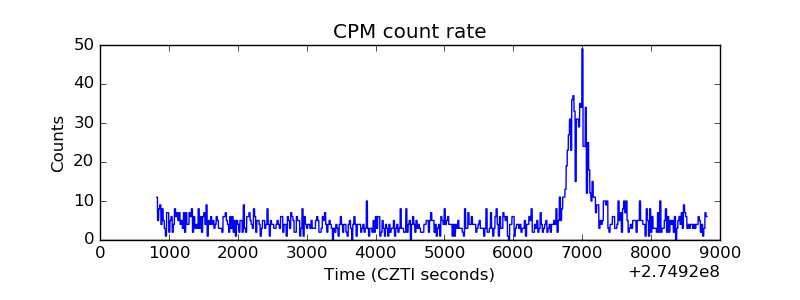

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
