| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_230T01_9000002374_16079cztM0_level2.evt | modeM0/AS1A04_230T01_9000002374_16079cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,454,720 | 108,152,640 |
| Size | 442.9 MB | 103.1 MB |
| Events in quadrant A | 3,422,023 | 735,484 |
| Events in quadrant B | 3,605,440 | 730,381 |
| Events in quadrant C | 3,300,133 | 682,476 |
| Events in quadrant D | 3,308,028 | 685,084 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14284 | 3 |
| B | 0 | 14699 | 2 |
| C | 0 | 13748 | 2 |
| D | 0 | 13950 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6339 | 82 | 1.293579% |
| B | 6339 | 133 | 2.098123% |
| C | 6339 | 91 | 1.435558% |
| D | 6340 | 73 | 1.151420% |

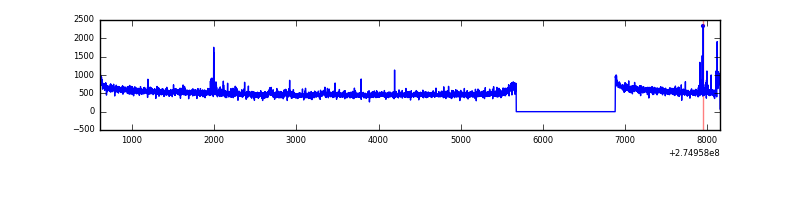

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6340 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7545 | 6340 | 36 | 36 | 0.48% | 0.57% |  |
| C | 7545 | 6340 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7546 | 6341 | 16 | 16 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 157624 | 936.89 | 839 | 825 | 167.4 |
| A | 12 | 96 | 23004 | 132.52 | 839 | 825 | 167.4 |
| A | 9 | 143 | 12780 | 71.43 | 839 | 825 | 167.4 |
| B | 7 | 220 | 137126 | 869.28 | 826 | 805 | 156.8 |
| B | 0 | 190 | 77525 | 489.22 | 826 | 805 | 156.8 |
| B | 3 | 209 | 55078 | 346.08 | 826 | 805 | 156.8 |
| C | 14 | 238 | 123087 | 681.72 | 783 | 789 | 179.4 |
| C | 3 | 233 | 67333 | 370.93 | 783 | 789 | 179.4 |
| C | 0 | 207 | 48788 | 267.56 | 783 | 789 | 179.4 |
| D | 1 | 52 | 167090 | 846.0 | 809 | 786 | 196.6 |
| D | 2 | 234 | 25094 | 123.66 | 809 | 786 | 196.6 |
| D | 5 | 222 | 23349 | 114.78 | 809 | 786 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

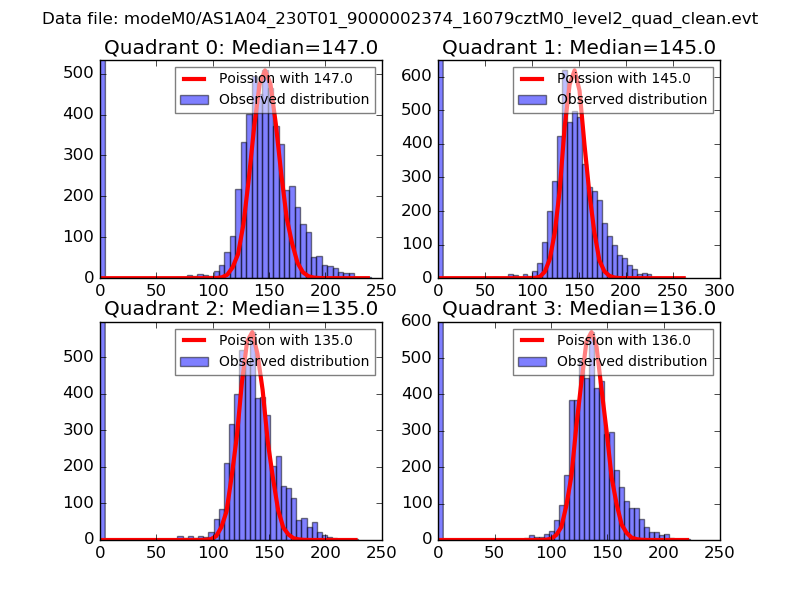

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

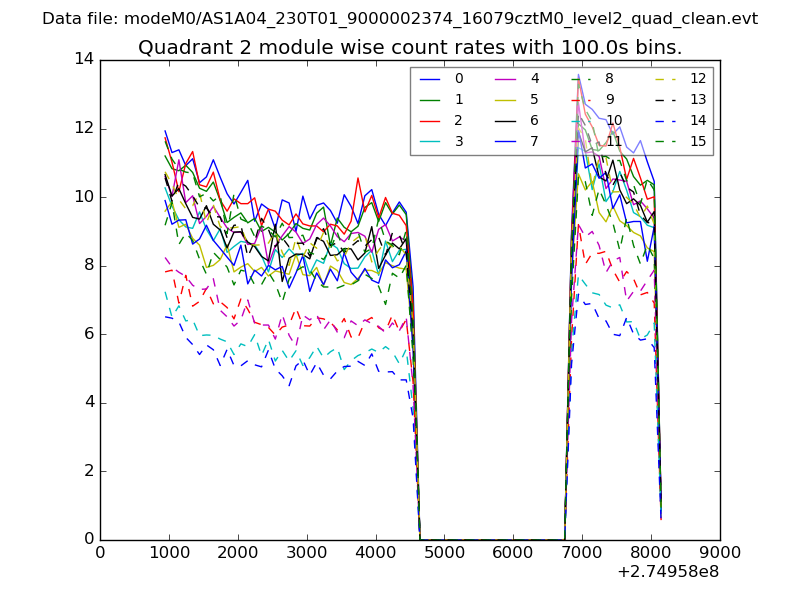

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

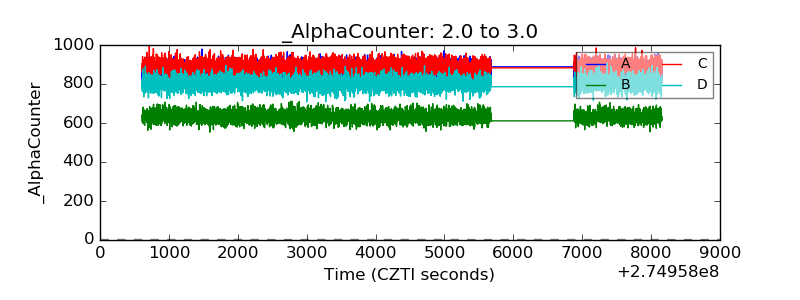

| Alpha Counter |  |

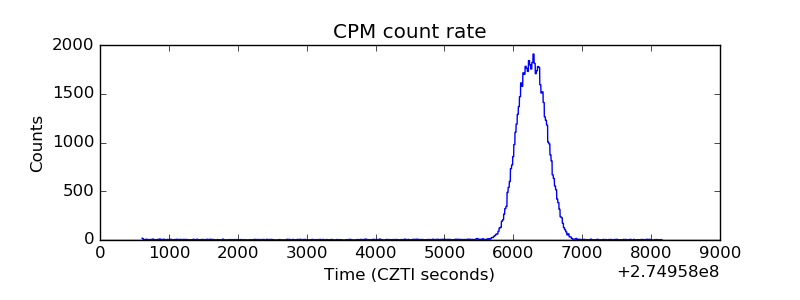

| _CPM_Rate |  |

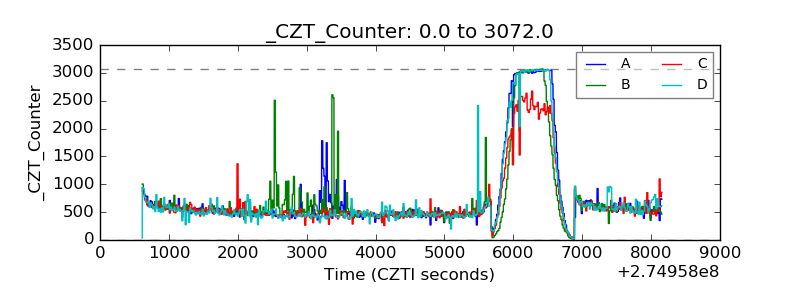

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

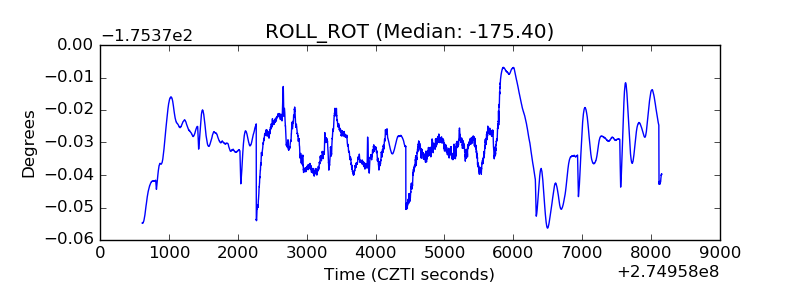

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
