| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_101T01_9000002372_16060cztM0_level2.evt | modeM0/AS1T02_101T01_9000002372_16060cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,066,880 | 89,449,920 |
| Size | 436.8 MB | 85.3 MB |
| Events in quadrant A | 3,476,796 | 561,040 |
| Events in quadrant B | 3,362,281 | 569,605 |
| Events in quadrant C | 3,263,146 | 558,695 |
| Events in quadrant D | 3,306,640 | 544,310 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14226 | 2 |
| B | 0 | 14294 | 1 |
| C | 0 | 13919 | 1 |
| D | 0 | 14491 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6814 | 87 | 1.276783% |
| B | 6814 | 115 | 1.687702% |
| C | 6814 | 121 | 1.775756% |
| D | 6814 | 107 | 1.570296% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

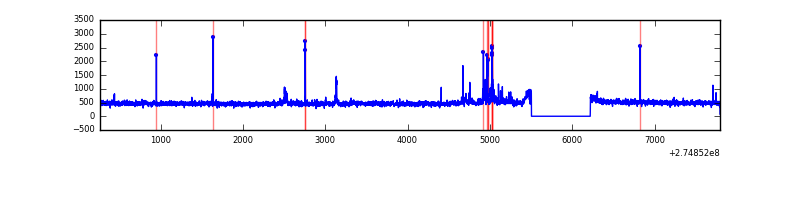

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6815 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7530 | 6815 | 13 | 13 | 0.17% | 0.19% |  |
| C | 7530 | 6815 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7530 | 6815 | 37 | 37 | 0.49% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 298400 | 1813.92 | 815 | 798 | 164.1 |
| A | 12 | 96 | 17220 | 100.09 | 815 | 798 | 164.1 |
| A | 9 | 143 | 16126 | 93.43 | 815 | 798 | 164.1 |
| B | 15 | 222 | 89136 | 570.64 | 814 | 793 | 154.8 |
| B | 0 | 182 | 21879 | 136.2 | 814 | 793 | 154.8 |
| B | 0 | 230 | 18611 | 115.09 | 814 | 793 | 154.8 |
| C | 14 | 238 | 121360 | 652.69 | 789 | 791 | 184.7 |
| C | 3 | 233 | 54744 | 292.07 | 789 | 791 | 184.7 |
| C | 10 | 22 | 5899 | 27.65 | 789 | 791 | 184.7 |
| D | 12 | 218 | 109370 | 557.11 | 795 | 769 | 194.9 |
| D | 13 | 172 | 88673 | 450.94 | 795 | 769 | 194.9 |
| D | 1 | 52 | 34037 | 170.66 | 795 | 769 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

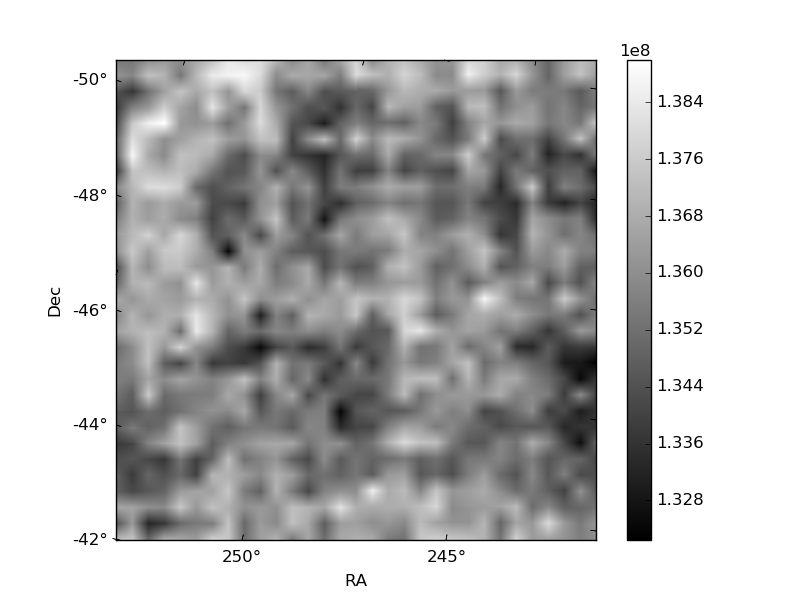

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

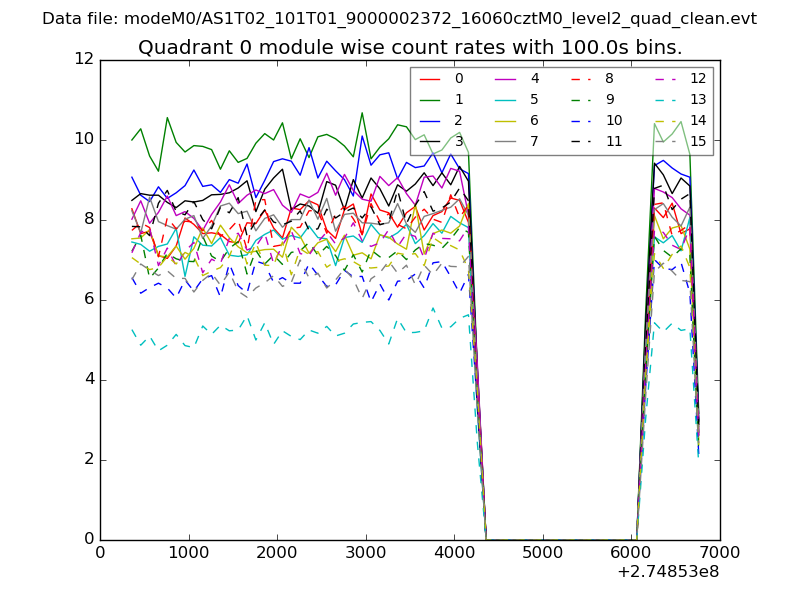

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

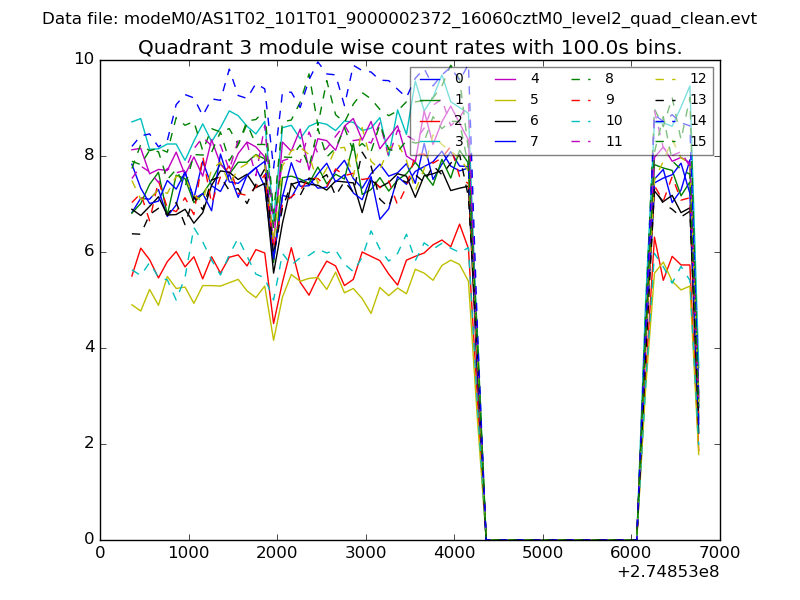

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

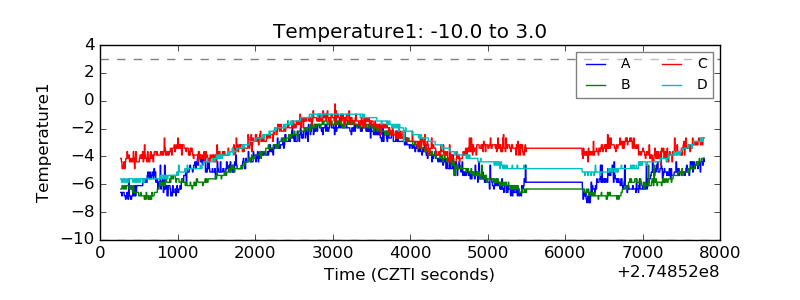

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

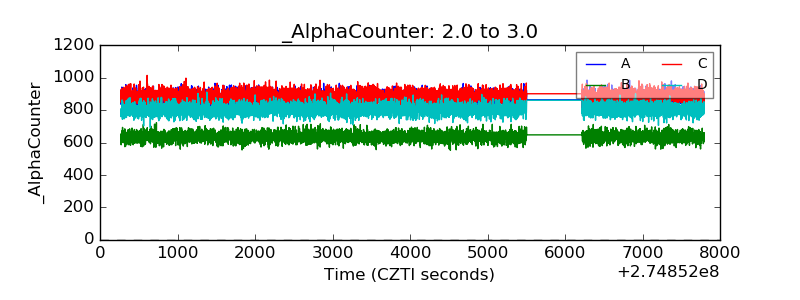

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

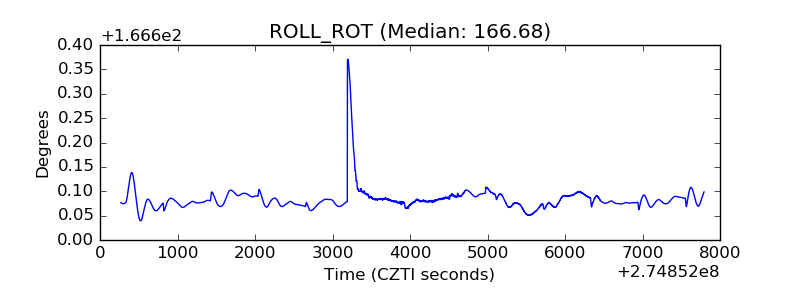

| _ROLL_ROT |  |
| _Roll_DEC |  |

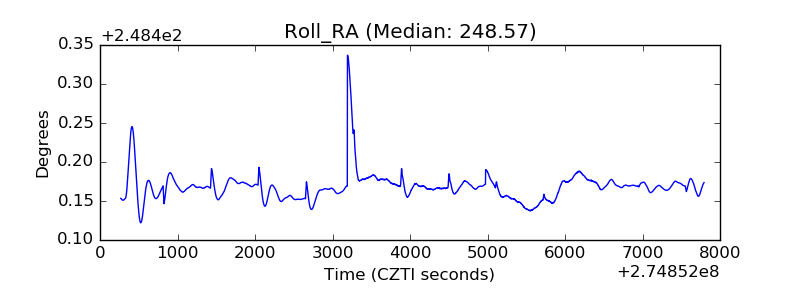

| _Roll_RA |  |
| Veto Counter |  |
