| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_110T01_9000002376_16093cztM0_level2.evt | modeM0/AS1T02_110T01_9000002376_16093cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,587,200 | 100,054,080 |
| Size | 417.3 MB | 95.4 MB |
| Events in quadrant A | 2,946,698 | 684,599 |
| Events in quadrant B | 3,303,228 | 678,575 |
| Events in quadrant C | 3,071,057 | 632,125 |
| Events in quadrant D | 3,531,765 | 623,929 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12543 | 2 |
| B | 0 | 13441 | 1 |
| C | 0 | 12808 | 1 |
| D | 0 | 14425 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5884 | 79 | 1.342624% |
| B | 5884 | 84 | 1.427600% |
| C | 5884 | 95 | 1.614548% |
| D | 5884 | 253 | 4.299796% |

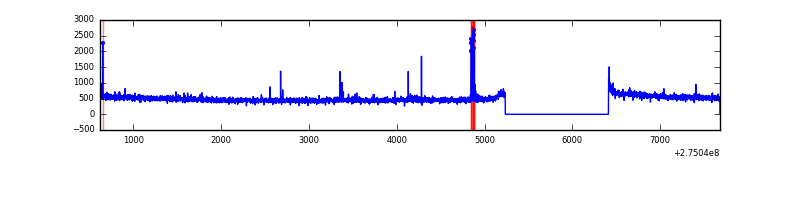

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7060 | 5885 | 13 | 13 | 0.18% | 0.22% |  |
| B | 7060 | 5885 | 20 | 20 | 0.28% | 0.34% |  |
| C | 7060 | 5885 | 27 | 27 | 0.38% | 0.46% |  |
| D | 7060 | 5885 | 180 | 180 | 2.55% | 3.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 42239 | 277.29 | 748 | 734 | 149.7 |
| A | 9 | 143 | 27323 | 177.64 | 748 | 734 | 149.7 |
| A | 0 | 226 | 6736 | 40.1 | 748 | 734 | 149.7 |
| B | 0 | 189 | 157924 | 1130.93 | 738 | 719 | 139.0 |
| B | 7 | 220 | 81369 | 580.2 | 738 | 719 | 139.0 |
| B | 0 | 190 | 71259 | 507.47 | 738 | 719 | 139.0 |
| C | 3 | 233 | 232658 | 1437.68 | 696 | 700 | 161.3 |
| C | 14 | 238 | 108438 | 667.76 | 696 | 700 | 161.3 |
| C | 0 | 207 | 9587 | 55.08 | 696 | 700 | 161.3 |
| D | 12 | 218 | 577036 | 3349.79 | 712 | 693 | 172.1 |
| D | 7 | 38 | 97201 | 560.92 | 712 | 693 | 172.1 |
| D | 2 | 152 | 43683 | 249.86 | 712 | 693 | 172.1 |

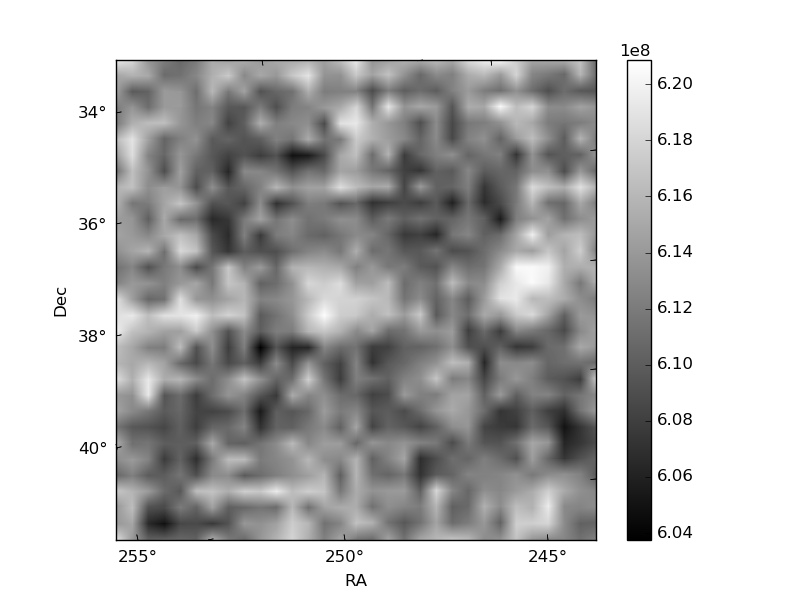

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

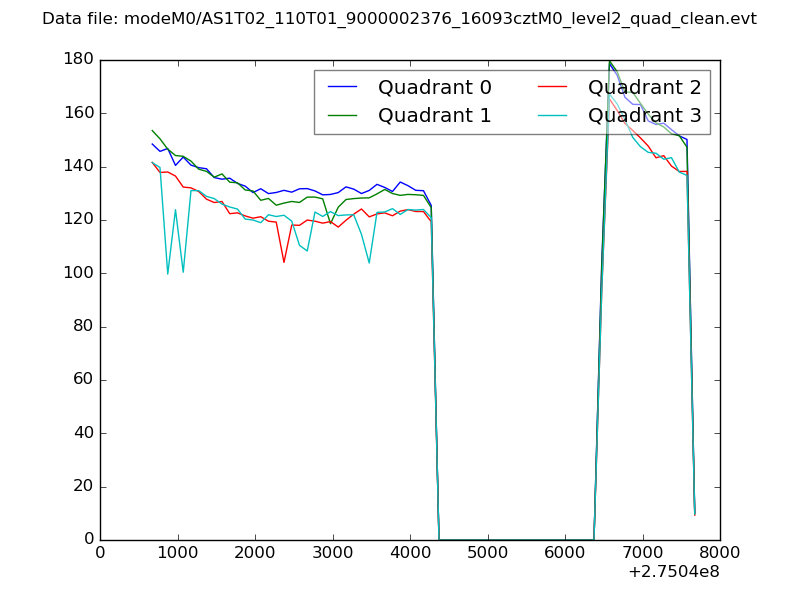

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

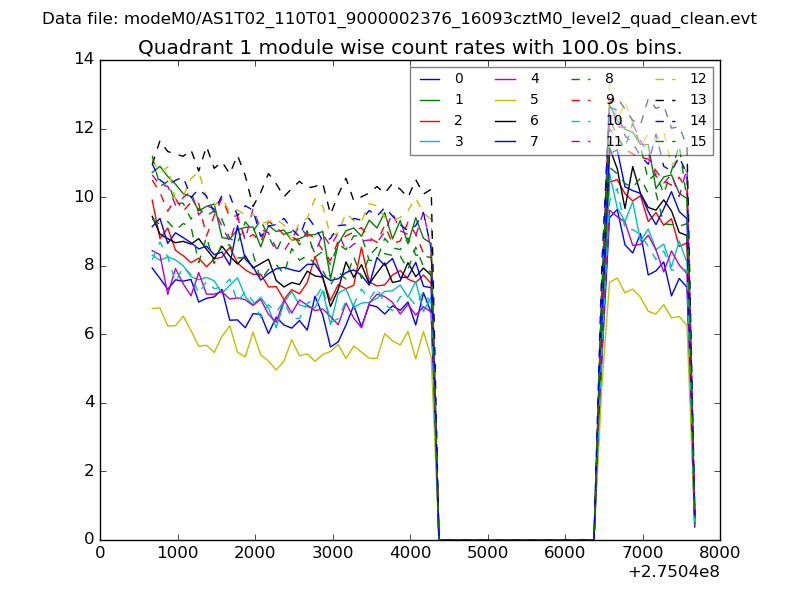

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

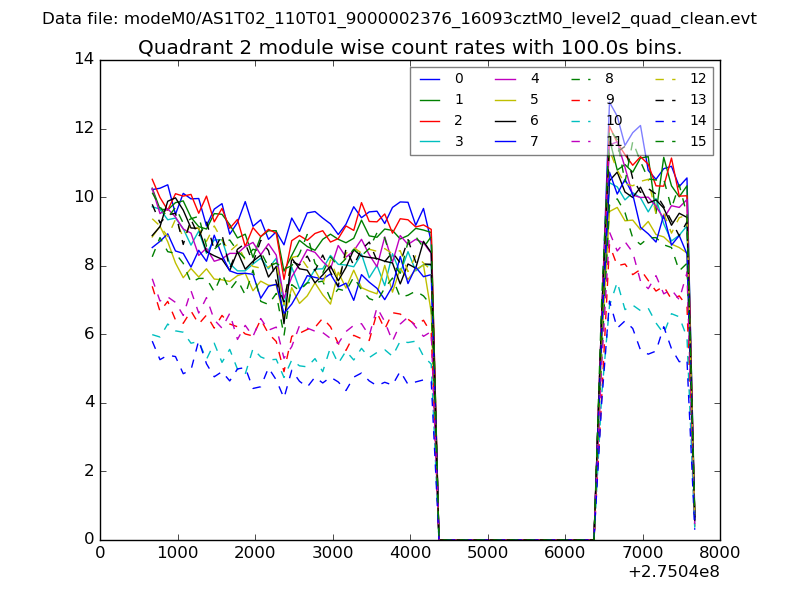

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

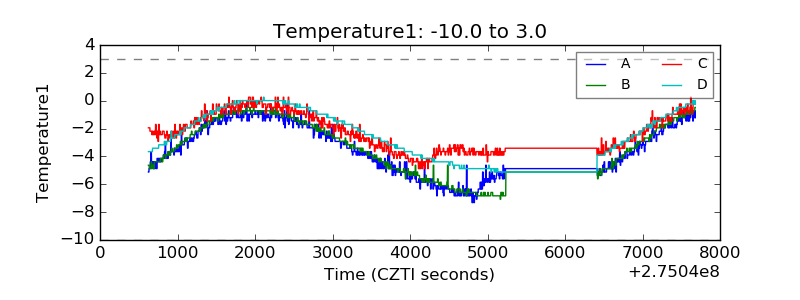

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

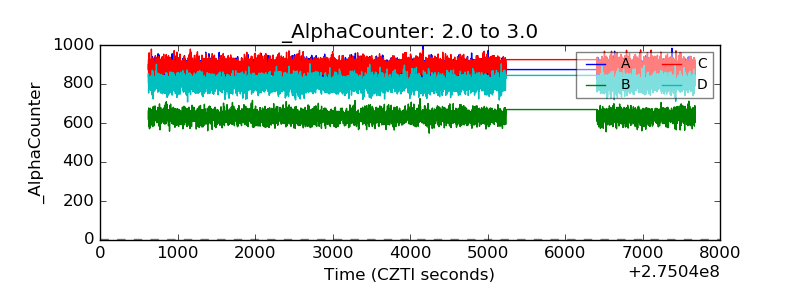

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

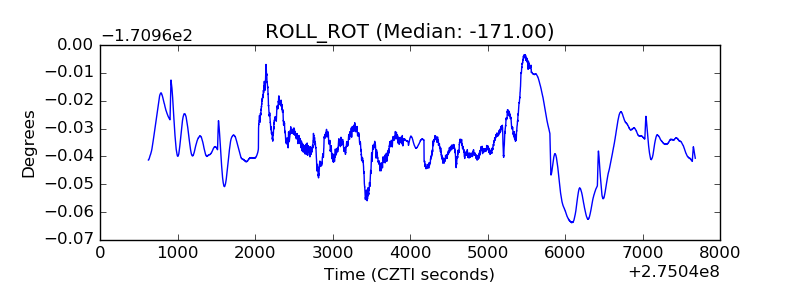

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
