| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_110T01_9000002376_16095cztM0_level2.evt | modeM0/AS1T02_110T01_9000002376_16095cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,783,360 | 104,607,360 |
| Size | 507.1 MB | 99.8 MB |
| Events in quadrant A | 3,241,627 | 727,347 |
| Events in quadrant B | 3,704,054 | 713,282 |
| Events in quadrant C | 3,187,946 | 670,621 |
| Events in quadrant D | 5,540,844 | 613,503 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13585 | 2 |
| B | 0 | 14951 | 1 |
| C | 0 | 13294 | 1 |
| D | 0 | 20475 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6345 | 89 | 1.402679% |
| B | 6345 | 108 | 1.702128% |
| C | 6345 | 92 | 1.449961% |
| D | 6345 | 907 | 14.294720% |

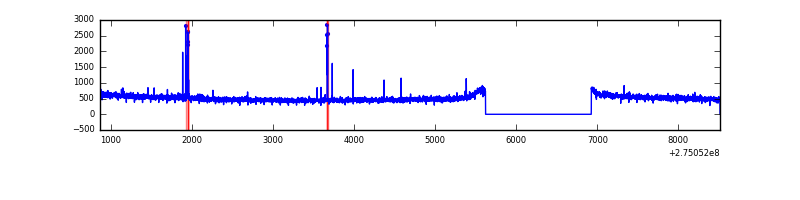

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

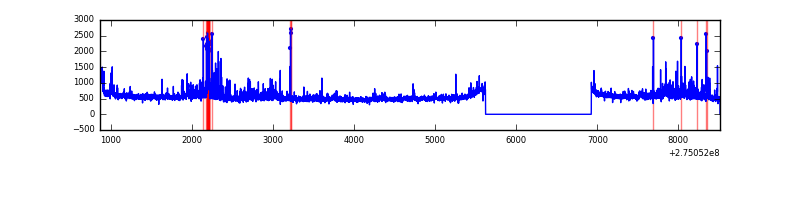

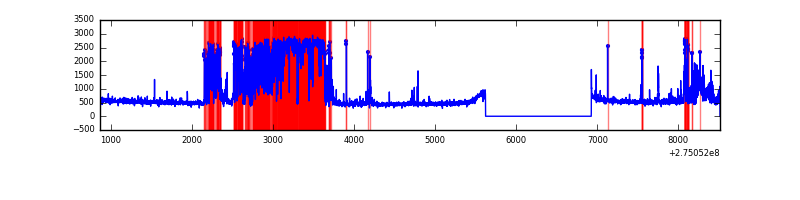

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 6346 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7651 | 6346 | 25 | 25 | 0.33% | 0.39% |  |
| C | 7651 | 6346 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7651 | 6346 | 865 | 865 | 11.31% | 13.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 26809 | 156.04 | 828 | 812 | 166.6 |
| A | 15 | 69 | 16676 | 95.22 | 828 | 812 | 166.6 |
| A | 0 | 226 | 7644 | 41.01 | 828 | 812 | 166.6 |
| B | 7 | 220 | 192787 | 1269.59 | 817 | 799 | 151.2 |
| B | 5 | 65 | 113615 | 746.03 | 817 | 799 | 151.2 |
| B | 0 | 189 | 56700 | 369.66 | 817 | 799 | 151.2 |
| C | 14 | 238 | 120213 | 668.13 | 775 | 781 | 178.8 |
| C | 0 | 207 | 25056 | 135.8 | 775 | 781 | 178.8 |
| C | 3 | 233 | 14828 | 78.58 | 775 | 781 | 178.8 |
| D | 7 | 38 | 2478447 | 13447.93 | 758 | 736 | 184.2 |
| D | 12 | 218 | 93519 | 503.59 | 758 | 736 | 184.2 |
| D | 1 | 52 | 48777 | 260.75 | 758 | 736 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

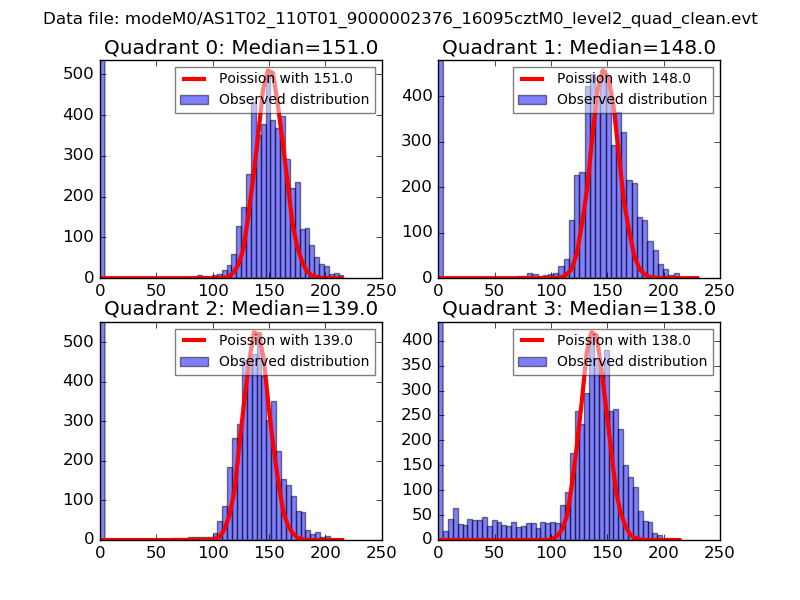

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

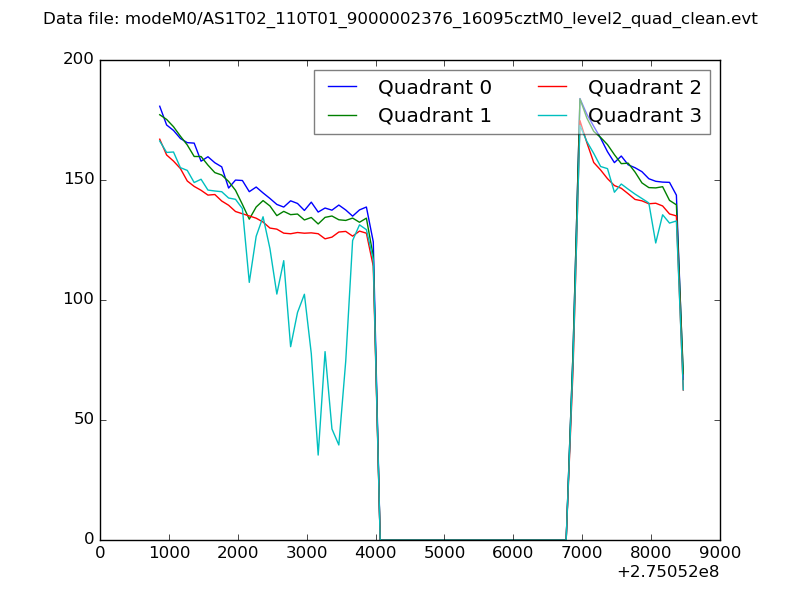

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

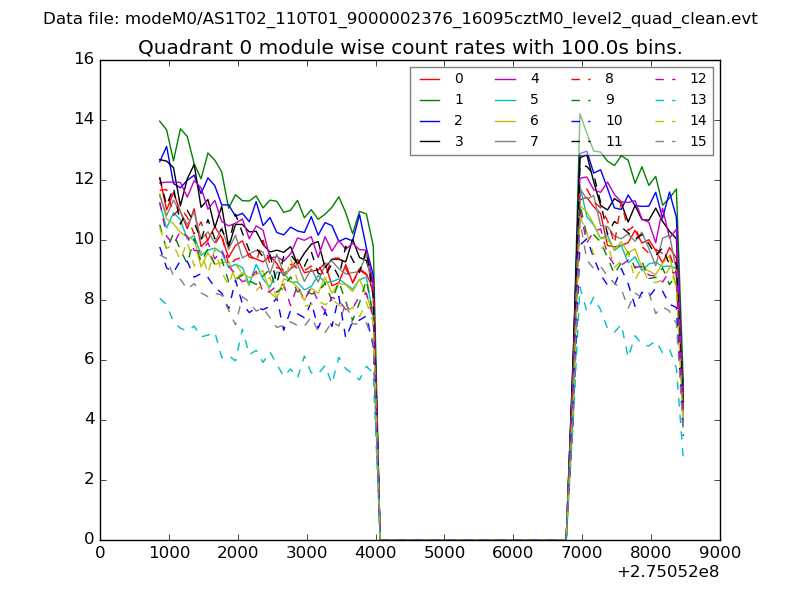

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

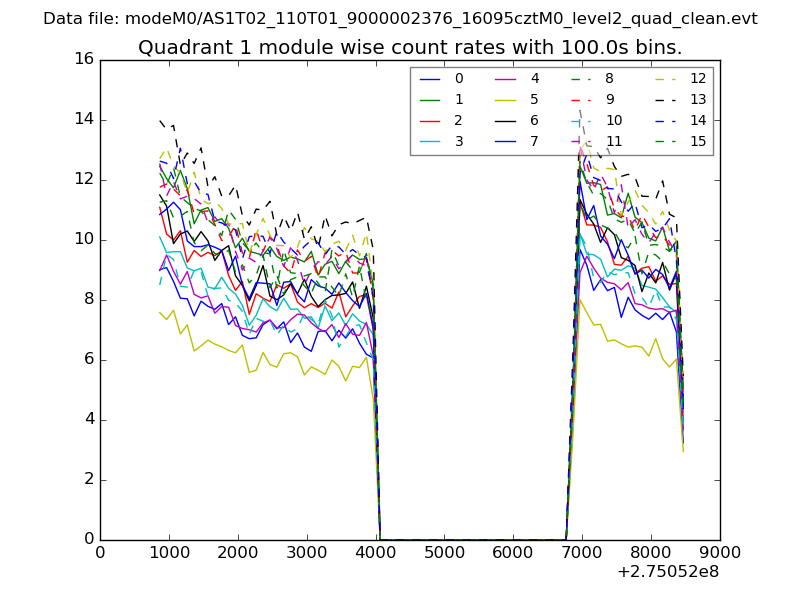

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

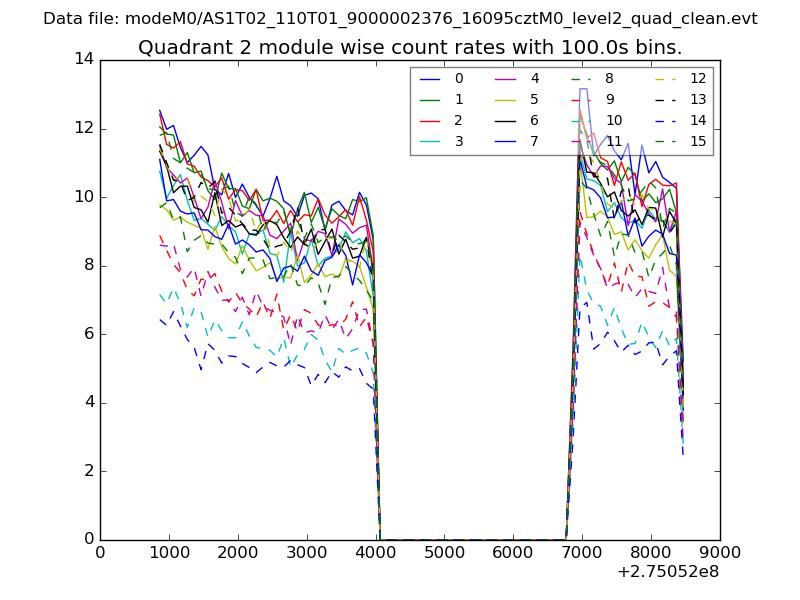

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

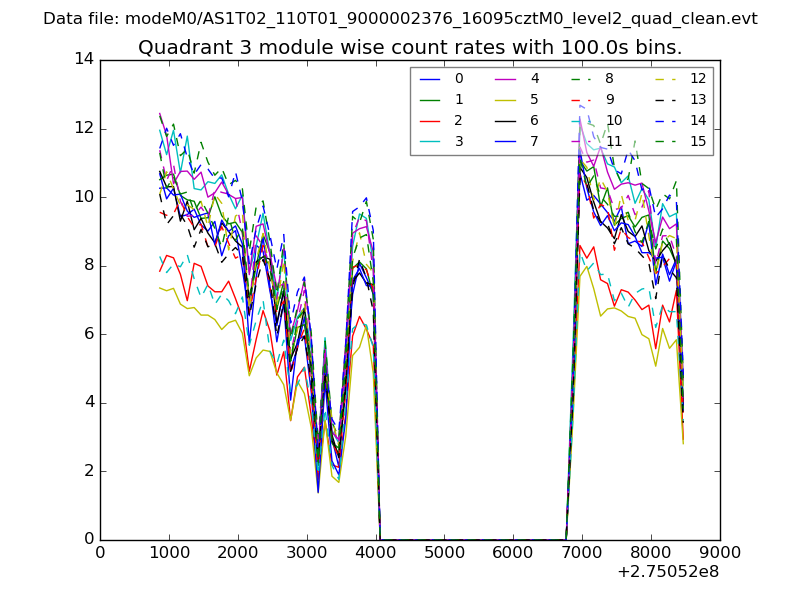

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

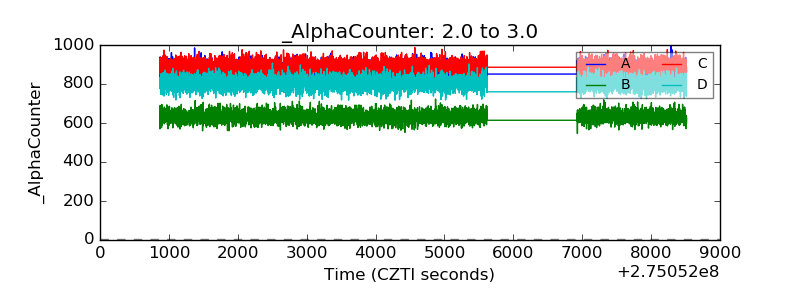

| Alpha Counter |  |

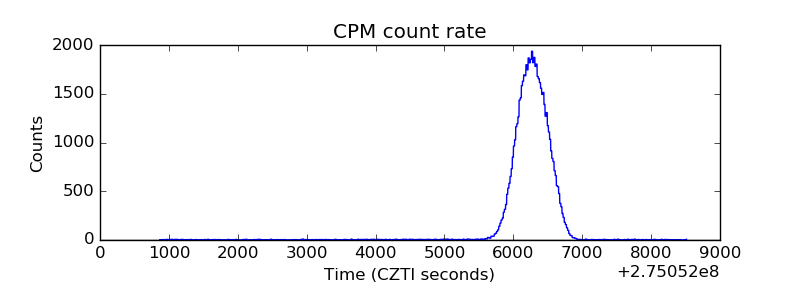

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

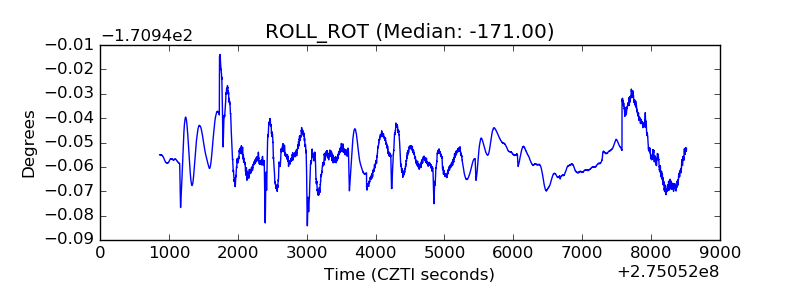

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

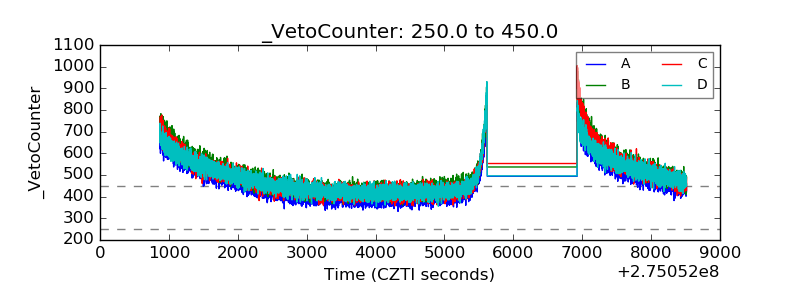

| Veto Counter |  |
