| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_110T01_9000002376_16098cztM0_level2.evt | modeM0/AS1T02_110T01_9000002376_16098cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,268,480 | 86,837,760 |
| Size | 531.5 MB | 82.8 MB |
| Events in quadrant A | 3,066,754 | 589,322 |
| Events in quadrant B | 3,736,400 | 584,603 |
| Events in quadrant C | 3,144,409 | 558,529 |
| Events in quadrant D | 6,481,758 | 436,774 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13549 | 3 |
| B | 0 | 15380 | 2 |
| C | 0 | 13561 | 2 |
| D | 0 | 23860 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6594 | 16 | 0.242645% |
| B | 6594 | 70 | 1.061571% |
| C | 6594 | 44 | 0.667273% |
| D | 6594 | 1530 | 23.202912% |

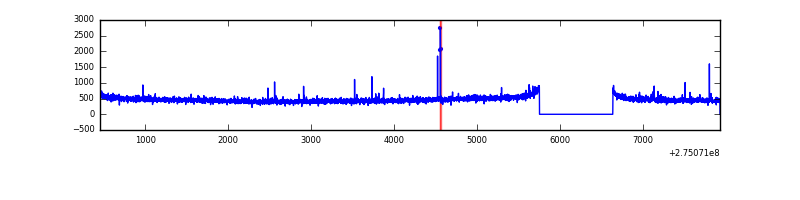

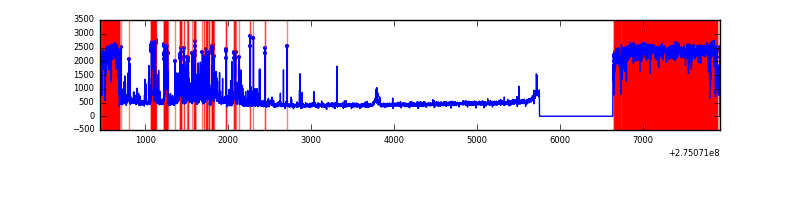

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6595 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7480 | 6596 | 41 | 41 | 0.55% | 0.62% |  |
| C | 7480 | 6595 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7480 | 6596 | 1434 | 1434 | 19.17% | 21.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 17656 | 105.65 | 787 | 770 | 159.8 |
| A | 9 | 143 | 9949 | 57.43 | 787 | 770 | 159.8 |
| A | 0 | 226 | 7122 | 39.74 | 787 | 770 | 159.8 |
| B | 0 | 189 | 226151 | 1496.16 | 789 | 769 | 150.6 |
| B | 0 | 85 | 110272 | 726.92 | 789 | 769 | 150.6 |
| B | 7 | 220 | 110062 | 725.53 | 789 | 769 | 150.6 |
| C | 14 | 238 | 117235 | 652.96 | 757 | 763 | 178.4 |
| C | 3 | 233 | 61160 | 338.6 | 757 | 763 | 178.4 |
| C | 0 | 207 | 6886 | 34.33 | 757 | 763 | 178.4 |
| D | 7 | 38 | 3550163 | 21913.18 | 667 | 649 | 162.0 |
| D | 12 | 218 | 293554 | 1808.27 | 667 | 649 | 162.0 |
| D | 2 | 33 | 40036 | 243.16 | 667 | 649 | 162.0 |

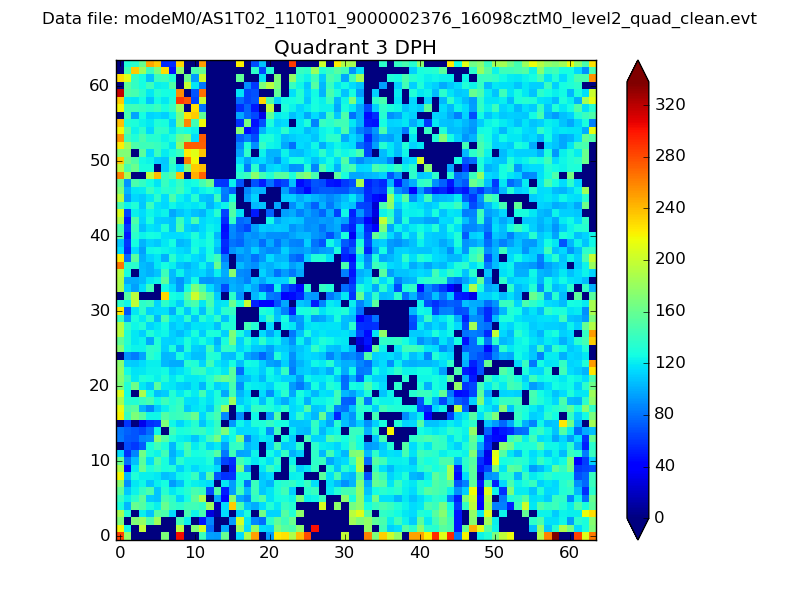

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

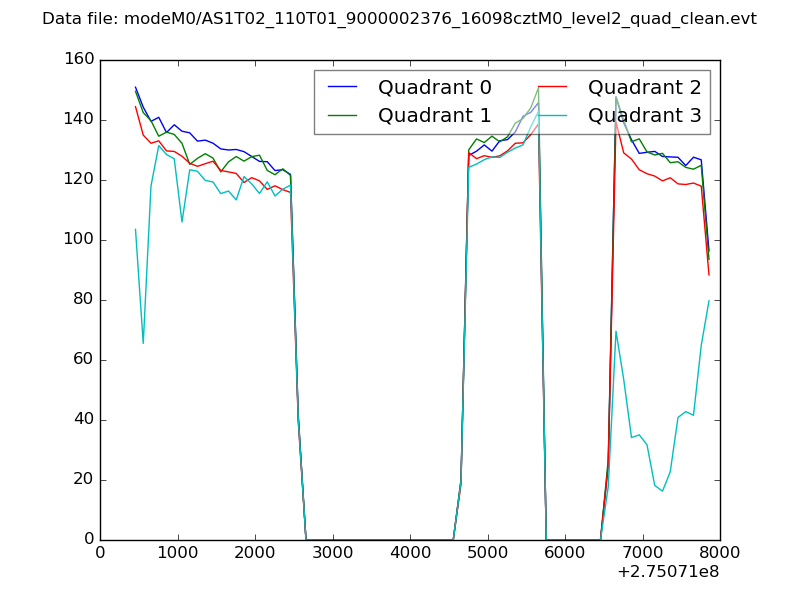

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

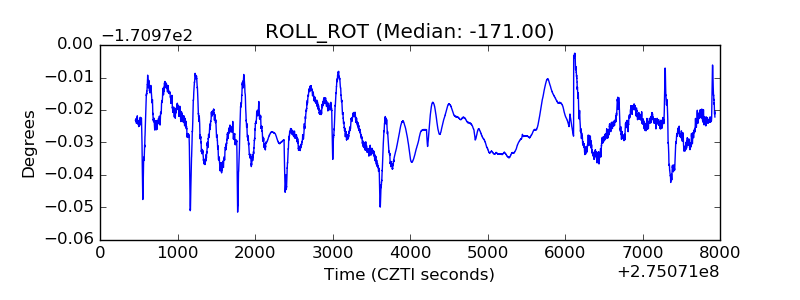

| _ROLL_ROT |  |

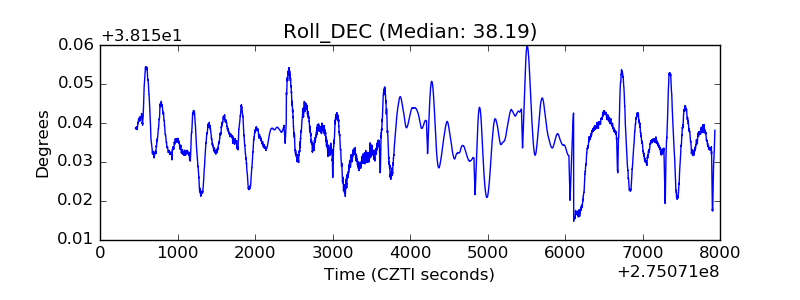

| _Roll_DEC |  |

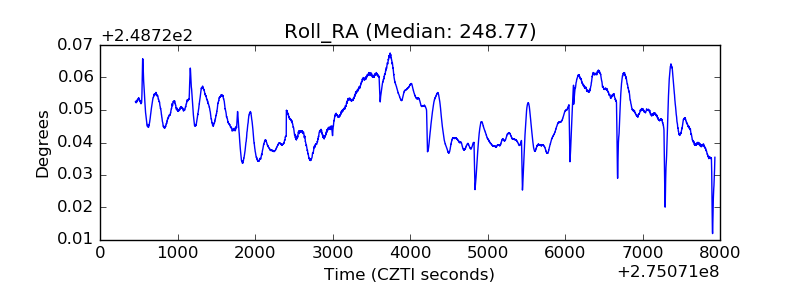

| _Roll_RA |  |
| Veto Counter |  |
