| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_209T01_9000002378_16111cztM0_level2.evt | modeM0/AS1A04_209T01_9000002378_16111cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,240,960 | 86,535,360 |
| Size | 469.4 MB | 82.5 MB |
| Events in quadrant A | 3,670,010 | 548,443 |
| Events in quadrant B | 3,449,385 | 560,137 |
| Events in quadrant C | 3,704,523 | 534,821 |
| Events in quadrant D | 3,652,377 | 533,786 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14975 | 3 |
| B | 0 | 14313 | 2 |
| C | 0 | 15081 | 2 |
| D | 0 | 14919 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6355 | 179 | 2.816680% |
| B | 6355 | 101 | 1.589300% |
| C | 6355 | 190 | 2.989772% |
| D | 6355 | 168 | 2.643588% |

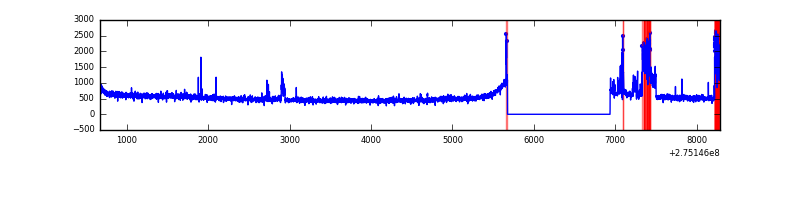

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 6355 | 66 | 66 | 0.87% | 1.04% |  |
| B | 7616 | 6356 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7616 | 6356 | 17 | 17 | 0.22% | 0.27% |  |
| D | 7616 | 6356 | 44 | 44 | 0.58% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 390207 | 2317.53 | 846 | 832 | 168.0 |
| A | 15 | 239 | 22214 | 127.26 | 846 | 832 | 168.0 |
| A | 0 | 226 | 7560 | 40.04 | 846 | 832 | 168.0 |
| B | 0 | 244 | 38411 | 233.56 | 850 | 829 | 160.9 |
| B | 0 | 189 | 30649 | 185.32 | 850 | 829 | 160.9 |
| B | 0 | 190 | 26512 | 159.61 | 850 | 829 | 160.9 |
| C | 9 | 236 | 340255 | 1777.27 | 819 | 827 | 191.0 |
| C | 14 | 238 | 126821 | 659.71 | 819 | 827 | 191.0 |
| C | 3 | 233 | 39265 | 201.26 | 819 | 827 | 191.0 |
| D | 15 | 0 | 252087 | 1242.99 | 834 | 810 | 202.2 |
| D | 1 | 52 | 231193 | 1139.63 | 834 | 810 | 202.2 |
| D | 13 | 172 | 22845 | 109.0 | 834 | 810 | 202.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

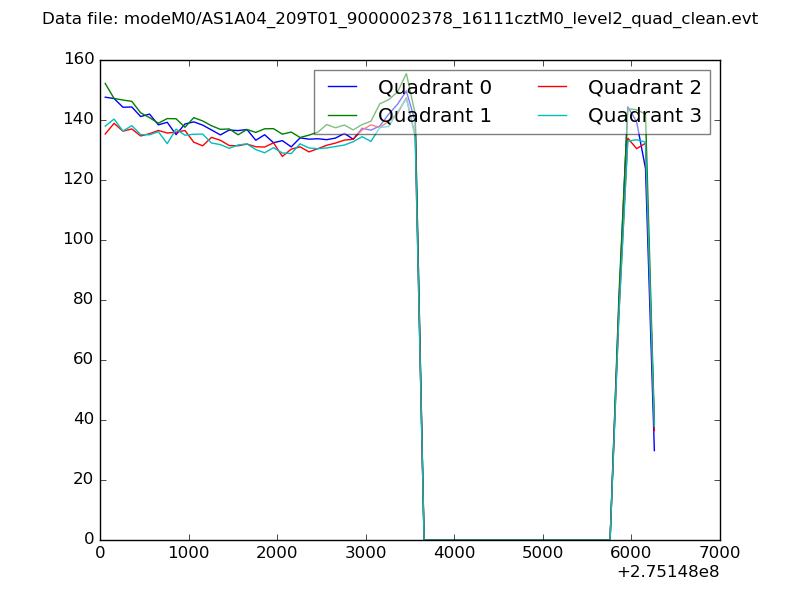

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

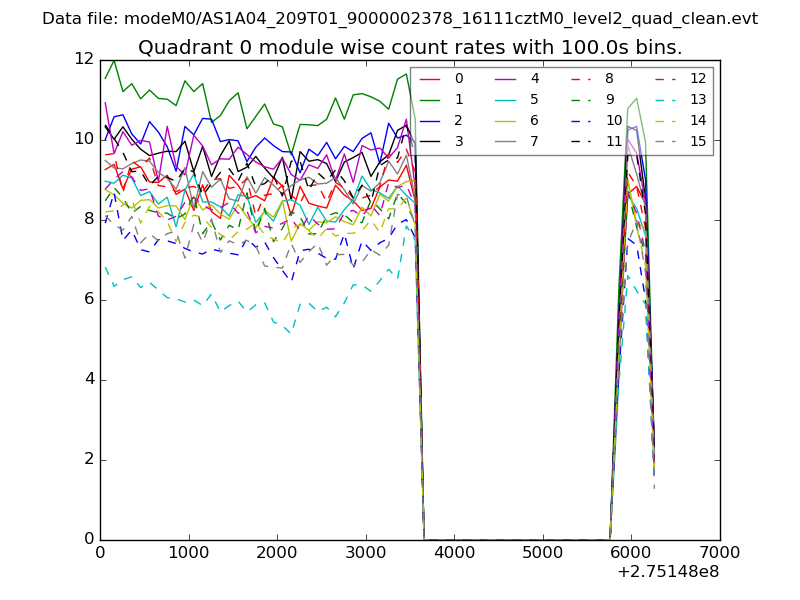

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

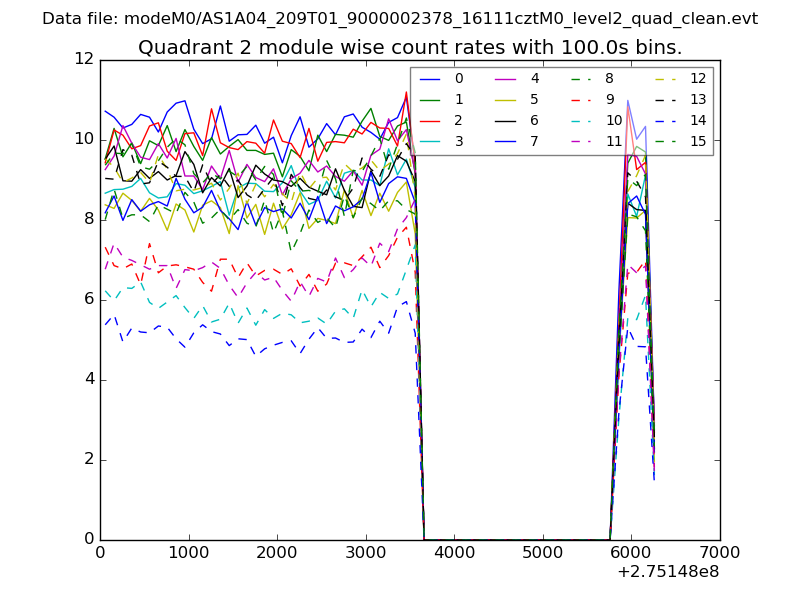

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

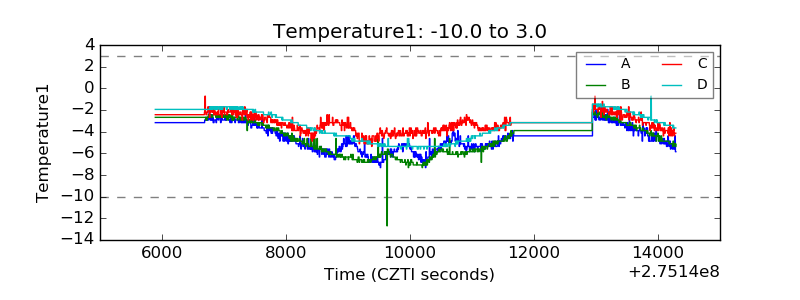

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

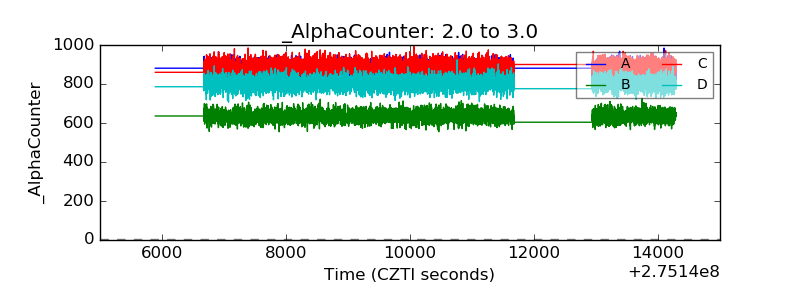

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

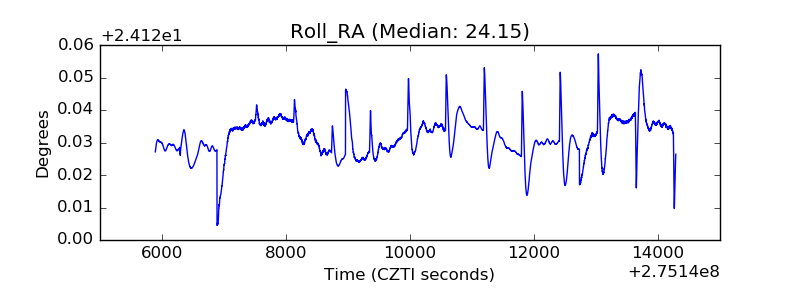

| _Roll_RA |  |
| Veto Counter |  |
