| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_094T01_9000002380_16121cztM0_level2.evt | modeM0/AS1T02_094T01_9000002380_16121cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,275,200 | 85,970,880 |
| Size | 500.0 MB | 82.0 MB |
| Events in quadrant A | 3,398,580 | 554,296 |
| Events in quadrant B | 3,505,802 | 556,477 |
| Events in quadrant C | 3,273,146 | 525,798 |
| Events in quadrant D | 5,253,087 | 507,251 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14130 | 3 |
| B | 0 | 14414 | 2 |
| C | 0 | 13839 | 2 |
| D | 0 | 20016 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6588 | 126 | 1.912568% |
| B | 6588 | 150 | 2.276867% |
| C | 6588 | 135 | 2.049180% |
| D | 6588 | 393 | 5.965392% |

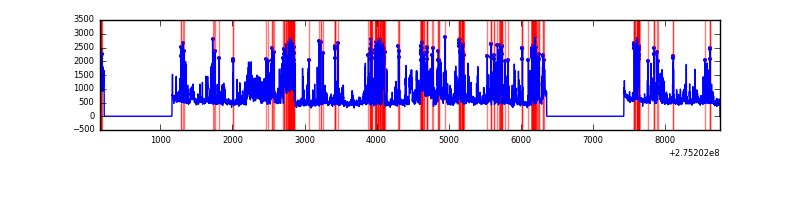

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

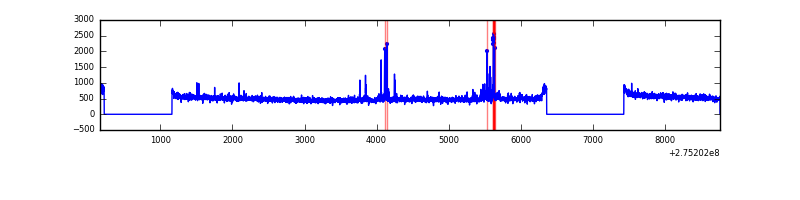

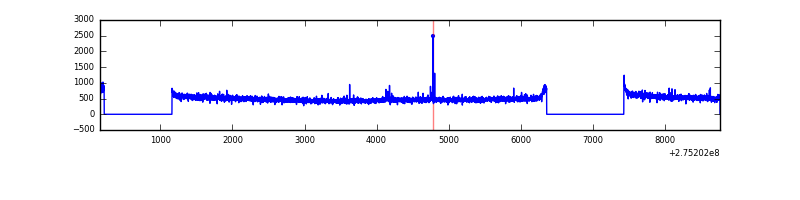

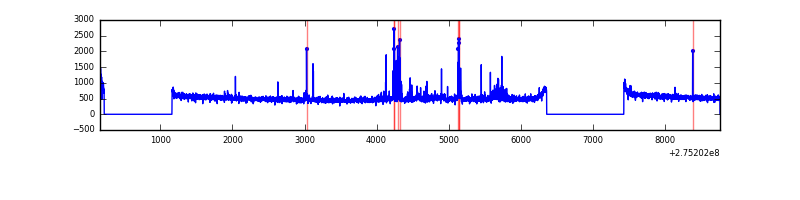

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8599 | 6589 | 12 | 12 | 0.14% | 0.18% |  |
| B | 8599 | 6589 | 9 | 9 | 0.10% | 0.14% |  |
| C | 8599 | 6589 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8599 | 6589 | 267 | 267 | 3.11% | 4.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 83928 | 485.89 | 846 | 829 | 171.0 |
| A | 11 | 29 | 30190 | 171.67 | 846 | 829 | 171.0 |
| A | 8 | 247 | 28073 | 159.3 | 846 | 829 | 171.0 |
| B | 0 | 189 | 65282 | 401.46 | 841 | 824 | 160.6 |
| B | 7 | 220 | 64090 | 394.04 | 841 | 824 | 160.6 |
| B | 0 | 197 | 25935 | 156.4 | 841 | 824 | 160.6 |
| C | 14 | 238 | 122590 | 652.63 | 798 | 804 | 186.6 |
| C | 3 | 233 | 22860 | 118.19 | 798 | 804 | 186.6 |
| C | 0 | 207 | 11012 | 54.7 | 798 | 804 | 186.6 |
| D | 1 | 52 | 1219520 | 6279.11 | 799 | 775 | 194.1 |
| D | 5 | 222 | 827280 | 4258.24 | 799 | 775 | 194.1 |
| D | 7 | 38 | 156727 | 803.48 | 799 | 775 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

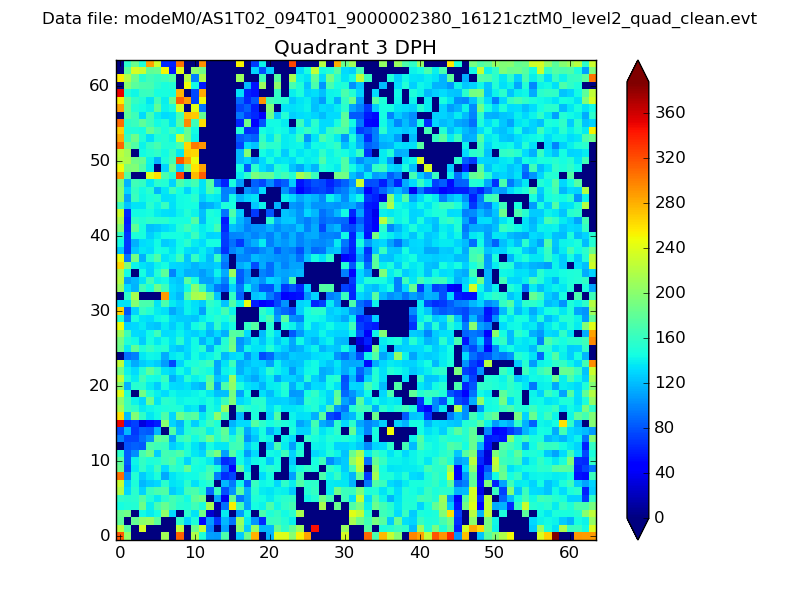

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

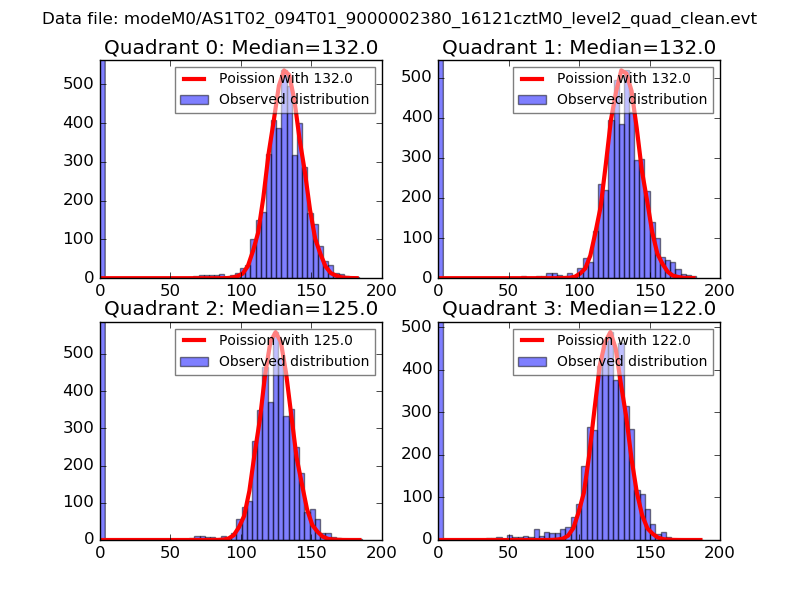

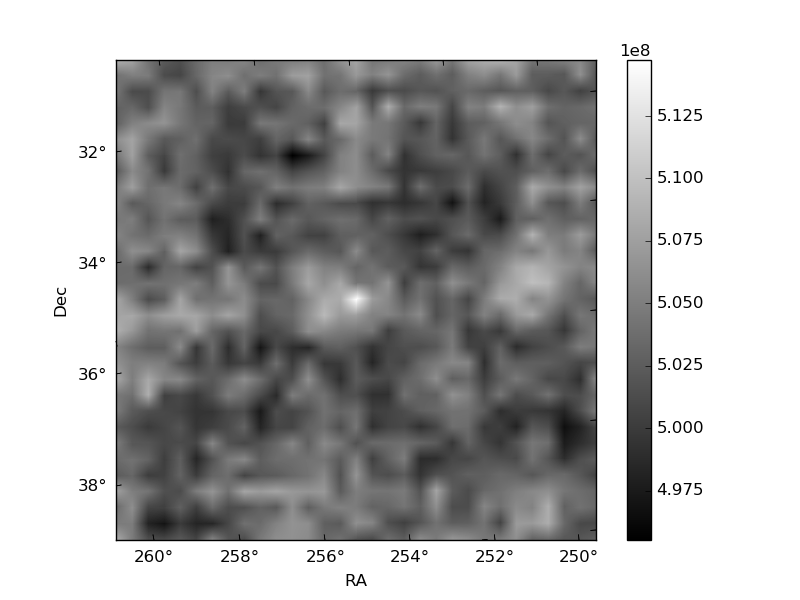

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

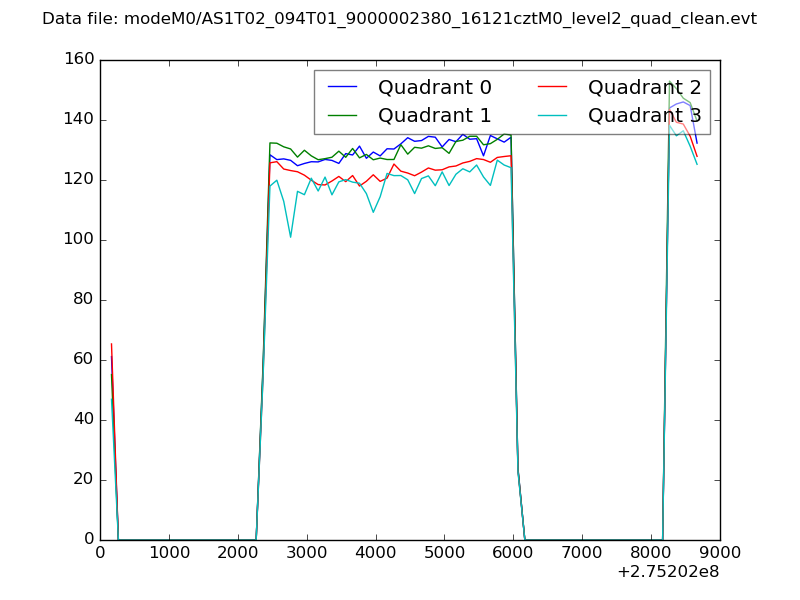

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

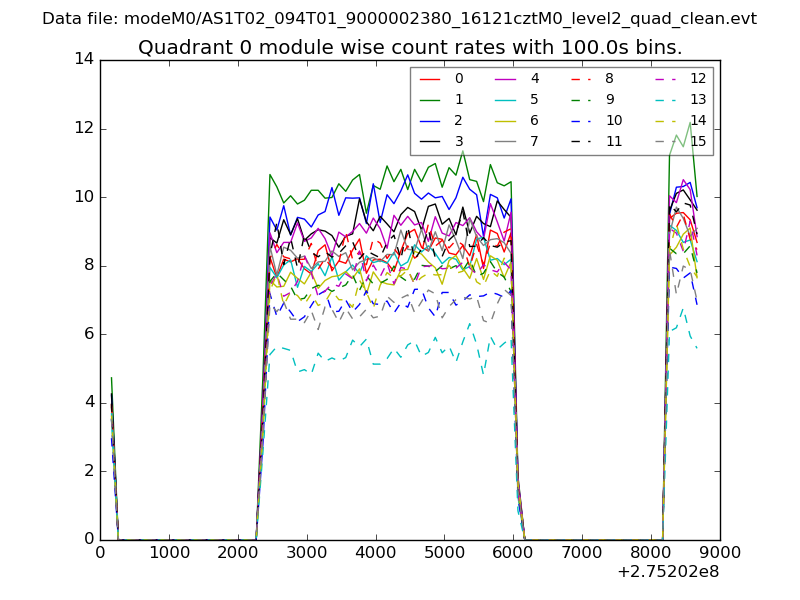

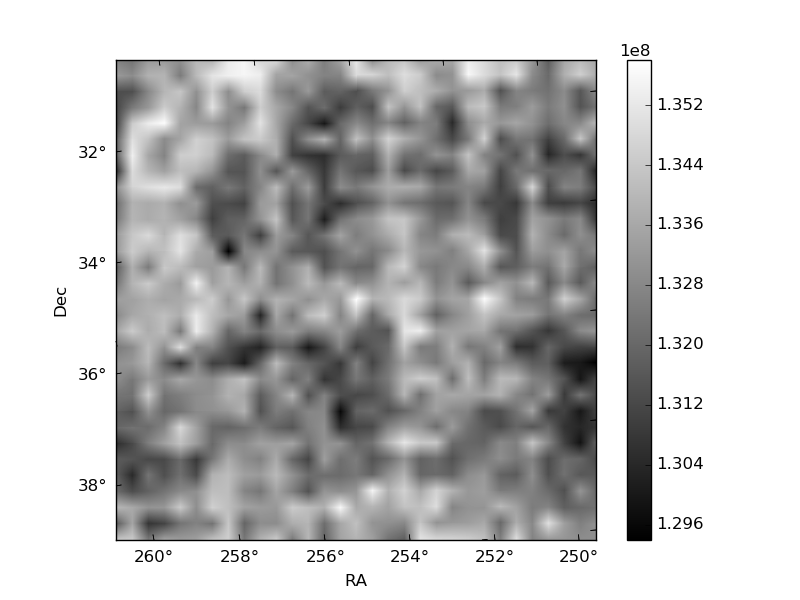

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

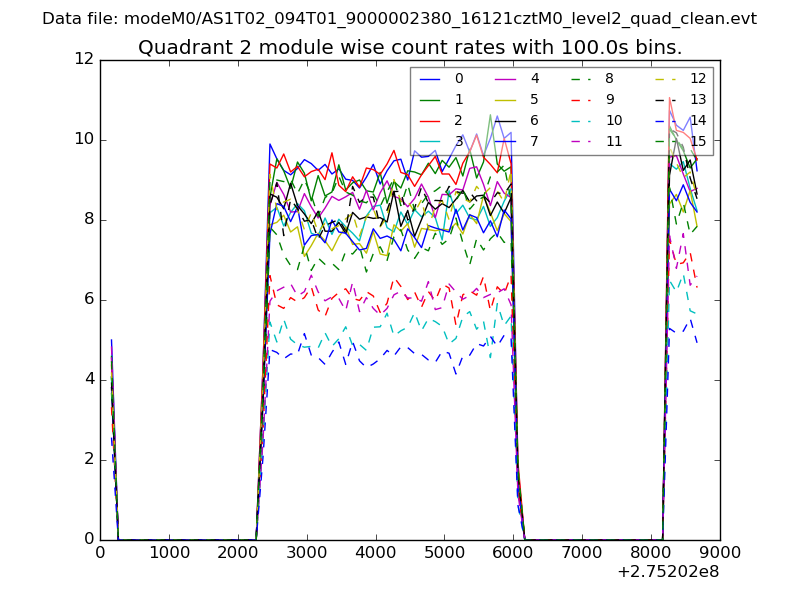

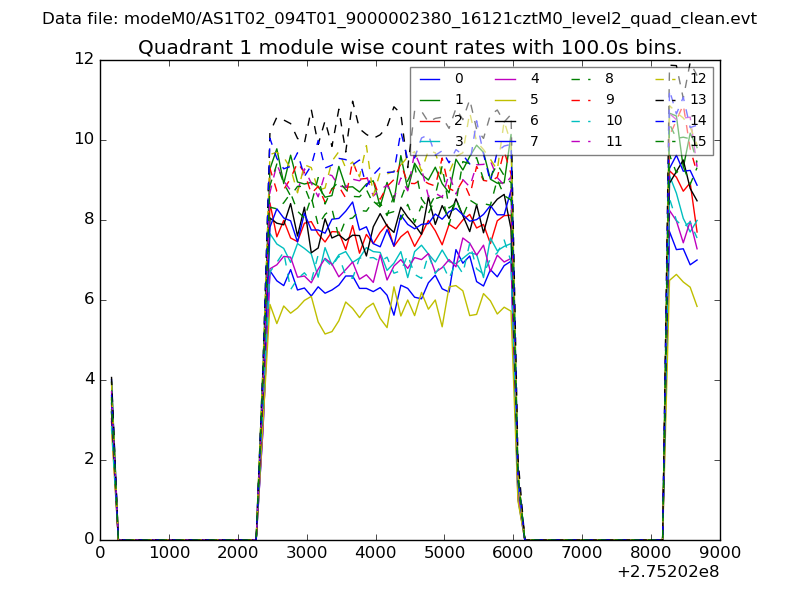

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

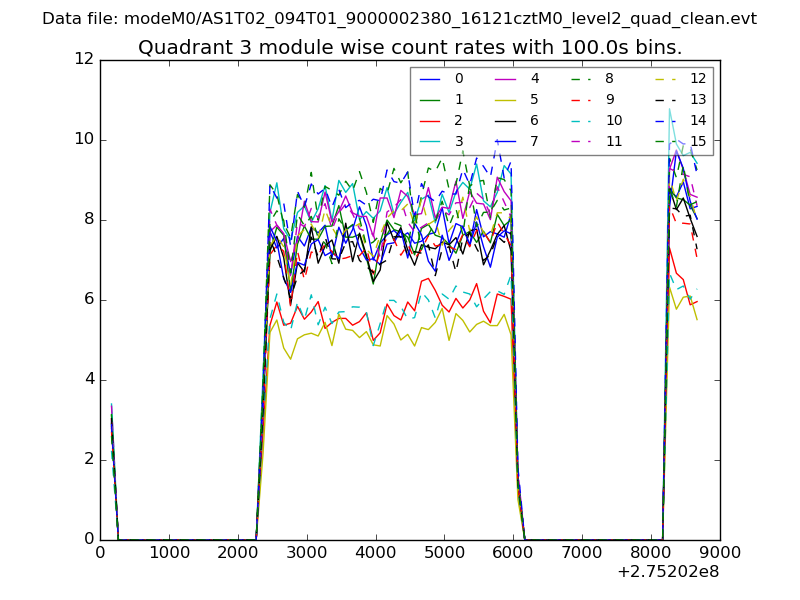

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

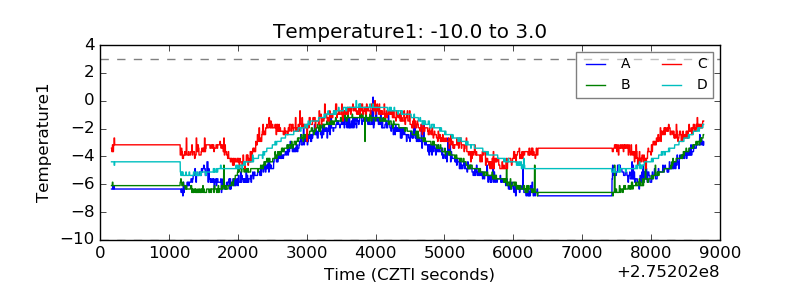

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

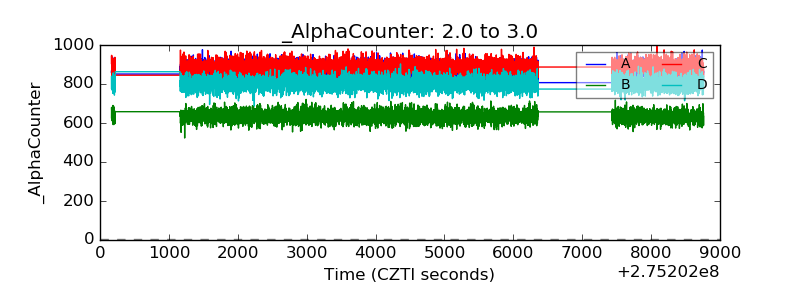

| Alpha Counter |  |

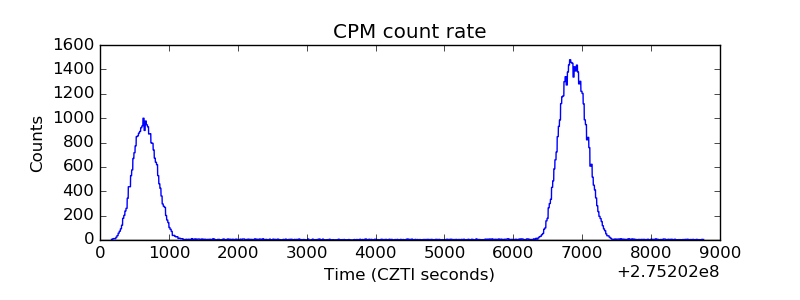

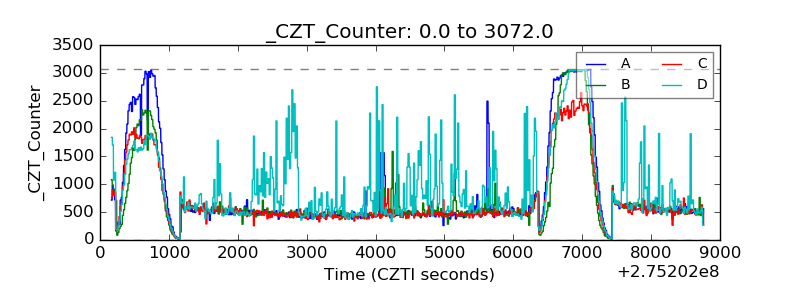

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

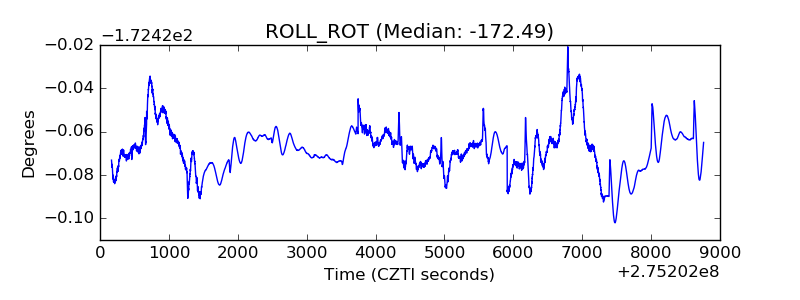

| _ROLL_ROT |  |

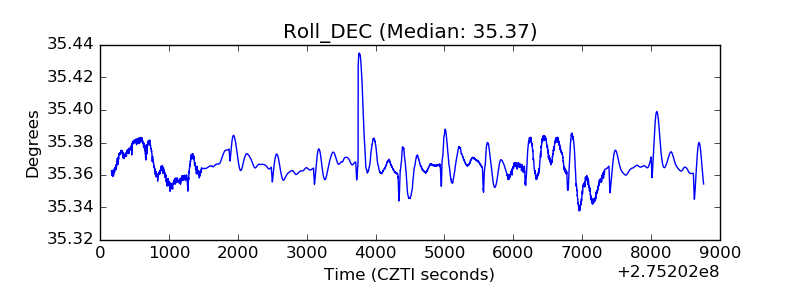

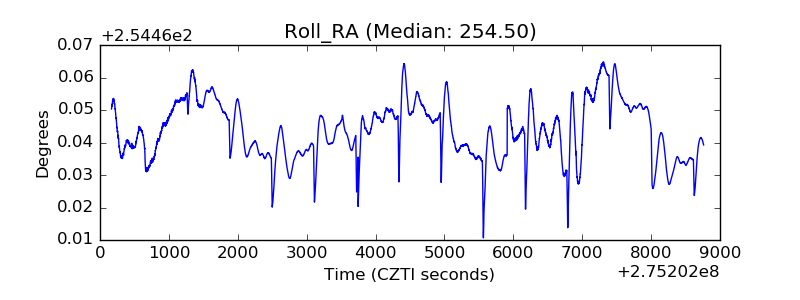

| _Roll_DEC |  |
| _Roll_RA |  |

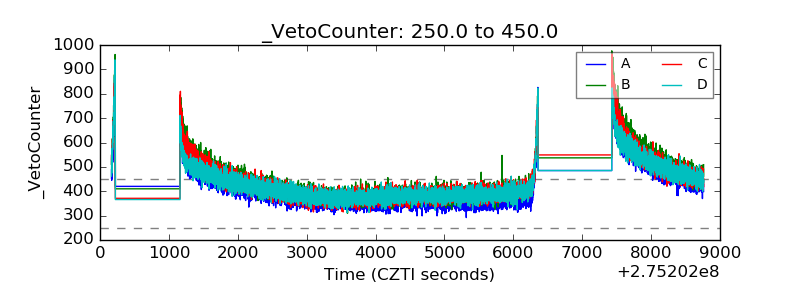

| Veto Counter |  |
