| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_094T01_9000002380_16125cztM0_level2.evt | modeM0/AS1T02_094T01_9000002380_16125cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,649,600 | 97,528,320 |
| Size | 517.5 MB | 93.0 MB |
| Events in quadrant A | 3,854,546 | 661,824 |
| Events in quadrant B | 3,851,504 | 661,020 |
| Events in quadrant C | 3,101,754 | 622,723 |
| Events in quadrant D | 5,205,368 | 574,140 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15612 | 2 |
| B | 0 | 15564 | 1 |
| C | 0 | 12924 | 1 |
| D | 0 | 19568 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6213 | 143 | 2.301626% |
| B | 6213 | 133 | 2.140673% |
| C | 6213 | 104 | 1.673910% |
| D | 6213 | 821 | 13.214228% |

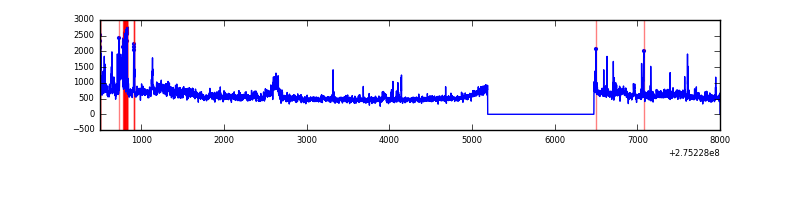

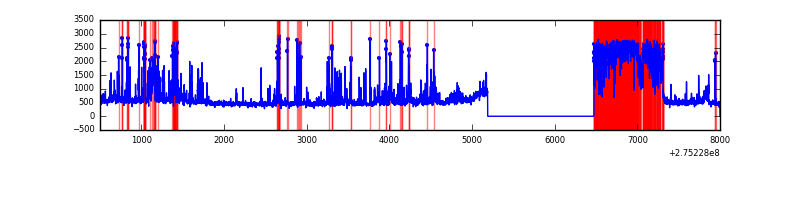

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

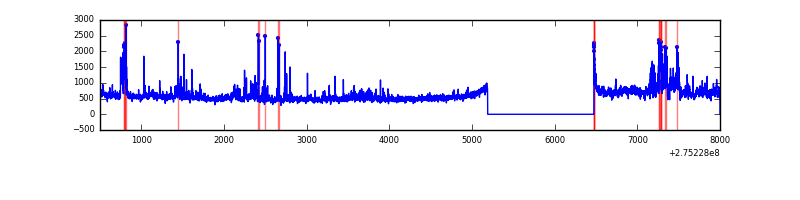

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6214 | 33 | 33 | 0.44% | 0.53% |  |
| B | 7499 | 6214 | 24 | 24 | 0.32% | 0.39% |  |
| C | 7499 | 6214 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7499 | 6214 | 699 | 699 | 9.32% | 11.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 456133 | 2863.42 | 799 | 784 | 159.0 |
| A | 15 | 174 | 245398 | 1538.23 | 799 | 784 | 159.0 |
| A | 15 | 223 | 31612 | 193.86 | 799 | 784 | 159.0 |
| B | 5 | 65 | 335070 | 2248.9 | 792 | 775 | 148.6 |
| B | 7 | 220 | 142759 | 955.17 | 792 | 775 | 148.6 |
| B | 0 | 189 | 104346 | 696.75 | 792 | 775 | 148.6 |
| C | 14 | 238 | 118644 | 671.38 | 755 | 760 | 175.6 |
| C | 3 | 233 | 20583 | 112.9 | 755 | 760 | 175.6 |
| C | 7 | 247 | 11723 | 62.44 | 755 | 760 | 175.6 |
| D | 1 | 52 | 2162791 | 11948.39 | 743 | 722 | 181.0 |
| D | 5 | 222 | 109936 | 603.56 | 743 | 722 | 181.0 |
| D | 10 | 70 | 52675 | 287.11 | 743 | 722 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

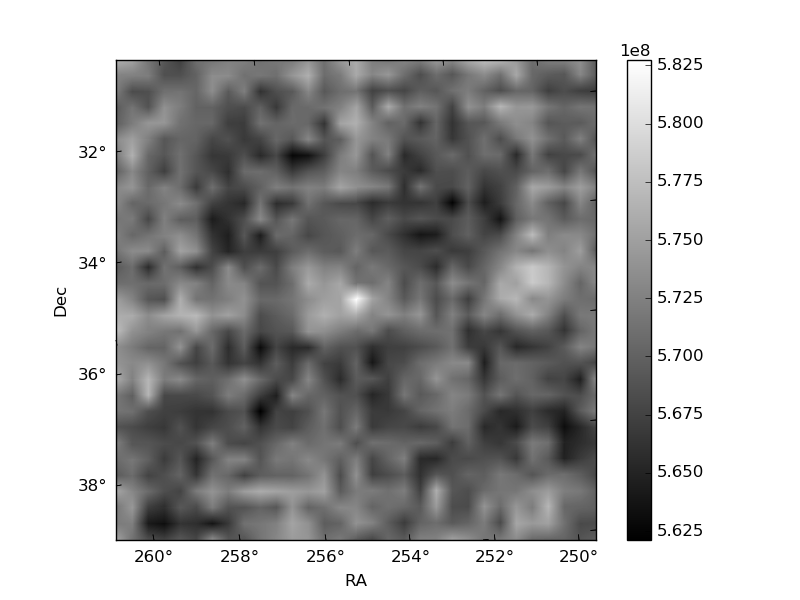

| Plot type | Count rate plots | Images |
|---|---|---|

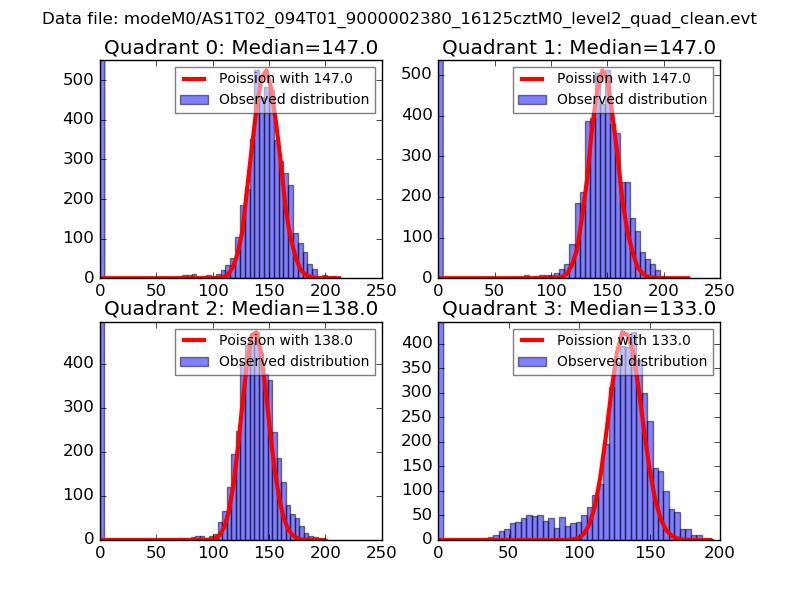

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

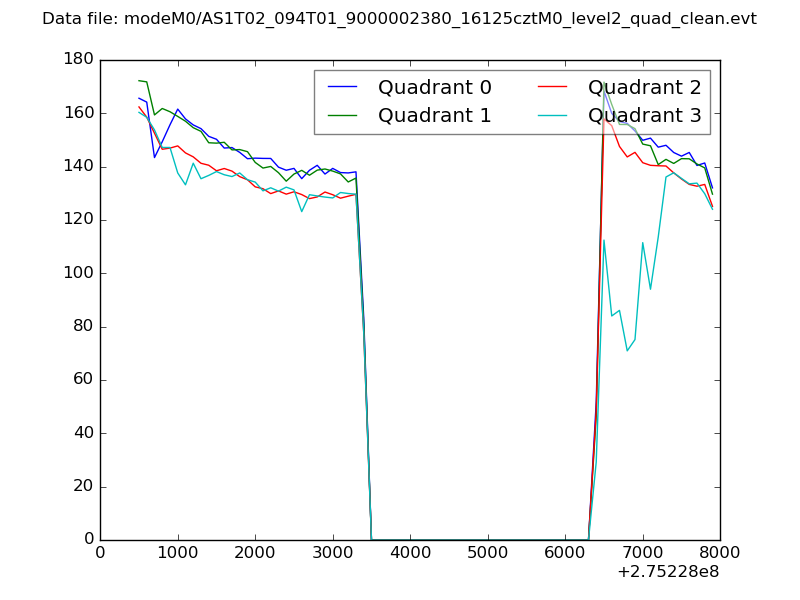

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

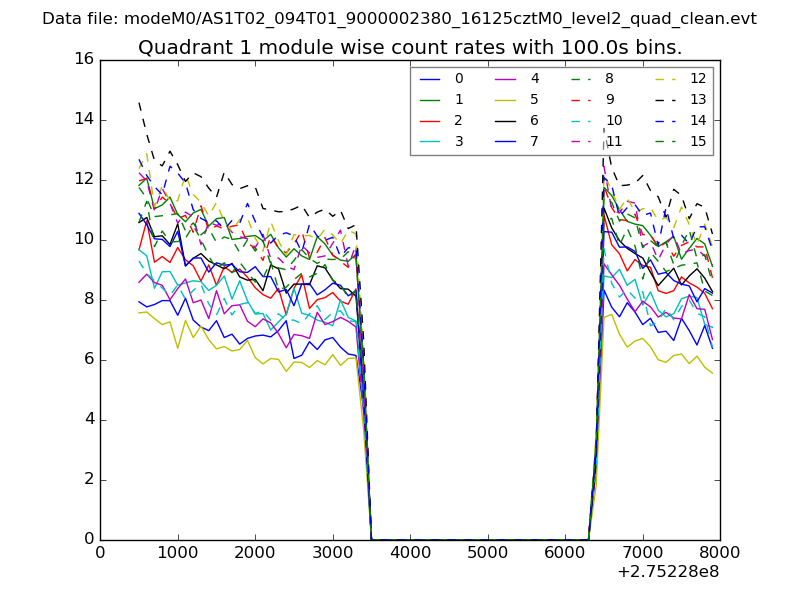

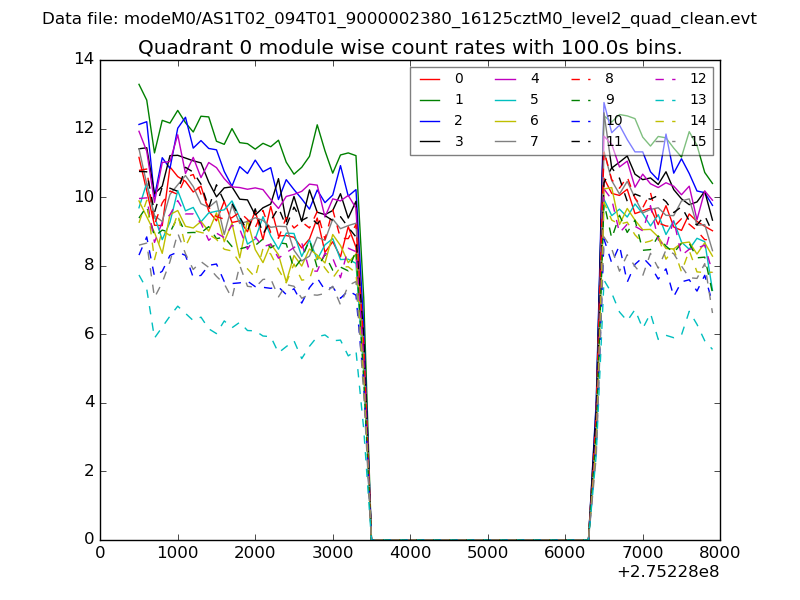

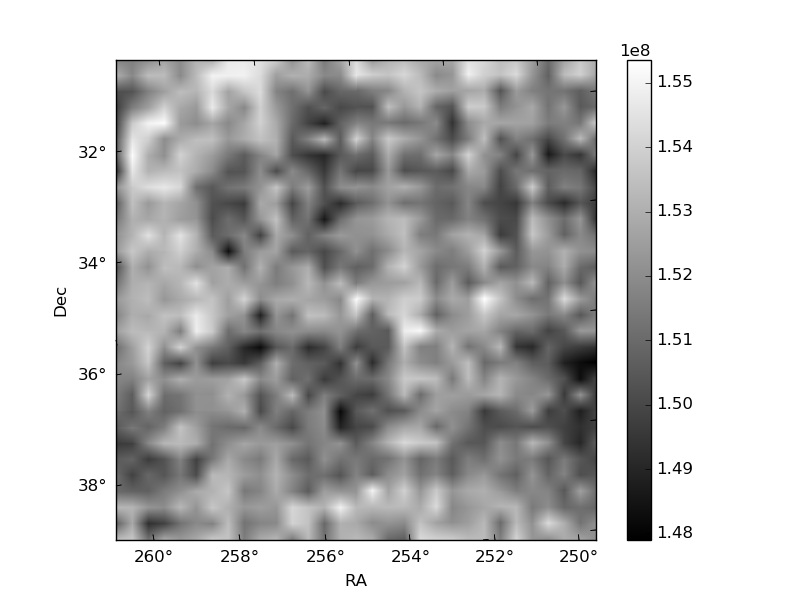

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

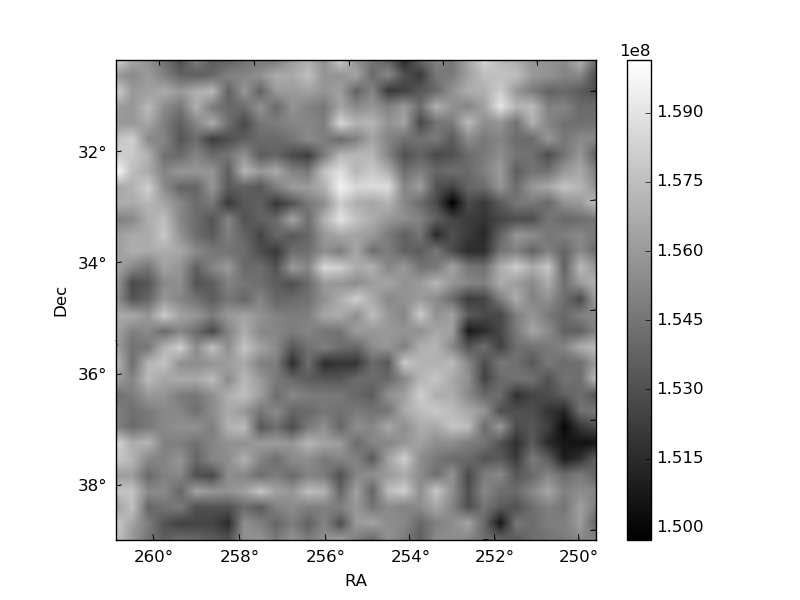

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

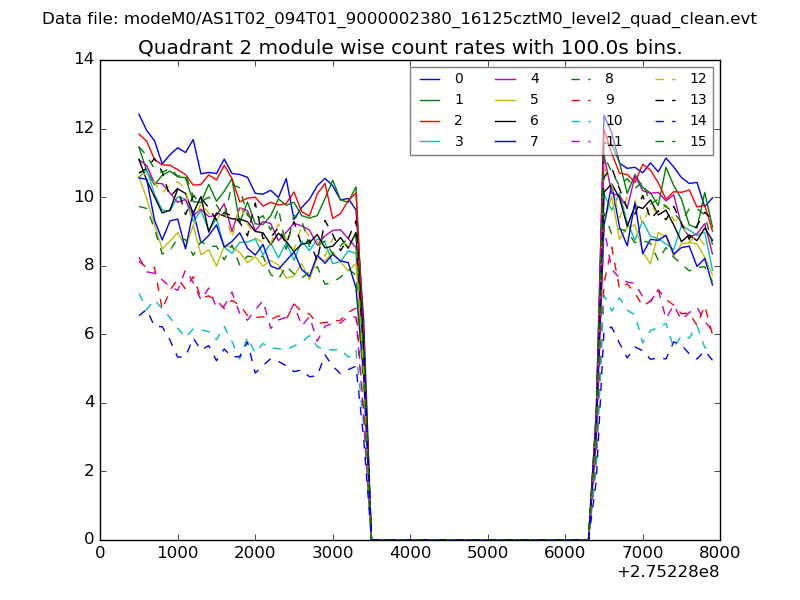

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

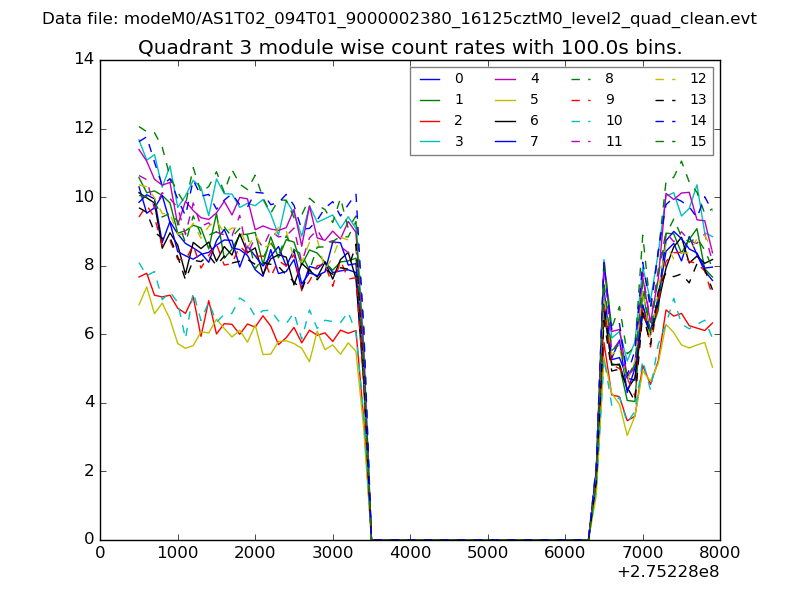

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

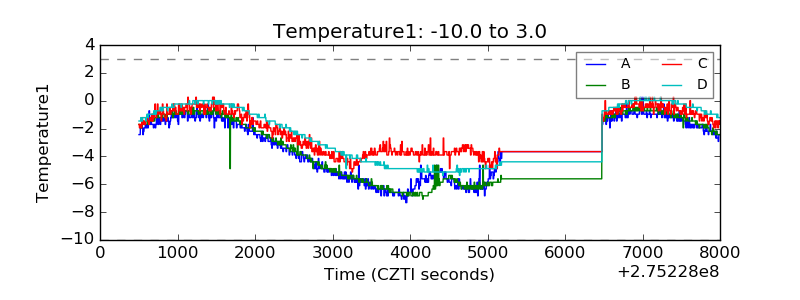

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

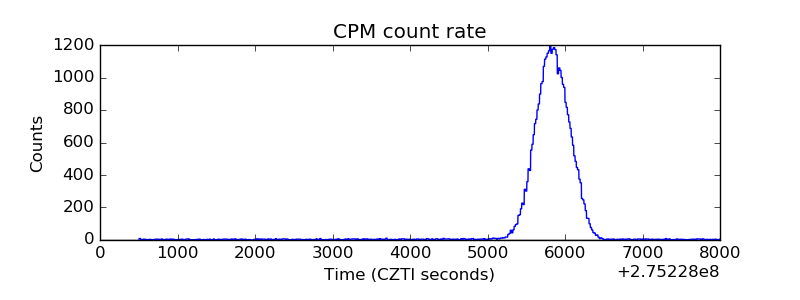

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

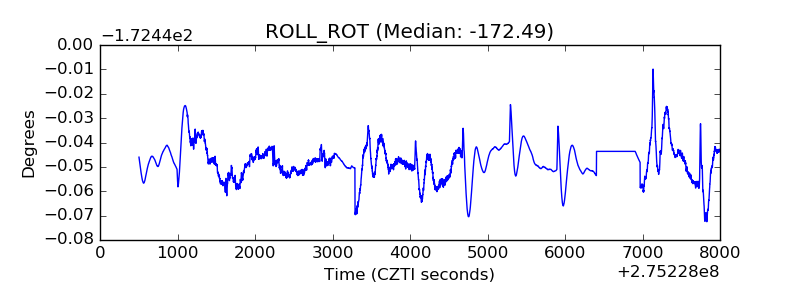

| _ROLL_ROT |  |

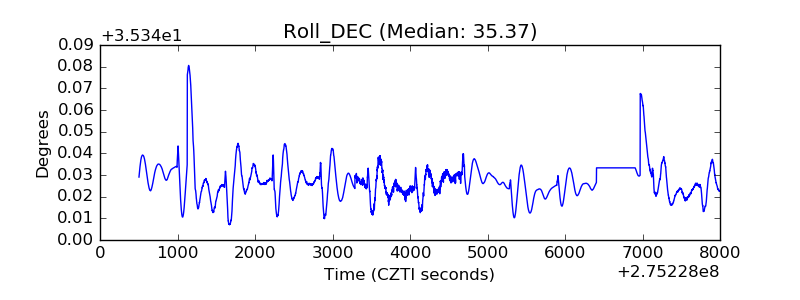

| _Roll_DEC |  |

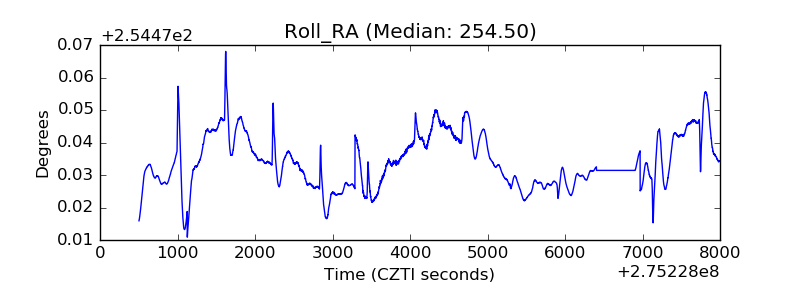

| _Roll_RA |  |

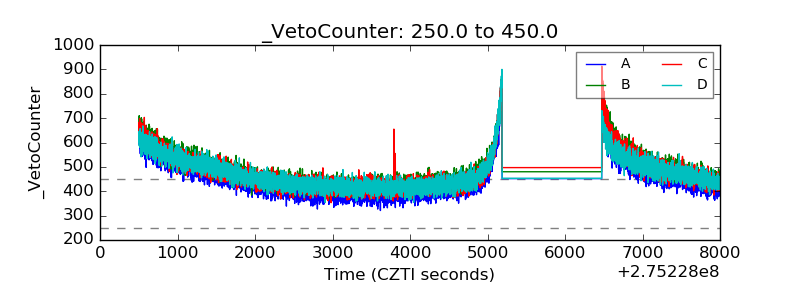

| Veto Counter |  |
