| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_015T04_9000002382_16130cztM0_level2.evt | modeM0/AS1C03_015T04_9000002382_16130cztM0_level2_quad_clean.evt |
| Size (bytes) | 406,373,760 | 107,161,920 |
| Size | 387.5 MB | 102.2 MB |
| Events in quadrant A | 3,192,835 | 713,322 |
| Events in quadrant B | 3,198,350 | 725,568 |
| Events in quadrant C | 2,719,144 | 700,190 |
| Events in quadrant D | 2,795,131 | 693,980 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13719 | 1 |
| B | 0 | 13472 | 1 |
| C | 0 | 12122 | 1 |
| D | 0 | 12791 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5903 | 127 | 2.151448% |
| B | 5903 | 85 | 1.439946% |
| C | 5903 | 35 | 0.592919% |
| D | 5903 | 52 | 0.880908% |

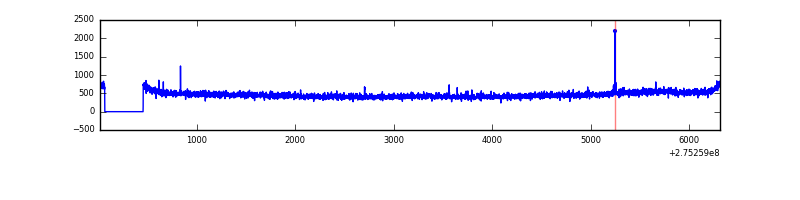

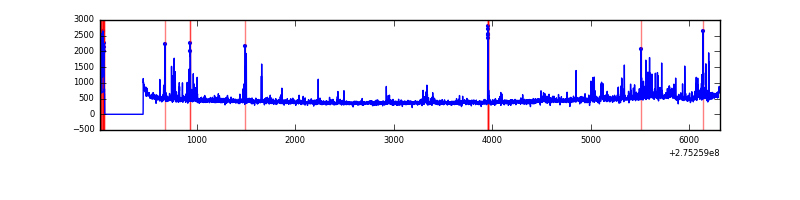

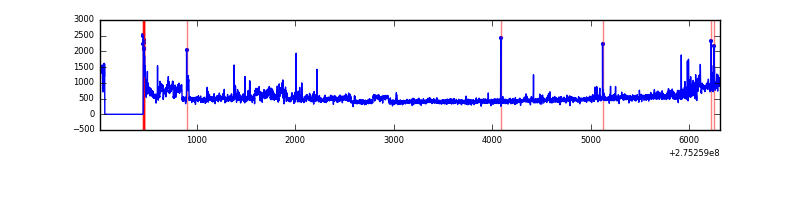

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6293 | 5903 | 68 | 68 | 1.08% | 1.15% |  |
| B | 6293 | 5903 | 13 | 13 | 0.21% | 0.22% |  |
| C | 6293 | 5904 | 1 | 1 | 0.02% | 0.02% |  |
| D | 6293 | 5903 | 25 | 25 | 0.40% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 558456 | 4045.32 | 675 | 658 | 137.9 |
| A | 9 | 143 | 14461 | 100.1 | 675 | 658 | 137.9 |
| A | 8 | 247 | 10680 | 72.68 | 675 | 658 | 137.9 |
| B | 5 | 65 | 363575 | 2811.61 | 678 | 660 | 129.1 |
| B | 0 | 189 | 44208 | 337.38 | 678 | 660 | 129.1 |
| B | 4 | 216 | 35252 | 267.99 | 678 | 660 | 129.1 |
| C | 14 | 238 | 98528 | 641.16 | 652 | 655 | 152.7 |
| C | 3 | 233 | 27119 | 173.36 | 652 | 655 | 152.7 |
| C | 3 | 9 | 20687 | 131.23 | 652 | 655 | 152.7 |
| D | 1 | 52 | 190361 | 1174.84 | 660 | 639 | 161.5 |
| D | 10 | 70 | 62303 | 381.85 | 660 | 639 | 161.5 |
| D | 2 | 234 | 27358 | 165.46 | 660 | 639 | 161.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

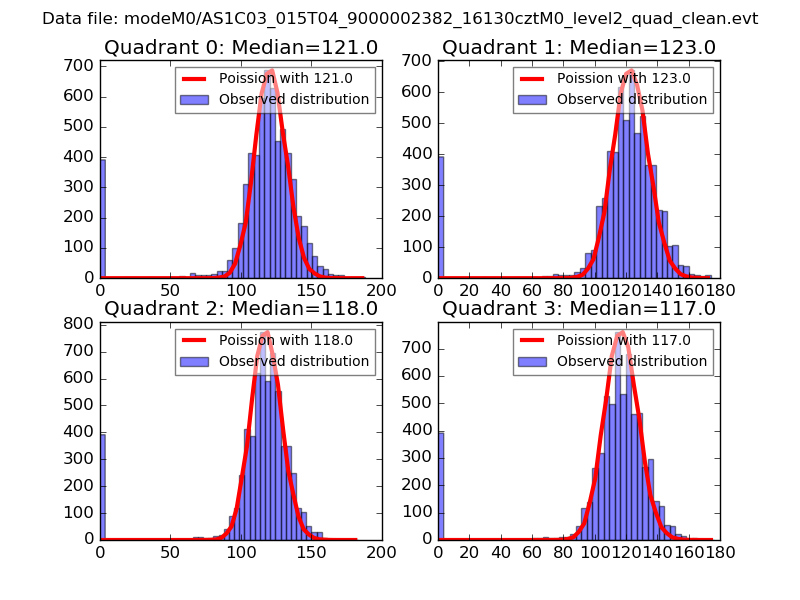

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

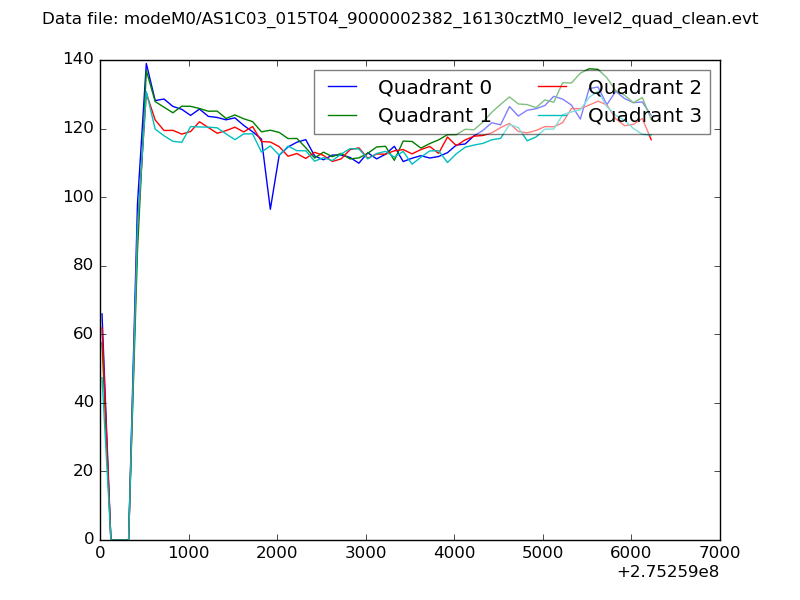

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

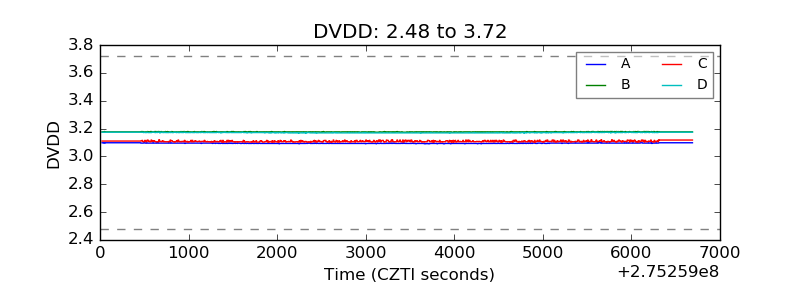

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

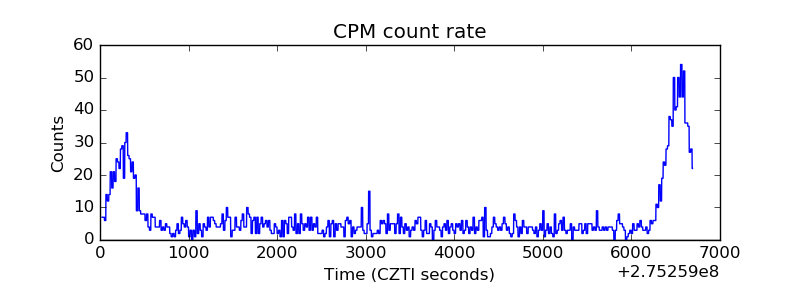

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
