| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_092T01_9000002384_16136cztM0_level2.evt | modeM0/AS1T02_092T01_9000002384_16136cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,549,120 | 88,920,000 |
| Size | 469.7 MB | 84.8 MB |
| Events in quadrant A | 3,619,676 | 576,706 |
| Events in quadrant B | 3,819,822 | 574,780 |
| Events in quadrant C | 3,443,928 | 544,311 |
| Events in quadrant D | 3,588,793 | 540,219 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14731 | 3 |
| B | 0 | 15484 | 2 |
| C | 0 | 14259 | 2 |
| D | 0 | 14767 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6551 | 117 | 1.785987% |
| B | 6551 | 171 | 2.610289% |
| C | 6551 | 118 | 1.801252% |
| D | 6551 | 131 | 1.999695% |

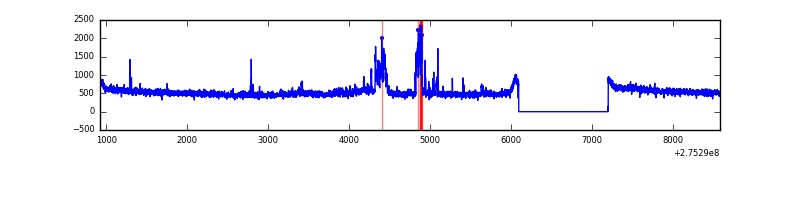

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7657 | 6553 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7657 | 6553 | 25 | 25 | 0.33% | 0.38% |  |
| C | 7657 | 6553 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7657 | 6553 | 71 | 71 | 0.93% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 189137 | 1096.66 | 853 | 837 | 171.7 |
| A | 15 | 223 | 95406 | 550.77 | 853 | 837 | 171.7 |
| A | 0 | 253 | 36539 | 207.93 | 853 | 837 | 171.7 |
| B | 0 | 189 | 118747 | 734.96 | 845 | 826 | 160.4 |
| B | 5 | 65 | 102428 | 633.25 | 845 | 826 | 160.4 |
| B | 4 | 173 | 82046 | 506.22 | 845 | 826 | 160.4 |
| C | 3 | 233 | 174683 | 938.39 | 799 | 805 | 185.3 |
| C | 14 | 238 | 124386 | 666.95 | 799 | 805 | 185.3 |
| C | 0 | 207 | 20444 | 105.99 | 799 | 805 | 185.3 |
| D | 1 | 52 | 443085 | 2210.25 | 818 | 793 | 200.1 |
| D | 2 | 234 | 25145 | 121.69 | 818 | 793 | 200.1 |
| D | 10 | 70 | 16992 | 80.95 | 818 | 793 | 200.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

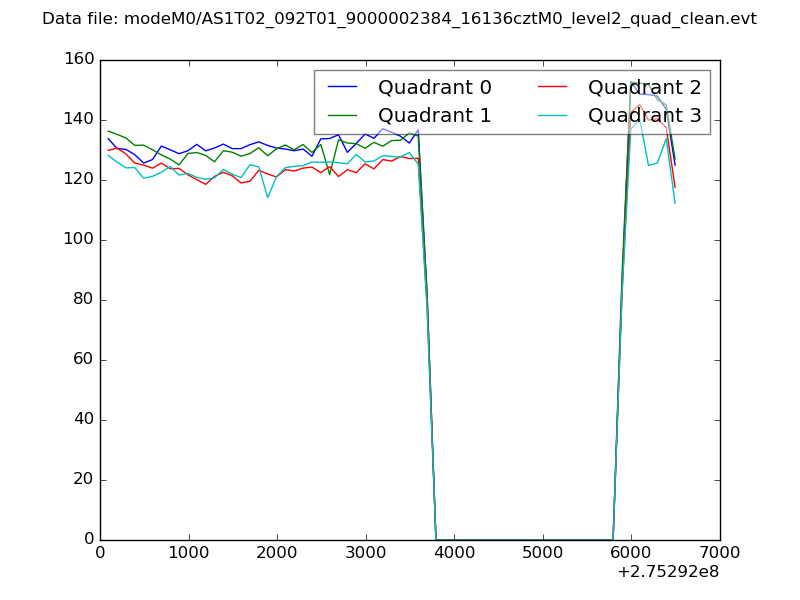

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

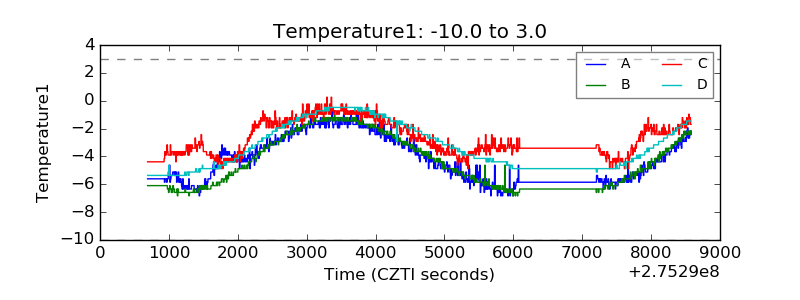

| Temperature 1 |  |

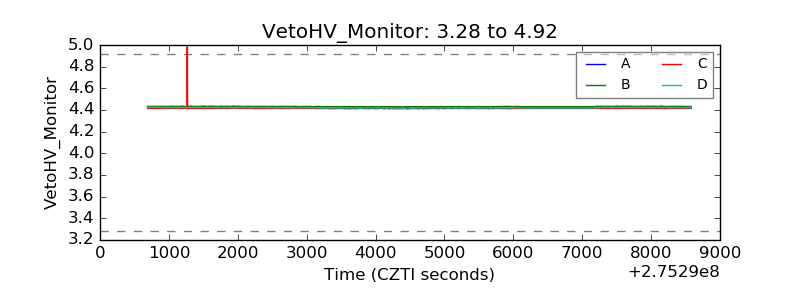

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

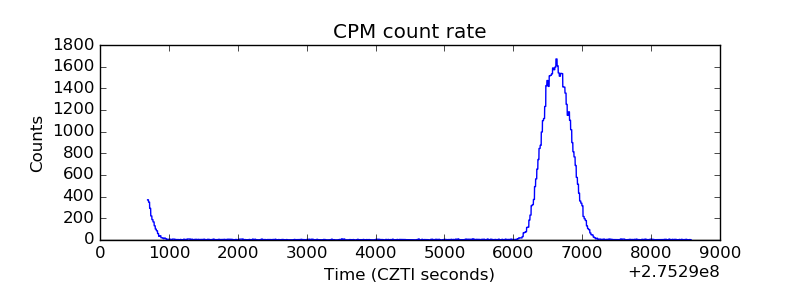

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

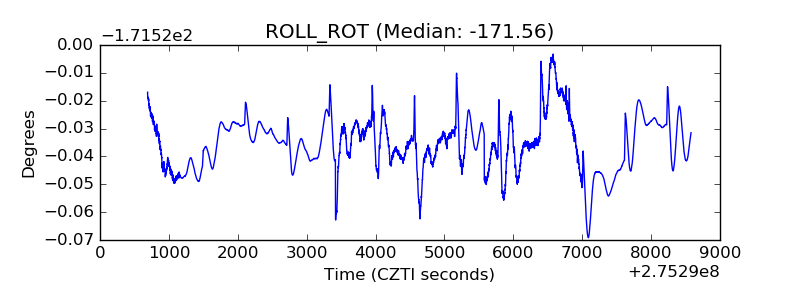

| _ROLL_ROT |  |

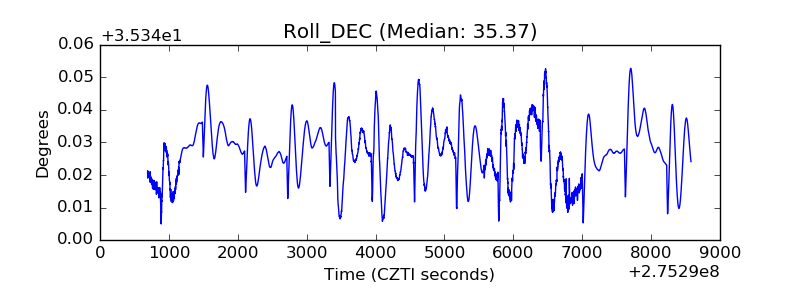

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
