| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16152cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16152cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,685,120 | 75,735,360 |
| Size | 511.8 MB | 72.2 MB |
| Events in quadrant A | 4,080,567 | 472,196 |
| Events in quadrant B | 3,714,522 | 478,009 |
| Events in quadrant C | 3,742,306 | 454,505 |
| Events in quadrant D | 4,286,032 | 445,597 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16307 | 2 |
| B | 0 | 14807 | 1 |
| C | 0 | 15069 | 1 |
| D | 0 | 16711 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 123 | 1.938840% |
| B | 6344 | 134 | 2.112232% |
| C | 6344 | 108 | 1.702396% |
| D | 6344 | 246 | 3.877680% |

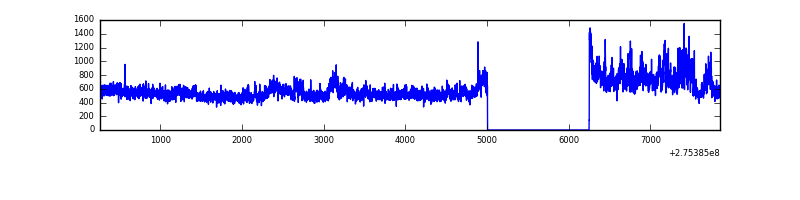

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7590 | 6346 | 25 | 25 | 0.33% | 0.39% |  |
| B | 7590 | 6346 | 44 | 44 | 0.58% | 0.69% |  |
| C | 7590 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7590 | 6346 | 180 | 180 | 2.37% | 2.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 712852 | 4191.2 | 849 | 833 | 169.9 |
| A | 15 | 174 | 74760 | 435.16 | 849 | 833 | 169.9 |
| A | 8 | 247 | 25024 | 142.4 | 849 | 833 | 169.9 |
| B | 5 | 65 | 304749 | 1926.75 | 837 | 820 | 157.7 |
| B | 3 | 209 | 35842 | 222.02 | 837 | 820 | 157.7 |
| B | 0 | 229 | 33197 | 205.25 | 837 | 820 | 157.7 |
| C | 3 | 233 | 481037 | 2603.62 | 799 | 805 | 184.4 |
| C | 14 | 238 | 123930 | 667.53 | 799 | 805 | 184.4 |
| C | 0 | 207 | 14278 | 73.05 | 799 | 805 | 184.4 |
| D | 1 | 52 | 792197 | 3987.13 | 817 | 794 | 198.5 |
| D | 7 | 38 | 341959 | 1718.81 | 817 | 794 | 198.5 |
| D | 2 | 120 | 26501 | 129.51 | 817 | 794 | 198.5 |

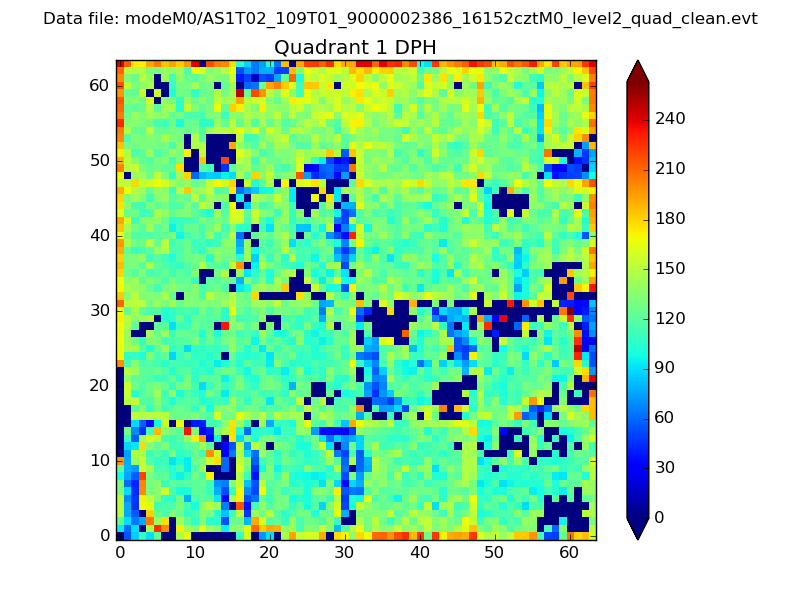

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

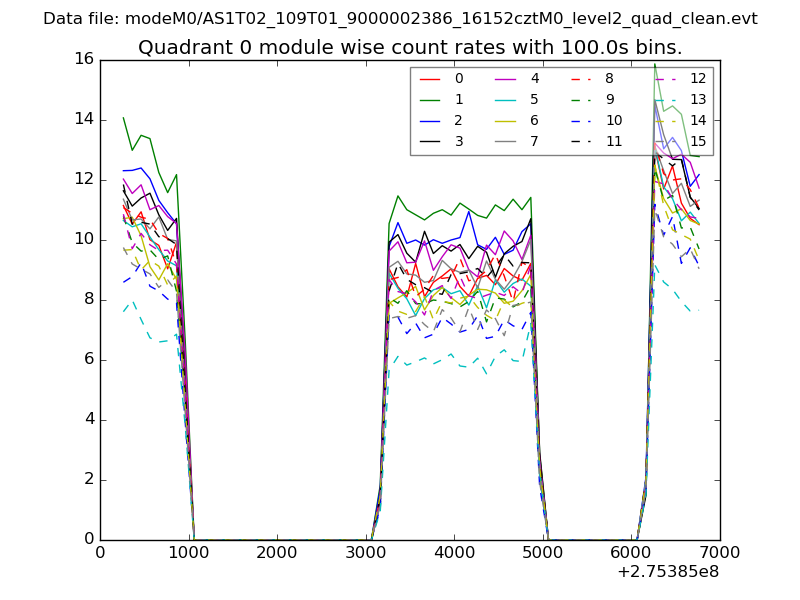

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

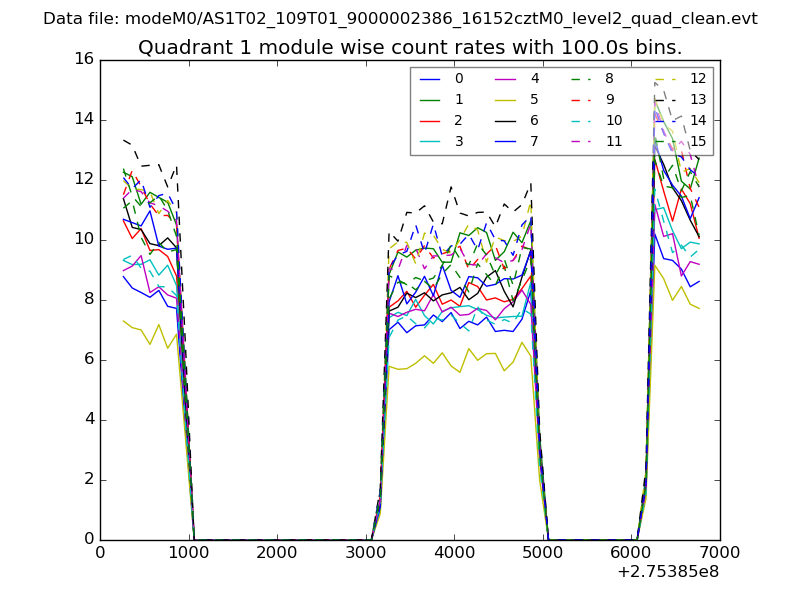

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

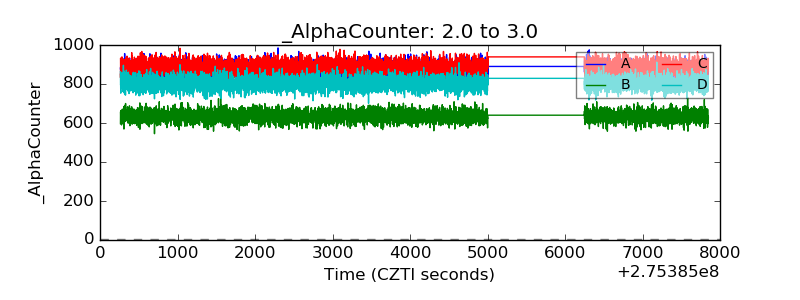

| Alpha Counter |  |
| _CPM_Rate |  |

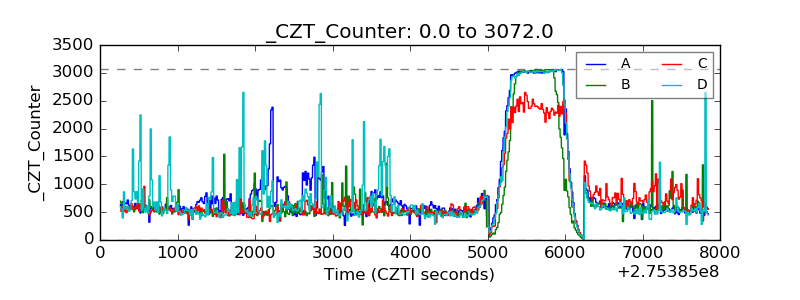

| CZT Counter |  |

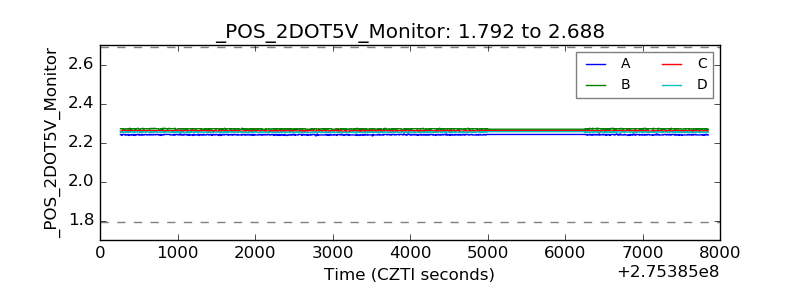

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

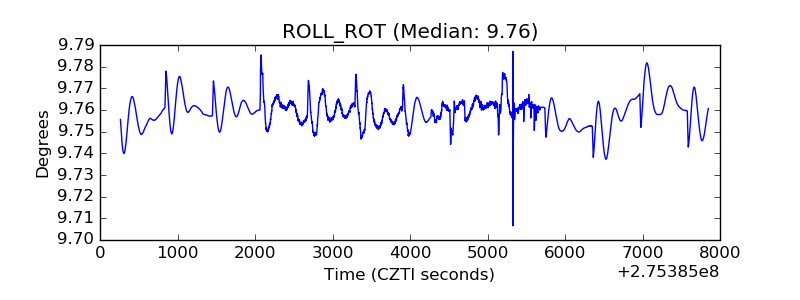

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
