| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16159cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16159cztM0_level2_quad_clean.evt |
| Size (bytes) | 304,848,000 | 60,010,560 |
| Size | 290.7 MB | 57.2 MB |
| Events in quadrant A | 2,115,691 | 374,800 |
| Events in quadrant B | 2,179,957 | 386,469 |
| Events in quadrant C | 2,153,372 | 373,758 |
| Events in quadrant D | 2,469,727 | 359,973 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15159 | 5714 |
| B | 0 | 14213 | 4734 |
| C | 0 | 14043 | 4628 |
| D | 0 | 15618 | 5053 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 137 | 51 |
| B | 0 | 140 | 44 |
| C | 0 | 138 | 38 |
| D | 0 | 138 | 46 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 4 |
| B | 0 | 4 | 4 |
| C | 0 | 4 | 3 |
| D | 0 | 4 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4508 | 22 | 0.488021% |
| B | 4581 | 16 | 0.349269% |
| C | 4614 | 18 | 0.390117% |
| D | 4564 | 74 | 1.621385% |

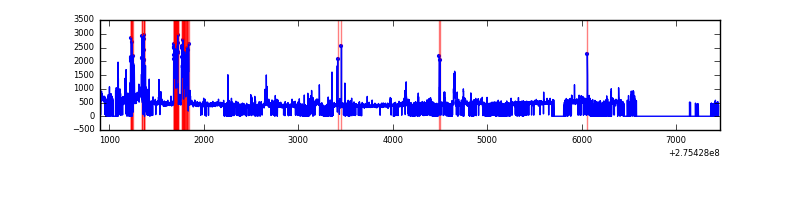

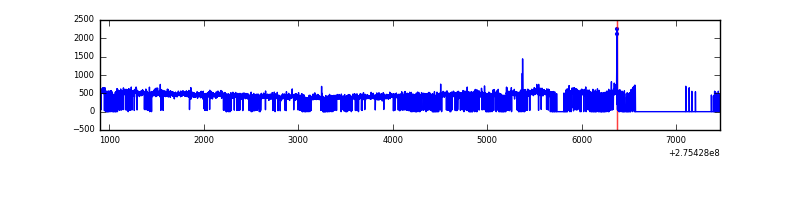

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

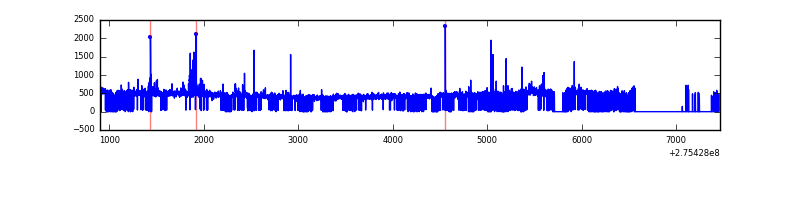

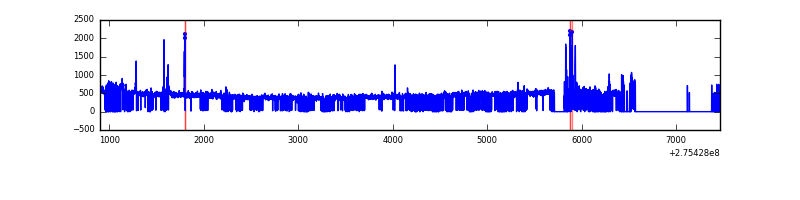

| A | 6553 | 5111 | 5 | 5 | 0.08% | 0.10% |  |
| B | 6552 | 5197 | 3 | 3 | 0.05% | 0.06% |  |
| C | 6562 | 5171 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6547 | 5183 | 70 | 70 | 1.07% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 84498 | 794.37 | 518 | 508 | 105.7 |
| A | 0 | 253 | 20681 | 190.8 | 518 | 508 | 105.7 |
| A | 8 | 247 | 5295 | 45.28 | 518 | 508 | 105.7 |
| B | 4 | 142 | 35156 | 338.03 | 530 | 518 | 102.5 |
| B | 0 | 229 | 20544 | 195.43 | 530 | 518 | 102.5 |
| B | 0 | 189 | 17922 | 169.84 | 530 | 518 | 102.5 |
| C | 14 | 238 | 79291 | 650.24 | 510 | 513 | 121.2 |
| C | 3 | 233 | 69074 | 565.91 | 510 | 513 | 121.2 |
| C | 0 | 207 | 13610 | 108.1 | 510 | 513 | 121.2 |
| D | 1 | 52 | 449679 | 3578.59 | 510 | 496 | 125.5 |
| D | 5 | 222 | 56526 | 446.38 | 510 | 496 | 125.5 |
| D | 10 | 70 | 29950 | 234.66 | 510 | 496 | 125.5 |

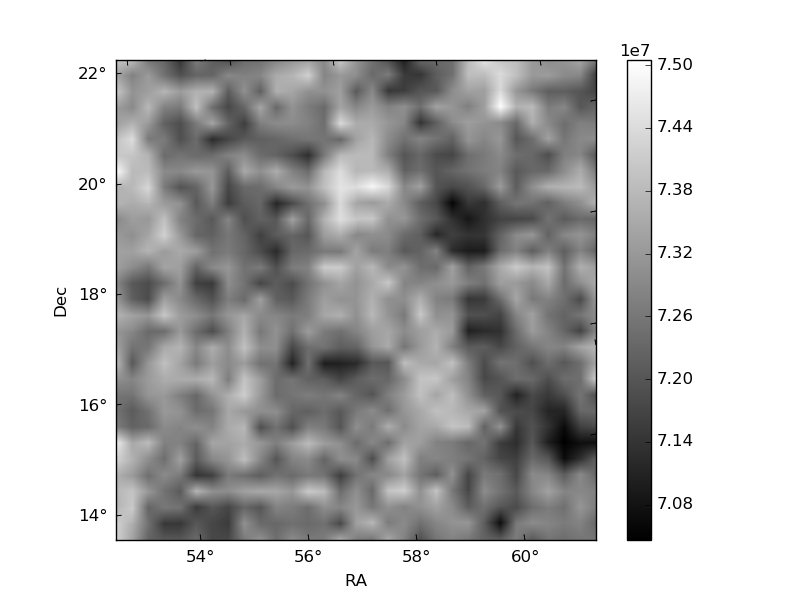

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

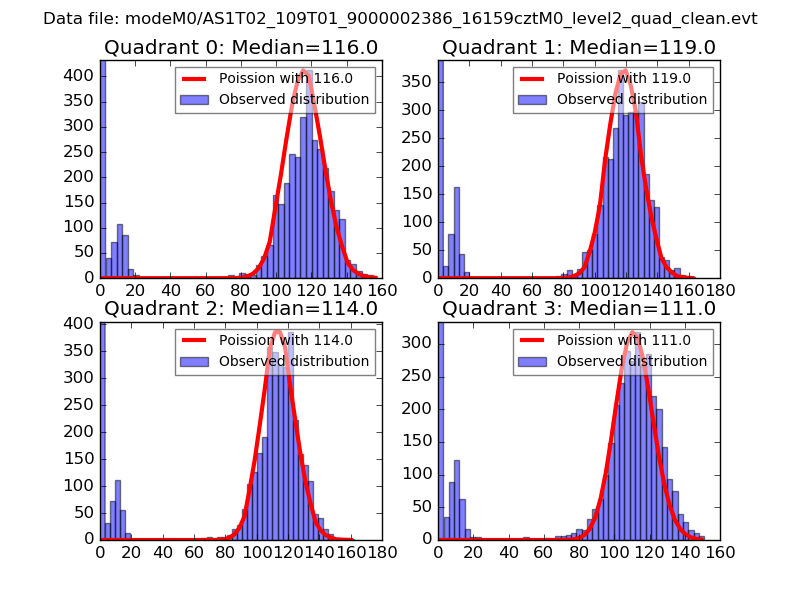

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

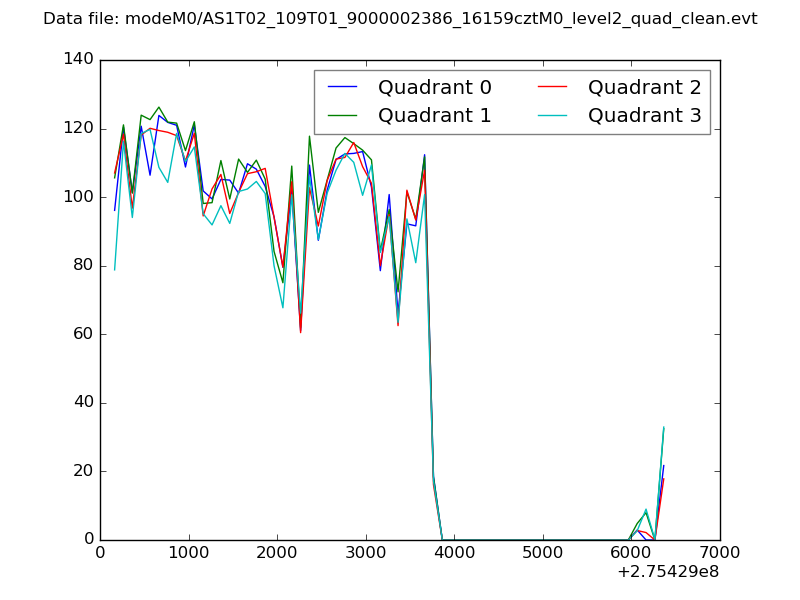

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

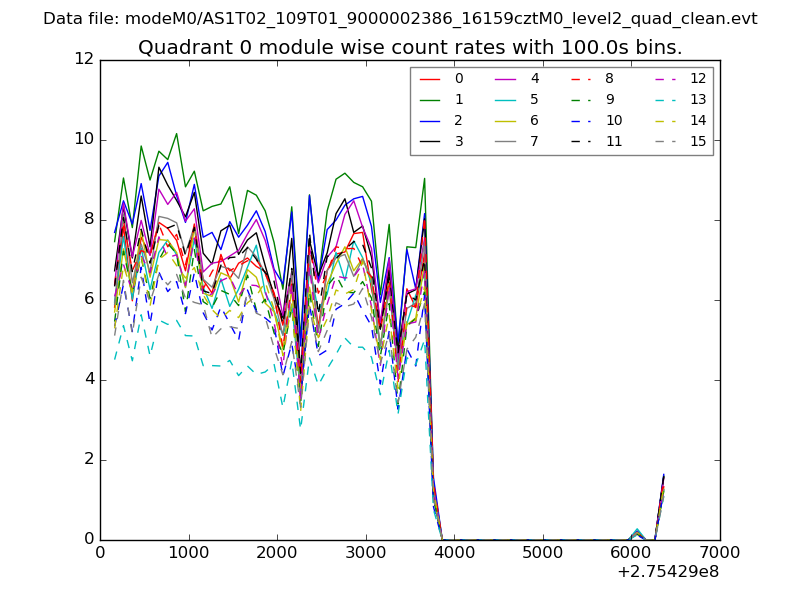

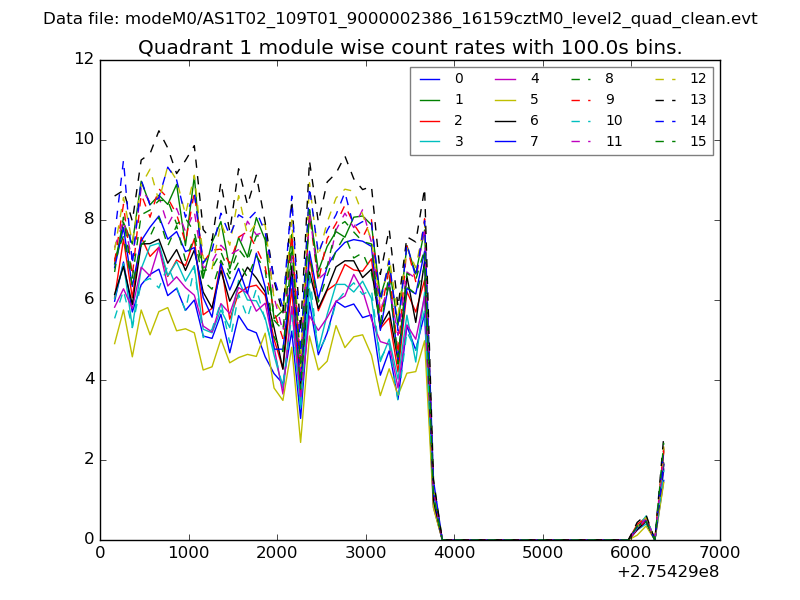

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

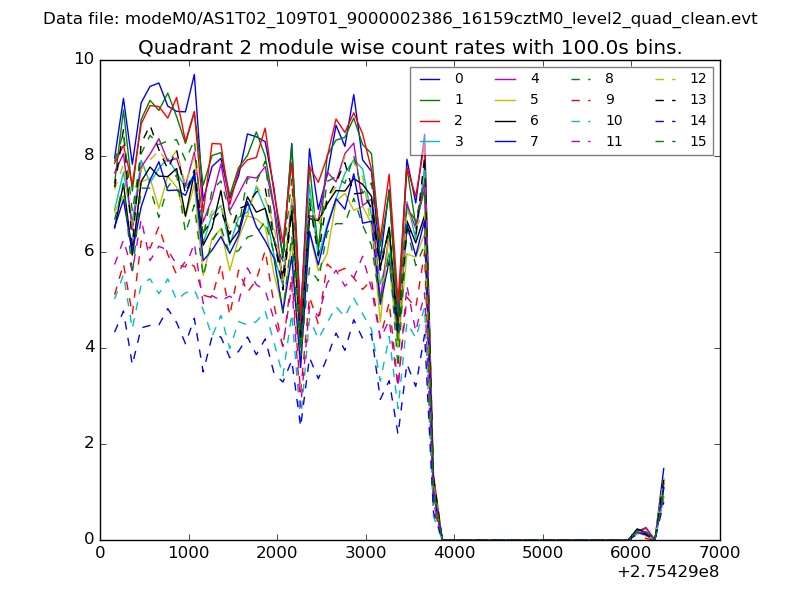

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

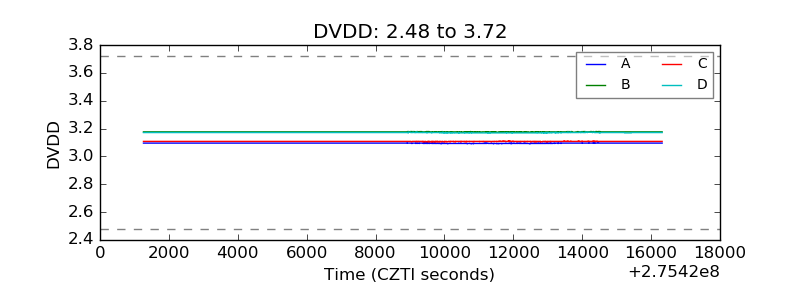

| D_VDD |  |

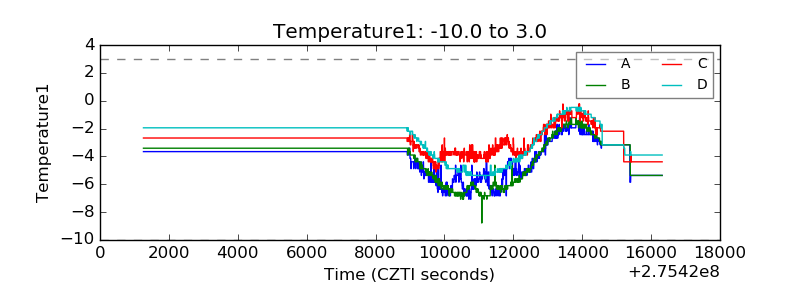

| Temperature 1 |  |

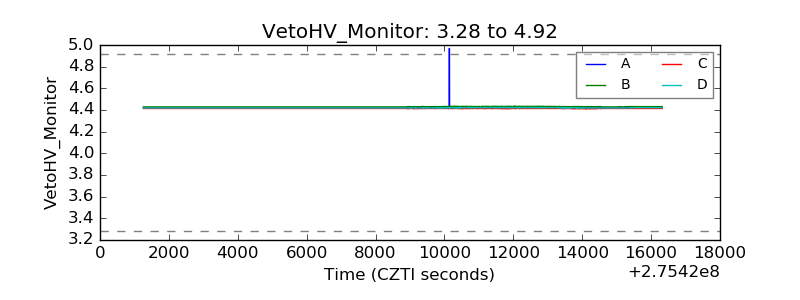

| Veto HV Monitor |  |

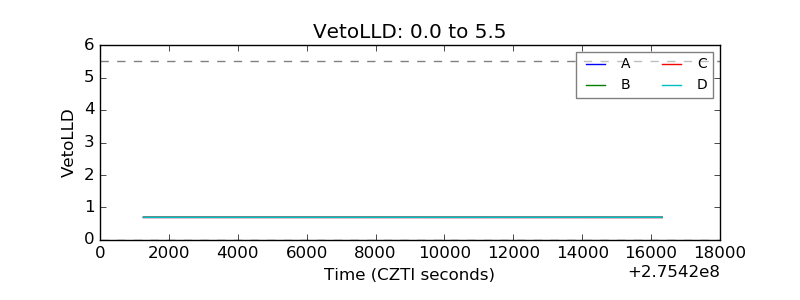

| Veto LLD |  |

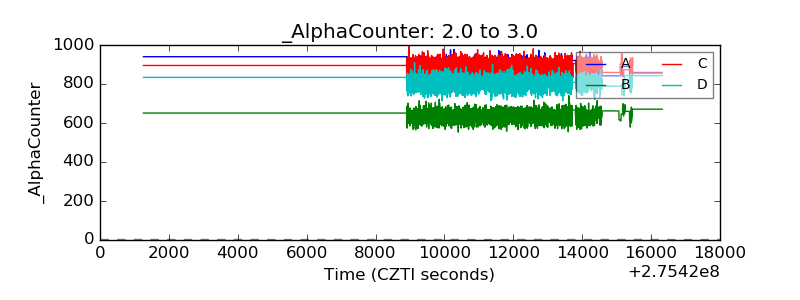

| Alpha Counter |  |

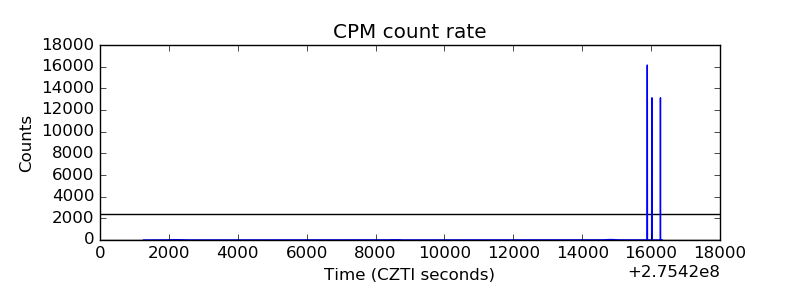

| _CPM_Rate |  |

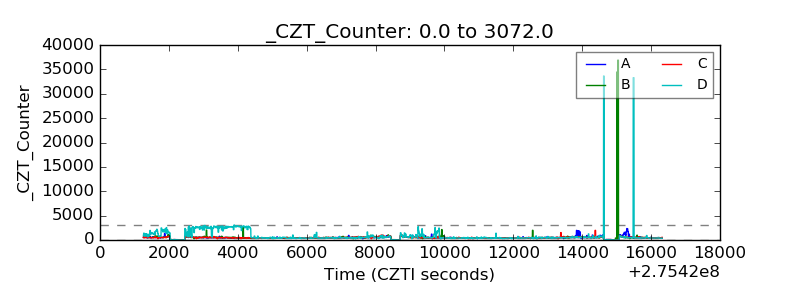

| CZT Counter |  |

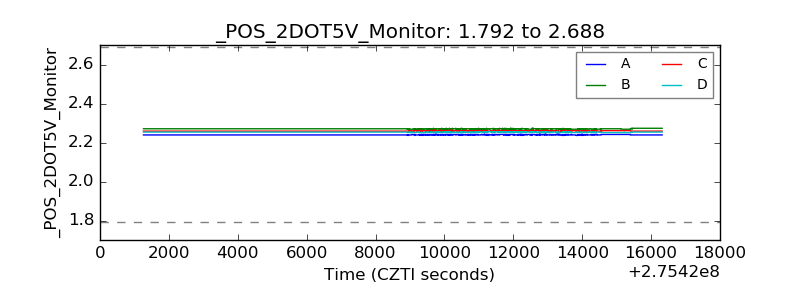

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

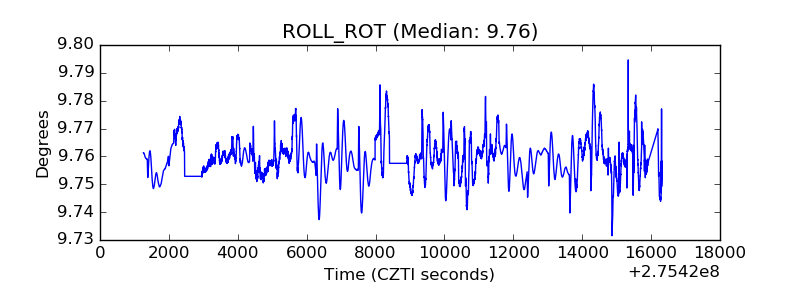

| _ROLL_ROT |  |
| _Roll_DEC |  |

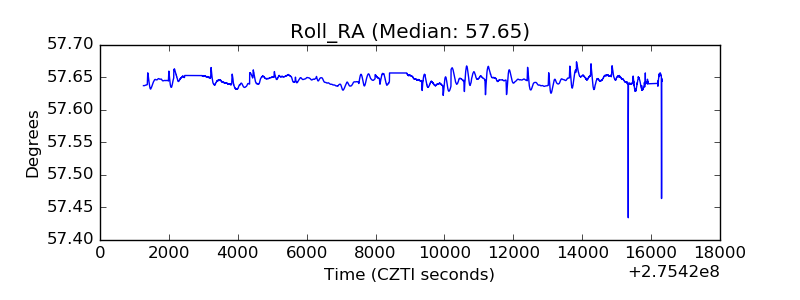

| _Roll_RA |  |

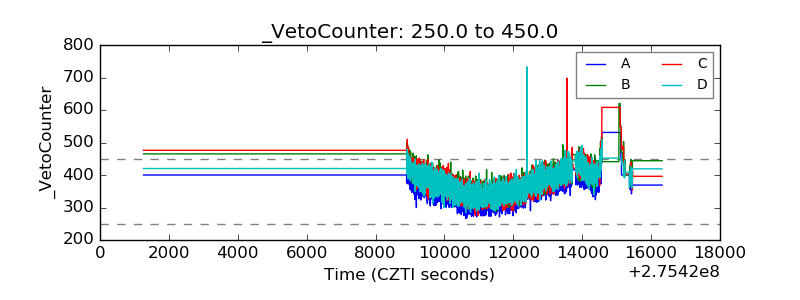

| Veto Counter |  |
