| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16166cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16166cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,346,240 | 78,687,360 |
| Size | 437.1 MB | 75.0 MB |
| Events in quadrant A | 3,915,194 | 502,999 |
| Events in quadrant B | 3,298,633 | 508,472 |
| Events in quadrant C | 2,983,557 | 485,458 |
| Events in quadrant D | 3,287,225 | 477,894 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15209 | 2 |
| B | 0 | 13243 | 1 |
| C | 0 | 12335 | 1 |
| D | 0 | 13460 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5840 | 417 | 7.140411% |
| B | 5840 | 106 | 1.815068% |
| C | 5840 | 64 | 1.095890% |
| D | 5840 | 62 | 1.061644% |

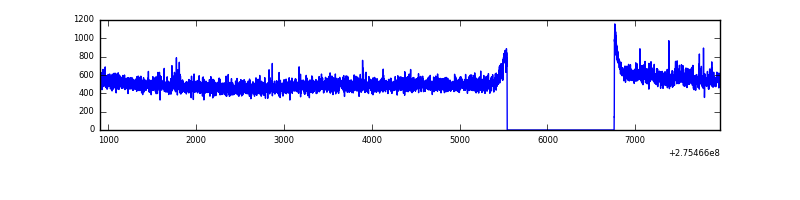

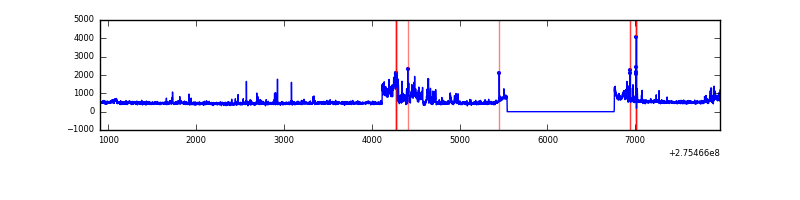

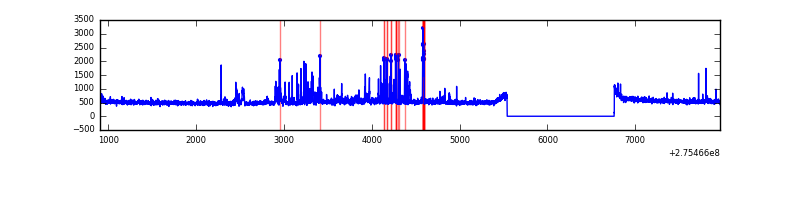

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

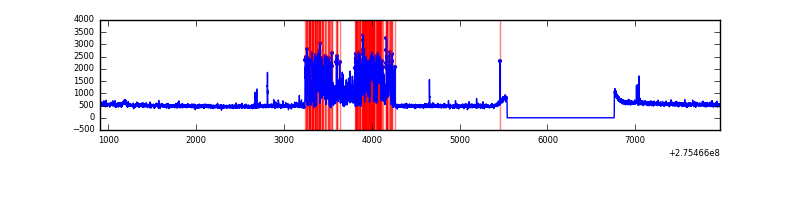

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7061 | 5842 | 204 | 204 | 2.89% | 3.49% |  |
| B | 7061 | 5842 | 27 | 27 | 0.38% | 0.46% |  |
| C | 7061 | 5842 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7061 | 5842 | 12 | 12 | 0.17% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 979138 | 6418.75 | 755 | 739 | 152.4 |
| A | 9 | 143 | 23812 | 151.37 | 755 | 739 | 152.4 |
| A | 8 | 247 | 12255 | 75.55 | 755 | 739 | 152.4 |
| B | 4 | 142 | 182529 | 1273.13 | 756 | 738 | 142.8 |
| B | 4 | 173 | 49154 | 339.07 | 756 | 738 | 142.8 |
| B | 0 | 190 | 25970 | 176.71 | 756 | 738 | 142.8 |
| C | 14 | 238 | 112157 | 666.39 | 724 | 731 | 167.2 |
| C | 3 | 233 | 45345 | 266.82 | 724 | 731 | 167.2 |
| C | 13 | 61 | 5154 | 26.45 | 724 | 731 | 167.2 |
| D | 1 | 52 | 401850 | 2190.99 | 745 | 725 | 183.1 |
| D | 10 | 70 | 35863 | 191.93 | 745 | 725 | 183.1 |
| D | 2 | 234 | 20660 | 108.89 | 745 | 725 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

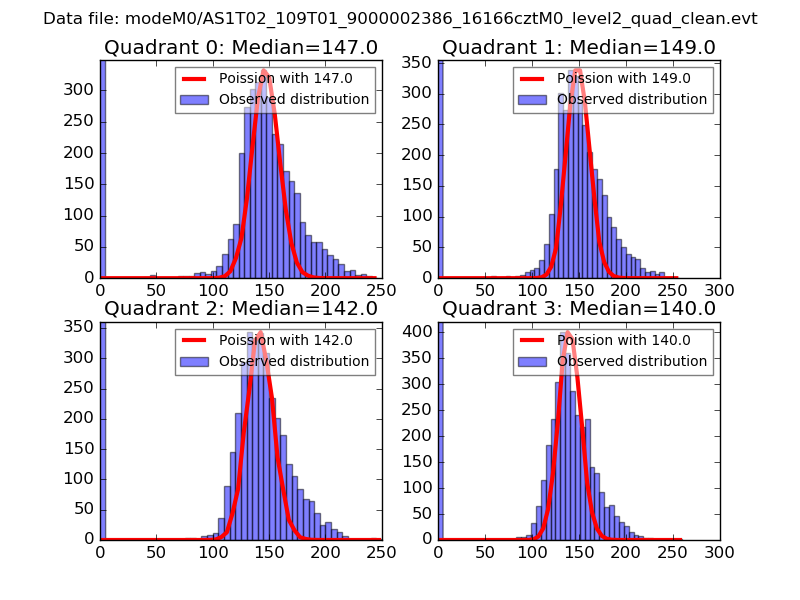

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

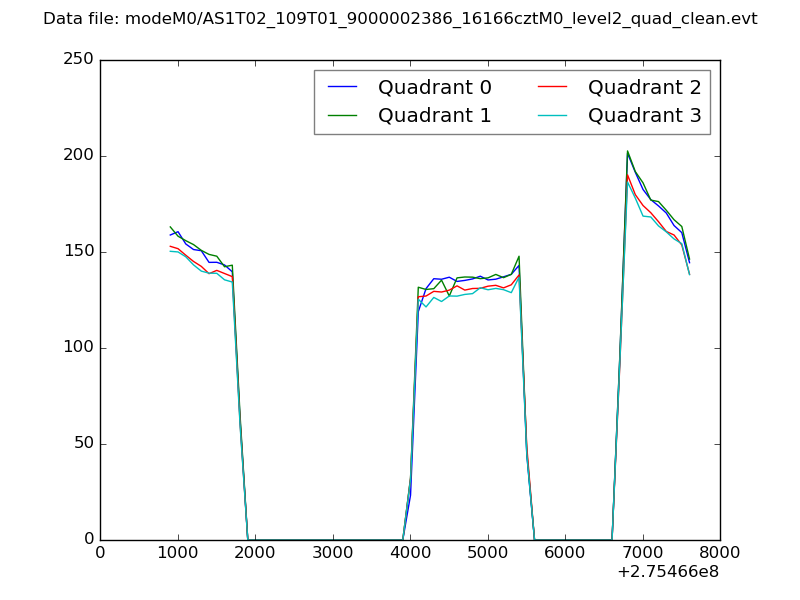

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

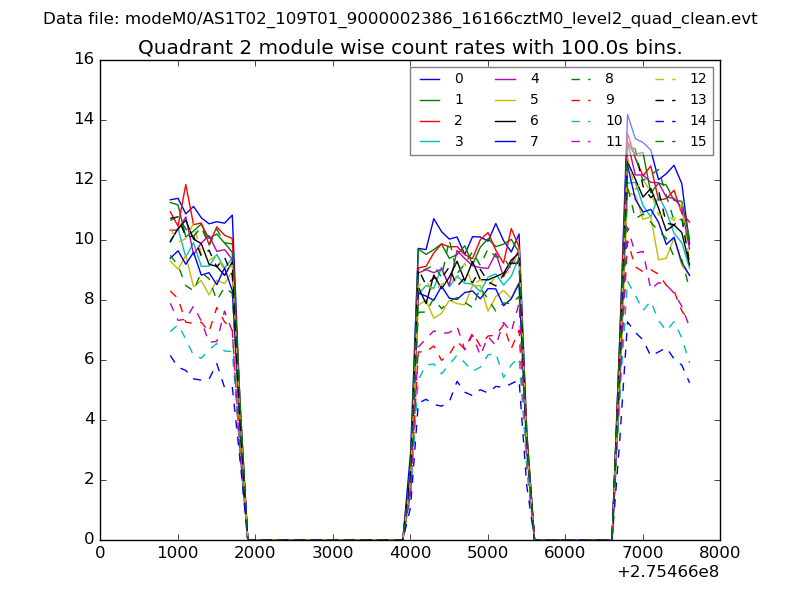

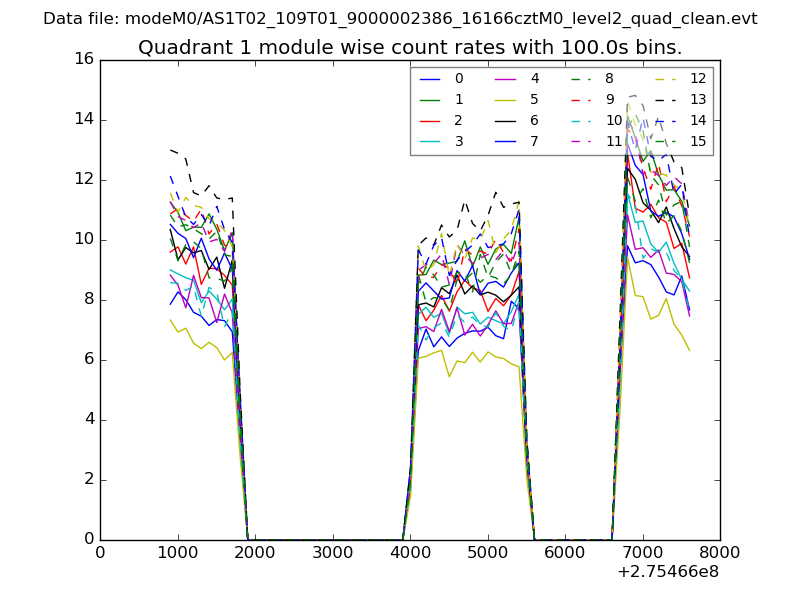

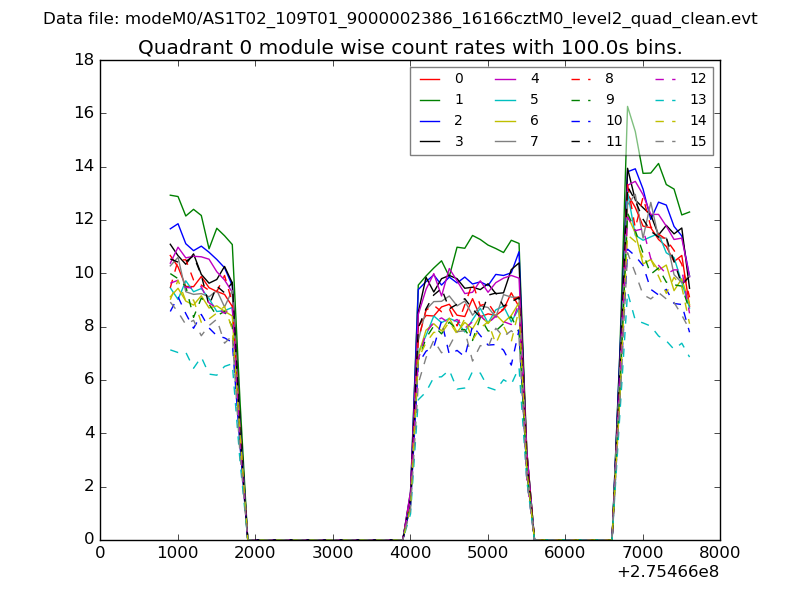

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

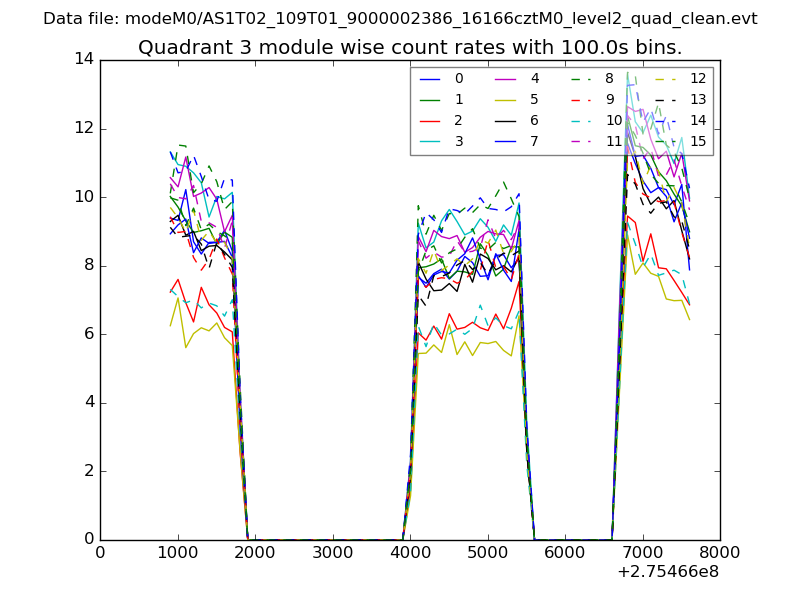

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

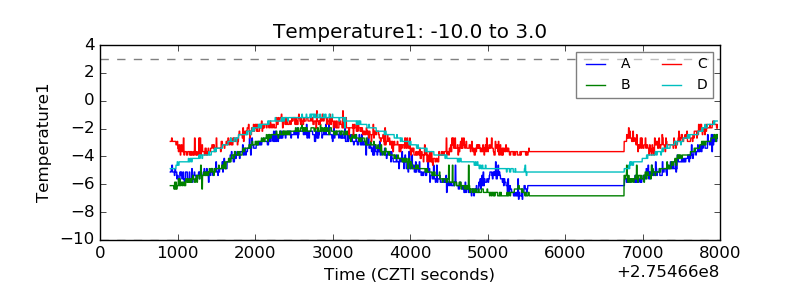

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

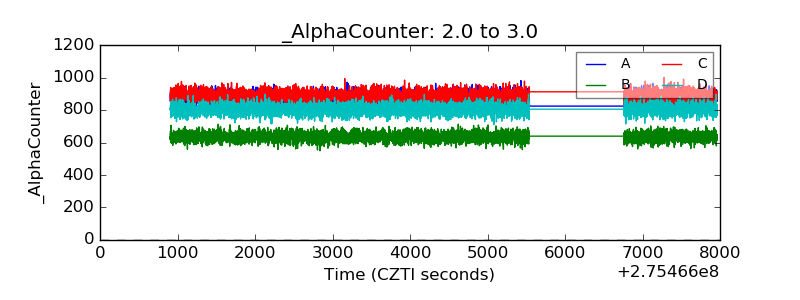

| Alpha Counter |  |

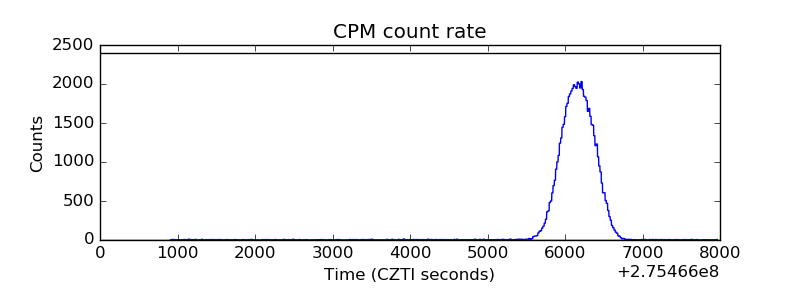

| _CPM_Rate |  |

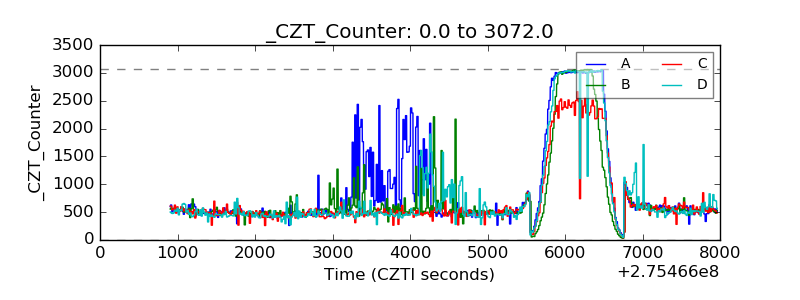

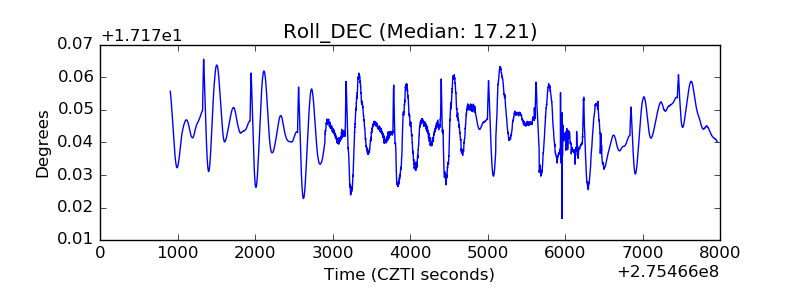

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

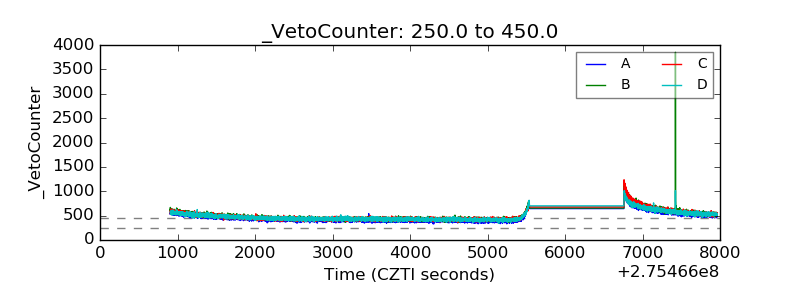

| Veto Counter |  |
