| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16167cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16167cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,390,080 | 80,392,320 |
| Size | 522.0 MB | 76.7 MB |
| Events in quadrant A | 3,757,683 | 510,899 |
| Events in quadrant B | 3,769,926 | 514,202 |
| Events in quadrant C | 4,816,934 | 472,396 |
| Events in quadrant D | 3,791,326 | 482,222 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15087 | 2 |
| B | 0 | 15073 | 1 |
| C | 0 | 18471 | 1 |
| D | 0 | 15238 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6526 | 127 | 1.946062% |
| B | 6526 | 118 | 1.808152% |
| C | 6526 | 384 | 5.884156% |
| D | 6526 | 145 | 2.221882% |

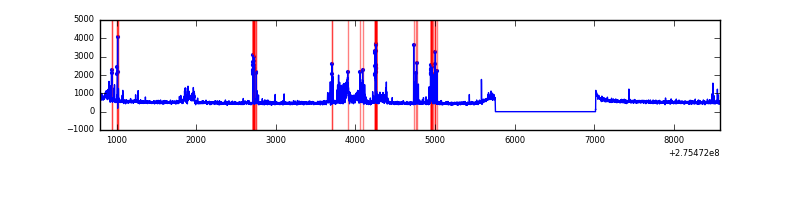

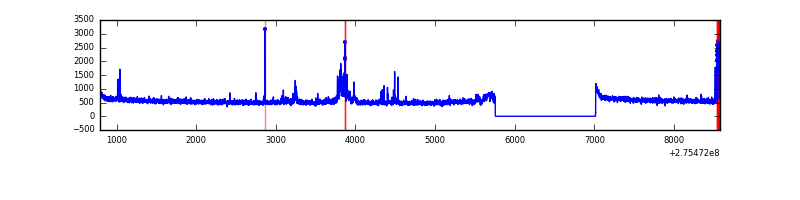

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 6528 | 26 | 26 | 0.33% | 0.40% |  |
| B | 7787 | 6528 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7787 | 6528 | 159 | 159 | 2.04% | 2.44% |  |
| D | 7787 | 6528 | 61 | 61 | 0.78% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 247296 | 1382.06 | 895 | 879 | 178.3 |
| A | 8 | 247 | 42082 | 231.09 | 895 | 879 | 178.3 |
| A | 0 | 253 | 19259 | 103.09 | 895 | 879 | 178.3 |
| B | 4 | 142 | 208685 | 1250.77 | 882 | 862 | 166.2 |
| B | 0 | 189 | 30854 | 180.5 | 882 | 862 | 166.2 |
| B | 3 | 209 | 28758 | 167.89 | 882 | 862 | 166.2 |
| C | 3 | 233 | 1356962 | 7108.19 | 829 | 837 | 190.8 |
| C | 14 | 238 | 130918 | 681.83 | 829 | 837 | 190.8 |
| C | 0 | 207 | 52013 | 268.24 | 829 | 837 | 190.8 |
| D | 7 | 38 | 286837 | 1353.65 | 867 | 842 | 211.3 |
| D | 10 | 70 | 98258 | 461.08 | 867 | 842 | 211.3 |
| D | 1 | 52 | 96308 | 451.85 | 867 | 842 | 211.3 |

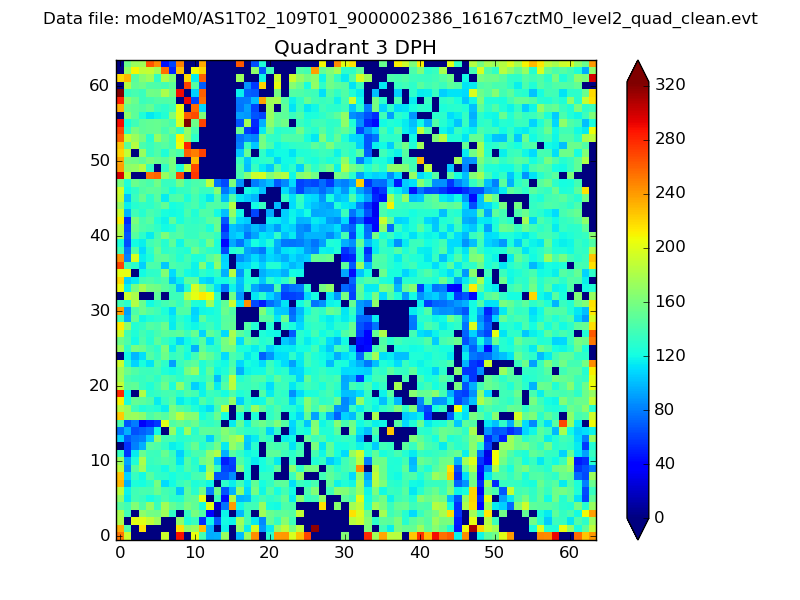

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

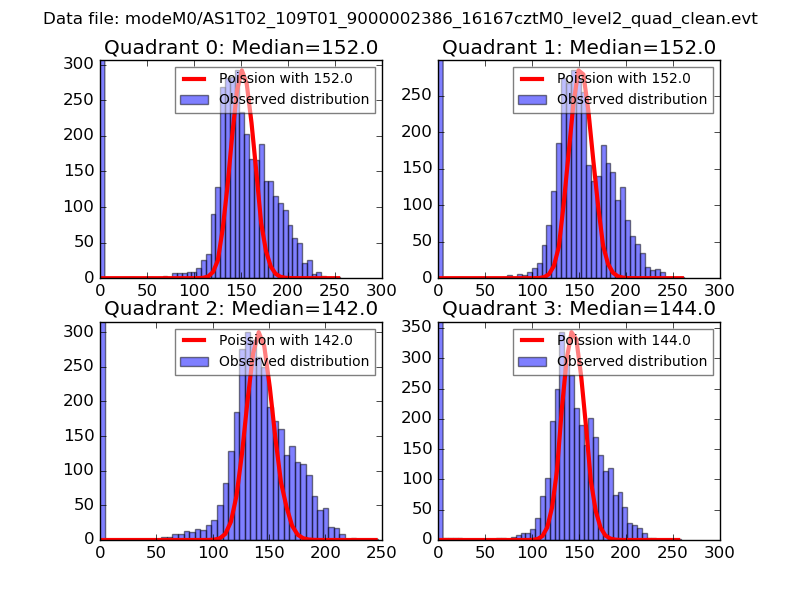

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

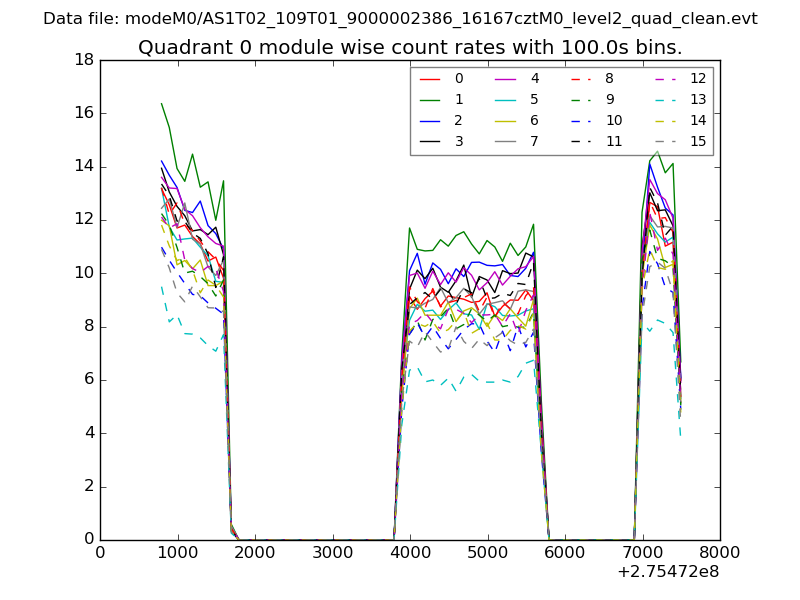

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

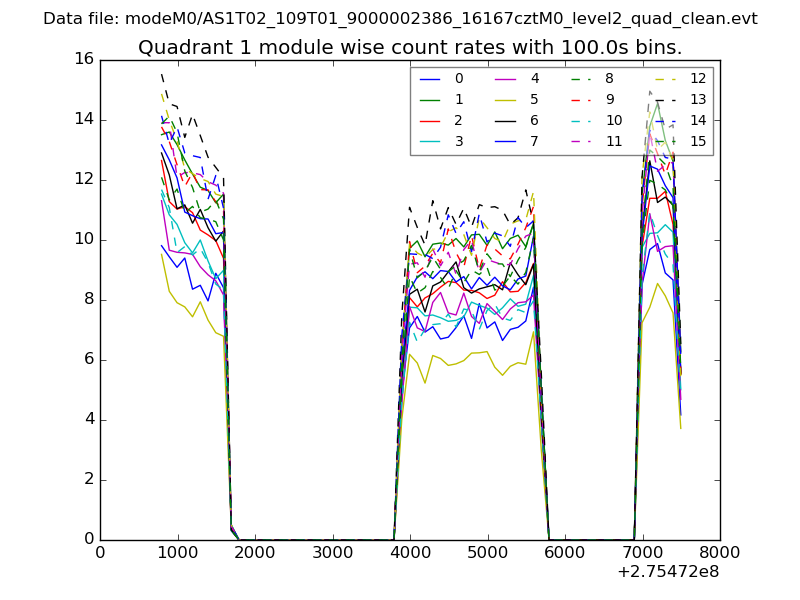

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

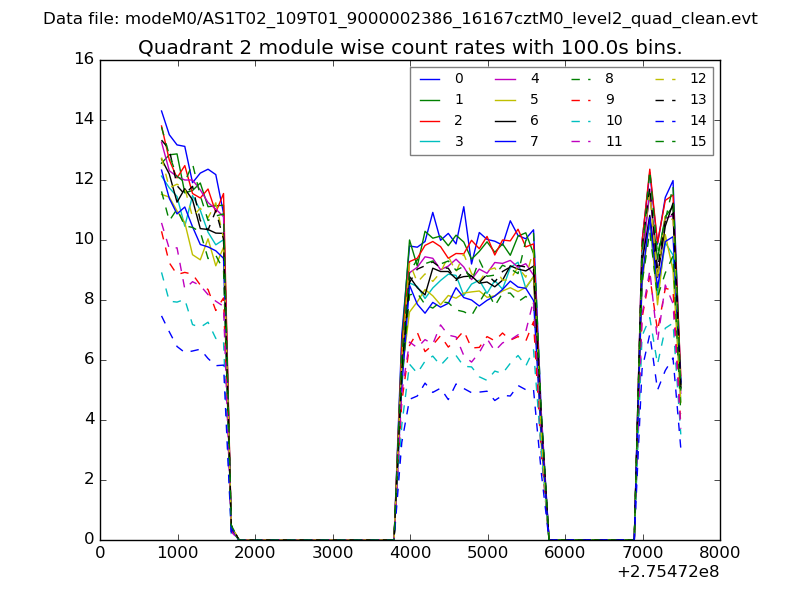

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

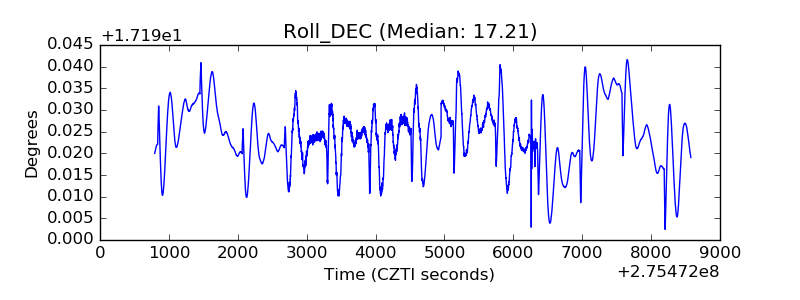

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
