| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16187cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16187cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,598,080 | 87,972,480 |
| Size | 598.5 MB | 83.9 MB |
| Events in quadrant A | 3,982,526 | 542,837 |
| Events in quadrant B | 3,815,603 | 552,845 |
| Events in quadrant C | 5,536,830 | 521,193 |
| Events in quadrant D | 5,157,242 | 518,754 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16978 | 3 |
| B | 0 | 16207 | 2 |
| C | 0 | 21510 | 2 |
| D | 0 | 20685 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7599 | 195 | 2.566127% |
| B | 7599 | 140 | 1.842348% |
| C | 7599 | 585 | 7.698381% |
| D | 7599 | 489 | 6.435057% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

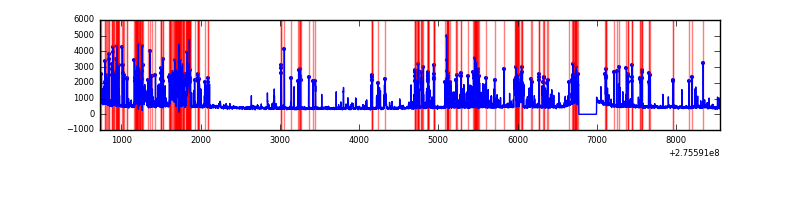

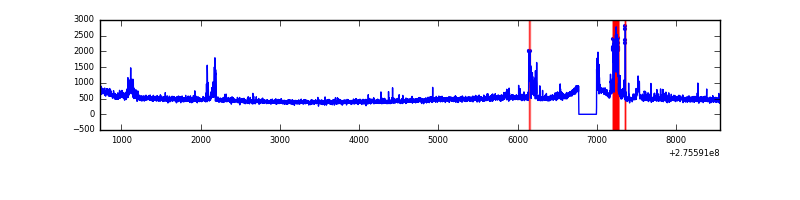

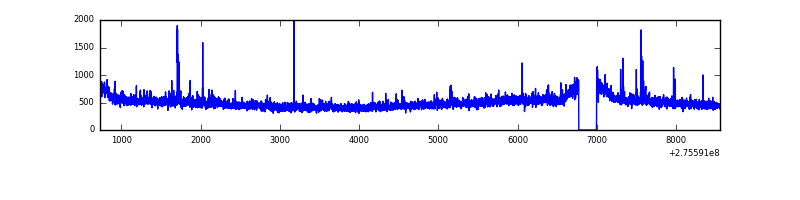

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7825 | 7601 | 56 | 56 | 0.72% | 0.74% |  |
| B | 7825 | 7601 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7825 | 7601 | 244 | 244 | 3.12% | 3.21% |  |
| D | 7825 | 7601 | 355 | 355 | 4.54% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 346822 | 1836.49 | 927 | 905 | 188.4 |
| A | 8 | 247 | 32885 | 169.78 | 927 | 905 | 188.4 |
| A | 3 | 1 | 12983 | 64.12 | 927 | 905 | 188.4 |
| B | 3 | 209 | 37422 | 203.5 | 935 | 911 | 179.4 |
| B | 0 | 197 | 34230 | 185.7 | 935 | 911 | 179.4 |
| B | 0 | 219 | 24323 | 130.49 | 935 | 911 | 179.4 |
| C | 3 | 233 | 1475178 | 7183.33 | 875 | 880 | 205.2 |
| C | 7 | 247 | 492273 | 2394.25 | 875 | 880 | 205.2 |
| C | 14 | 238 | 133644 | 646.88 | 875 | 880 | 205.2 |
| D | 12 | 221 | 1502123 | 6949.09 | 885 | 859 | 216.0 |
| D | 15 | 0 | 142991 | 657.9 | 885 | 859 | 216.0 |
| D | 1 | 52 | 67939 | 310.5 | 885 | 859 | 216.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

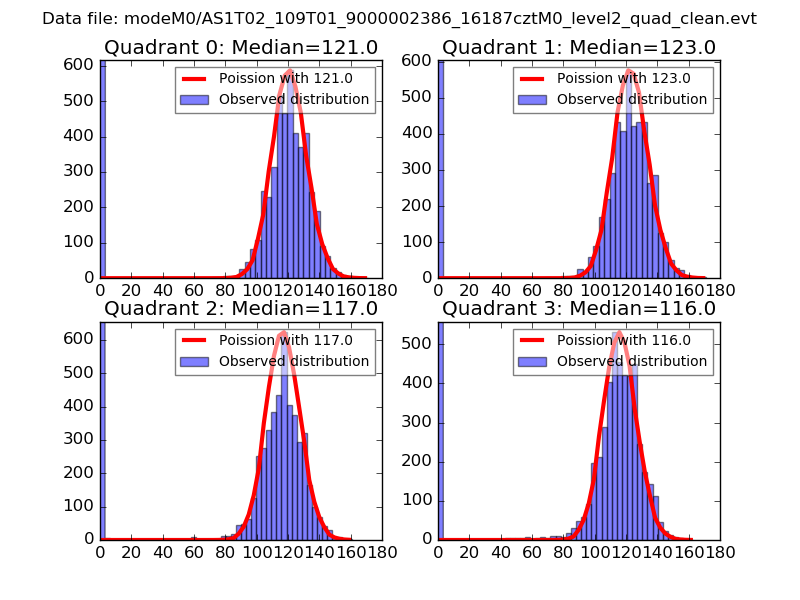

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

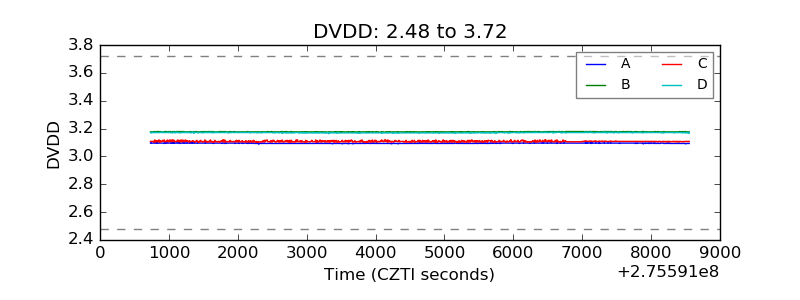

| D_VDD |  |

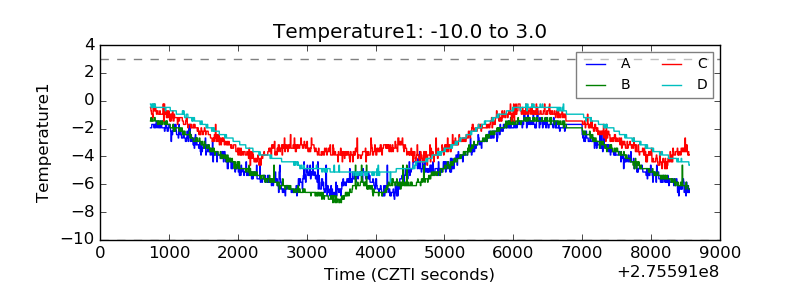

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

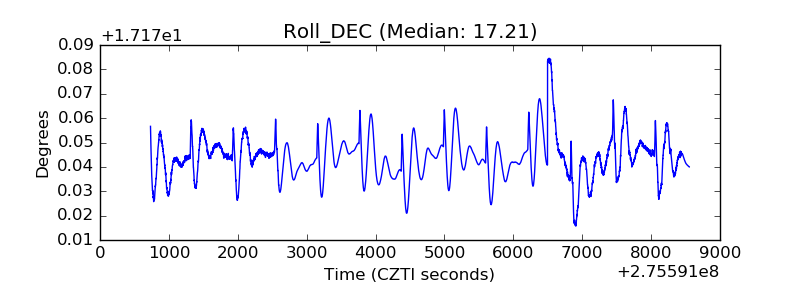

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
