| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16209cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16209cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,750,720 | 94,821,120 |
| Size | 572.9 MB | 90.4 MB |
| Events in quadrant A | 3,544,157 | 623,648 |
| Events in quadrant B | 3,394,887 | 638,255 |
| Events in quadrant C | 3,262,061 | 605,778 |
| Events in quadrant D | 7,554,271 | 551,841 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 3 |
| B | 0 | 13932 | 2 |
| C | 0 | 13481 | 2 |
| D | 0 | 26799 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6474 | 93 | 1.436515% |
| B | 6474 | 57 | 0.880445% |
| C | 6474 | 60 | 0.926784% |
| D | 6475 | 1154 | 17.822394% |

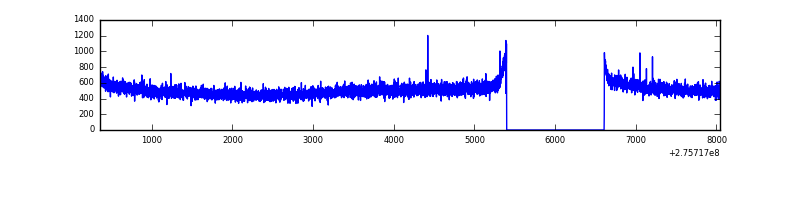

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7685 | 6476 | 37 | 37 | 0.48% | 0.57% |  |
| B | 7685 | 6476 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7685 | 6476 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7686 | 6477 | 950 | 950 | 12.36% | 14.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 319356 | 1908.21 | 834 | 816 | 166.9 |
| A | 0 | 13 | 9033 | 49.22 | 834 | 816 | 166.9 |
| A | 0 | 226 | 7432 | 39.63 | 834 | 816 | 166.9 |
| B | 4 | 216 | 48112 | 304.4 | 826 | 806 | 155.4 |
| B | 0 | 198 | 30295 | 189.75 | 826 | 806 | 155.4 |
| B | 12 | 111 | 17978 | 110.5 | 826 | 806 | 155.4 |
| C | 14 | 238 | 124923 | 682.1 | 789 | 797 | 182.0 |
| C | 3 | 233 | 29525 | 157.87 | 789 | 797 | 182.0 |
| C | 7 | 247 | 22481 | 119.16 | 789 | 797 | 182.0 |
| D | 1 | 52 | 3776647 | 20182.16 | 760 | 737 | 187.1 |
| D | 15 | 0 | 768212 | 4102.14 | 760 | 737 | 187.1 |
| D | 2 | 233 | 135549 | 720.56 | 760 | 737 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

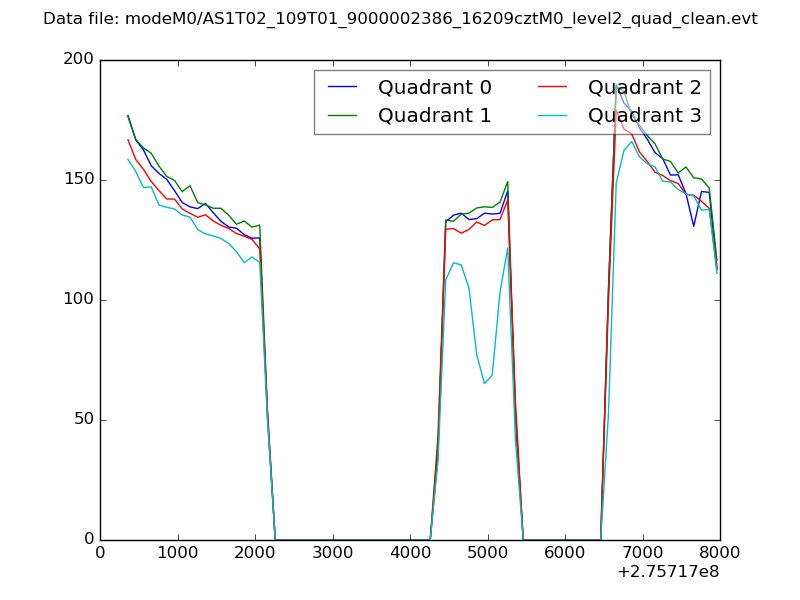

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

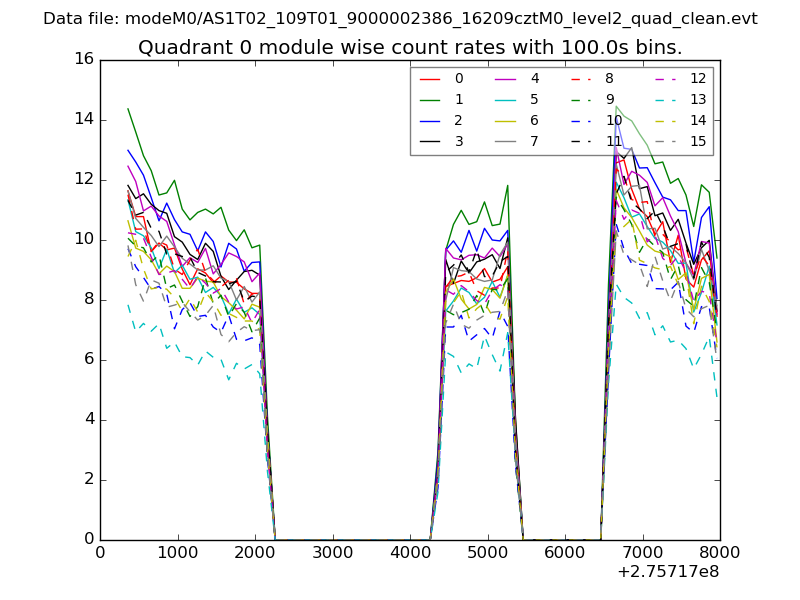

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

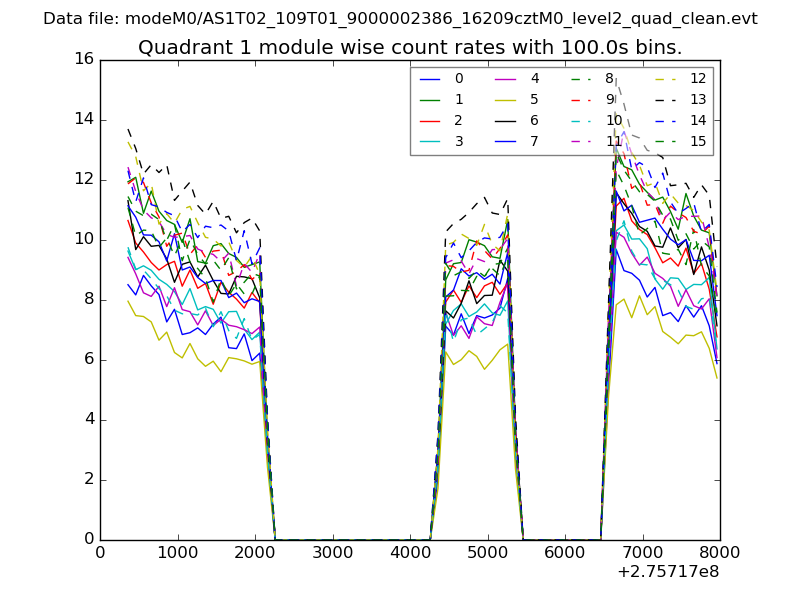

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

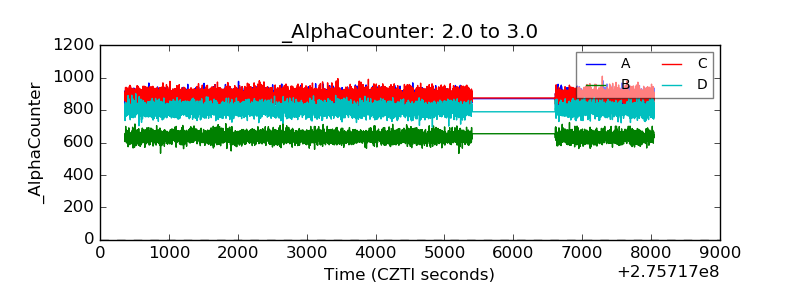

| Alpha Counter |  |

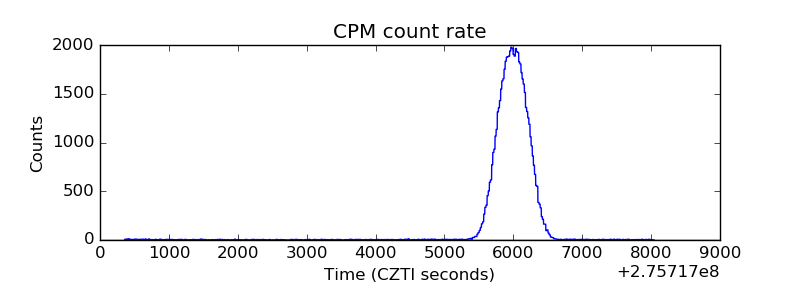

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

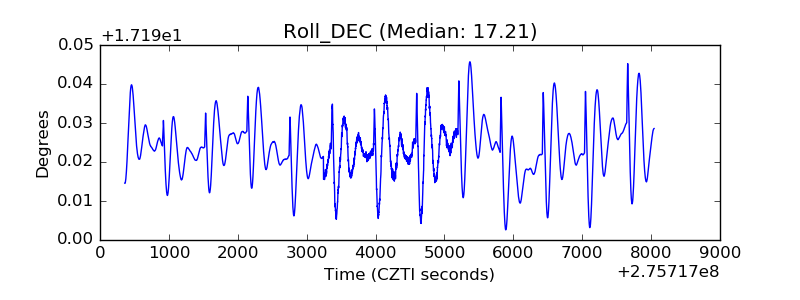

| _Roll_DEC |  |
| _Roll_RA |  |

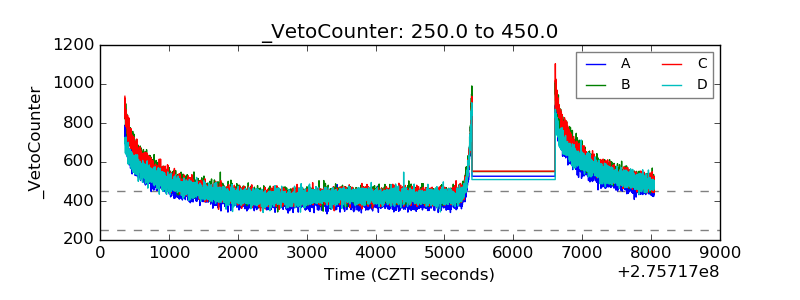

| Veto Counter |  |
