| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16212cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16212cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,730,560 | 73,005,120 |
| Size | 555.7 MB | 69.6 MB |
| Events in quadrant A | 4,362,731 | 442,966 |
| Events in quadrant B | 3,712,223 | 454,770 |
| Events in quadrant C | 3,496,213 | 434,522 |
| Events in quadrant D | 5,632,039 | 419,827 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16882 | 3 |
| B | 0 | 14939 | 2 |
| C | 0 | 14038 | 2 |
| D | 0 | 21256 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6570 | 420 | 6.392694% |
| B | 6570 | 130 | 1.978691% |
| C | 6570 | 137 | 2.085236% |
| D | 6570 | 241 | 3.668189% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7821 | 6572 | 247 | 247 | 3.16% | 3.76% |  |
| B | 7821 | 6572 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7821 | 6572 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7821 | 6572 | 109 | 109 | 1.39% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 800978 | 4567.24 | 876 | 859 | 175.2 |
| A | 4 | 2 | 150438 | 853.83 | 876 | 859 | 175.2 |
| A | 8 | 247 | 18940 | 103.21 | 876 | 859 | 175.2 |
| B | 0 | 198 | 81609 | 488.86 | 878 | 859 | 165.2 |
| B | 3 | 64 | 67063 | 400.8 | 878 | 859 | 165.2 |
| B | 4 | 173 | 44877 | 266.48 | 878 | 859 | 165.2 |
| C | 14 | 238 | 132058 | 674.96 | 843 | 850 | 194.4 |
| C | 7 | 247 | 46102 | 232.79 | 843 | 850 | 194.4 |
| C | 3 | 233 | 22838 | 113.11 | 843 | 850 | 194.4 |
| D | 1 | 52 | 1951471 | 9213.76 | 861 | 837 | 211.7 |
| D | 2 | 233 | 302127 | 1423.13 | 861 | 837 | 211.7 |
| D | 15 | 0 | 81161 | 379.41 | 861 | 837 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

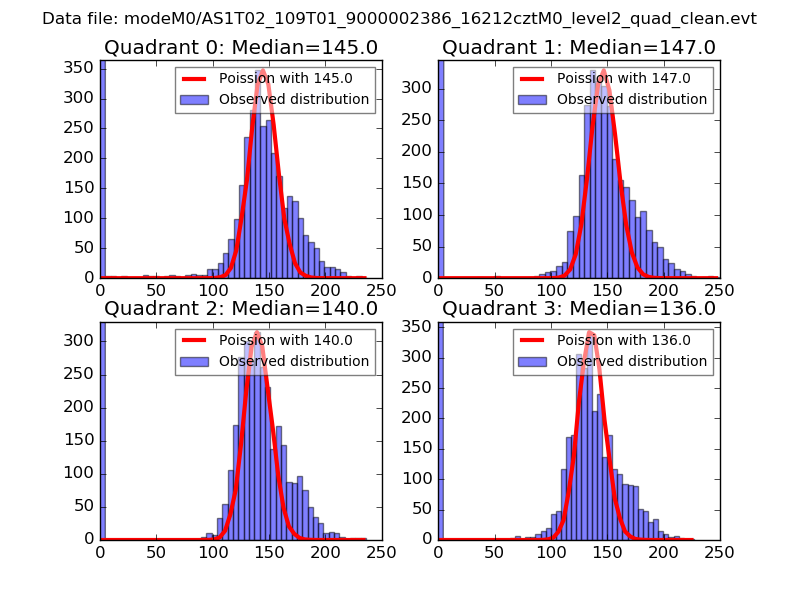

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

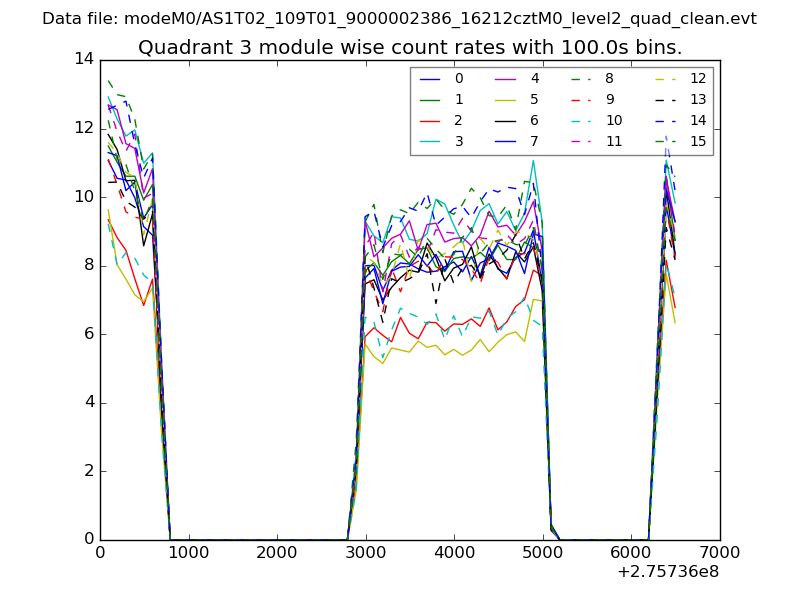

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

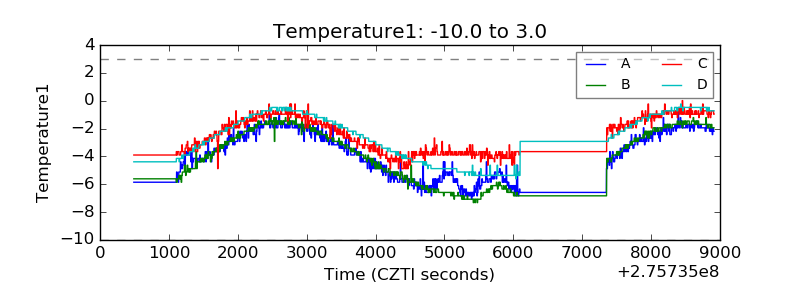

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

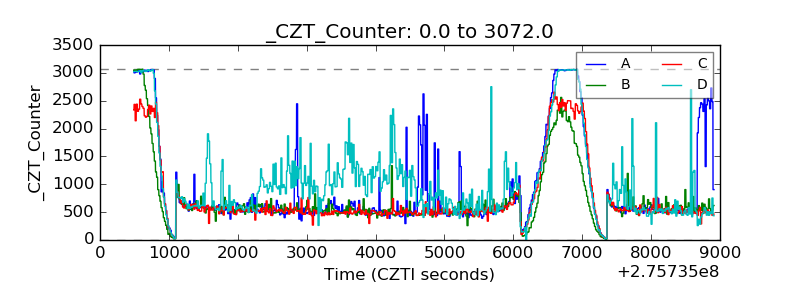

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

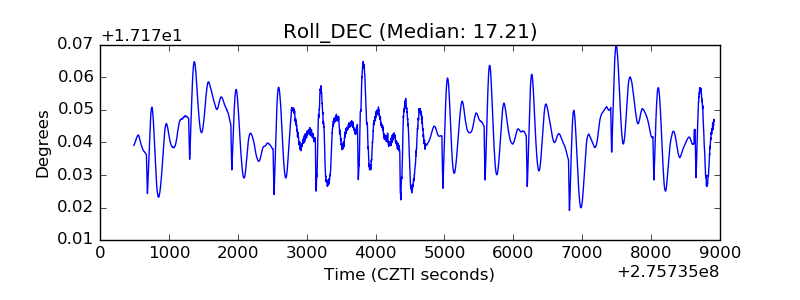

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
