| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_109T01_9000002386_16215cztM0_level2.evt | modeM0/AS1T02_109T01_9000002386_16215cztM0_level2_quad_clean.evt |
| Size (bytes) | 209,998,080 | 23,379,840 |
| Size | 200.3 MB | 22.3 MB |
| Events in quadrant A | 1,594,479 | 129,580 |
| Events in quadrant B | 1,721,575 | 129,368 |
| Events in quadrant C | 1,397,771 | 126,065 |
| Events in quadrant D | 1,455,694 | 124,155 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6479 | 1 |
| B | 0 | 6842 | 1 |
| C | 0 | 5866 | 1 |
| D | 0 | 6039 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2774 | 93 | 3.352559% |
| B | 2774 | 55 | 1.982696% |
| C | 2774 | 62 | 2.235040% |
| D | 2774 | 24 | 0.865177% |

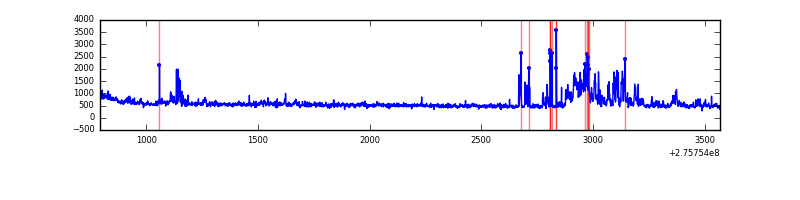

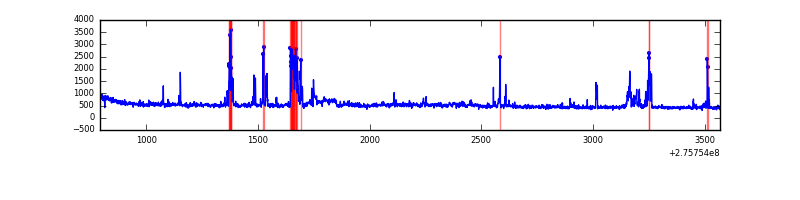

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2775 | 2775 | 35 | 35 | 1.26% | 1.26% |  |
| B | 2775 | 2775 | 15 | 15 | 0.54% | 0.54% |  |
| C | 2775 | 2775 | 1 | 1 | 0.04% | 0.04% |  |
| D | 2775 | 2775 | 5 | 5 | 0.18% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 168222 | 2360.89 | 342 | 334 | 71.1 |
| A | 4 | 2 | 62565 | 875.11 | 342 | 334 | 71.1 |
| A | 8 | 247 | 24633 | 341.7 | 342 | 334 | 71.1 |
| B | 3 | 64 | 234297 | 3523.75 | 342 | 333 | 66.4 |
| B | 0 | 189 | 53530 | 801.2 | 342 | 333 | 66.4 |
| B | 0 | 198 | 35097 | 523.58 | 342 | 333 | 66.4 |
| C | 14 | 238 | 52378 | 659.63 | 329 | 331 | 78.9 |
| C | 3 | 233 | 47378 | 596.26 | 329 | 331 | 78.9 |
| C | 0 | 207 | 8861 | 108.11 | 329 | 331 | 78.9 |
| D | 2 | 233 | 72870 | 852.35 | 336 | 326 | 85.1 |
| D | 1 | 52 | 45882 | 535.26 | 336 | 326 | 85.1 |
| D | 13 | 168 | 28569 | 331.84 | 336 | 326 | 85.1 |

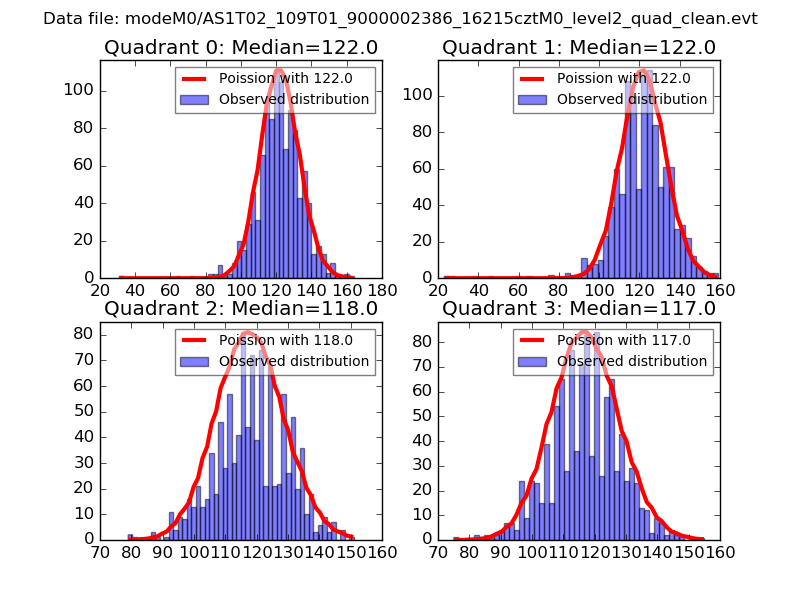

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

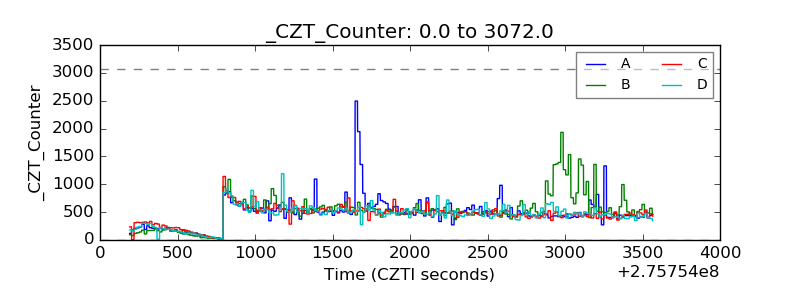

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

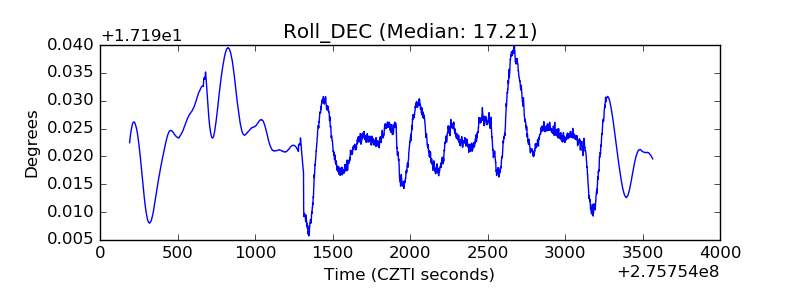

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

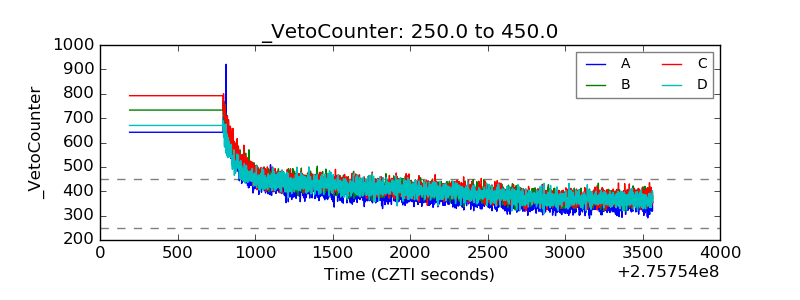

| Veto Counter |  |
