| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_110T01_9000002388_16215cztM0_level2.evt | modeM0/AS1T02_110T01_9000002388_16215cztM0_level2_quad_clean.evt |
| Size (bytes) | 267,508,800 | 53,058,240 |
| Size | 255.1 MB | 50.6 MB |
| Events in quadrant A | 2,196,395 | 348,248 |
| Events in quadrant B | 2,082,602 | 347,743 |
| Events in quadrant C | 1,760,917 | 333,986 |
| Events in quadrant D | 1,828,050 | 334,312 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8750 | 2 |
| B | 0 | 8504 | 1 |
| C | 0 | 7321 | 1 |
| D | 0 | 7600 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3417 | 94 | 2.750951% |
| B | 3417 | 93 | 2.721686% |
| C | 3417 | 93 | 2.721686% |
| D | 3417 | 32 | 0.936494% |

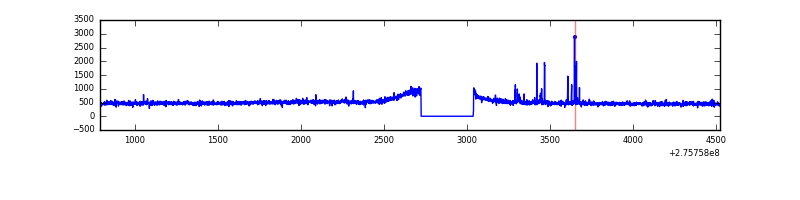

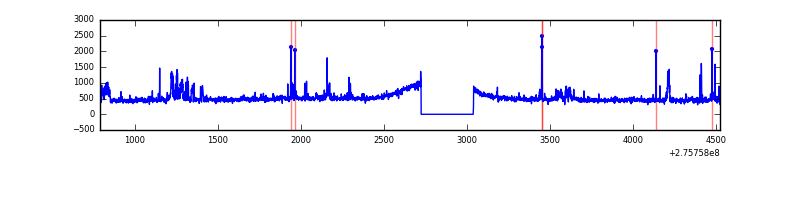

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3733 | 3419 | 23 | 23 | 0.62% | 0.67% |  |
| B | 3733 | 3419 | 3 | 3 | 0.08% | 0.09% |  |
| C | 3733 | 3419 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3733 | 3419 | 6 | 6 | 0.16% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 236182 | 2568.36 | 444 | 433 | 91.8 |
| A | 15 | 174 | 163276 | 1774.09 | 444 | 433 | 91.8 |
| A | 0 | 253 | 70195 | 760.02 | 444 | 433 | 91.8 |
| B | 3 | 64 | 309781 | 3620.37 | 438 | 426 | 85.4 |
| B | 0 | 198 | 15901 | 181.1 | 438 | 426 | 85.4 |
| B | 4 | 48 | 12948 | 146.54 | 438 | 426 | 85.4 |
| C | 14 | 238 | 63495 | 625.79 | 421 | 422 | 100.8 |
| C | 0 | 207 | 32408 | 317.35 | 421 | 422 | 100.8 |
| C | 3 | 233 | 16650 | 161.01 | 421 | 422 | 100.8 |
| D | 2 | 233 | 59823 | 549.96 | 435 | 422 | 108.0 |
| D | 13 | 168 | 54432 | 500.05 | 435 | 422 | 108.0 |
| D | 1 | 52 | 25866 | 235.57 | 435 | 422 | 108.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

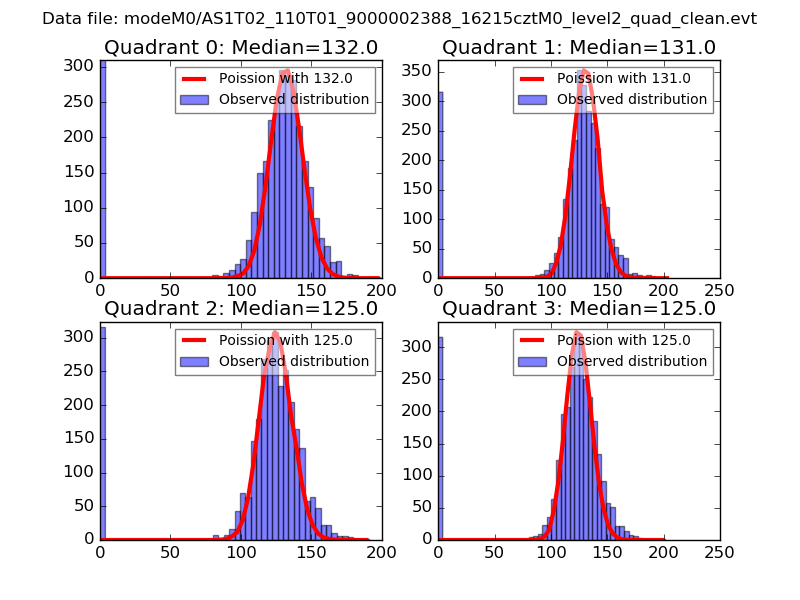

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

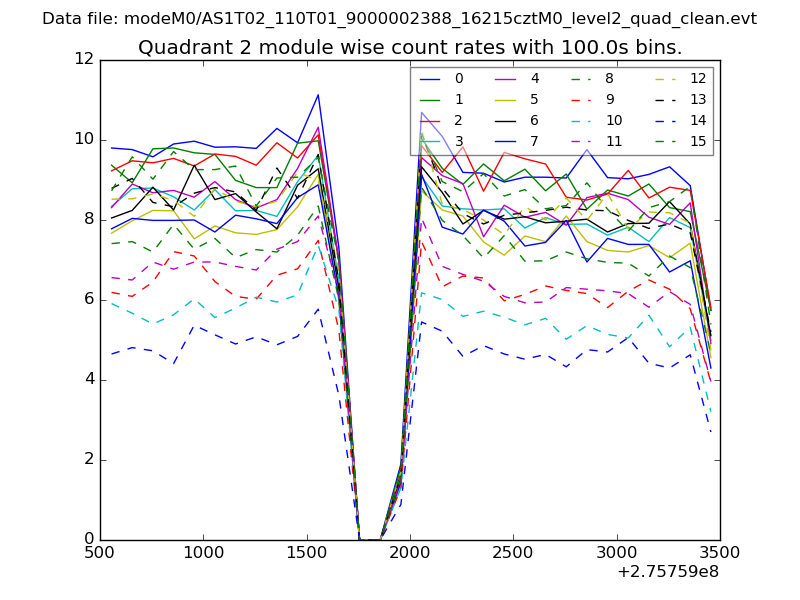

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

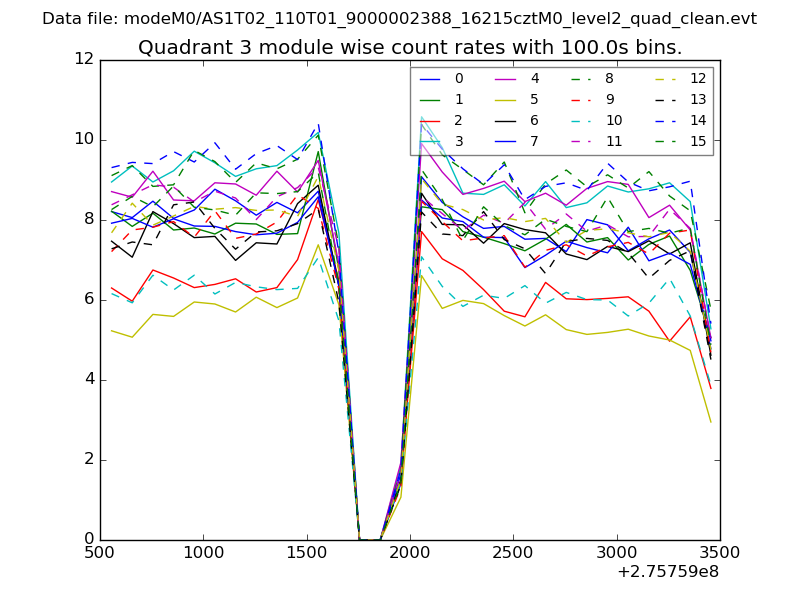

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

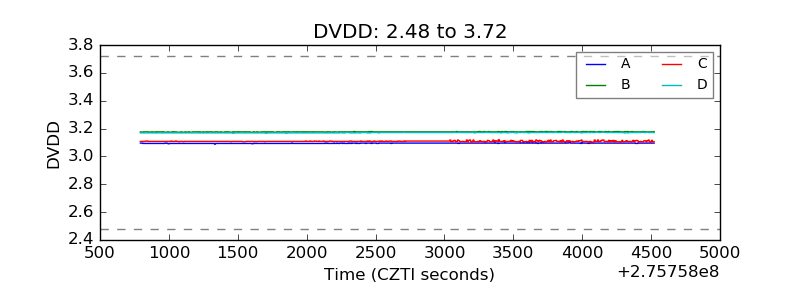

| D_VDD |  |

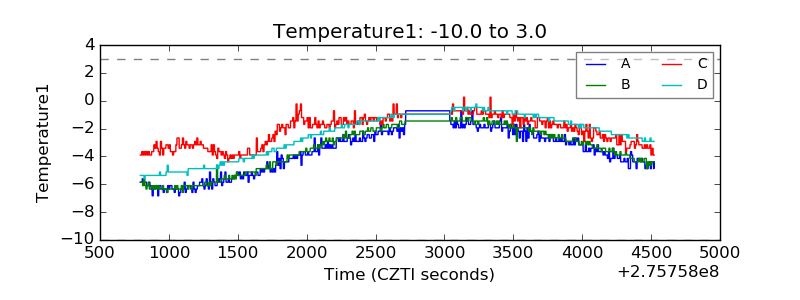

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

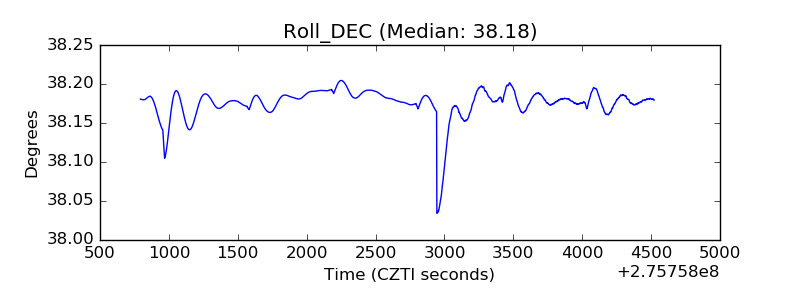

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
