| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_110T01_9000002388_16220cztM0_level2.evt | modeM0/AS1T02_110T01_9000002388_16220cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,270,720 | 66,294,720 |
| Size | 360.7 MB | 63.2 MB |
| Events in quadrant A | 2,935,235 | 411,235 |
| Events in quadrant B | 2,721,154 | 416,899 |
| Events in quadrant C | 2,577,905 | 399,871 |
| Events in quadrant D | 2,851,732 | 398,850 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12231 | 1 |
| B | 0 | 11540 | 1 |
| C | 0 | 11138 | 1 |
| D | 0 | 12184 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5436 | 149 | 2.740986% |
| B | 5436 | 58 | 1.066961% |
| C | 5436 | 60 | 1.103753% |
| D | 5436 | 49 | 0.901398% |

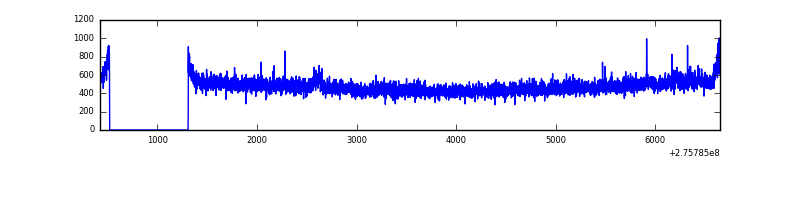

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6227 | 5438 | 70 | 70 | 1.12% | 1.29% |  |
| B | 6227 | 5438 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6227 | 5438 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6227 | 5438 | 28 | 28 | 0.45% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 388271 | 2981.92 | 642 | 629 | 130.0 |
| A | 3 | 1 | 28333 | 213.11 | 642 | 629 | 130.0 |
| A | 0 | 253 | 21876 | 163.44 | 642 | 629 | 130.0 |
| B | 0 | 198 | 57908 | 453.66 | 648 | 631 | 126.3 |
| B | 3 | 64 | 31355 | 243.35 | 648 | 631 | 126.3 |
| B | 4 | 216 | 22632 | 174.26 | 648 | 631 | 126.3 |
| C | 14 | 238 | 95166 | 648.42 | 620 | 624 | 145.8 |
| C | 7 | 247 | 36582 | 246.62 | 620 | 624 | 145.8 |
| C | 3 | 233 | 15245 | 100.28 | 620 | 624 | 145.8 |
| D | 2 | 233 | 224233 | 1458.21 | 630 | 613 | 153.4 |
| D | 1 | 52 | 163434 | 1061.74 | 630 | 613 | 153.4 |
| D | 5 | 222 | 37044 | 237.56 | 630 | 613 | 153.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

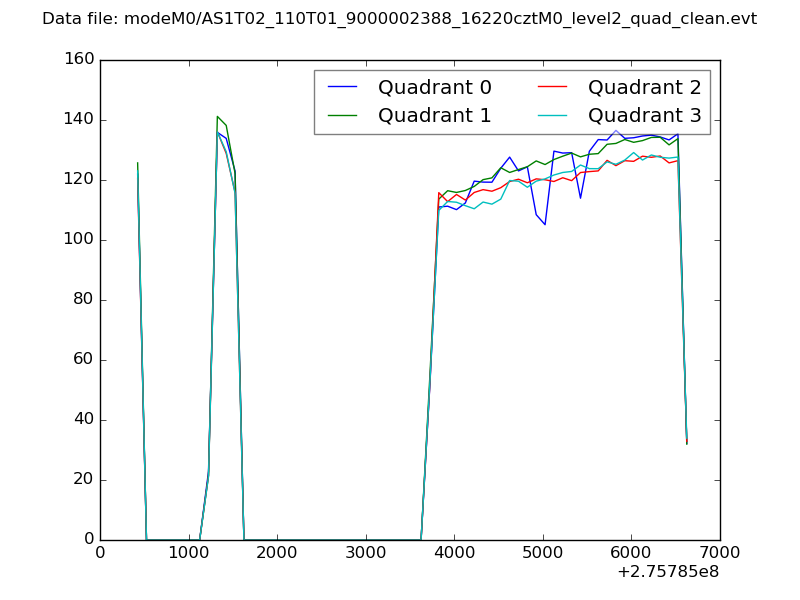

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

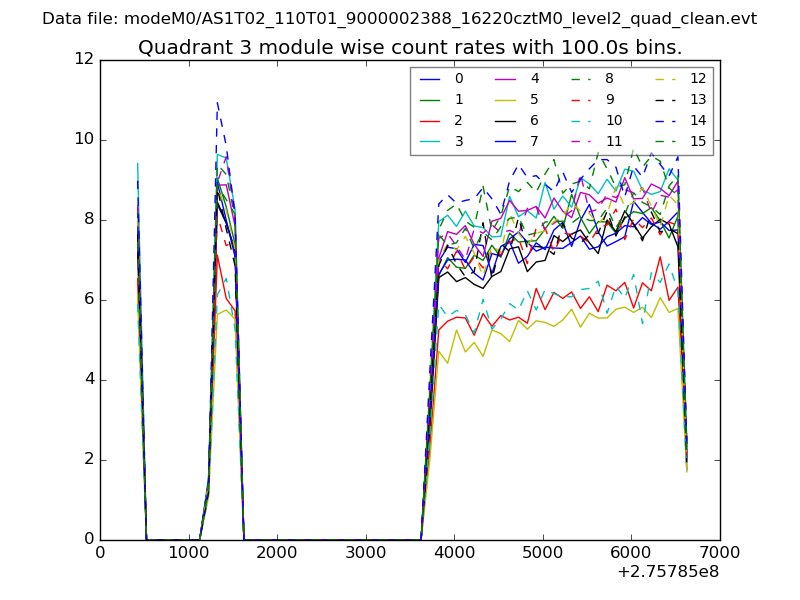

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

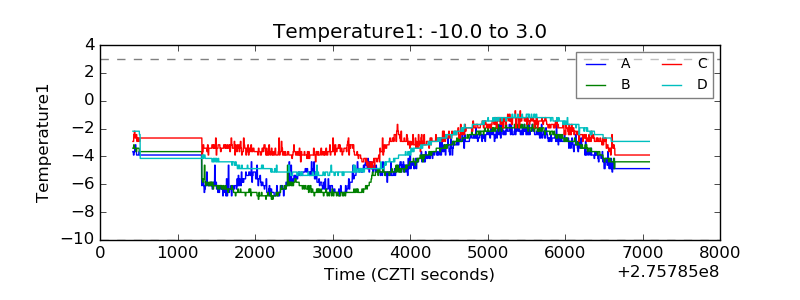

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

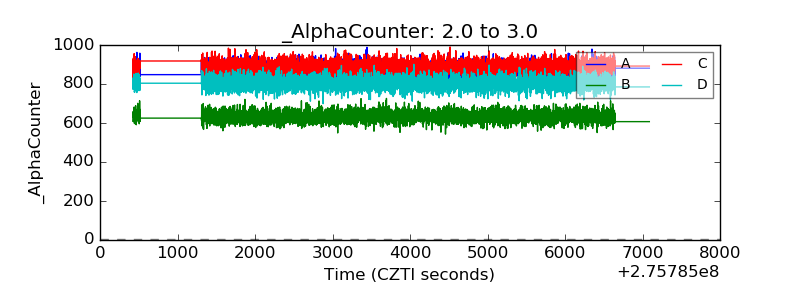

| Alpha Counter |  |

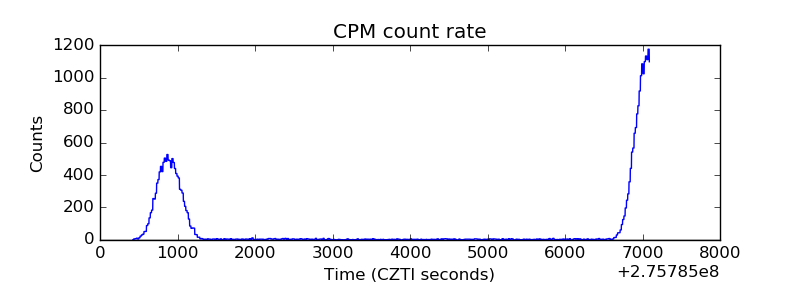

| _CPM_Rate |  |

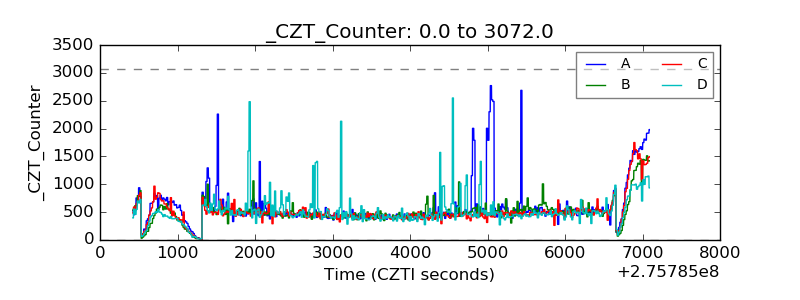

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

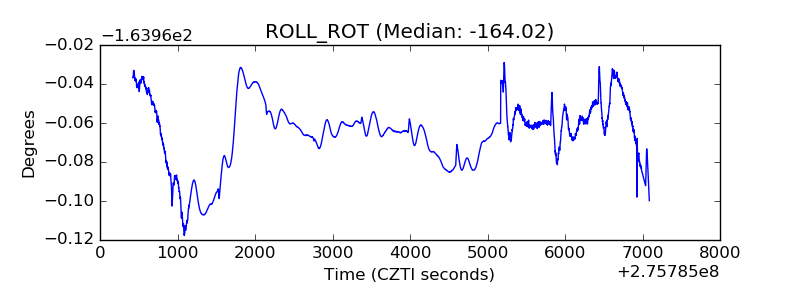

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
