| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16224cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16224cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,736,960 | 82,301,760 |
| Size | 451.8 MB | 78.5 MB |
| Events in quadrant A | 3,584,489 | 515,325 |
| Events in quadrant B | 3,513,561 | 522,423 |
| Events in quadrant C | 3,456,389 | 512,097 |
| Events in quadrant D | 3,364,697 | 502,257 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14653 | 3 |
| B | 0 | 14261 | 2 |
| C | 0 | 14190 | 2 |
| D | 0 | 13827 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6299 | 79 | 1.254167% |
| B | 6299 | 106 | 1.682807% |
| C | 6299 | 104 | 1.651056% |
| D | 6299 | 56 | 0.889030% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 6301 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7570 | 6301 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7570 | 6301 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7570 | 6301 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 247 | 148316 | 851.88 | 868 | 853 | 173.1 |
| A | 15 | 174 | 77689 | 443.87 | 868 | 853 | 173.1 |
| A | 0 | 253 | 20270 | 112.17 | 868 | 853 | 173.1 |
| B | 0 | 198 | 45744 | 277.39 | 865 | 846 | 161.9 |
| B | 0 | 189 | 29212 | 175.25 | 865 | 846 | 161.9 |
| B | 4 | 173 | 29056 | 174.29 | 865 | 846 | 161.9 |
| C | 14 | 238 | 132120 | 689.08 | 833 | 841 | 190.5 |
| C | 3 | 233 | 37194 | 190.82 | 833 | 841 | 190.5 |
| C | 0 | 207 | 23514 | 119.01 | 833 | 841 | 190.5 |
| D | 15 | 0 | 127546 | 622.36 | 846 | 822 | 203.6 |
| D | 1 | 52 | 33759 | 161.76 | 846 | 822 | 203.6 |
| D | 2 | 234 | 22365 | 105.8 | 846 | 822 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

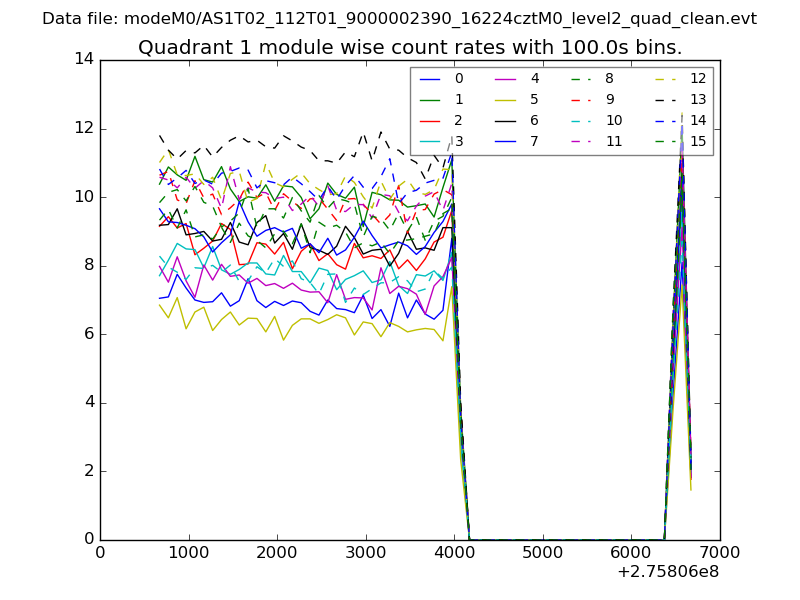

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

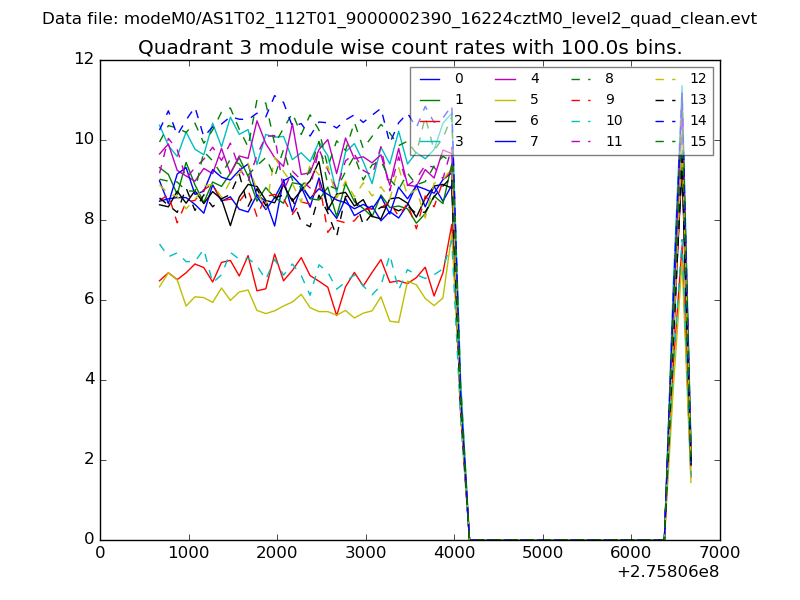

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
