| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16226cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16226cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,064,960 | 105,456,960 |
| Size | 448.3 MB | 100.6 MB |
| Events in quadrant A | 3,677,535 | 700,306 |
| Events in quadrant B | 3,620,755 | 706,960 |
| Events in quadrant C | 3,314,379 | 688,664 |
| Events in quadrant D | 3,217,587 | 680,453 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14700 | 2 |
| B | 0 | 14712 | 1 |
| C | 0 | 13610 | 1 |
| D | 0 | 13105 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5977 | 111 | 1.857119% |
| B | 5977 | 104 | 1.740003% |
| C | 5977 | 132 | 2.208466% |
| D | 5977 | 75 | 1.254810% |

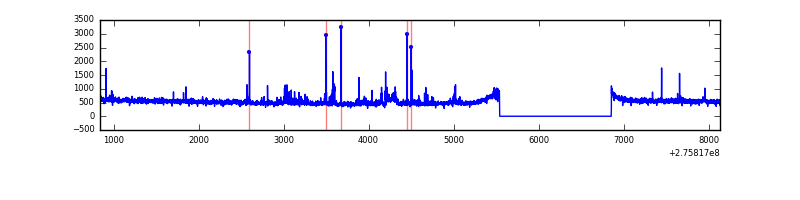

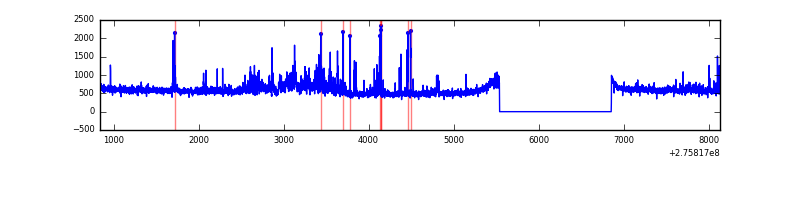

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7293 | 5979 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7293 | 5979 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7293 | 5979 | 10 | 10 | 0.14% | 0.17% |  |
| D | 7293 | 5979 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 455291 | 2758.53 | 825 | 813 | 164.8 |
| A | 0 | 253 | 21407 | 125.0 | 825 | 813 | 164.8 |
| A | 15 | 157 | 18335 | 106.35 | 825 | 813 | 164.8 |
| B | 0 | 219 | 210559 | 1379.39 | 812 | 794 | 152.1 |
| B | 0 | 198 | 58487 | 379.38 | 812 | 794 | 152.1 |
| B | 4 | 216 | 32135 | 206.09 | 812 | 794 | 152.1 |
| C | 14 | 238 | 124737 | 695.82 | 780 | 788 | 178.1 |
| C | 0 | 207 | 97034 | 540.3 | 780 | 788 | 178.1 |
| C | 3 | 233 | 37904 | 208.36 | 780 | 788 | 178.1 |
| D | 1 | 52 | 100064 | 506.46 | 806 | 784 | 196.0 |
| D | 15 | 0 | 55379 | 278.5 | 806 | 784 | 196.0 |
| D | 2 | 234 | 22078 | 108.63 | 806 | 784 | 196.0 |

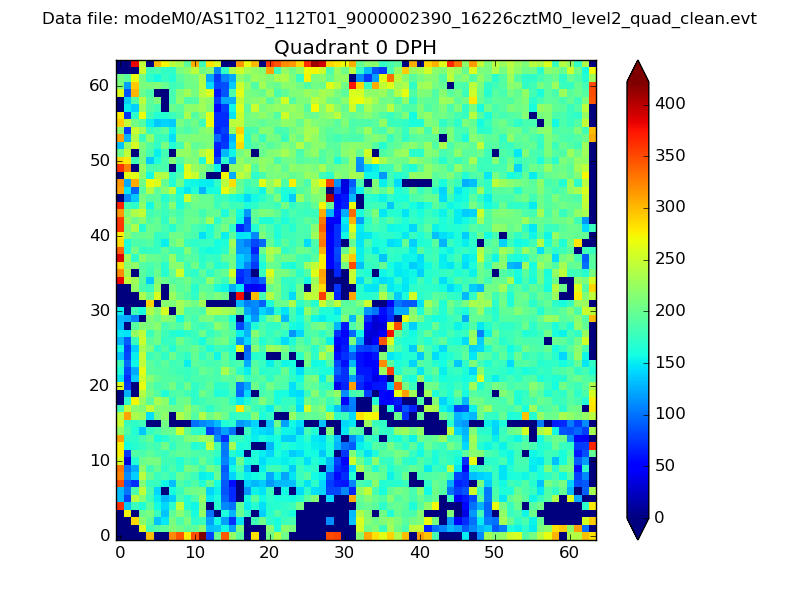

Histogram calculated using DETX and DETY for each event in the final _common_clean file

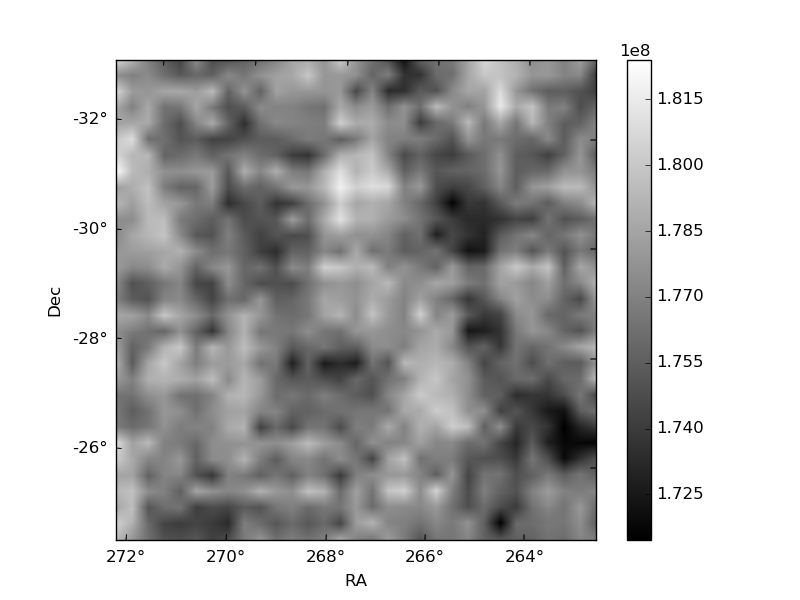

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

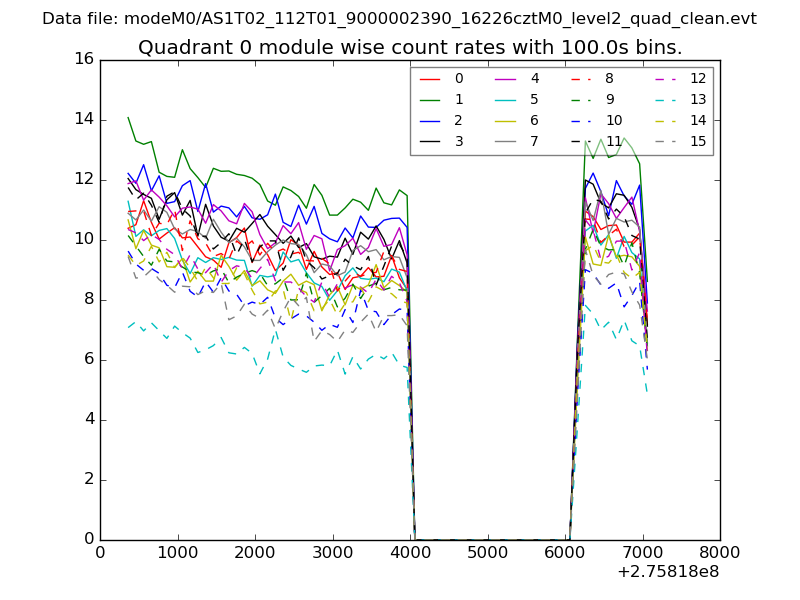

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

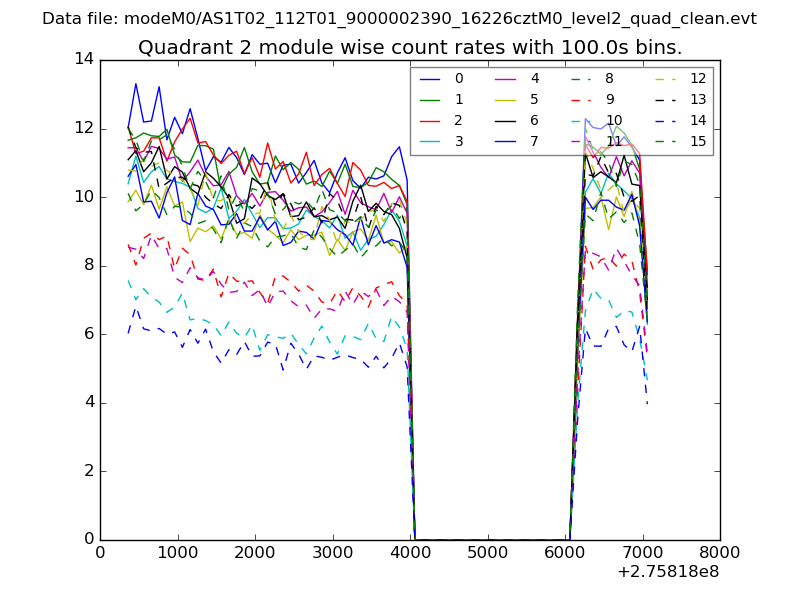

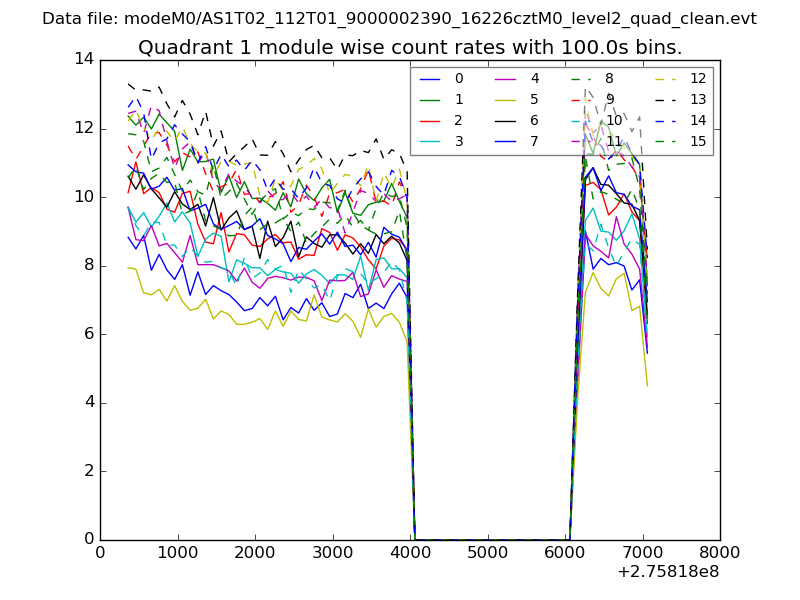

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

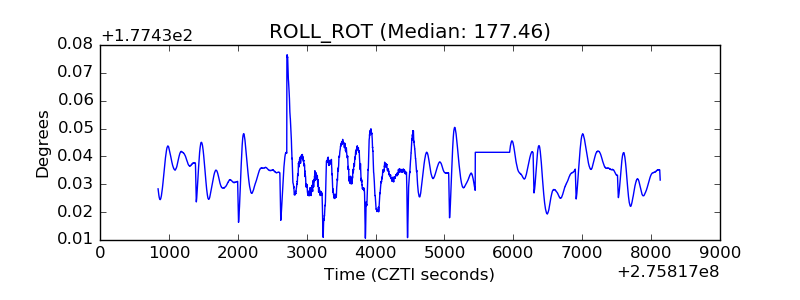

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
