| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16234cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16234cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,329,059,520 | 235,324,800 |
| Size | 1.2 GB | 224.4 MB |
| Events in quadrant A | 10,122,983 | 1,458,730 |
| Events in quadrant B | 9,821,216 | 1,489,151 |
| Events in quadrant C | 9,583,409 | 1,458,842 |
| Events in quadrant D | 9,454,252 | 1,426,804 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42565 | 5 |
| B | 0 | 41508 | 4 |
| C | 0 | 39850 | 4 |
| D | 0 | 41458 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18762 | 333 | 1.774864% |
| B | 18762 | 166 | 0.884767% |
| C | 18762 | 202 | 1.076644% |
| D | 18762 | 176 | 0.938066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

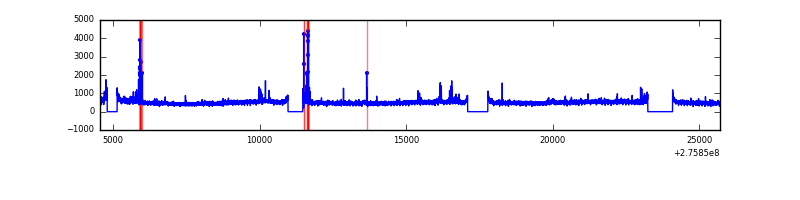

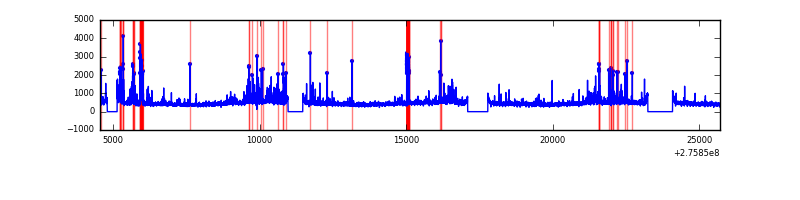

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21143 | 18767 | 171 | 171 | 0.81% | 0.91% |  |
| B | 21143 | 18767 | 19 | 19 | 0.09% | 0.10% |  |
| C | 21143 | 18767 | 20 | 20 | 0.09% | 0.11% |  |
| D | 21143 | 18767 | 136 | 136 | 0.64% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1116073 | 2498.72 | 2226 | 2186 | 445.8 |
| A | 8 | 247 | 276523 | 615.41 | 2226 | 2186 | 445.8 |
| A | 3 | 1 | 64946 | 140.79 | 2226 | 2186 | 445.8 |
| B | 7 | 220 | 221625 | 516.29 | 2244 | 2190 | 425.0 |
| B | 4 | 216 | 165651 | 384.59 | 2244 | 2190 | 425.0 |
| B | 0 | 198 | 143519 | 332.52 | 2244 | 2190 | 425.0 |
| C | 3 | 233 | 699343 | 1390.81 | 2142 | 2152 | 501.3 |
| C | 14 | 238 | 332222 | 658.45 | 2142 | 2152 | 501.3 |
| C | 0 | 207 | 194518 | 383.75 | 2142 | 2152 | 501.3 |
| D | 1 | 52 | 581259 | 1088.77 | 2168 | 2103 | 531.9 |
| D | 12 | 233 | 391077 | 731.24 | 2168 | 2103 | 531.9 |
| D | 5 | 222 | 181057 | 336.42 | 2168 | 2103 | 531.9 |

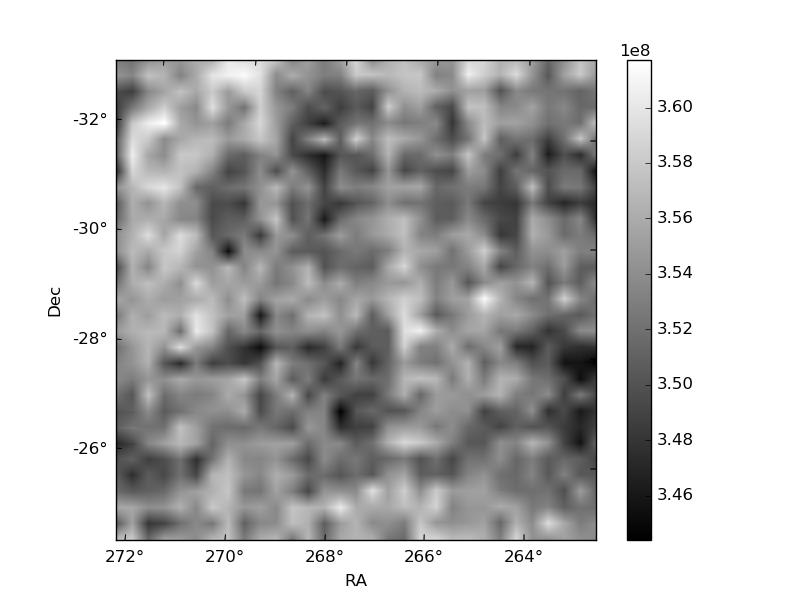

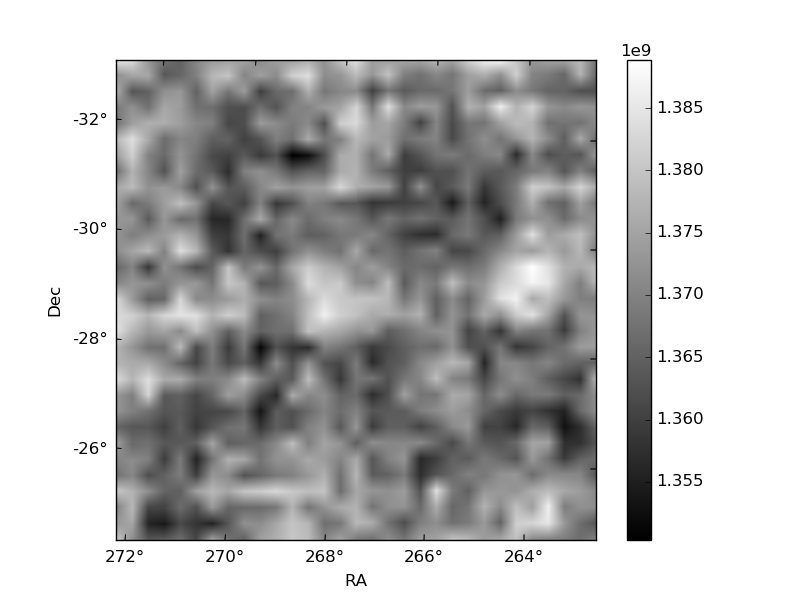

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

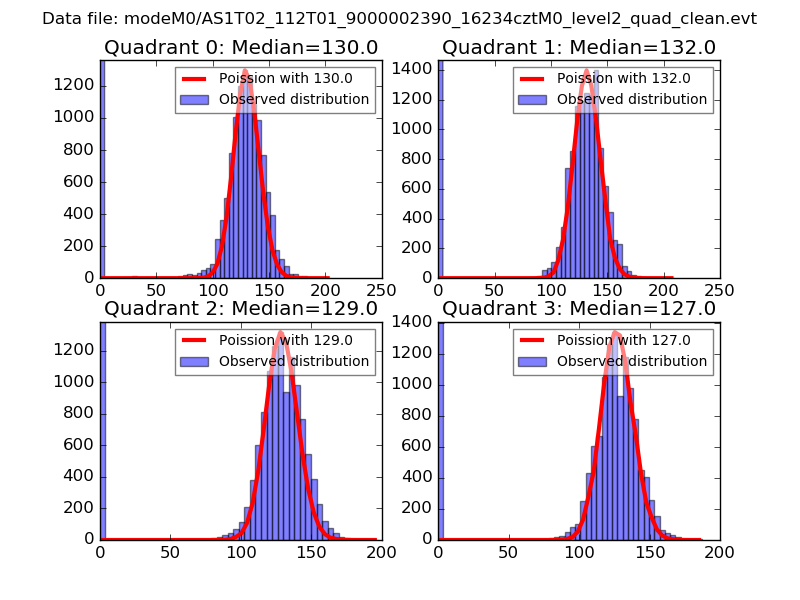

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

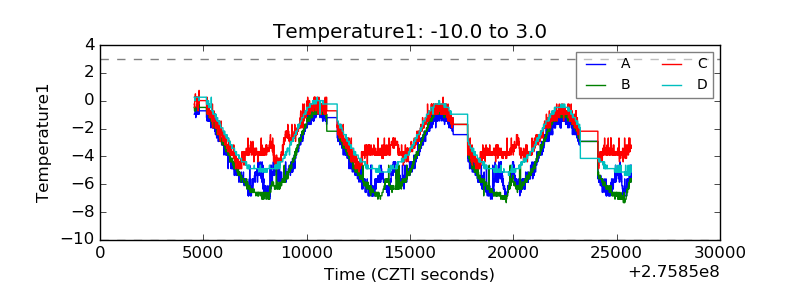

| Temperature 1 |  |
| Veto HV Monitor |  |

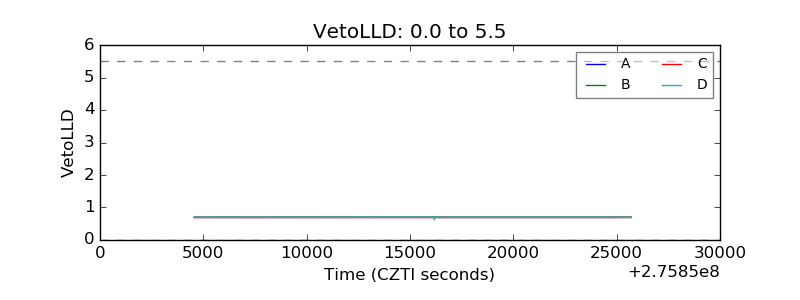

| Veto LLD |  |
| Alpha Counter |  |

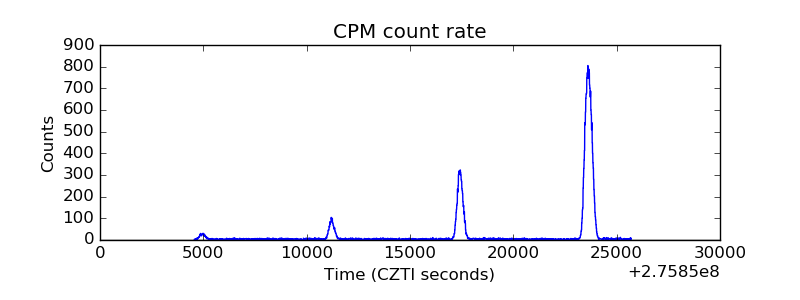

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
