| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16239cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16239cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,835,200 | 85,792,320 |
| Size | 472.9 MB | 81.8 MB |
| Events in quadrant A | 3,458,075 | 546,224 |
| Events in quadrant B | 3,608,134 | 551,971 |
| Events in quadrant C | 3,986,529 | 536,946 |
| Events in quadrant D | 3,544,103 | 530,956 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14073 | 3 |
| B | 0 | 14605 | 2 |
| C | 0 | 16207 | 2 |
| D | 0 | 14310 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 96 | 1.551390% |
| B | 6188 | 110 | 1.777634% |
| C | 6188 | 168 | 2.714932% |
| D | 6188 | 83 | 1.341306% |

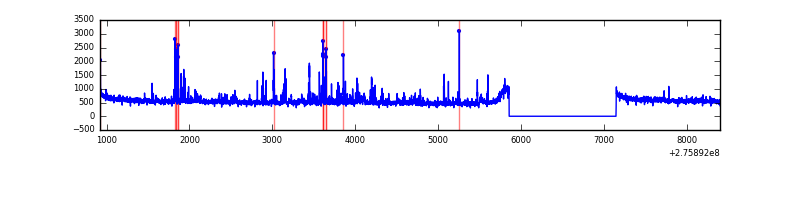

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6190 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7479 | 6190 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7479 | 6190 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 6190 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 61601 | 350.83 | 873 | 860 | 173.1 |
| A | 3 | 1 | 21187 | 117.4 | 873 | 860 | 173.1 |
| A | 9 | 143 | 9964 | 52.58 | 873 | 860 | 173.1 |
| B | 0 | 198 | 54542 | 336.77 | 866 | 849 | 159.4 |
| B | 0 | 219 | 37903 | 232.41 | 866 | 849 | 159.4 |
| B | 7 | 220 | 35357 | 216.44 | 866 | 849 | 159.4 |
| C | 3 | 233 | 597411 | 3119.52 | 834 | 842 | 191.2 |
| C | 14 | 238 | 132548 | 688.7 | 834 | 842 | 191.2 |
| C | 13 | 61 | 6079 | 27.38 | 834 | 842 | 191.2 |
| D | 1 | 52 | 253032 | 1219.76 | 853 | 832 | 206.8 |
| D | 13 | 168 | 36039 | 170.28 | 853 | 832 | 206.8 |
| D | 2 | 234 | 21841 | 101.61 | 853 | 832 | 206.8 |

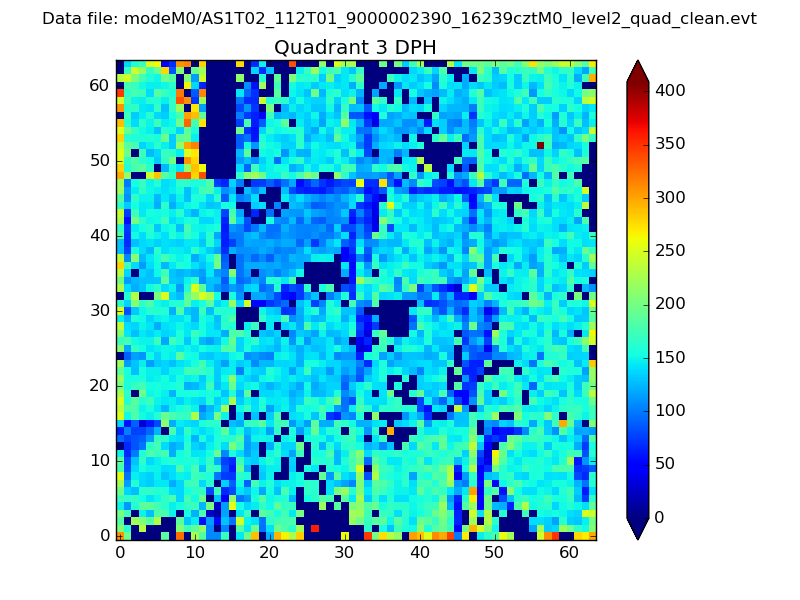

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

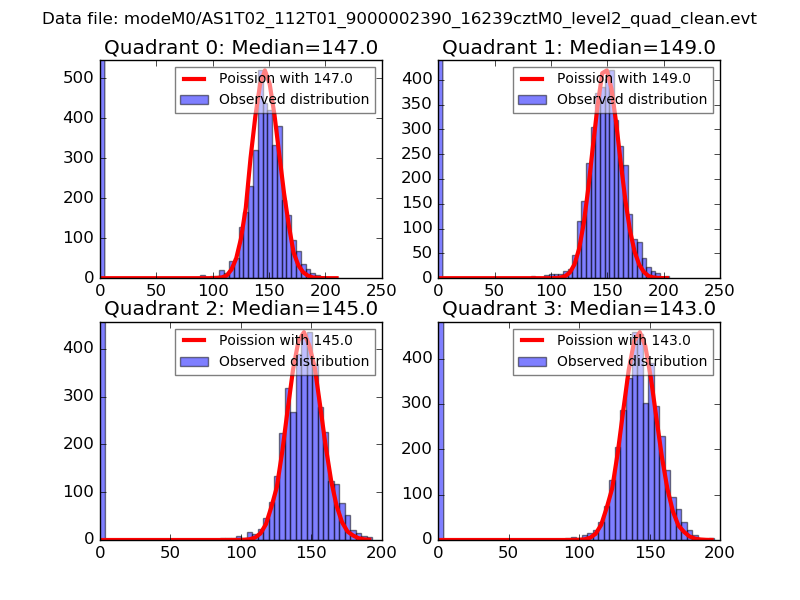

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

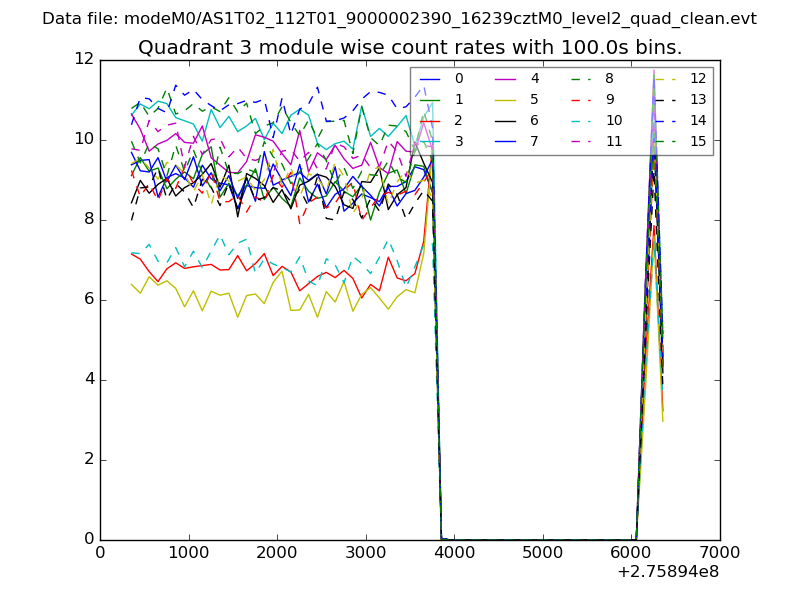

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

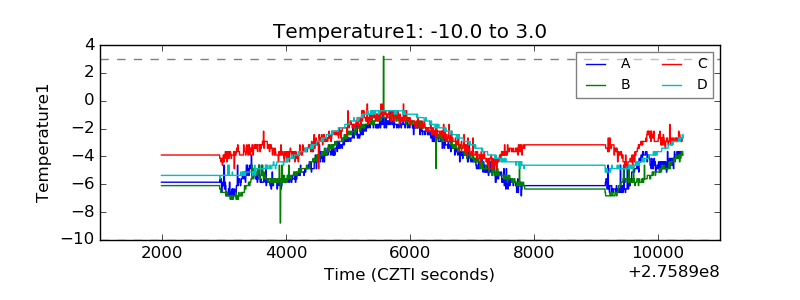

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

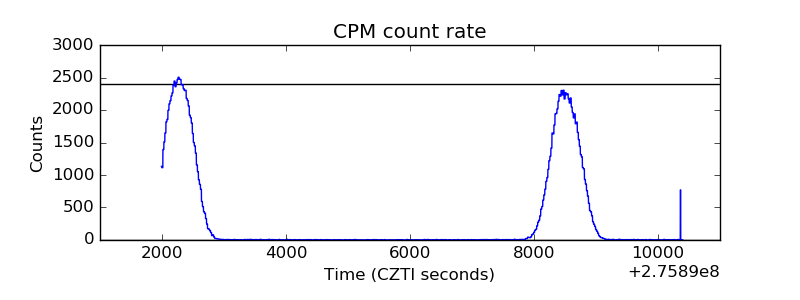

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

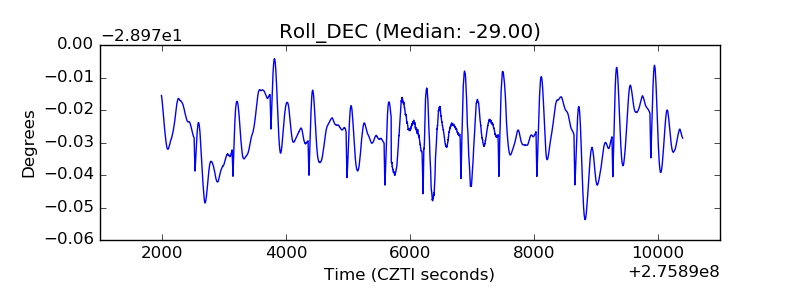

| _Roll_DEC |  |

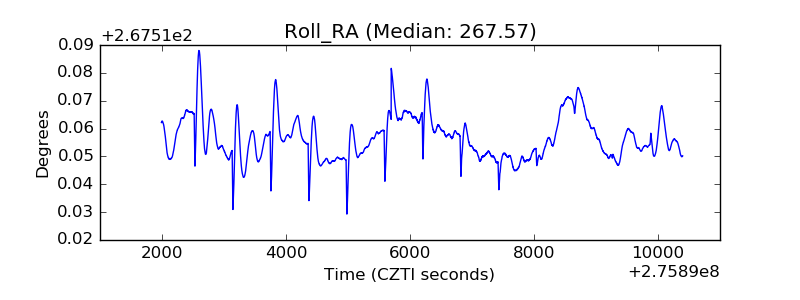

| _Roll_RA |  |
| Veto Counter |  |
