| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16242cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16242cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,360,000 | 108,599,040 |
| Size | 506.7 MB | 103.6 MB |
| Events in quadrant A | 3,816,150 | 711,735 |
| Events in quadrant B | 3,823,951 | 717,964 |
| Events in quadrant C | 3,480,165 | 708,141 |
| Events in quadrant D | 4,526,523 | 693,077 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15414 | 3 |
| B | 0 | 15499 | 2 |
| C | 0 | 14396 | 2 |
| D | 0 | 17665 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6566 | 242 | 3.685653% |
| B | 6566 | 169 | 2.573865% |
| C | 6566 | 145 | 2.208346% |
| D | 6566 | 263 | 4.005483% |

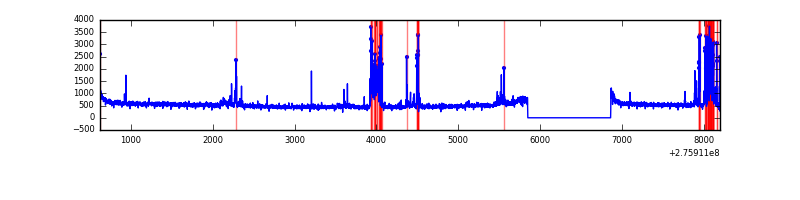

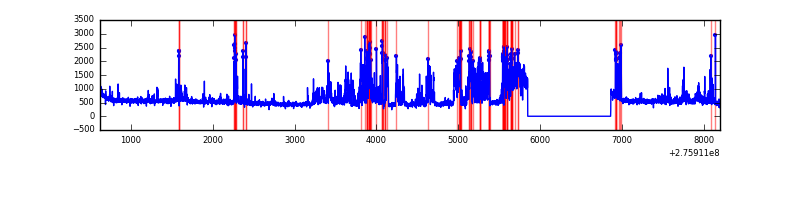

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6568 | 78 | 78 | 1.03% | 1.19% |  |
| B | 7582 | 6568 | 31 | 31 | 0.41% | 0.47% |  |
| C | 7582 | 6568 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6568 | 114 | 114 | 1.50% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 494325 | 2841.36 | 855 | 839 | 173.7 |
| A | 9 | 143 | 20999 | 116.08 | 855 | 839 | 173.7 |
| A | 0 | 226 | 7766 | 39.88 | 855 | 839 | 173.7 |
| B | 7 | 220 | 169191 | 1063.74 | 848 | 831 | 158.3 |
| B | 0 | 198 | 94631 | 592.65 | 848 | 831 | 158.3 |
| B | 4 | 216 | 41561 | 257.34 | 848 | 831 | 158.3 |
| C | 3 | 233 | 176175 | 936.74 | 813 | 820 | 187.2 |
| C | 14 | 238 | 125310 | 665.02 | 813 | 820 | 187.2 |
| C | 13 | 61 | 5831 | 26.77 | 813 | 820 | 187.2 |
| D | 1 | 52 | 1283590 | 6411.49 | 829 | 806 | 200.1 |
| D | 10 | 70 | 47617 | 233.97 | 829 | 806 | 200.1 |
| D | 15 | 0 | 37686 | 184.33 | 829 | 806 | 200.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

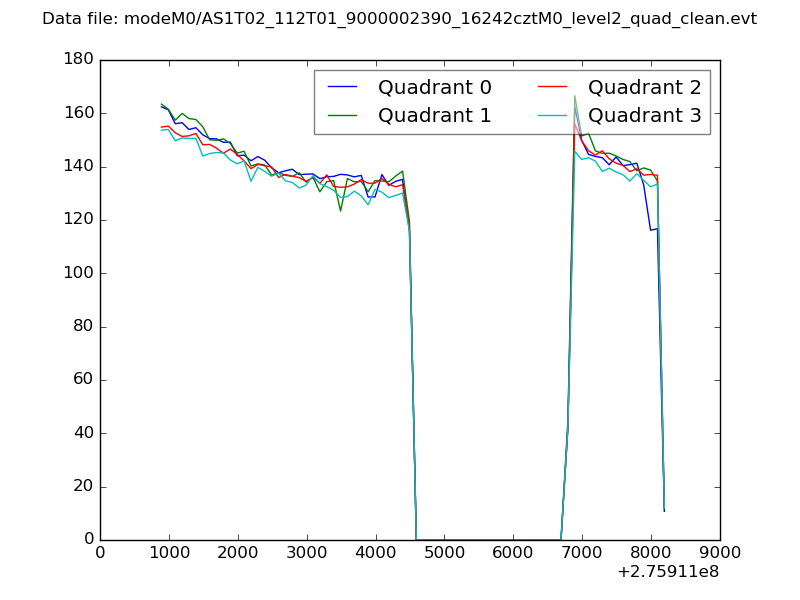

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

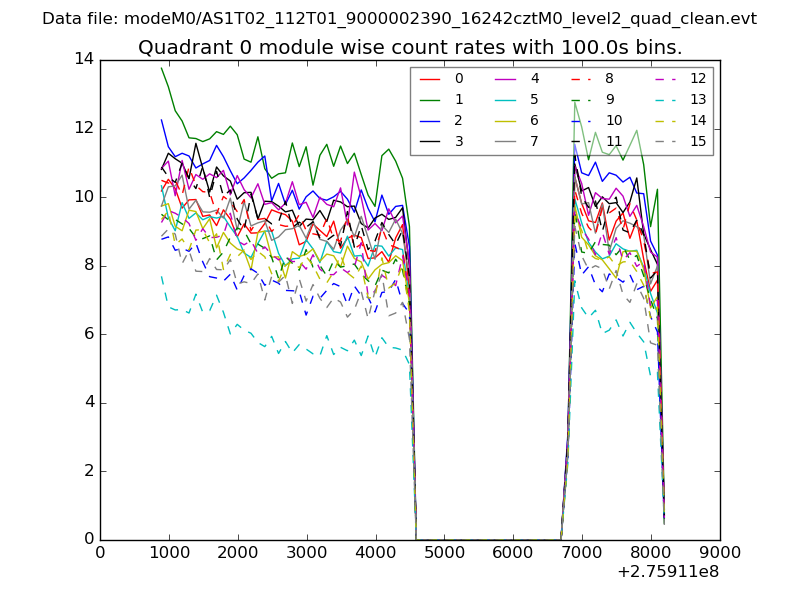

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

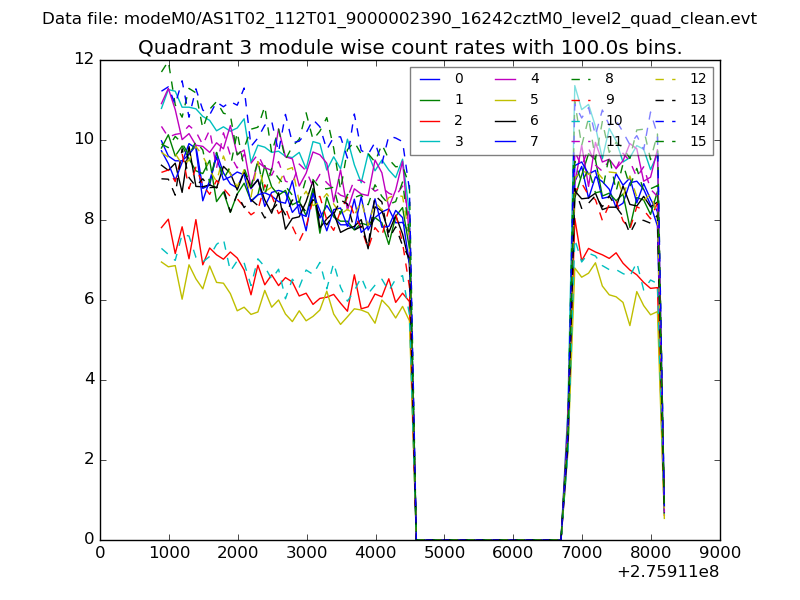

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

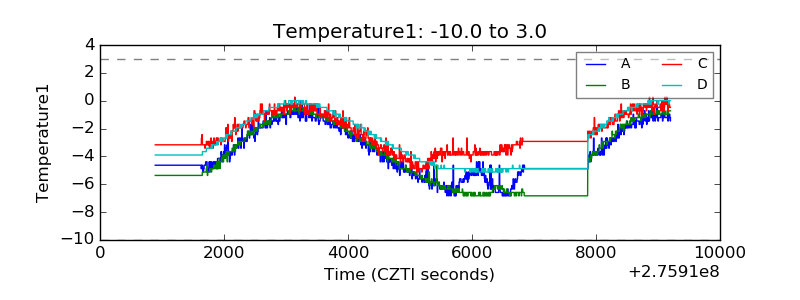

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

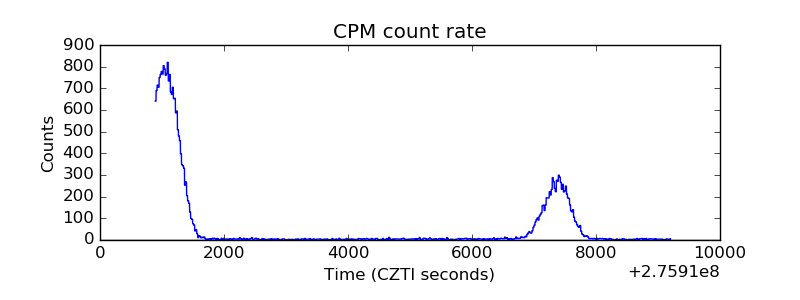

| _CPM_Rate |  |

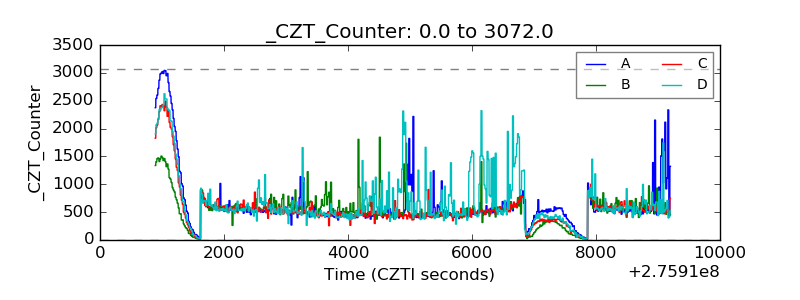

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
