| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16255cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16255cztM0_level2_quad_clean.evt |
| Size (bytes) | 549,296,640 | 100,333,440 |
| Size | 523.9 MB | 95.7 MB |
| Events in quadrant A | 5,276,903 | 614,974 |
| Events in quadrant B | 3,942,274 | 672,072 |
| Events in quadrant C | 3,518,169 | 662,459 |
| Events in quadrant D | 3,475,450 | 653,675 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19751 | 3 |
| B | 0 | 15649 | 2 |
| C | 0 | 14346 | 2 |
| D | 0 | 14034 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6239 | 820 | 13.143132% |
| B | 6239 | 206 | 3.301811% |
| C | 6239 | 207 | 3.317839% |
| D | 6239 | 122 | 1.955442% |

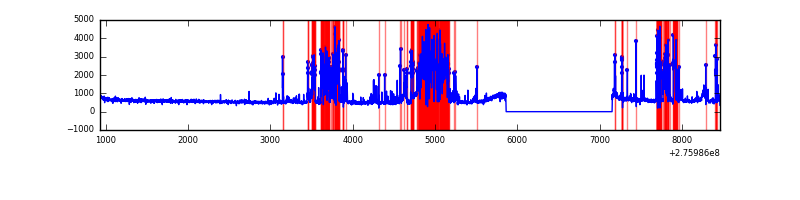

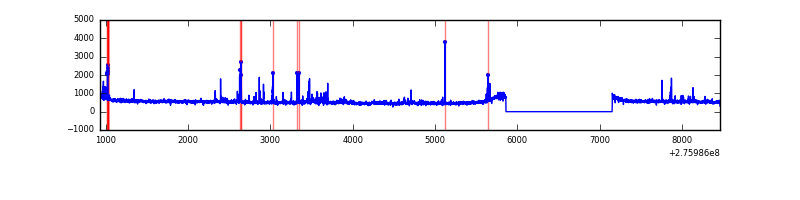

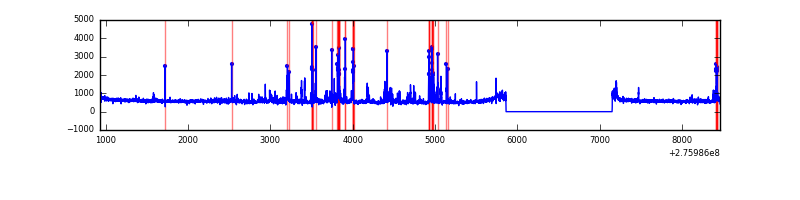

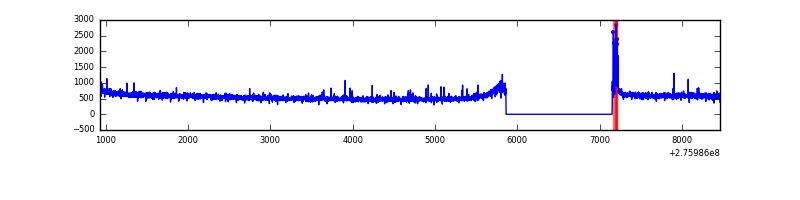

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6241 | 551 | 551 | 7.32% | 8.83% |  |
| B | 7530 | 6241 | 51 | 51 | 0.68% | 0.82% |  |
| C | 7530 | 6241 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7530 | 6241 | 16 | 16 | 0.21% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1593809 | 9522.01 | 835 | 820 | 167.3 |
| A | 14 | 250 | 382156 | 2279.42 | 835 | 820 | 167.3 |
| A | 3 | 1 | 52720 | 310.23 | 835 | 820 | 167.3 |
| B | 10 | 16 | 203334 | 1250.55 | 863 | 845 | 161.9 |
| B | 7 | 220 | 125479 | 769.73 | 863 | 845 | 161.9 |
| B | 3 | 64 | 63386 | 386.25 | 863 | 845 | 161.9 |
| C | 14 | 238 | 130036 | 682.9 | 833 | 841 | 189.2 |
| C | 7 | 238 | 57804 | 301.09 | 833 | 841 | 189.2 |
| C | 3 | 233 | 57135 | 297.56 | 833 | 841 | 189.2 |
| D | 1 | 52 | 79227 | 383.2 | 858 | 836 | 204.6 |
| D | 15 | 0 | 57895 | 278.92 | 858 | 836 | 204.6 |
| D | 10 | 70 | 33621 | 160.26 | 858 | 836 | 204.6 |

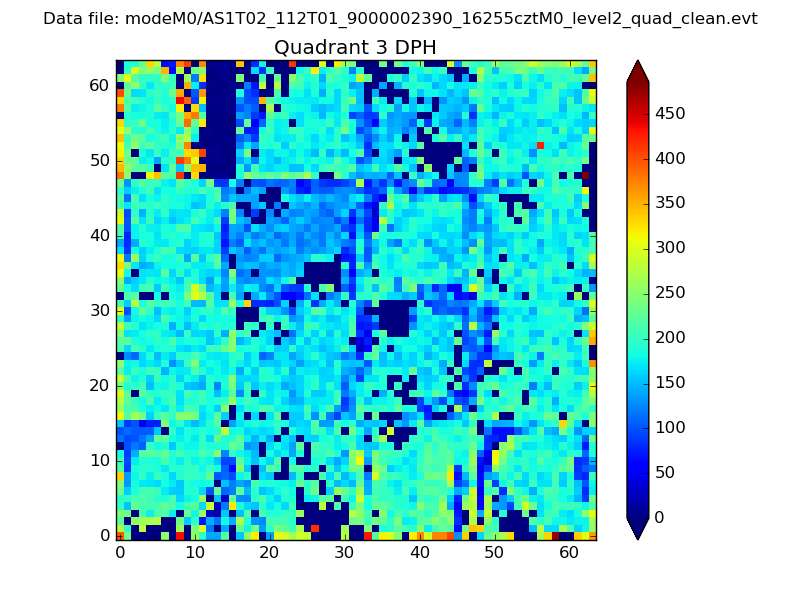

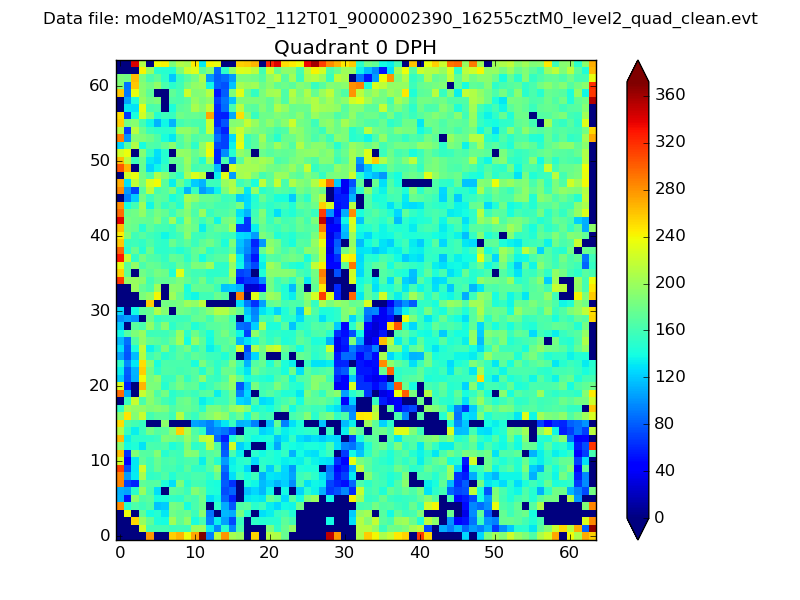

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

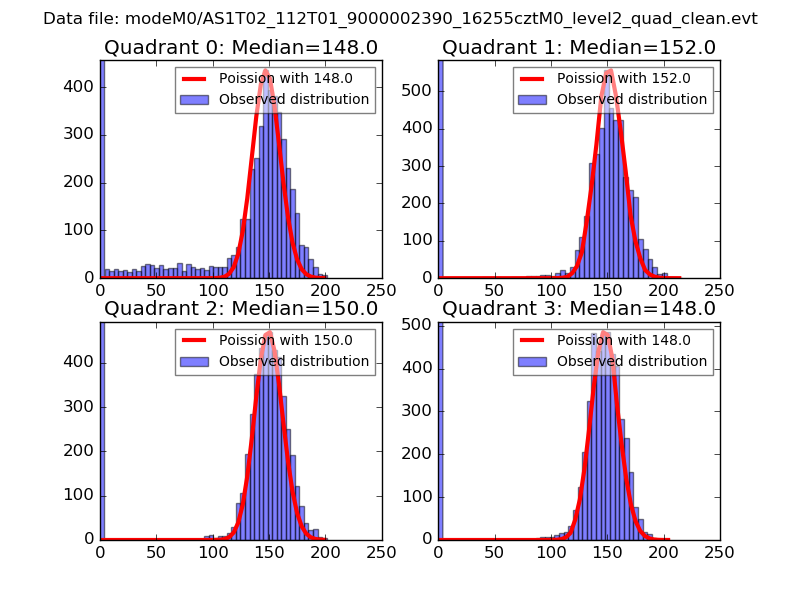

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

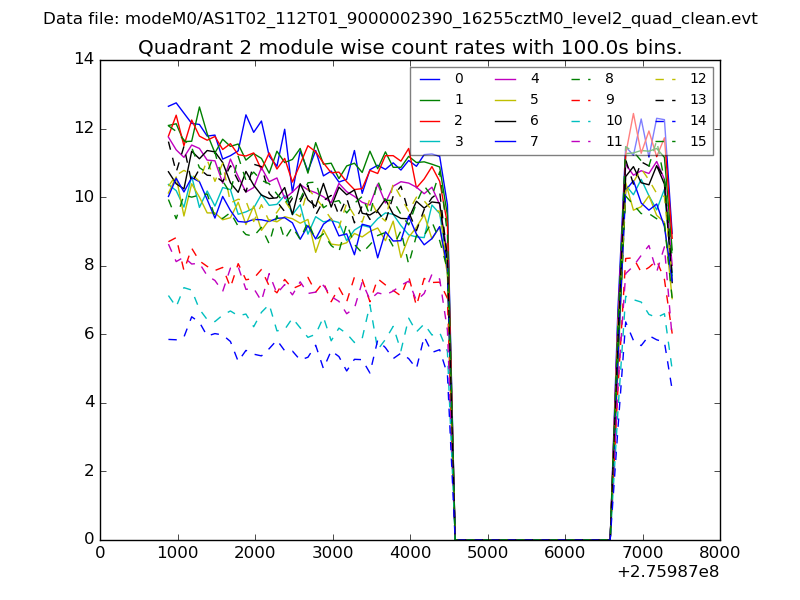

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

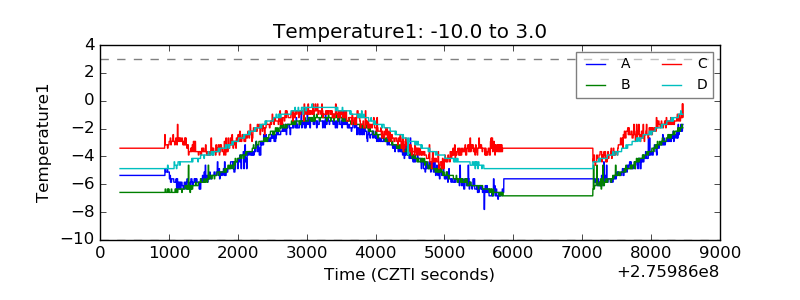

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

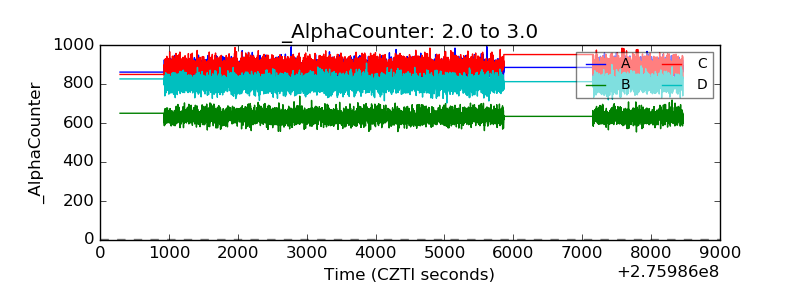

| Alpha Counter |  |

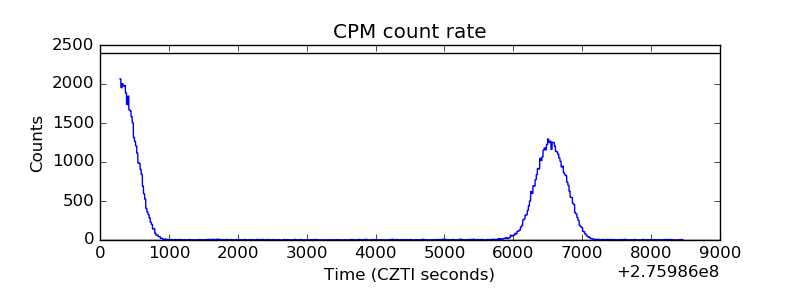

| _CPM_Rate |  |

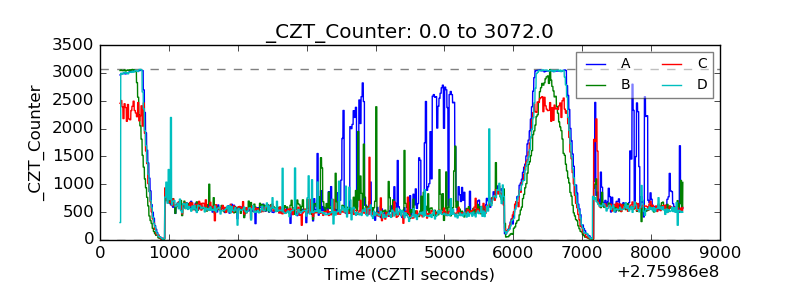

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

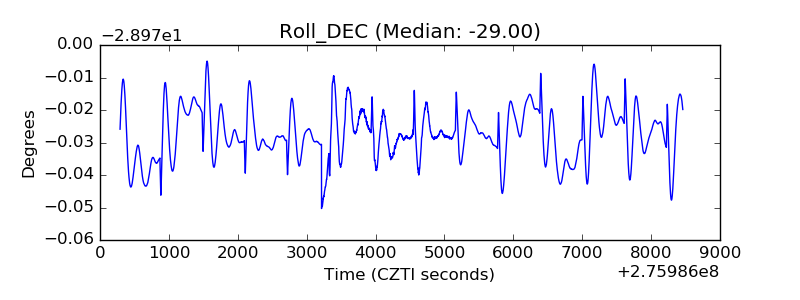

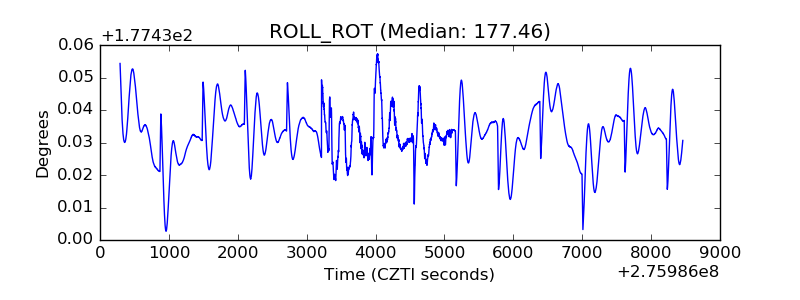

| _ROLL_ROT |  |
| _Roll_DEC |  |

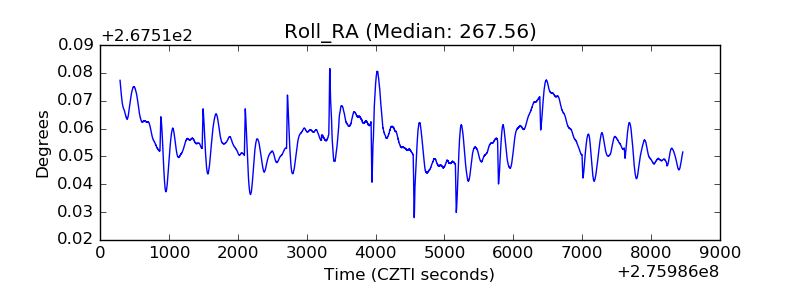

| _Roll_RA |  |
| Veto Counter |  |
