| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16257cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16257cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,762,880 | 113,417,280 |
| Size | 520.5 MB | 108.2 MB |
| Events in quadrant A | 3,649,198 | 747,061 |
| Events in quadrant B | 4,150,849 | 748,878 |
| Events in quadrant C | 3,679,535 | 738,027 |
| Events in quadrant D | 4,573,923 | 713,168 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15193 | 3 |
| B | 0 | 16801 | 2 |
| C | 0 | 15096 | 2 |
| D | 0 | 18277 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6998 | 188 | 2.686482% |
| B | 6998 | 186 | 2.657902% |
| C | 6998 | 148 | 2.114890% |
| D | 6998 | 250 | 3.572449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7804 | 7001 | 32 | 32 | 0.41% | 0.46% |  |
| B | 7804 | 7001 | 28 | 28 | 0.36% | 0.40% |  |
| C | 7804 | 7001 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7804 | 7001 | 125 | 125 | 1.60% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 156854 | 871.52 | 889 | 871 | 179.0 |
| A | 14 | 250 | 48972 | 268.75 | 889 | 871 | 179.0 |
| A | 13 | 248 | 13024 | 67.9 | 889 | 871 | 179.0 |
| B | 7 | 220 | 234332 | 1388.36 | 879 | 859 | 168.2 |
| B | 0 | 198 | 90883 | 535.33 | 879 | 859 | 168.2 |
| B | 4 | 216 | 90122 | 530.81 | 879 | 859 | 168.2 |
| C | 3 | 233 | 194878 | 990.01 | 846 | 855 | 196.0 |
| C | 14 | 238 | 128749 | 652.58 | 846 | 855 | 196.0 |
| C | 7 | 247 | 25333 | 124.9 | 846 | 855 | 196.0 |
| D | 1 | 52 | 728246 | 3485.46 | 861 | 838 | 208.7 |
| D | 15 | 0 | 373773 | 1786.96 | 861 | 838 | 208.7 |
| D | 10 | 70 | 80785 | 383.08 | 861 | 838 | 208.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

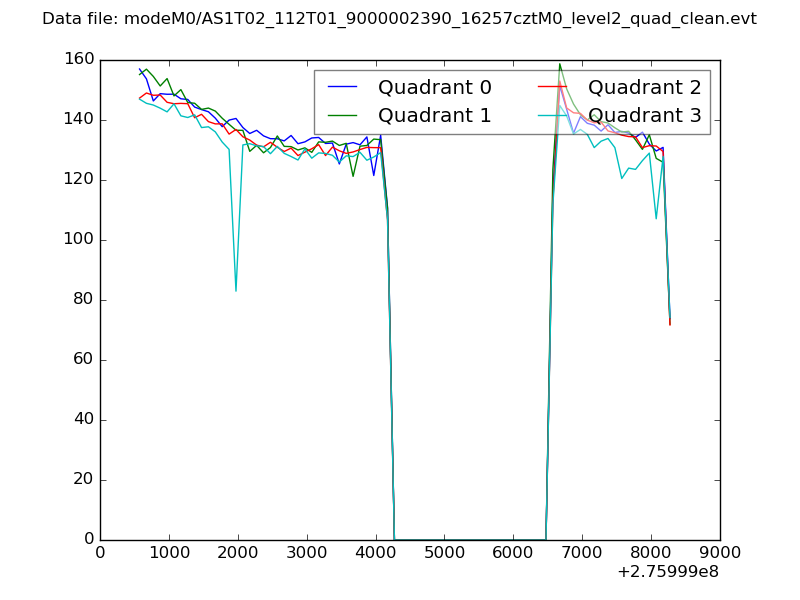

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

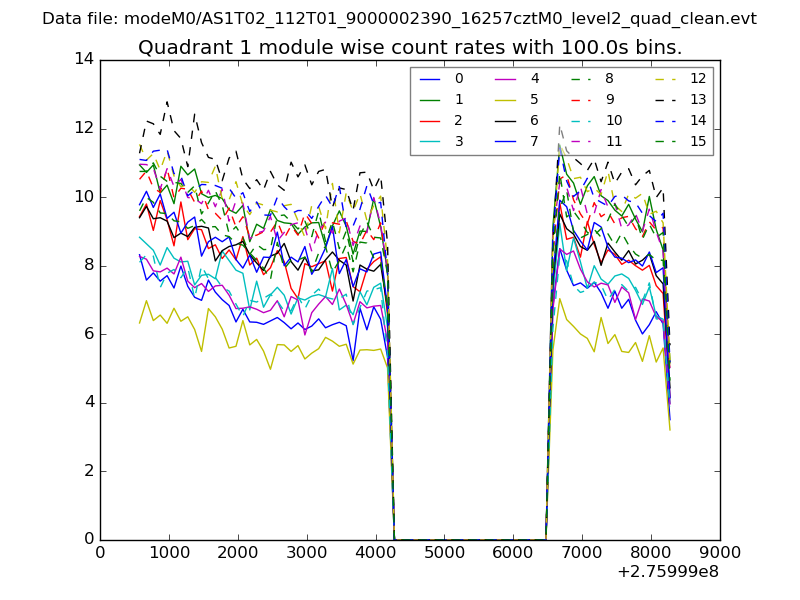

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

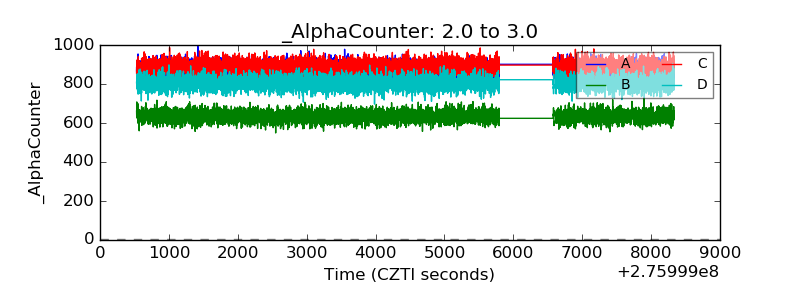

| Alpha Counter |  |

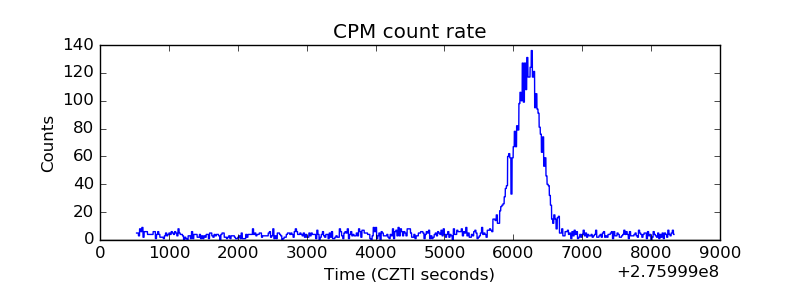

| _CPM_Rate |  |

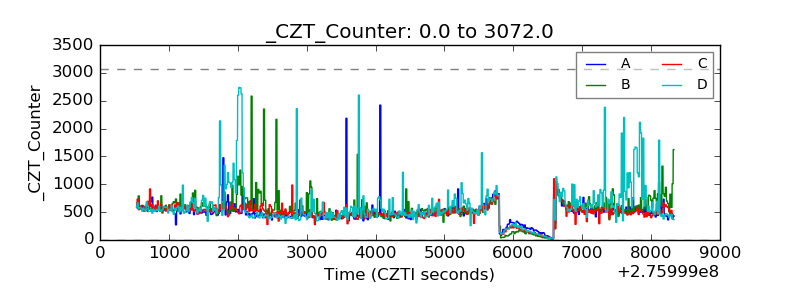

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

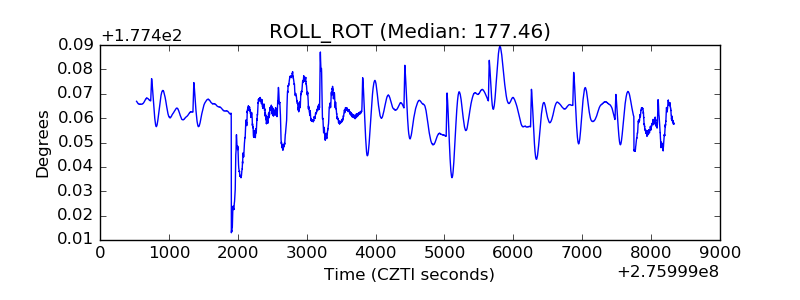

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

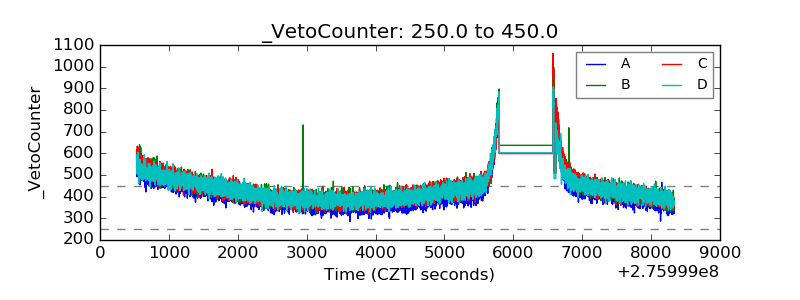

| Veto Counter |  |
