| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_112T01_9000002390_16260cztM0_level2.evt | modeM0/AS1T02_112T01_9000002390_16260cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,881,920 | 97,830,720 |
| Size | 497.7 MB | 93.3 MB |
| Events in quadrant A | 4,207,237 | 616,868 |
| Events in quadrant B | 3,953,287 | 626,614 |
| Events in quadrant C | 3,407,071 | 619,958 |
| Events in quadrant D | 3,761,765 | 610,736 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17150 | 2 |
| B | 0 | 16321 | 1 |
| C | 0 | 14712 | 1 |
| D | 0 | 16063 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7007 | 185 | 2.640217% |
| B | 7007 | 113 | 1.612673% |
| C | 7007 | 86 | 1.227344% |
| D | 7007 | 99 | 1.412873% |

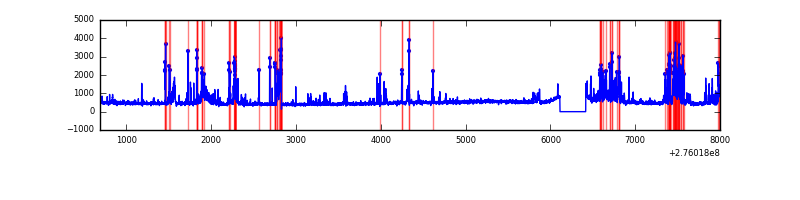

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7313 | 7009 | 118 | 118 | 1.61% | 1.68% |  |
| B | 7313 | 7009 | 29 | 29 | 0.40% | 0.41% |  |
| C | 7313 | 7009 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7313 | 7009 | 59 | 59 | 0.81% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 733862 | 4302.47 | 831 | 815 | 170.4 |
| A | 15 | 157 | 96208 | 559.89 | 831 | 815 | 170.4 |
| A | 9 | 143 | 69838 | 405.12 | 831 | 815 | 170.4 |
| B | 7 | 220 | 321549 | 2004.64 | 836 | 817 | 160.0 |
| B | 4 | 216 | 110740 | 687.04 | 836 | 817 | 160.0 |
| B | 0 | 189 | 54130 | 333.22 | 836 | 817 | 160.0 |
| C | 14 | 238 | 130948 | 693.37 | 800 | 805 | 187.7 |
| C | 3 | 233 | 96546 | 510.08 | 800 | 805 | 187.7 |
| C | 7 | 247 | 24230 | 124.8 | 800 | 805 | 187.7 |
| D | 1 | 52 | 452139 | 2288.07 | 811 | 787 | 197.3 |
| D | 10 | 70 | 135160 | 681.19 | 811 | 787 | 197.3 |
| D | 13 | 112 | 56644 | 283.16 | 811 | 787 | 197.3 |

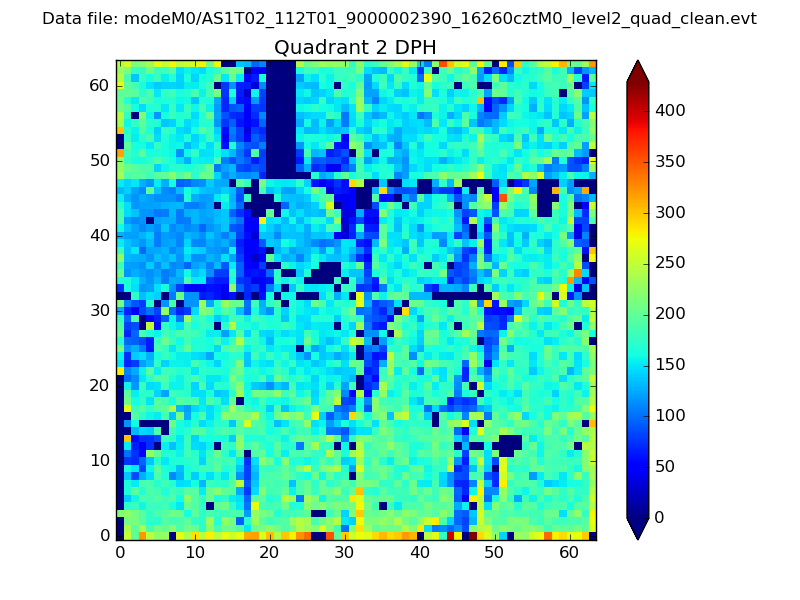

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

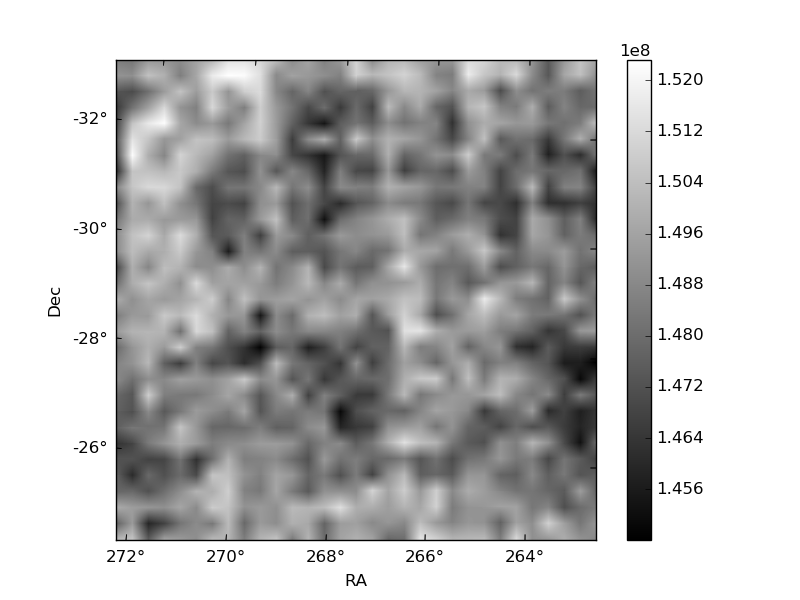

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

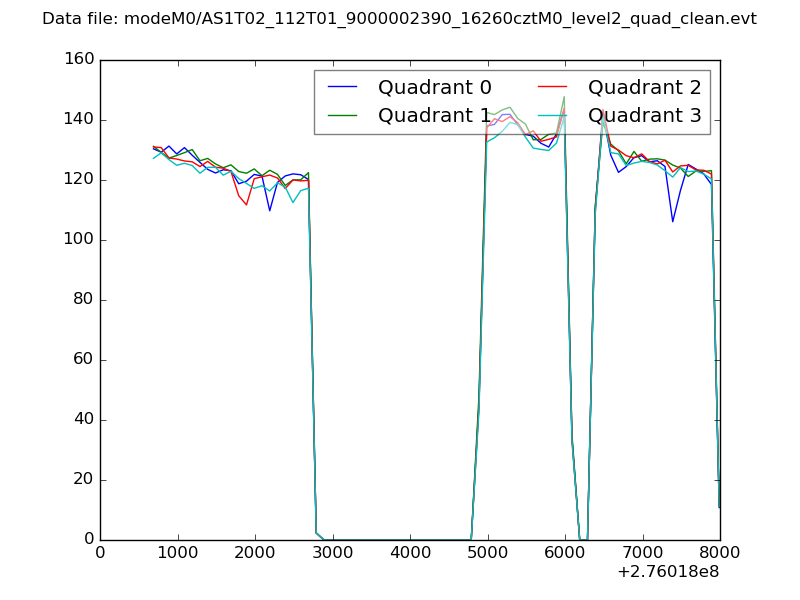

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

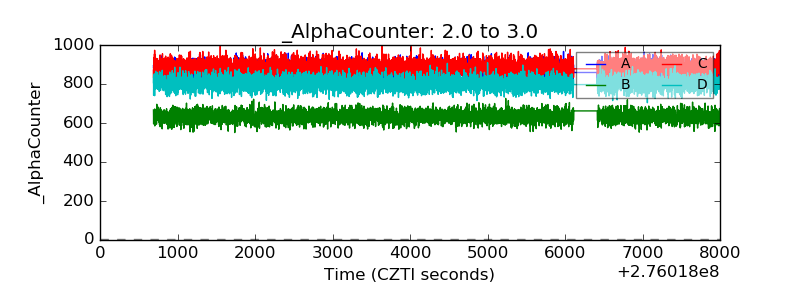

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

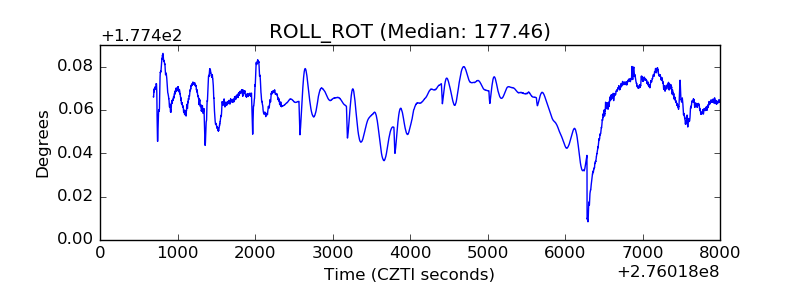

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
