| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T05_9000002394_16286cztM0_level2.evt | modeM0/AS1A05_072T05_9000002394_16286cztM0_level2_quad_clean.evt |
| Size (bytes) | 316,535,040 | 69,952,320 |
| Size | 301.9 MB | 66.7 MB |
| Events in quadrant A | 2,615,584 | 446,972 |
| Events in quadrant B | 2,149,111 | 466,278 |
| Events in quadrant C | 2,067,514 | 458,411 |
| Events in quadrant D | 2,463,432 | 446,529 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10435 | 1 |
| B | 0 | 8948 | 1 |
| C | 0 | 8800 | 1 |
| D | 0 | 10149 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4266 | 117 | 2.742616% |
| B | 4266 | 22 | 0.515706% |
| C | 4266 | 34 | 0.797000% |
| D | 4266 | 39 | 0.914205% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4267 | 4267 | 79 | 79 | 1.85% | 1.85% |  |
| B | 4267 | 4267 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4267 | 4267 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4267 | 4267 | 34 | 34 | 0.80% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 613995 | 5880.29 | 520 | 510 | 104.3 |
| A | 0 | 226 | 4646 | 39.64 | 520 | 510 | 104.3 |
| A | 12 | 194 | 3793 | 31.47 | 520 | 510 | 104.3 |
| B | 0 | 189 | 37442 | 369.29 | 523 | 512 | 100.0 |
| B | 0 | 198 | 32011 | 314.98 | 523 | 512 | 100.0 |
| B | 4 | 216 | 16847 | 163.35 | 523 | 512 | 100.0 |
| C | 14 | 238 | 79049 | 673.22 | 501 | 504 | 116.7 |
| C | 0 | 207 | 25731 | 216.22 | 501 | 504 | 116.7 |
| C | 3 | 233 | 8214 | 66.08 | 501 | 504 | 116.7 |
| D | 1 | 52 | 370175 | 3032.47 | 509 | 497 | 121.9 |
| D | 10 | 70 | 101713 | 830.27 | 509 | 497 | 121.9 |
| D | 2 | 122 | 46403 | 376.57 | 509 | 497 | 121.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

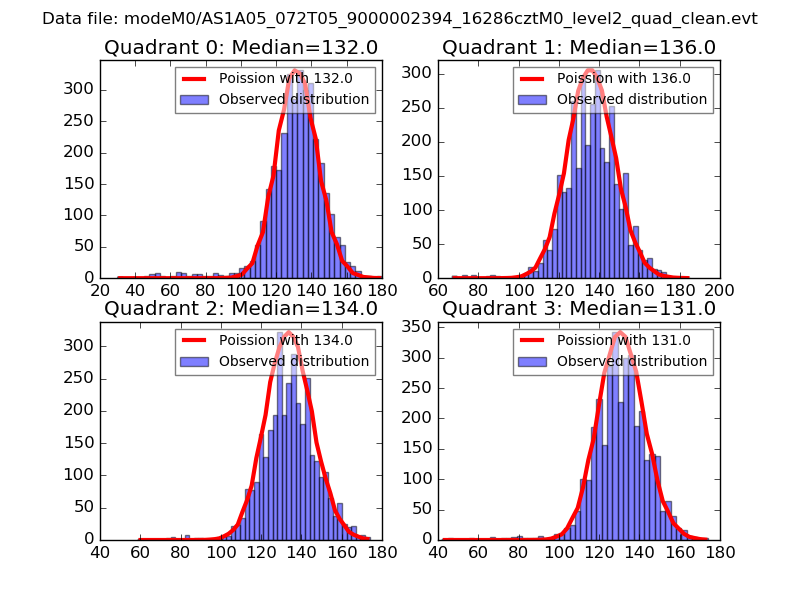

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
