| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T04_9000002402_16293cztM0_level2.evt | modeM0/AS1A05_101T04_9000002402_16293cztM0_level2_quad_clean.evt |
| Size (bytes) | 320,653,440 | 61,018,560 |
| Size | 305.8 MB | 58.2 MB |
| Events in quadrant A | 2,095,506 | 384,510 |
| Events in quadrant B | 2,256,774 | 395,232 |
| Events in quadrant C | 2,669,107 | 379,230 |
| Events in quadrant D | 2,382,525 | 371,928 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9131 | 2 |
| B | 0 | 9476 | 1 |
| C | 0 | 10837 | 1 |
| D | 0 | 10107 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4503 | 5 | 0.111037% |
| B | 4503 | 10 | 0.222074% |
| C | 4503 | 90 | 1.998668% |
| D | 4503 | 80 | 1.776593% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5545 | 4505 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5545 | 4505 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5545 | 4505 | 11 | 11 | 0.20% | 0.24% |  |
| D | 5545 | 4505 | 51 | 51 | 0.92% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 7458 | 62.81 | 542 | 533 | 110.3 |
| A | 0 | 226 | 4757 | 38.31 | 542 | 533 | 110.3 |
| A | 12 | 194 | 4052 | 31.91 | 542 | 533 | 110.3 |
| B | 0 | 189 | 24518 | 227.42 | 546 | 532 | 105.5 |
| B | 0 | 229 | 20357 | 187.97 | 546 | 532 | 105.5 |
| B | 15 | 35 | 20004 | 184.62 | 546 | 532 | 105.5 |
| C | 3 | 233 | 534044 | 4341.84 | 524 | 527 | 122.9 |
| C | 14 | 238 | 81034 | 655.18 | 524 | 527 | 122.9 |
| C | 0 | 207 | 9454 | 72.65 | 524 | 527 | 122.9 |
| D | 10 | 70 | 226762 | 1754.53 | 529 | 514 | 129.0 |
| D | 1 | 52 | 96711 | 746.0 | 529 | 514 | 129.0 |
| D | 12 | 110 | 40952 | 313.59 | 529 | 514 | 129.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

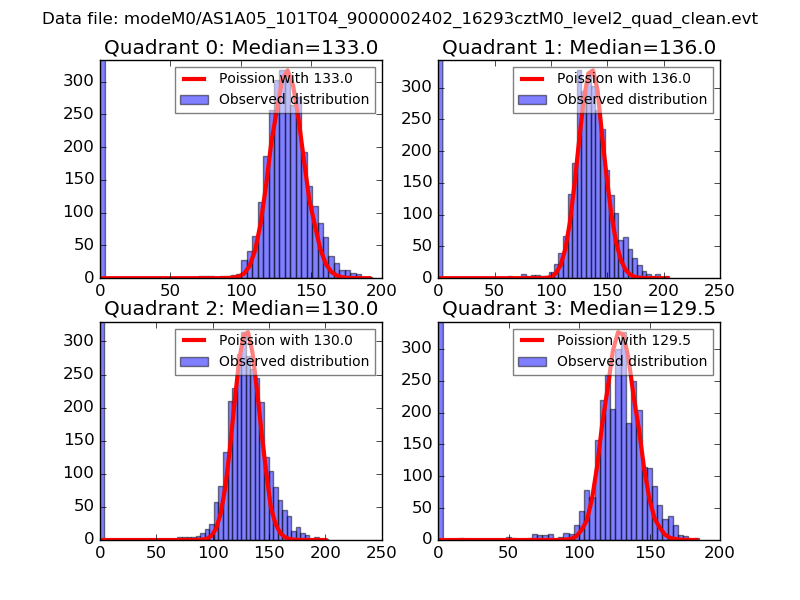

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

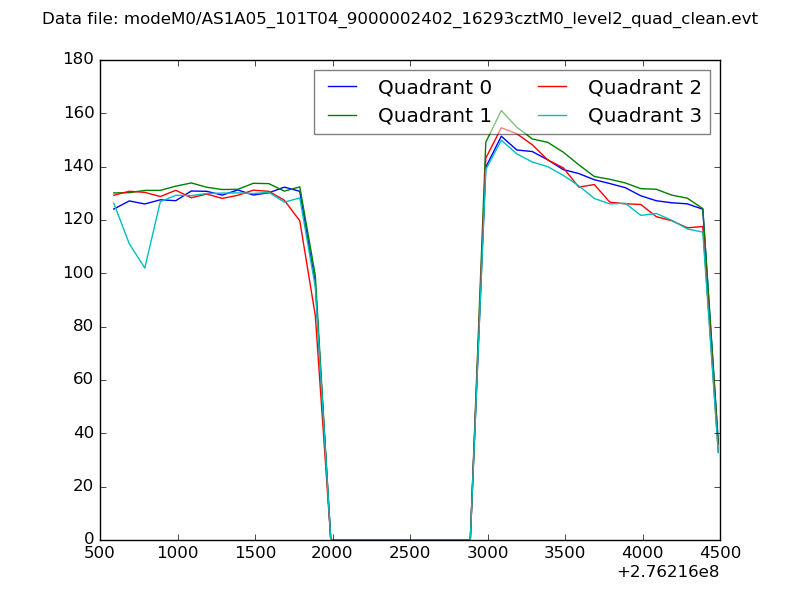

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

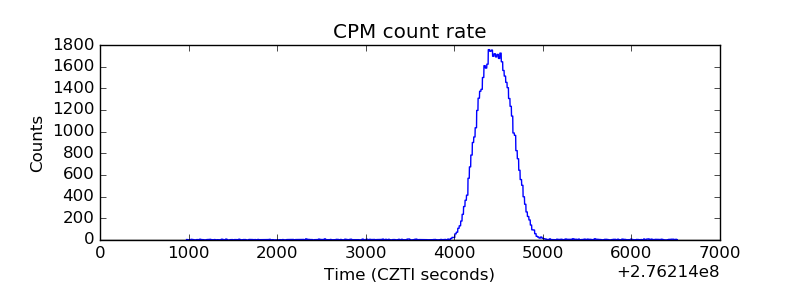

| _CPM_Rate |  |

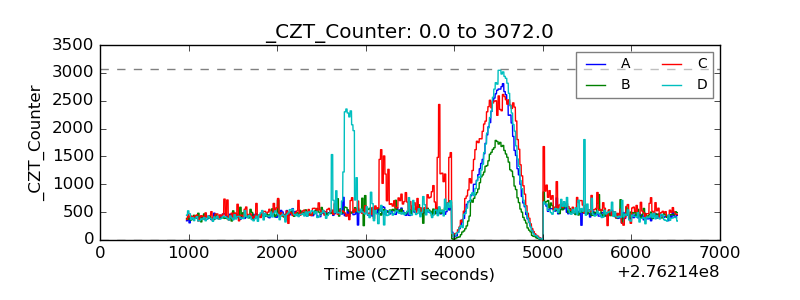

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

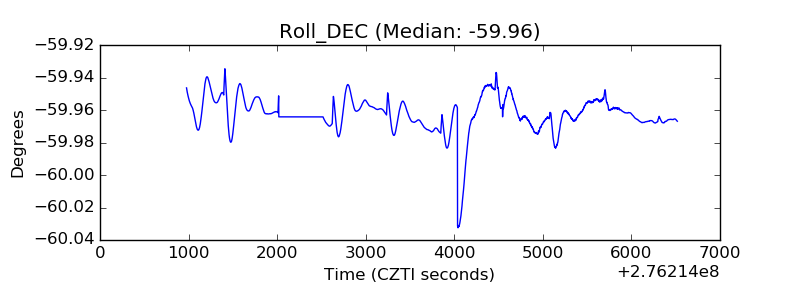

| _Roll_DEC |  |
| _Roll_RA |  |

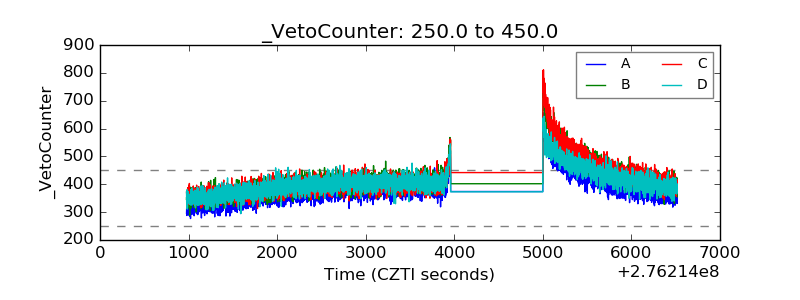

| Veto Counter |  |
