| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_212T08_9000002396_16286cztM0_level2.evt | modeM0/AS1A05_212T08_9000002396_16286cztM0_level2_quad_clean.evt |
| Size (bytes) | 131,708,160 | 11,496,960 |
| Size | 125.6 MB | 11.0 MB |
| Events in quadrant A | 932,890 | 55,484 |
| Events in quadrant B | 966,276 | 57,283 |
| Events in quadrant C | 937,974 | 54,222 |
| Events in quadrant D | 1,030,751 | 52,746 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3780 | 2 |
| B | 0 | 3865 | 1 |
| C | 0 | 3801 | 1 |
| D | 0 | 4193 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1743 | 106 | 6.081469% |
| B | 1743 | 117 | 6.712565% |
| C | 1743 | 107 | 6.138841% |
| D | 1743 | 75 | 4.302926% |

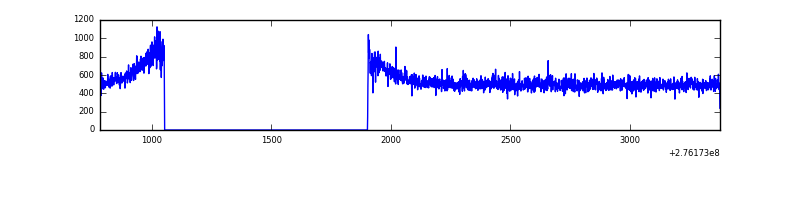

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2594 | 1745 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2594 | 1745 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2594 | 1745 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2594 | 1745 | 4 | 4 | 0.15% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 2132 | 36.69 | 242 | 236 | 51.7 |
| A | 3 | 137 | 1802 | 30.3 | 242 | 236 | 51.7 |
| A | 12 | 194 | 1719 | 28.7 | 242 | 236 | 51.7 |
| B | 15 | 35 | 7396 | 145.47 | 241 | 234 | 49.2 |
| B | 0 | 189 | 6309 | 123.39 | 241 | 234 | 49.2 |
| B | 0 | 214 | 5984 | 116.79 | 241 | 234 | 49.2 |
| C | 14 | 238 | 35666 | 635.17 | 229 | 230 | 55.8 |
| C | 3 | 233 | 4456 | 75.75 | 229 | 230 | 55.8 |
| C | 13 | 61 | 1642 | 25.31 | 229 | 230 | 55.8 |
| D | 13 | 112 | 90211 | 1529.35 | 235 | 227 | 58.8 |
| D | 13 | 170 | 20948 | 352.17 | 235 | 227 | 58.8 |
| D | 1 | 52 | 20082 | 337.45 | 235 | 227 | 58.8 |

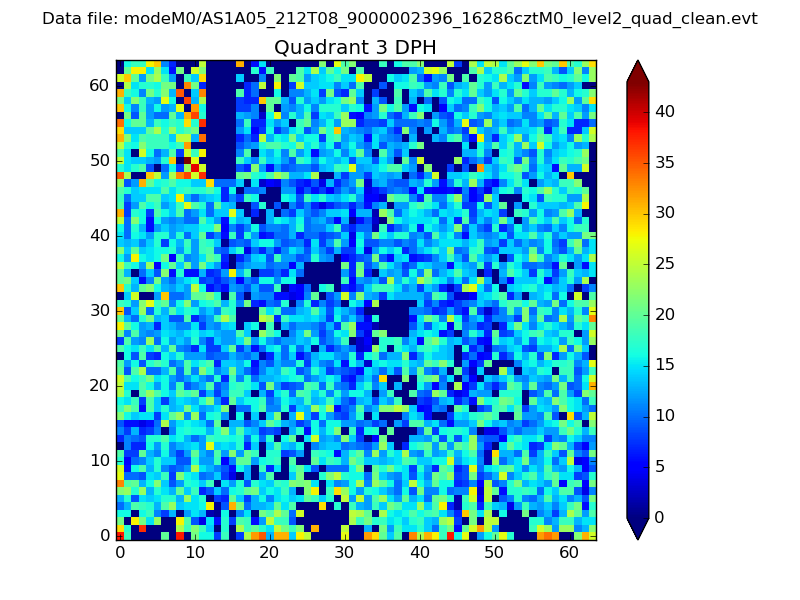

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

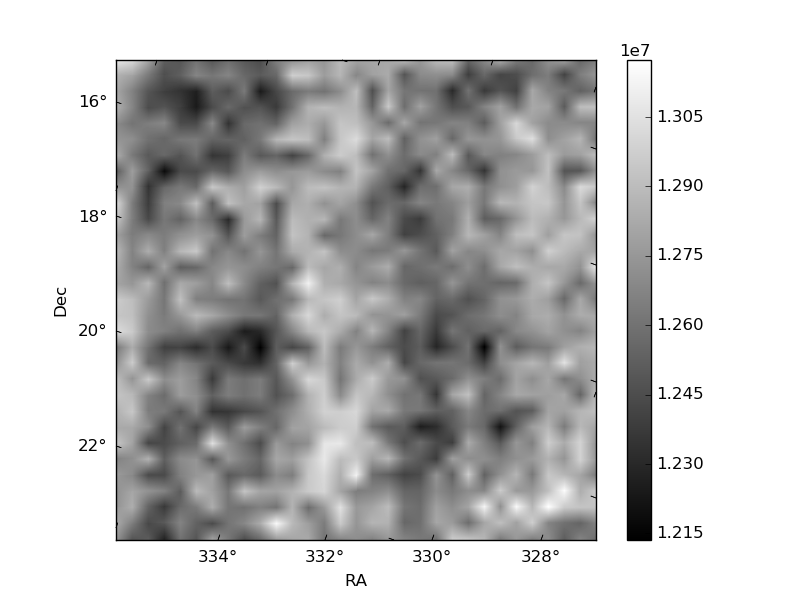

| Plot type | Count rate plots | Images |
|---|---|---|

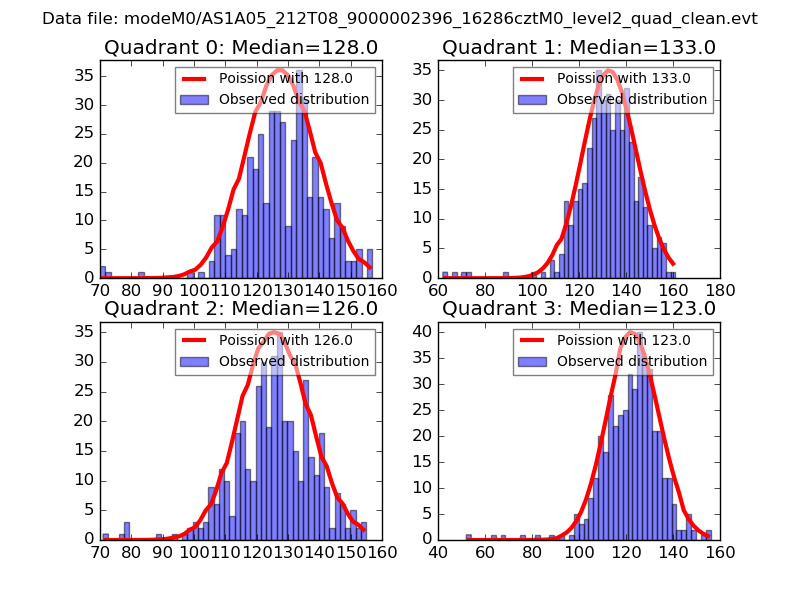

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

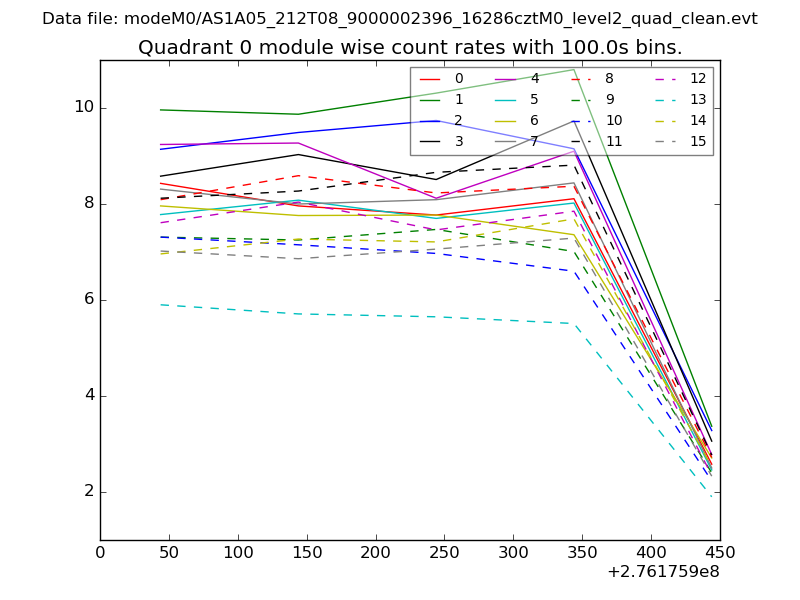

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

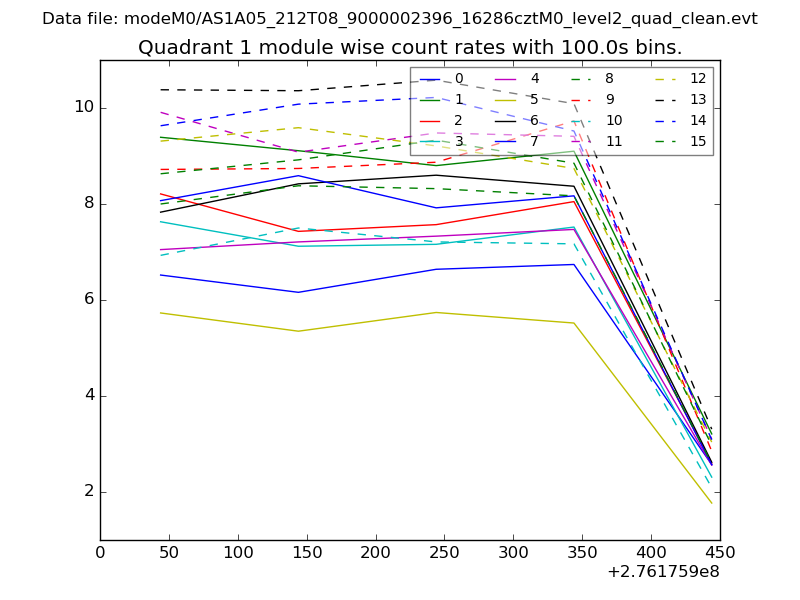

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

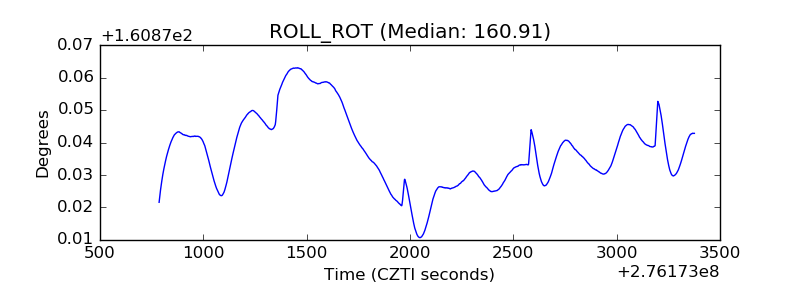

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

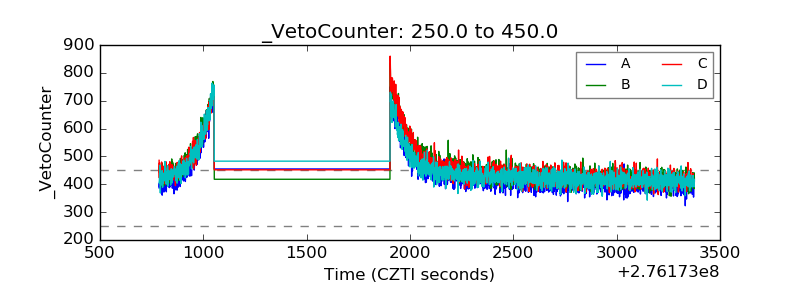

| Veto Counter |  |
