| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_212T09_9000002398_16288cztM0_level2.evt | modeM0/AS1A05_212T09_9000002398_16288cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,763,520 | 74,430,720 |
| Size | 339.3 MB | 71.0 MB |
| Events in quadrant A | 2,565,111 | 469,865 |
| Events in quadrant B | 2,625,646 | 475,826 |
| Events in quadrant C | 2,551,210 | 463,365 |
| Events in quadrant D | 2,655,263 | 457,507 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11454 | 1 |
| B | 0 | 11405 | 1 |
| C | 0 | 11280 | 1 |
| D | 0 | 11721 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5536 | 42 | 0.758671% |
| B | 5536 | 24 | 0.433526% |
| C | 5536 | 54 | 0.975434% |
| D | 5536 | 34 | 0.614162% |

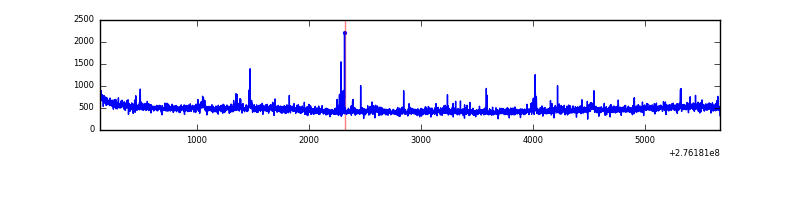

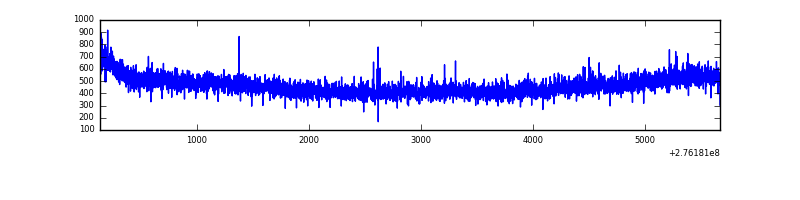

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5537 | 5537 | 12 | 12 | 0.22% | 0.22% |  |
| B | 5537 | 5537 | 1 | 1 | 0.02% | 0.02% |  |
| C | 5537 | 5537 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5537 | 5537 | 22 | 22 | 0.40% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 78794 | 595.19 | 647 | 632 | 131.3 |
| A | 0 | 226 | 5799 | 39.34 | 647 | 632 | 131.3 |
| A | 12 | 194 | 4685 | 30.86 | 647 | 632 | 131.3 |
| B | 0 | 189 | 45872 | 361.12 | 649 | 633 | 125.3 |
| B | 0 | 198 | 18574 | 143.21 | 649 | 633 | 125.3 |
| B | 12 | 111 | 14758 | 112.75 | 649 | 633 | 125.3 |
| C | 14 | 238 | 97418 | 660.99 | 624 | 626 | 146.4 |
| C | 3 | 233 | 15226 | 99.7 | 624 | 626 | 146.4 |
| C | 0 | 207 | 4967 | 29.64 | 624 | 626 | 146.4 |
| D | 10 | 70 | 134622 | 871.45 | 630 | 611 | 153.8 |
| D | 1 | 52 | 117415 | 759.56 | 630 | 611 | 153.8 |
| D | 2 | 234 | 21721 | 137.27 | 630 | 611 | 153.8 |

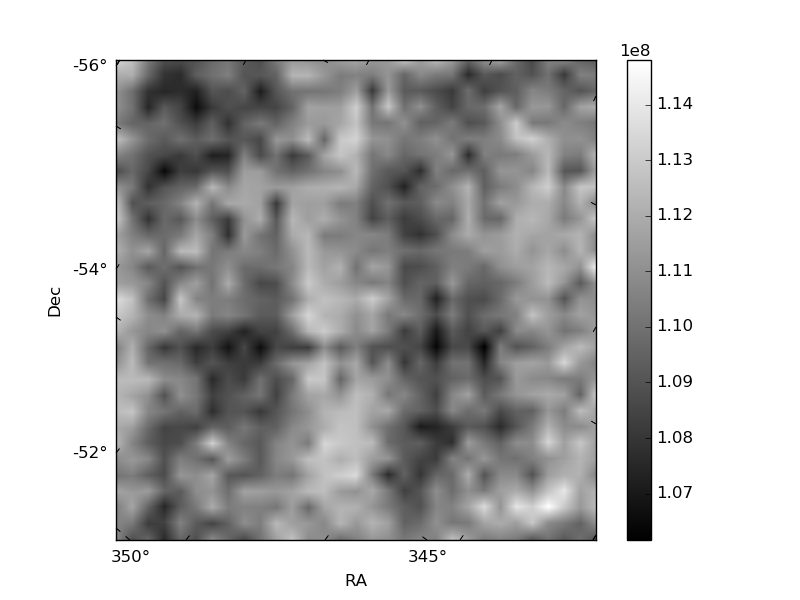

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

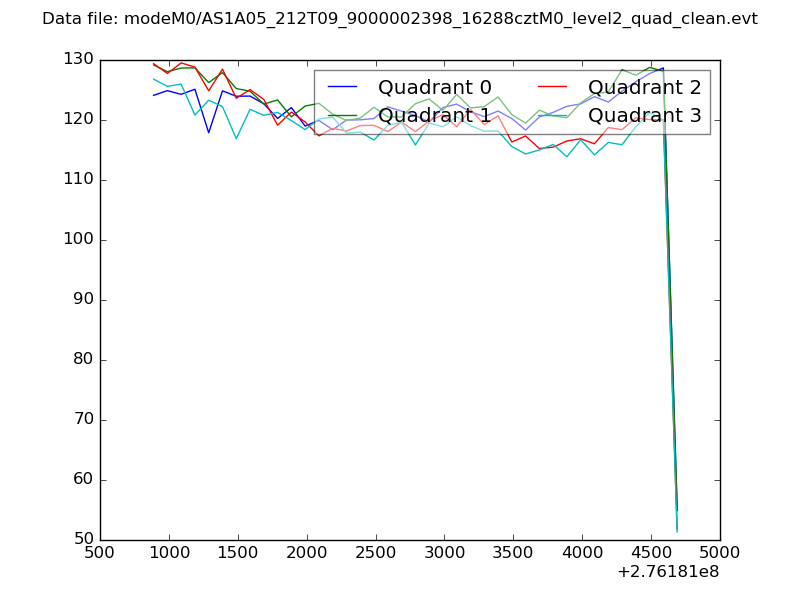

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

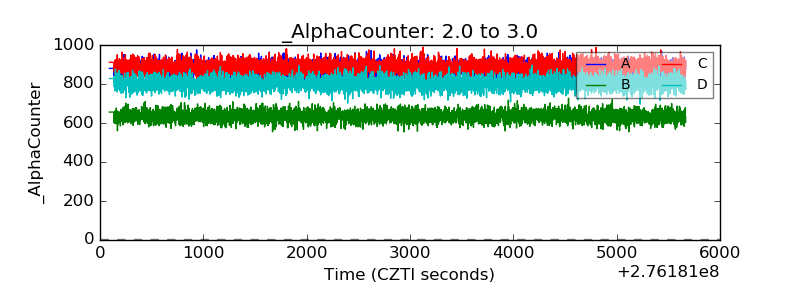

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

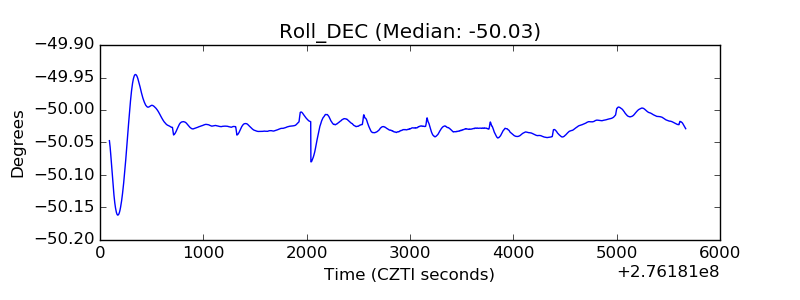

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

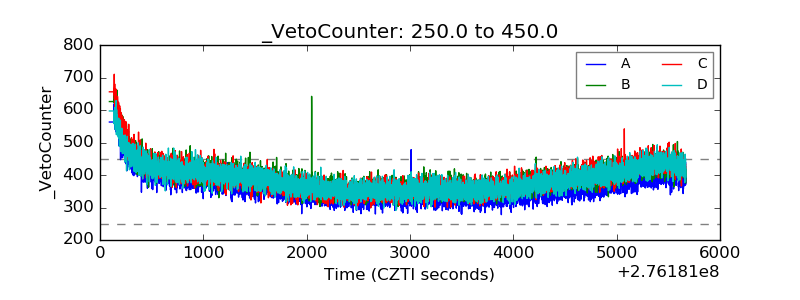

| Veto Counter |  |
