| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_034T01_9000002404_16307cztM0_level2.evt | modeM0/AS1A05_034T01_9000002404_16307cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,540,800 | 95,437,440 |
| Size | 430.6 MB | 91.0 MB |
| Events in quadrant A | 3,220,509 | 601,208 |
| Events in quadrant B | 3,475,952 | 613,092 |
| Events in quadrant C | 3,259,289 | 600,062 |
| Events in quadrant D | 3,246,394 | 591,398 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14232 | 4 |
| B | 0 | 14768 | 3 |
| C | 0 | 14163 | 3 |
| D | 0 | 14497 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6952 | 19 | 0.273303% |
| B | 6952 | 43 | 0.618527% |
| C | 6952 | 35 | 0.503452% |
| D | 6952 | 29 | 0.417146% |

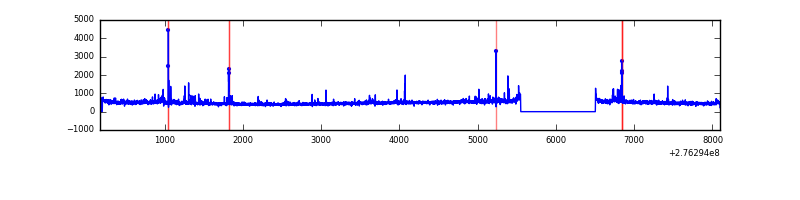

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7923 | 6955 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7923 | 6955 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7923 | 6955 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7923 | 6955 | 17 | 17 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 66949 | 395.53 | 821 | 804 | 167.2 |
| A | 0 | 226 | 7186 | 38.16 | 821 | 804 | 167.2 |
| A | 12 | 194 | 6068 | 31.47 | 821 | 804 | 167.2 |
| B | 0 | 198 | 60322 | 371.8 | 829 | 807 | 160.1 |
| B | 4 | 173 | 59504 | 366.69 | 829 | 807 | 160.1 |
| B | 0 | 189 | 38108 | 233.03 | 829 | 807 | 160.1 |
| C | 14 | 238 | 121108 | 649.05 | 793 | 800 | 185.4 |
| C | 3 | 233 | 25169 | 131.47 | 793 | 800 | 185.4 |
| C | 0 | 207 | 20348 | 105.46 | 793 | 800 | 185.4 |
| D | 1 | 52 | 116526 | 598.88 | 796 | 775 | 193.3 |
| D | 10 | 70 | 84918 | 435.35 | 796 | 775 | 193.3 |
| D | 2 | 234 | 27653 | 139.06 | 796 | 775 | 193.3 |

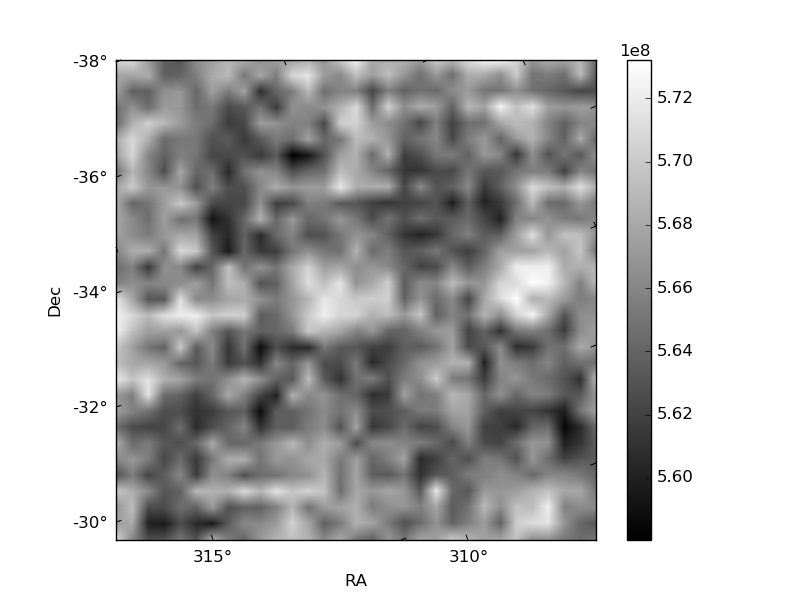

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

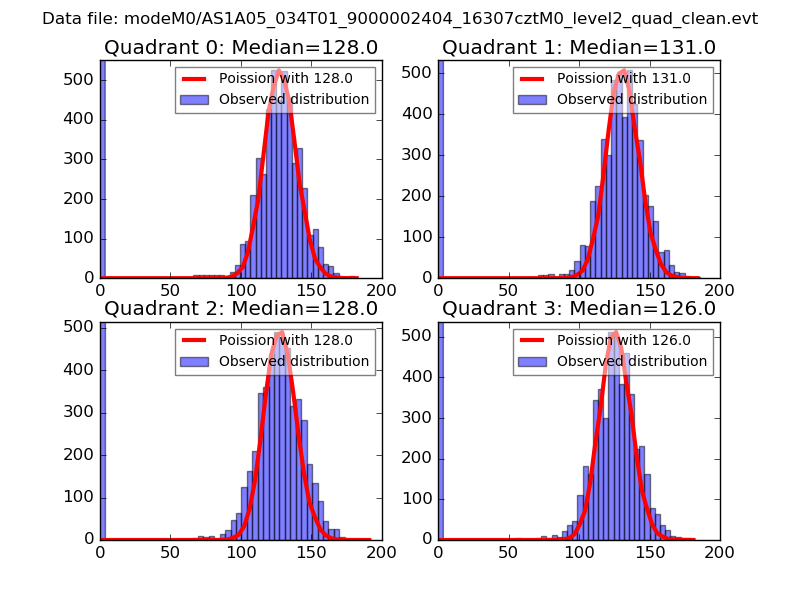

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

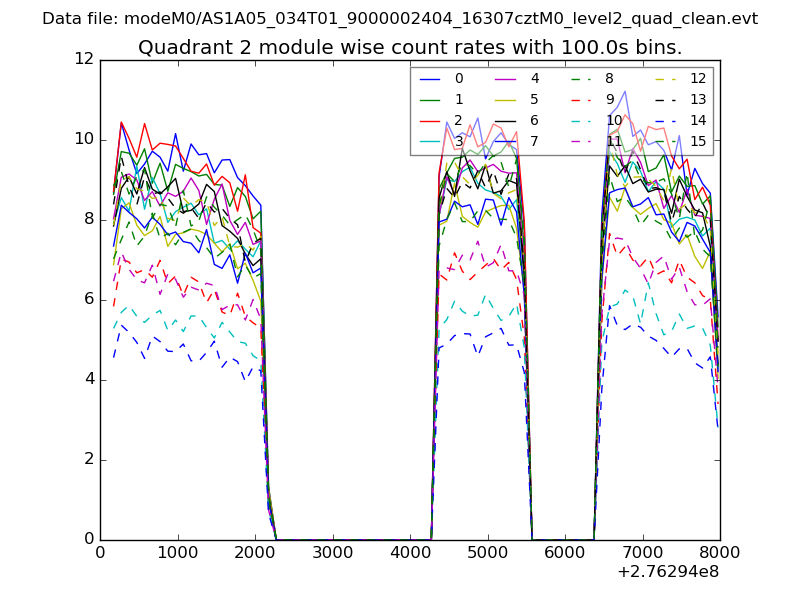

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

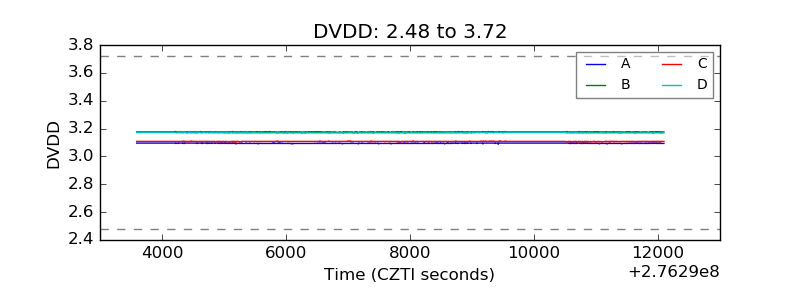

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

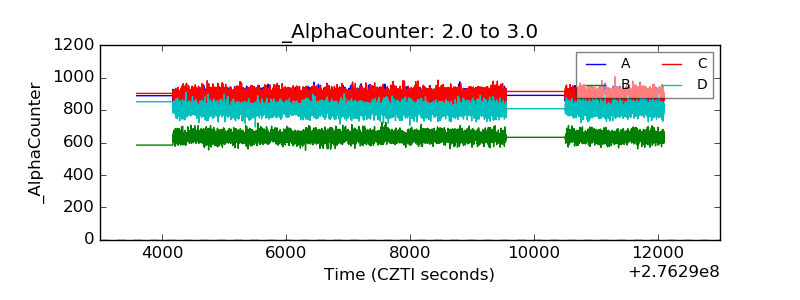

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

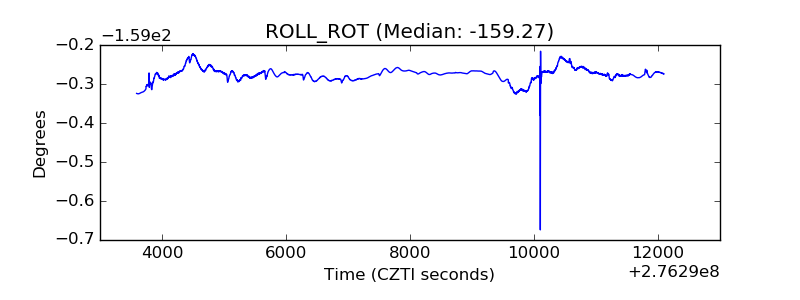

| _ROLL_ROT |  |

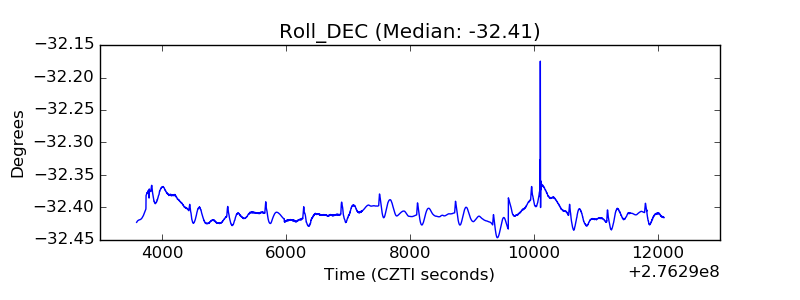

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
