| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_034T01_9000002404_16314cztM0_level2.evt | modeM0/AS1A05_034T01_9000002404_16314cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,772,160 | 79,248,960 |
| Size | 450.9 MB | 75.6 MB |
| Events in quadrant A | 3,478,739 | 484,118 |
| Events in quadrant B | 3,555,130 | 495,379 |
| Events in quadrant C | 3,451,746 | 487,019 |
| Events in quadrant D | 3,393,607 | 482,702 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14059 | 3 |
| B | 0 | 14230 | 2 |
| C | 0 | 14032 | 2 |
| D | 0 | 13986 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6452 | 177 | 2.743335% |
| B | 6452 | 226 | 3.502790% |
| C | 6452 | 247 | 3.828270% |
| D | 6452 | 174 | 2.696838% |

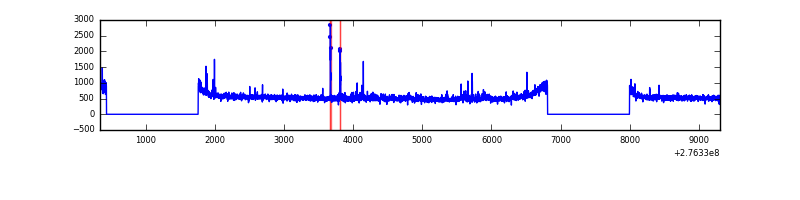

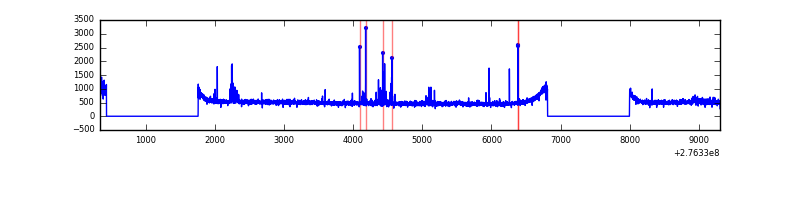

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8963 | 6455 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8963 | 6455 | 5 | 5 | 0.06% | 0.08% |  |
| C | 8963 | 6455 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8963 | 6455 | 6 | 6 | 0.07% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 121261 | 690.12 | 873 | 855 | 174.5 |
| A | 0 | 226 | 7625 | 38.8 | 873 | 855 | 174.5 |
| A | 12 | 194 | 6387 | 31.71 | 873 | 855 | 174.5 |
| B | 4 | 173 | 56617 | 335.53 | 872 | 851 | 166.2 |
| B | 0 | 198 | 30900 | 180.8 | 872 | 851 | 166.2 |
| B | 0 | 189 | 25500 | 148.31 | 872 | 851 | 166.2 |
| C | 14 | 238 | 130536 | 667.48 | 845 | 853 | 194.3 |
| C | 3 | 233 | 19868 | 97.87 | 845 | 853 | 194.3 |
| C | 13 | 61 | 6021 | 26.6 | 845 | 853 | 194.3 |
| D | 2 | 122 | 44314 | 191.72 | 854 | 839 | 226.8 |
| D | 12 | 110 | 26750 | 114.26 | 854 | 839 | 226.8 |
| D | 2 | 234 | 26457 | 112.97 | 854 | 839 | 226.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

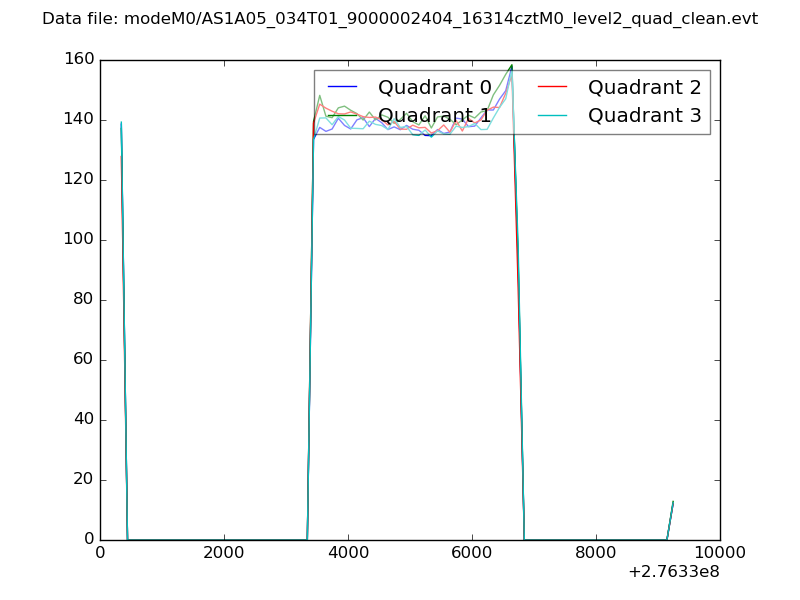

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

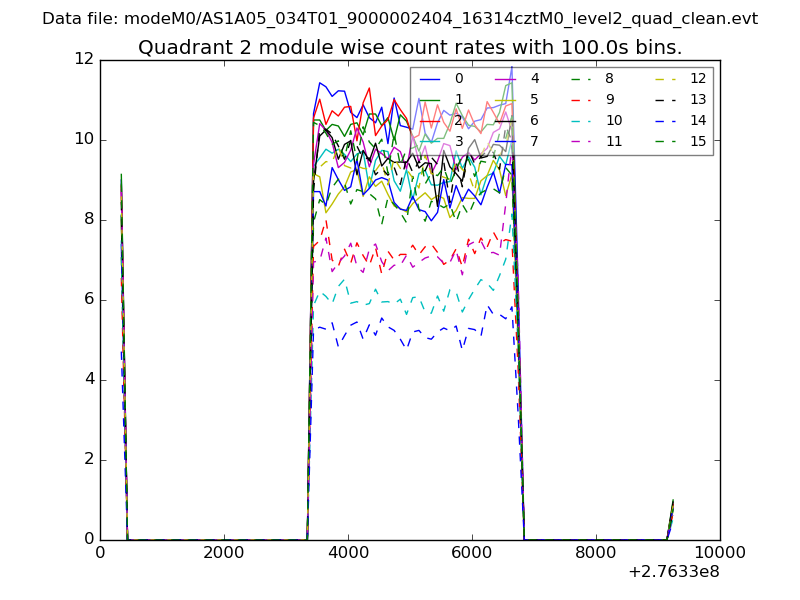

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

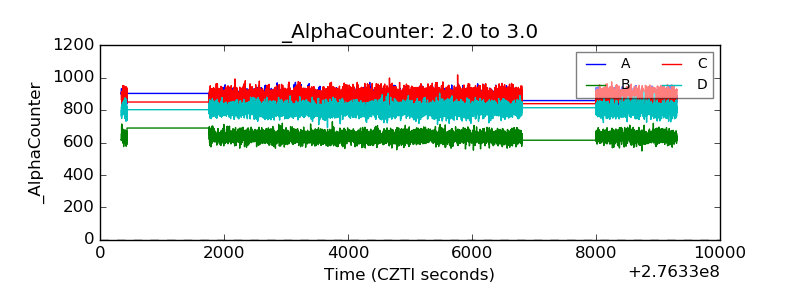

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

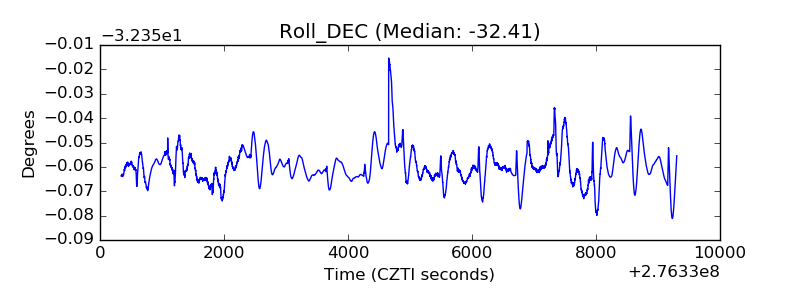

| _Roll_DEC |  |

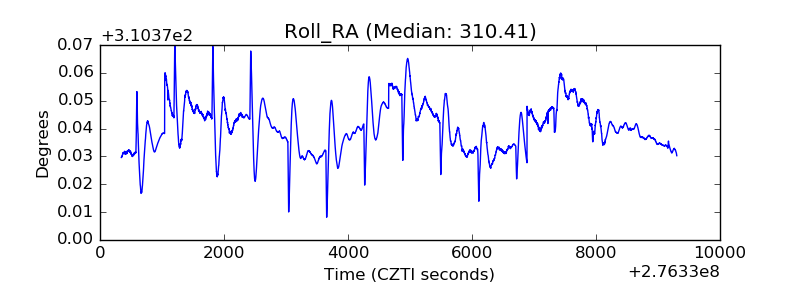

| _Roll_RA |  |

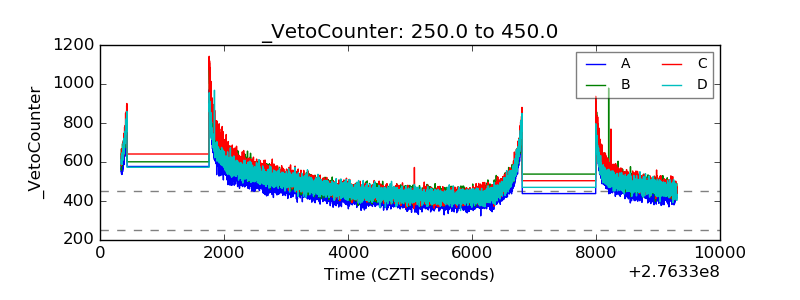

| Veto Counter |  |
