| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_096T04_9000002406_16315cztM0_level2.evt | modeM0/AS1A05_096T04_9000002406_16315cztM0_level2_quad_clean.evt |
| Size (bytes) | 161,015,040 | 37,923,840 |
| Size | 153.6 MB | 36.2 MB |
| Events in quadrant A | 1,101,477 | 250,053 |
| Events in quadrant B | 1,277,907 | 252,265 |
| Events in quadrant C | 1,168,275 | 245,981 |
| Events in quadrant D | 1,176,292 | 240,319 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4681 | 2 |
| B | 0 | 5139 | 1 |
| C | 0 | 4736 | 1 |
| D | 0 | 4924 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2211 | 142 | 6.422433% |
| B | 2211 | 173 | 7.824514% |
| C | 2211 | 158 | 7.146088% |
| D | 2211 | 143 | 6.467662% |

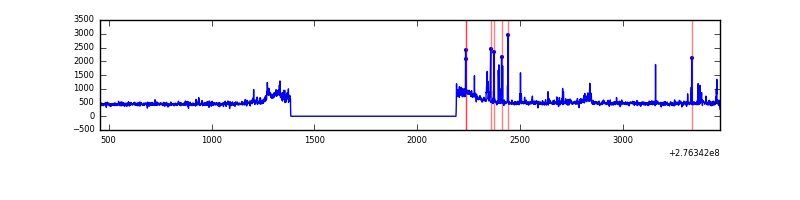

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3017 | 2212 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3017 | 2213 | 5 | 5 | 0.17% | 0.23% |  |
| C | 3017 | 2213 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3017 | 2213 | 7 | 7 | 0.23% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 2440 | 36.27 | 286 | 278 | 59.6 |
| A | 3 | 137 | 2062 | 29.93 | 286 | 278 | 59.6 |
| A | 12 | 194 | 2022 | 29.26 | 286 | 278 | 59.6 |
| B | 10 | 16 | 109580 | 1923.78 | 286 | 278 | 56.8 |
| B | 15 | 35 | 26261 | 457.32 | 286 | 278 | 56.8 |
| B | 0 | 189 | 7156 | 121.06 | 286 | 278 | 56.8 |
| C | 14 | 238 | 42963 | 652.93 | 281 | 281 | 65.4 |
| C | 3 | 233 | 17223 | 259.17 | 281 | 281 | 65.4 |
| C | 0 | 207 | 8542 | 126.37 | 281 | 281 | 65.4 |
| D | 12 | 110 | 46970 | 672.96 | 284 | 275 | 69.4 |
| D | 2 | 136 | 25551 | 364.27 | 284 | 275 | 69.4 |
| D | 2 | 122 | 13935 | 196.86 | 284 | 275 | 69.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

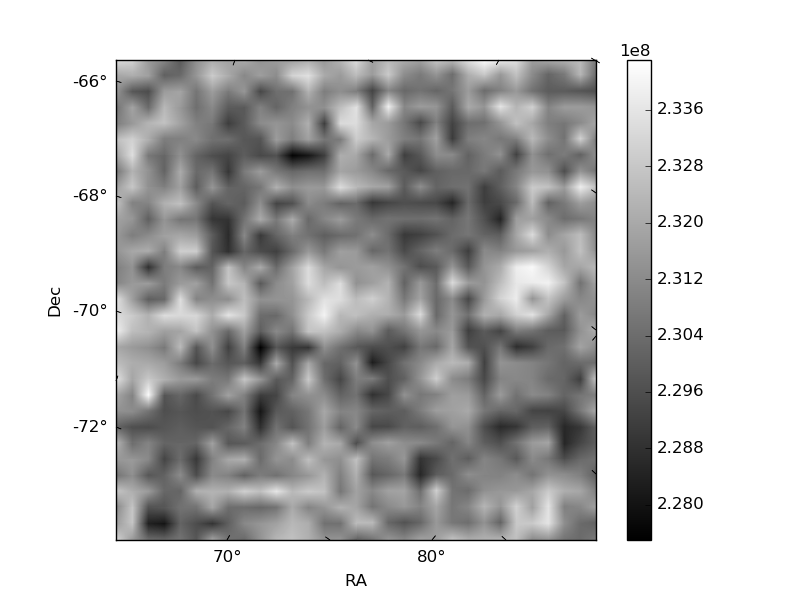

| Plot type | Count rate plots | Images |
|---|---|---|

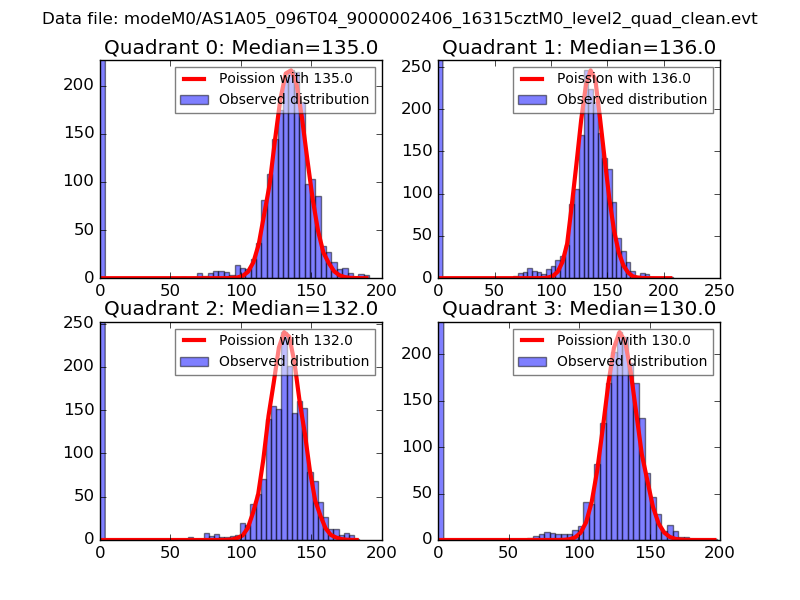

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

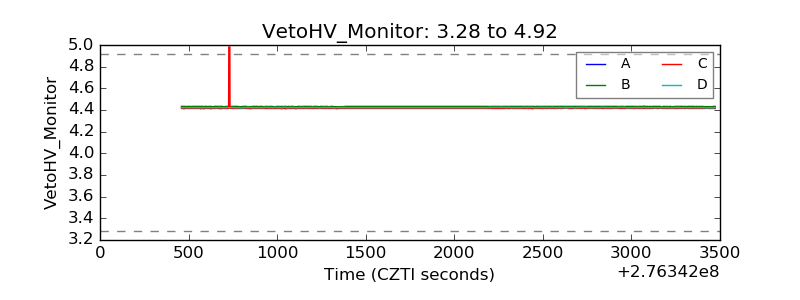

| Veto HV Monitor |  |

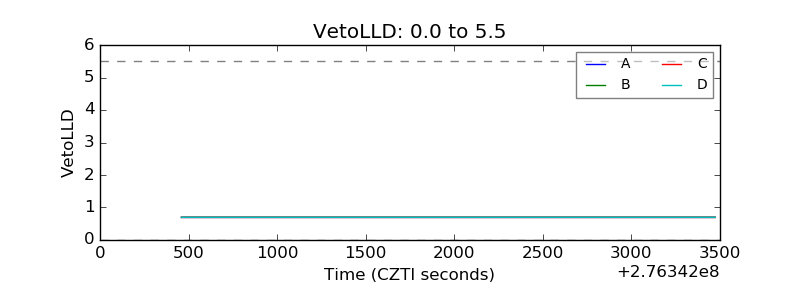

| Veto LLD |  |

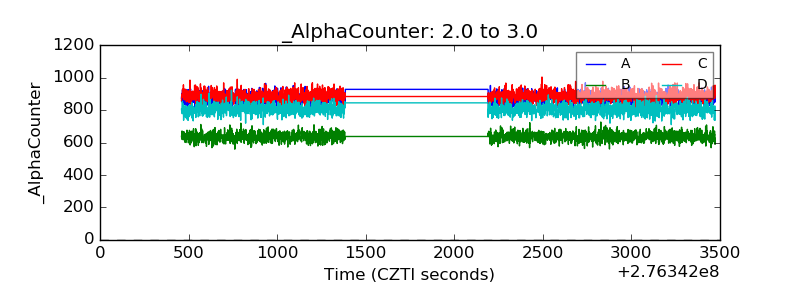

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

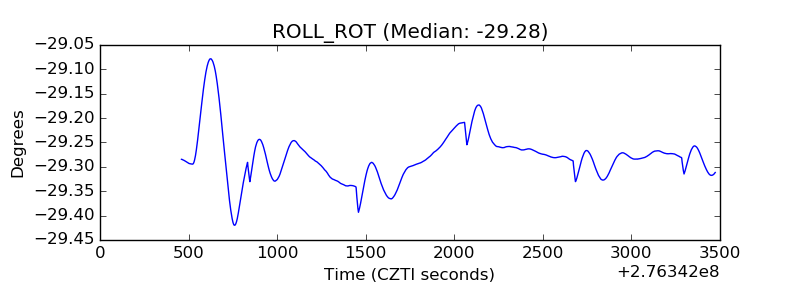

| _ROLL_ROT |  |

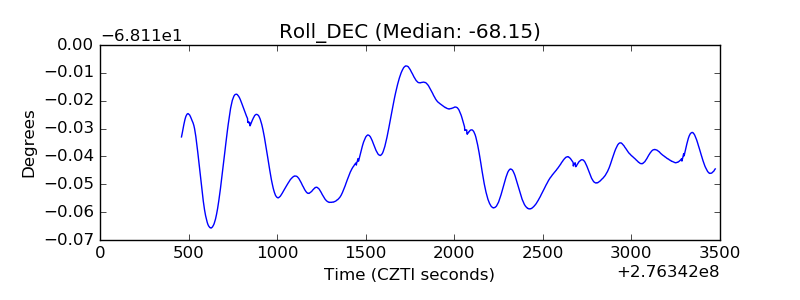

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
