| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_096T04_9000002406_16324cztM0_level2.evt | modeM0/AS1A05_096T04_9000002406_16324cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,906,240 | 109,540,800 |
| Size | 538.7 MB | 104.5 MB |
| Events in quadrant A | 3,244,386 | 723,977 |
| Events in quadrant B | 5,189,612 | 722,960 |
| Events in quadrant C | 3,552,357 | 718,482 |
| Events in quadrant D | 4,661,752 | 678,952 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14195 | 3 |
| B | 0 | 20122 | 2 |
| C | 0 | 14703 | 2 |
| D | 0 | 18568 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6786 | 47 | 0.692602% |
| B | 6786 | 642 | 9.460654% |
| C | 6786 | 66 | 0.972591% |
| D | 6786 | 338 | 4.980843% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8987 | 6789 | 17 | 17 | 0.19% | 0.25% |  |
| B | 8987 | 6789 | 385 | 385 | 4.28% | 5.67% |  |
| C | 8987 | 6789 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8987 | 6789 | 236 | 236 | 2.63% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 104133 | 633.2 | 815 | 798 | 163.2 |
| A | 0 | 226 | 7120 | 38.74 | 815 | 798 | 163.2 |
| A | 12 | 194 | 5955 | 31.6 | 815 | 798 | 163.2 |
| B | 3 | 112 | 1755773 | 11737.55 | 799 | 779 | 149.5 |
| B | 0 | 219 | 70036 | 463.2 | 799 | 779 | 149.5 |
| B | 0 | 189 | 69677 | 460.8 | 799 | 779 | 149.5 |
| C | 3 | 233 | 271779 | 1458.96 | 801 | 805 | 185.7 |
| C | 14 | 238 | 124695 | 667.04 | 801 | 805 | 185.7 |
| C | 7 | 247 | 20962 | 108.53 | 801 | 805 | 185.7 |
| D | 2 | 14 | 1262033 | 6596.27 | 790 | 768 | 191.2 |
| D | 12 | 110 | 320758 | 1673.51 | 790 | 768 | 191.2 |
| D | 2 | 234 | 25393 | 128.79 | 790 | 768 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

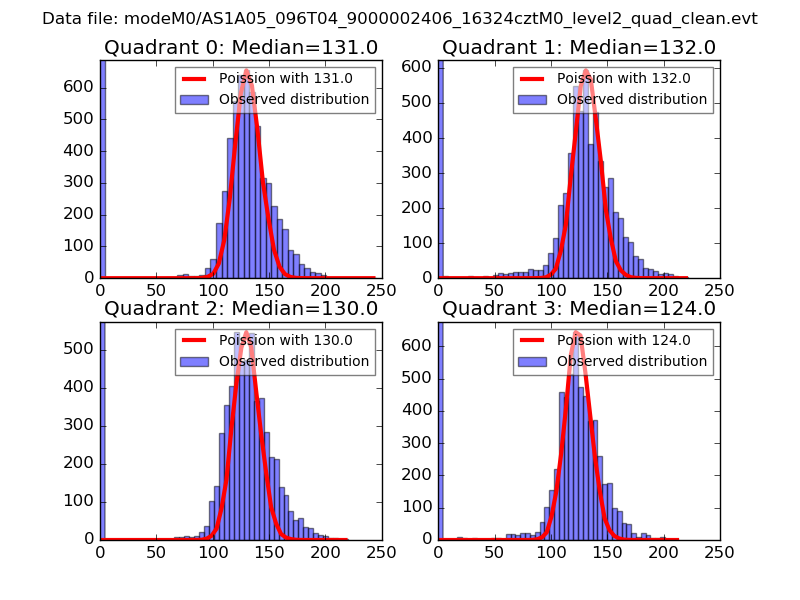

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
