| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T01_9000002412_16337cztM0_level2.evt | modeM0/AS1A05_101T01_9000002412_16337cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,702,080 | 62,781,120 |
| Size | 327.8 MB | 59.9 MB |
| Events in quadrant A | 2,855,514 | 380,055 |
| Events in quadrant B | 2,536,459 | 399,525 |
| Events in quadrant C | 2,370,280 | 391,459 |
| Events in quadrant D | 2,307,406 | 380,661 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11916 | 2 |
| B | 0 | 10681 | 1 |
| C | 0 | 10127 | 1 |
| D | 0 | 10292 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4977 | 254 | 5.103476% |
| B | 4977 | 34 | 0.683142% |
| C | 4977 | 43 | 0.863974% |
| D | 4977 | 8 | 0.160739% |

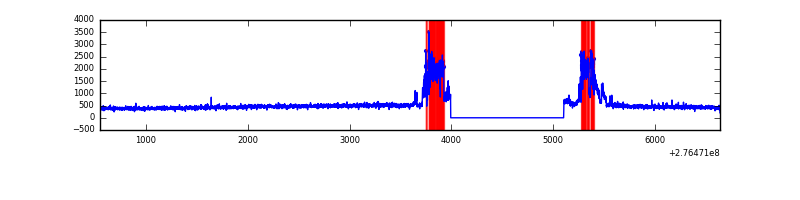

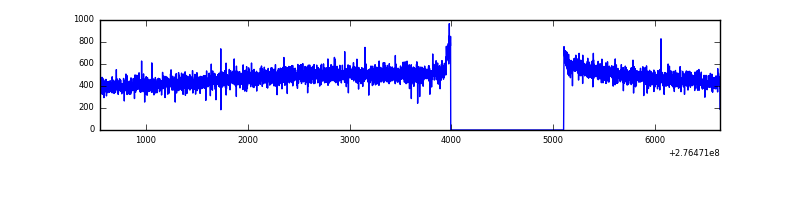

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6088 | 4979 | 160 | 160 | 2.63% | 3.21% |  |
| B | 6088 | 4979 | 6 | 6 | 0.10% | 0.12% |  |
| C | 6088 | 4979 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6088 | 4979 | 4 | 4 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 595312 | 4968.23 | 588 | 574 | 119.7 |
| A | 0 | 226 | 5144 | 38.18 | 588 | 574 | 119.7 |
| A | 3 | 137 | 4292 | 31.06 | 588 | 574 | 119.7 |
| B | 15 | 222 | 43830 | 379.43 | 599 | 585 | 114.0 |
| B | 15 | 35 | 36197 | 312.46 | 599 | 585 | 114.0 |
| B | 4 | 173 | 30419 | 261.76 | 599 | 585 | 114.0 |
| C | 14 | 238 | 90988 | 667.39 | 581 | 584 | 135.5 |
| C | 3 | 233 | 13899 | 98.29 | 581 | 584 | 135.5 |
| C | 13 | 61 | 4092 | 25.9 | 581 | 584 | 135.5 |
| D | 12 | 218 | 62826 | 444.93 | 582 | 567 | 139.9 |
| D | 10 | 70 | 21693 | 150.98 | 582 | 567 | 139.9 |
| D | 2 | 234 | 18949 | 131.37 | 582 | 567 | 139.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

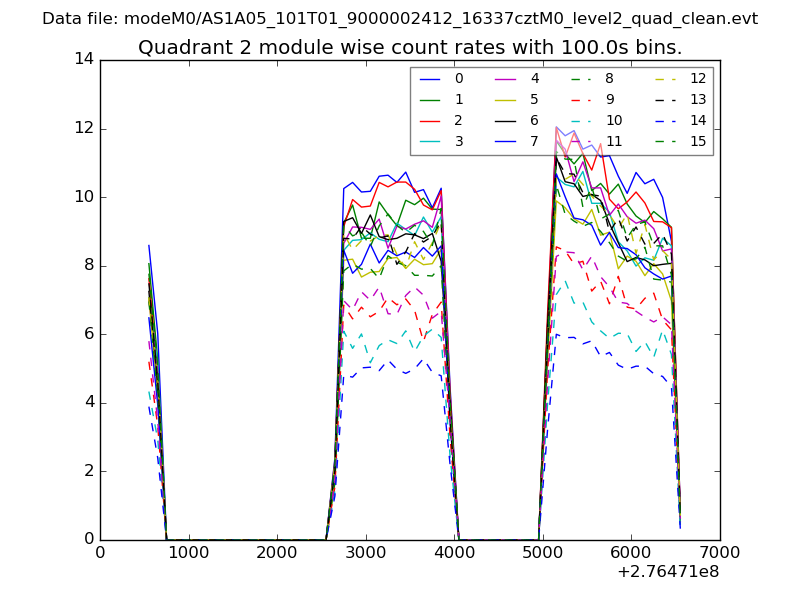

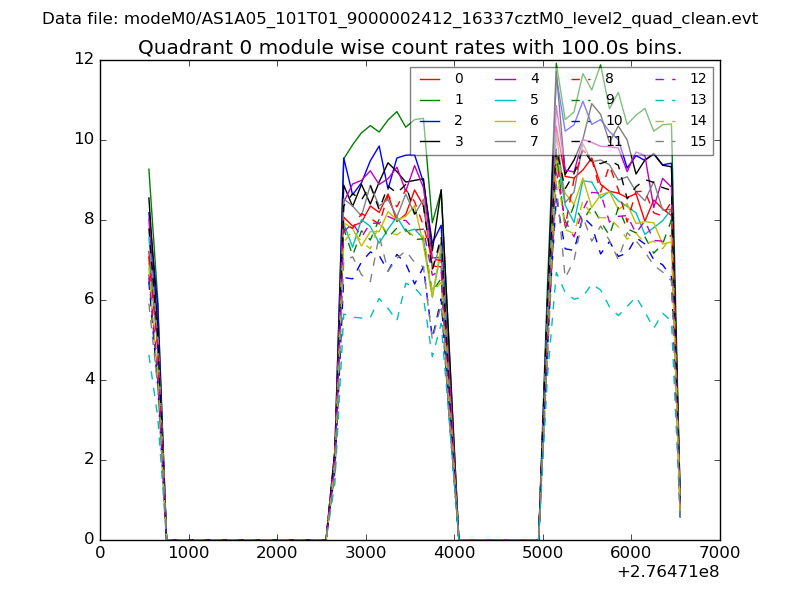

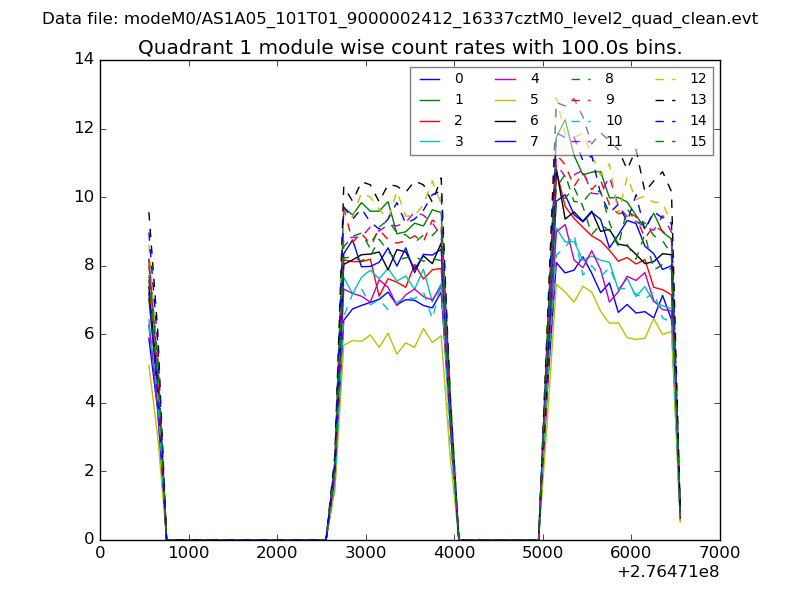

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

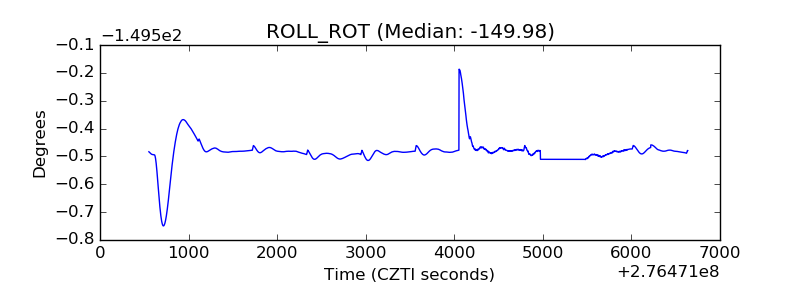

| _ROLL_ROT |  |

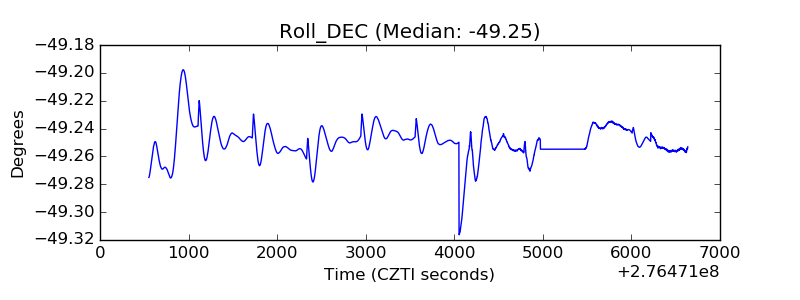

| _Roll_DEC |  |

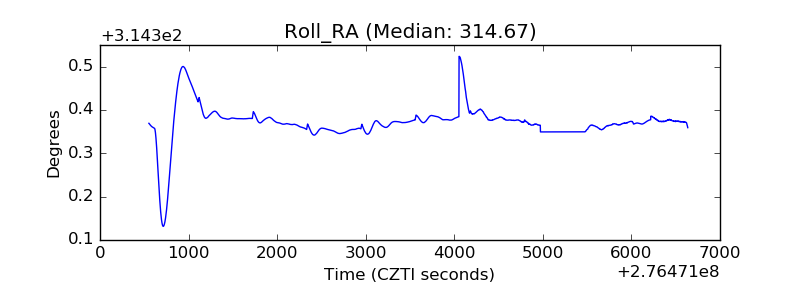

| _Roll_RA |  |
| Veto Counter |  |
