| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T01_9000002408_16331cztM0_level2.evt | modeM0/AS1C04_007T01_9000002408_16331cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,328,640 | 83,079,360 |
| Size | 656.4 MB | 79.2 MB |
| Events in quadrant A | 3,928,989 | 548,517 |
| Events in quadrant B | 9,093,585 | 385,995 |
| Events in quadrant C | 3,644,732 | 539,006 |
| Events in quadrant D | 3,679,599 | 529,156 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16267 | 2 |
| B | 0 | 31915 | 1 |
| C | 0 | 15299 | 1 |
| D | 0 | 15738 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7352 | 291 | 3.958107% |
| B | 7352 | 2934 | 39.907508% |
| C | 7352 | 258 | 3.509249% |
| D | 7352 | 221 | 3.005985% |

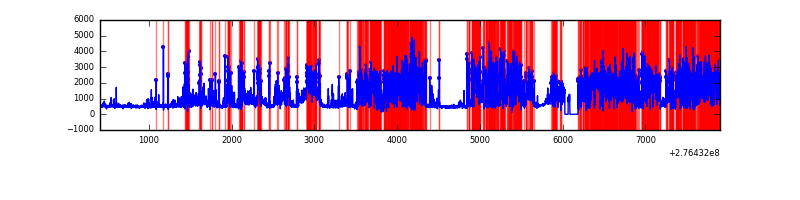

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7493 | 7355 | 67 | 67 | 0.89% | 0.91% |  |
| B | 7492 | 7353 | 1601 | 1601 | 21.37% | 21.77% |  |
| C | 7493 | 7355 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7493 | 7355 | 16 | 16 | 0.21% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 341320 | 1783.15 | 933 | 914 | 190.9 |
| A | 0 | 226 | 8104 | 37.66 | 933 | 914 | 190.9 |
| A | 12 | 194 | 6963 | 31.69 | 933 | 914 | 190.9 |
| B | 3 | 112 | 6201623 | 46540.44 | 692 | 676 | 133.2 |
| B | 0 | 189 | 47905 | 354.47 | 692 | 676 | 133.2 |
| B | 0 | 198 | 34111 | 250.94 | 692 | 676 | 133.2 |
| C | 14 | 238 | 135111 | 632.05 | 895 | 903 | 212.3 |
| C | 3 | 233 | 18559 | 83.15 | 895 | 903 | 212.3 |
| C | 13 | 61 | 6163 | 24.77 | 895 | 903 | 212.3 |
| D | 10 | 70 | 110007 | 479.24 | 915 | 889 | 227.7 |
| D | 2 | 234 | 32416 | 138.47 | 915 | 889 | 227.7 |
| D | 1 | 52 | 25997 | 110.27 | 915 | 889 | 227.7 |

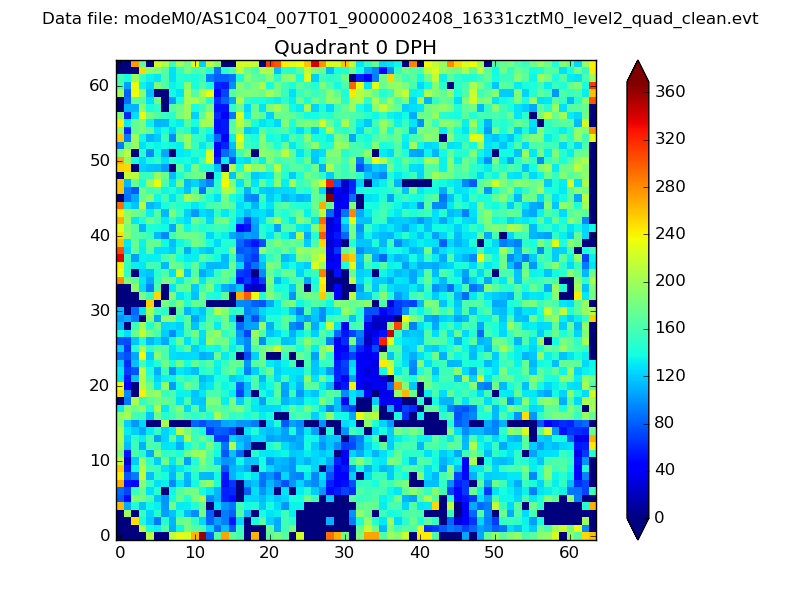

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

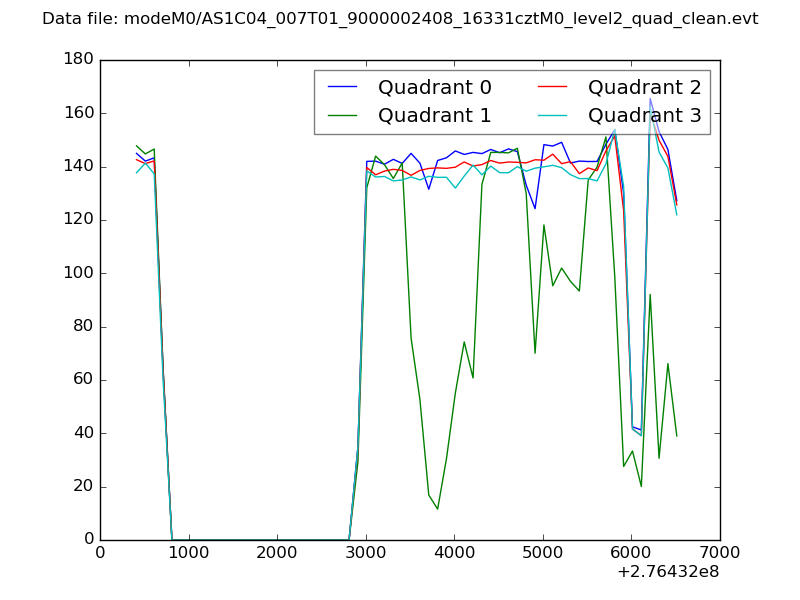

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

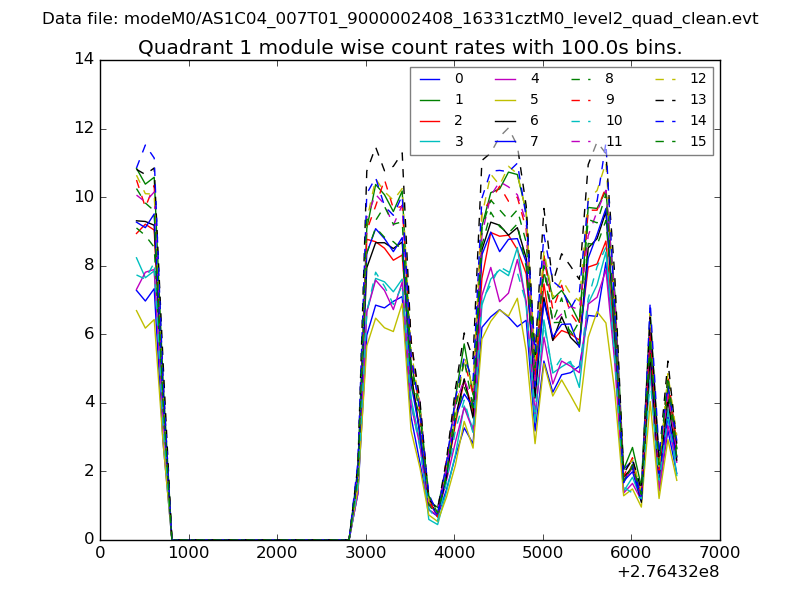

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

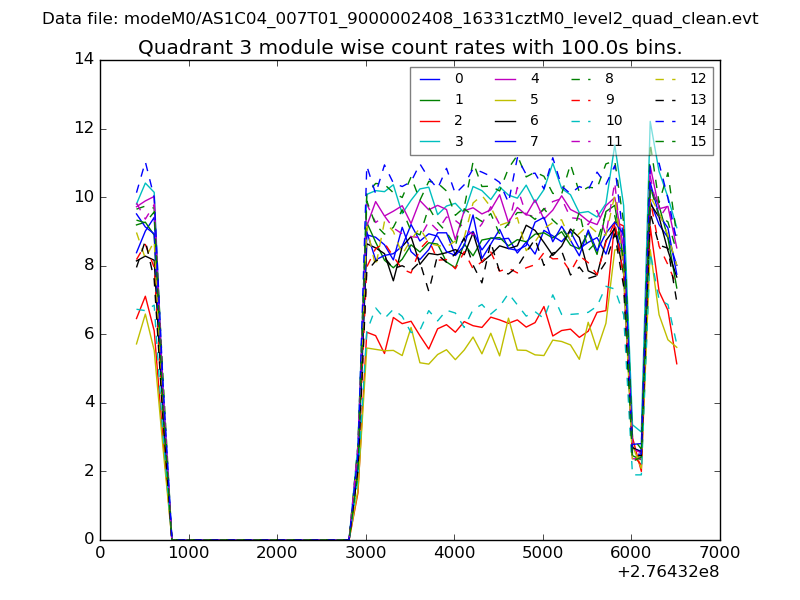

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

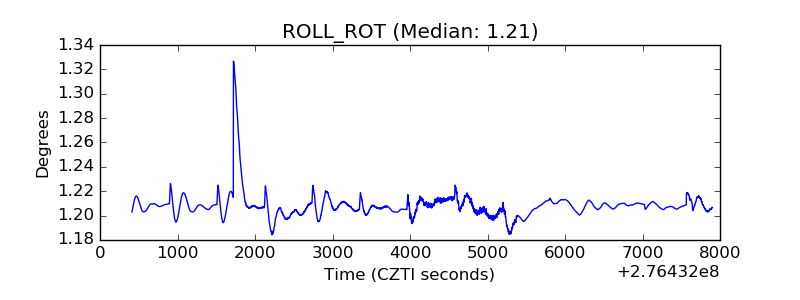

| _ROLL_ROT |  |
| _Roll_DEC |  |

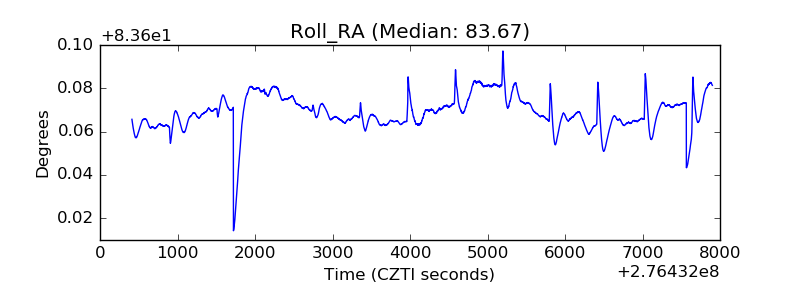

| _Roll_RA |  |
| Veto Counter |  |
