| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T01_9000002408_16332cztM0_level2.evt | modeM0/AS1C04_007T01_9000002408_16332cztM0_level2_quad_clean.evt |
| Size (bytes) | 729,354,240 | 74,010,240 |
| Size | 695.6 MB | 70.6 MB |
| Events in quadrant A | 3,527,180 | 493,745 |
| Events in quadrant B | 11,126,796 | 308,216 |
| Events in quadrant C | 3,412,322 | 479,667 |
| Events in quadrant D | 3,549,948 | 473,428 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14823 | 2 |
| B | 0 | 37877 | 1 |
| C | 0 | 14416 | 1 |
| D | 0 | 15187 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6959 | 152 | 2.184222% |
| B | 6959 | 3999 | 57.465153% |
| C | 6959 | 184 | 2.644058% |
| D | 6959 | 182 | 2.615318% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7125 | 6961 | 12 | 12 | 0.17% | 0.17% |  |
| B | 7125 | 6961 | 2518 | 2518 | 35.34% | 36.17% |  |
| C | 7125 | 6961 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7125 | 6961 | 35 | 35 | 0.49% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 157687 | 874.54 | 876 | 857 | 179.3 |
| A | 0 | 226 | 7633 | 37.79 | 876 | 857 | 179.3 |
| A | 12 | 194 | 6536 | 31.67 | 876 | 857 | 179.3 |
| B | 3 | 112 | 8235402 | 72140.23 | 588 | 575 | 114.2 |
| B | 5 | 65 | 405053 | 3543.38 | 588 | 575 | 114.2 |
| B | 10 | 16 | 50129 | 434.11 | 588 | 575 | 114.2 |
| C | 14 | 238 | 126458 | 633.01 | 838 | 845 | 198.4 |
| C | 0 | 207 | 6357 | 27.78 | 838 | 845 | 198.4 |
| C | 3 | 233 | 6075 | 26.36 | 838 | 845 | 198.4 |
| D | 10 | 70 | 182980 | 861.93 | 853 | 829 | 211.3 |
| D | 12 | 218 | 50764 | 236.29 | 853 | 829 | 211.3 |
| D | 12 | 110 | 40454 | 187.5 | 853 | 829 | 211.3 |

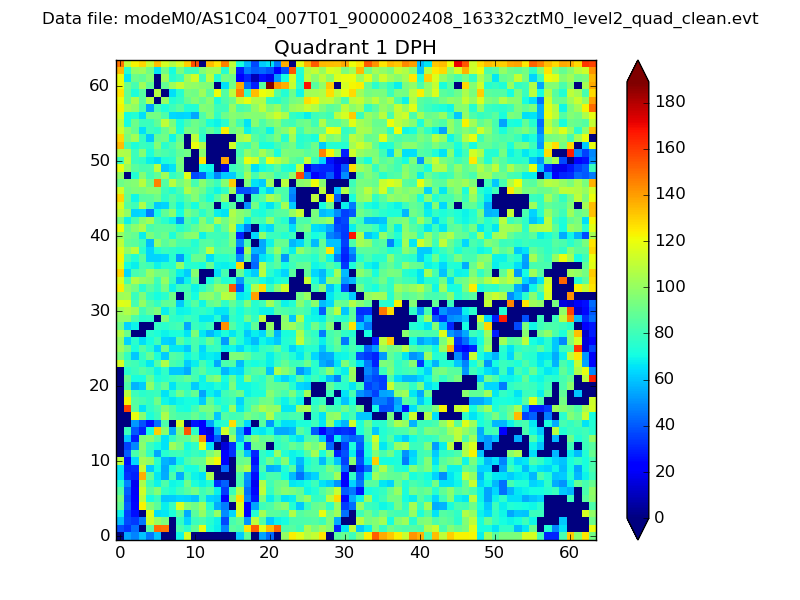

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

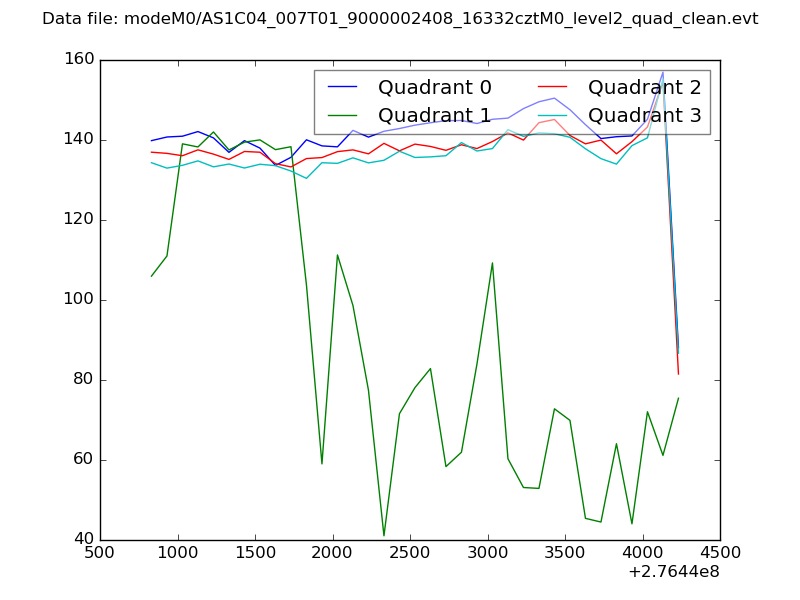

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

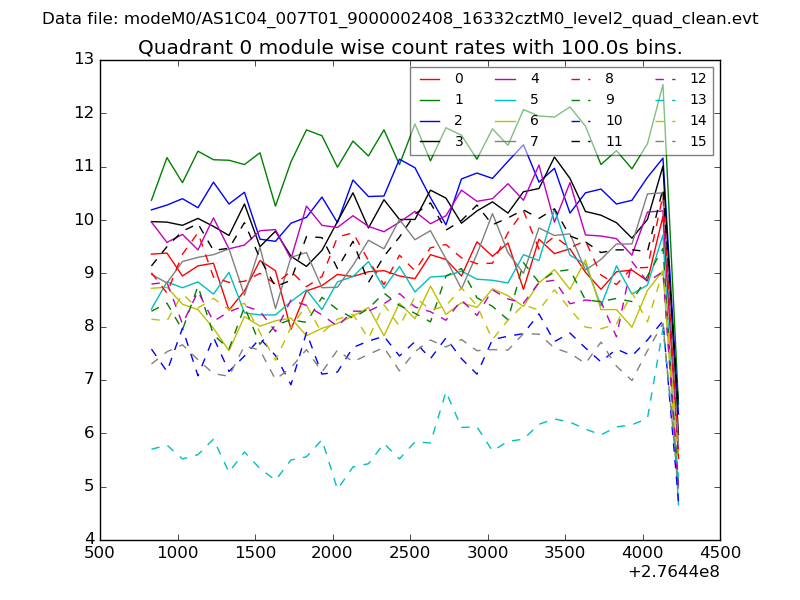

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

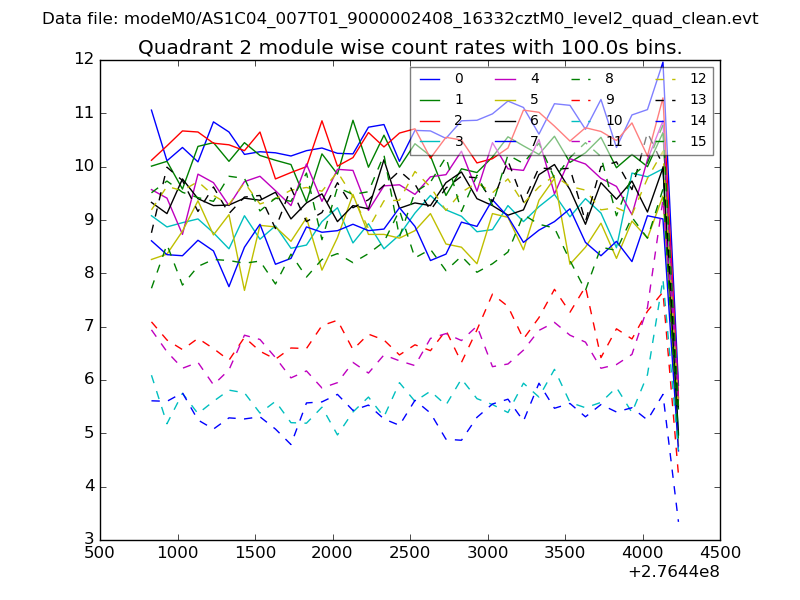

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

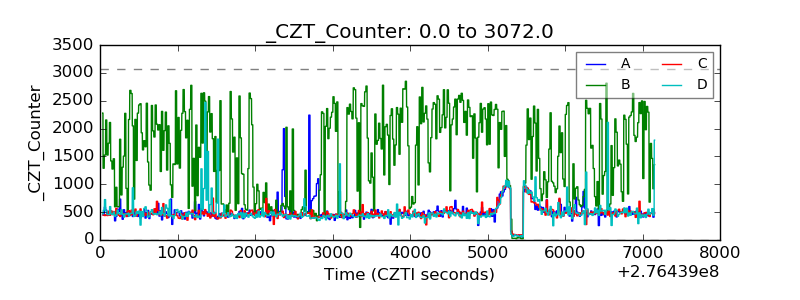

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
