| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_007T01_9000002408_16333cztM0_level2.evt | modeM0/AS1C04_007T01_9000002408_16333cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,210,560 | 81,578,880 |
| Size | 690.7 MB | 77.8 MB |
| Events in quadrant A | 3,928,972 | 508,835 |
| Events in quadrant B | 9,875,510 | 457,715 |
| Events in quadrant C | 3,714,991 | 493,195 |
| Events in quadrant D | 3,903,183 | 486,301 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16396 | 2 |
| B | 0 | 34466 | 1 |
| C | 0 | 15514 | 1 |
| D | 0 | 16570 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7531 | 69 | 0.916213% |
| B | 7531 | 2827 | 37.538176% |
| C | 7531 | 106 | 1.407516% |
| D | 7531 | 141 | 1.872261% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7957 | 7533 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7957 | 7533 | 1795 | 1795 | 22.56% | 23.83% |  |
| C | 7957 | 7533 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7957 | 7533 | 63 | 63 | 0.79% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 271413 | 1413.17 | 943 | 924 | 191.4 |
| A | 15 | 239 | 30109 | 152.48 | 943 | 924 | 191.4 |
| A | 0 | 226 | 8289 | 38.48 | 943 | 924 | 191.4 |
| B | 3 | 112 | 5872735 | 39953.1 | 762 | 746 | 147.0 |
| B | 4 | 173 | 454573 | 3087.84 | 762 | 746 | 147.0 |
| B | 5 | 65 | 399356 | 2712.15 | 762 | 746 | 147.0 |
| C | 14 | 238 | 137231 | 642.57 | 902 | 911 | 212.1 |
| C | 0 | 207 | 27695 | 126.25 | 902 | 911 | 212.1 |
| C | 3 | 233 | 12259 | 53.49 | 902 | 911 | 212.1 |
| D | 10 | 70 | 258563 | 1140.27 | 914 | 887 | 226.0 |
| D | 12 | 110 | 80733 | 353.34 | 914 | 887 | 226.0 |
| D | 12 | 218 | 61800 | 269.55 | 914 | 887 | 226.0 |

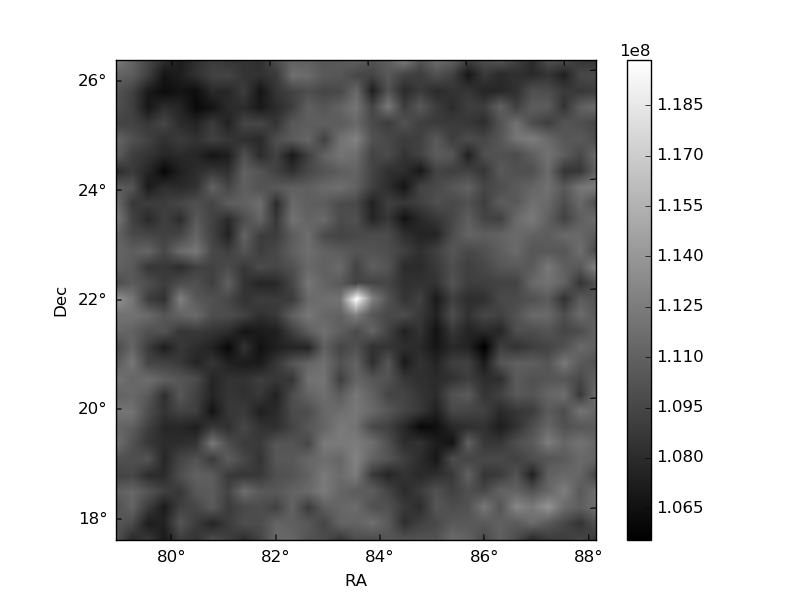

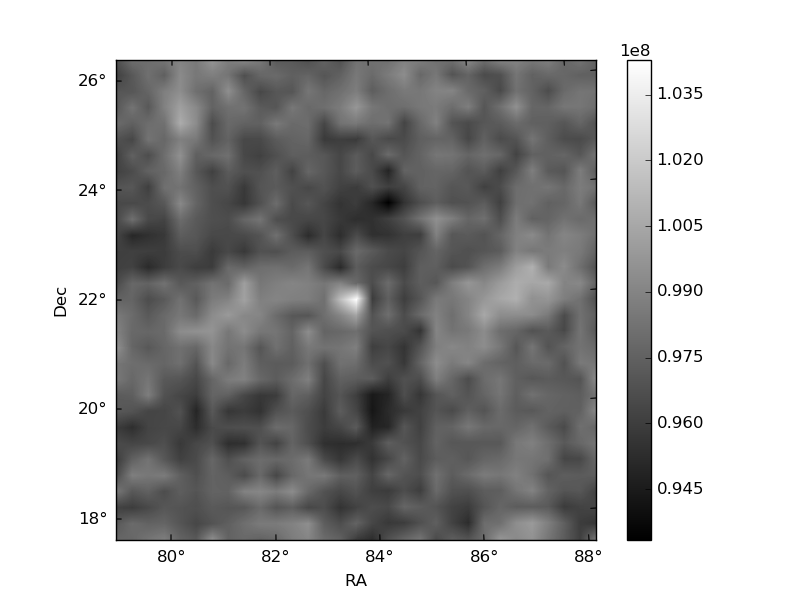

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

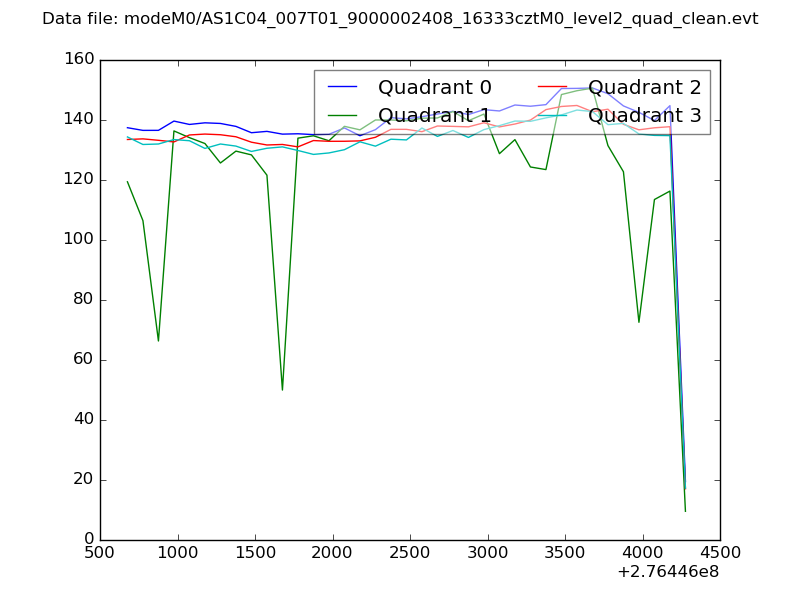

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

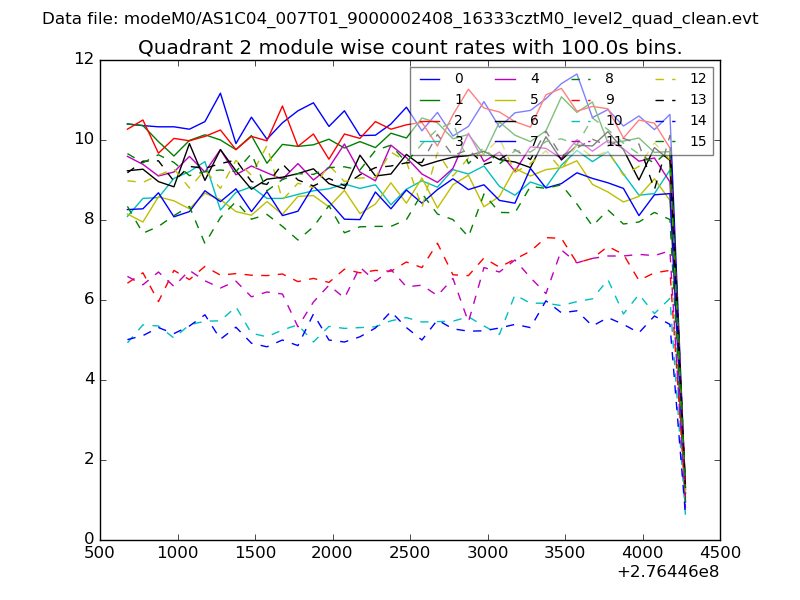

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

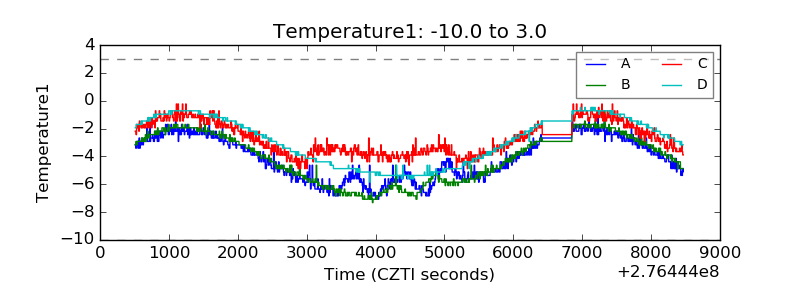

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

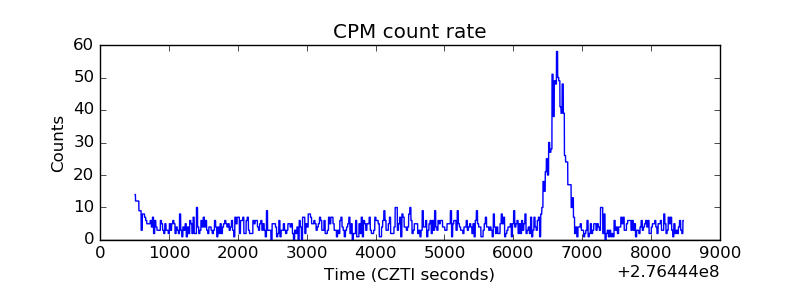

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

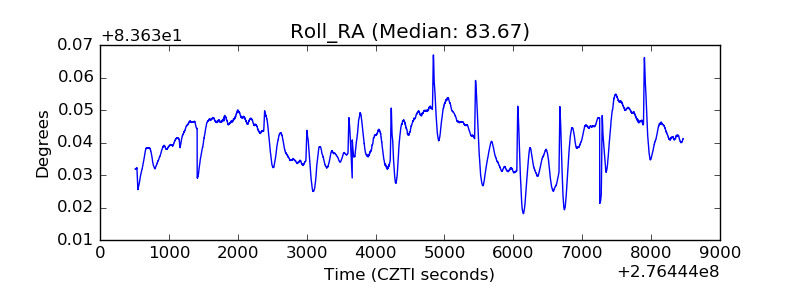

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
