| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T02_9000002414_16347cztM0_level2.evt | modeM0/AS1A05_069T02_9000002414_16347cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,339,384,320 | 238,026,240 |
| Size | 1.2 GB | 227.0 MB |
| Events in quadrant A | 9,660,975 | 1,497,081 |
| Events in quadrant B | 10,552,385 | 1,517,662 |
| Events in quadrant C | 9,348,433 | 1,468,396 |
| Events in quadrant D | 9,734,191 | 1,434,487 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41050 | 5 |
| B | 0 | 43222 | 4 |
| C | 0 | 39827 | 4 |
| D | 0 | 41779 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18741 | 582 | 3.105491% |
| B | 18741 | 712 | 3.799157% |
| C | 18741 | 526 | 2.806681% |
| D | 18741 | 532 | 2.838696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20343 | 18745 | 162 | 162 | 0.80% | 0.86% |  |
| B | 20343 | 18745 | 163 | 163 | 0.80% | 0.87% |  |
| C | 20343 | 18745 | 71 | 71 | 0.35% | 0.38% |  |
| D | 20343 | 18745 | 170 | 170 | 0.84% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 935277 | 2052.22 | 2260 | 2209 | 454.7 |
| A | 0 | 226 | 19716 | 38.51 | 2260 | 2209 | 454.7 |
| A | 8 | 6 | 18923 | 36.76 | 2260 | 2209 | 454.7 |
| B | 3 | 112 | 724348 | 1686.9 | 2253 | 2193 | 428.1 |
| B | 0 | 189 | 287796 | 667.15 | 2253 | 2193 | 428.1 |
| B | 10 | 16 | 164402 | 378.91 | 2253 | 2193 | 428.1 |
| C | 0 | 207 | 479864 | 939.92 | 2184 | 2200 | 508.2 |
| C | 14 | 238 | 336499 | 657.82 | 2184 | 2200 | 508.2 |
| C | 3 | 233 | 19386 | 33.82 | 2184 | 2200 | 508.2 |
| D | 12 | 218 | 630638 | 1166.99 | 2210 | 2143 | 538.6 |
| D | 1 | 52 | 481248 | 889.6 | 2210 | 2143 | 538.6 |
| D | 10 | 70 | 89518 | 162.24 | 2210 | 2143 | 538.6 |

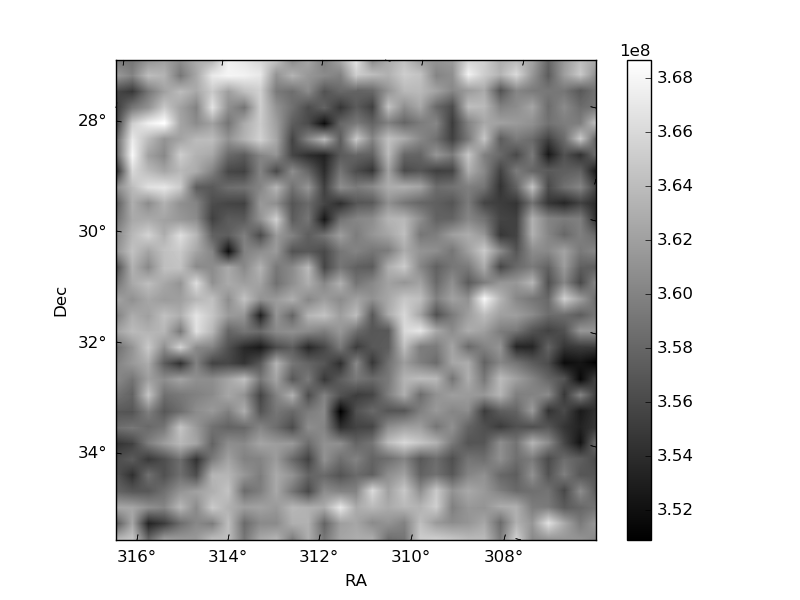

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

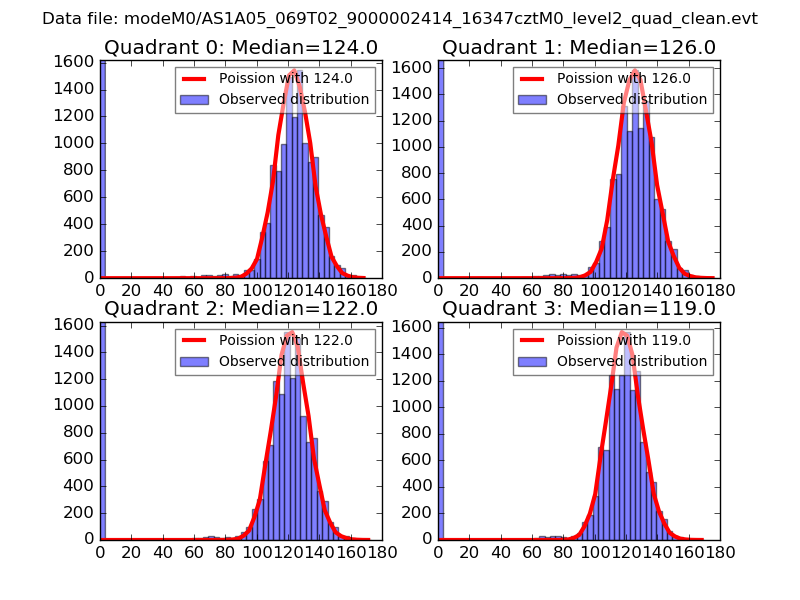

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

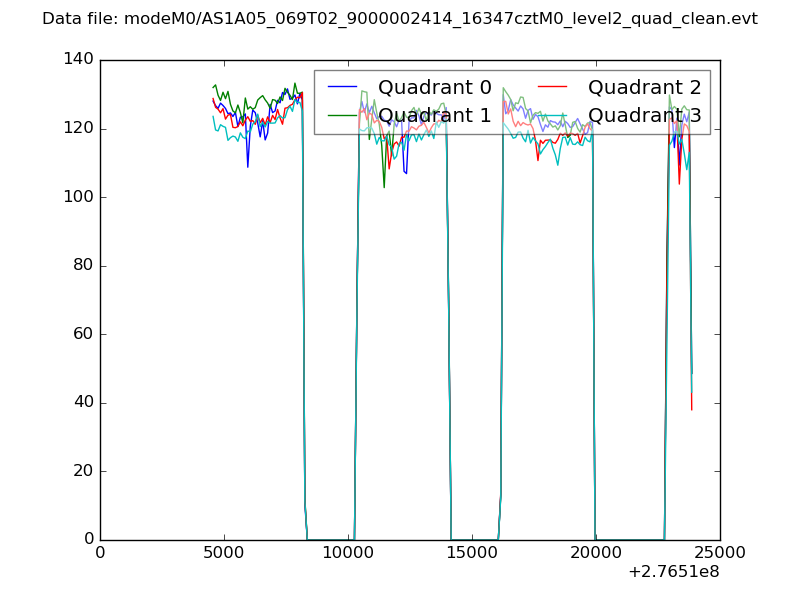

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

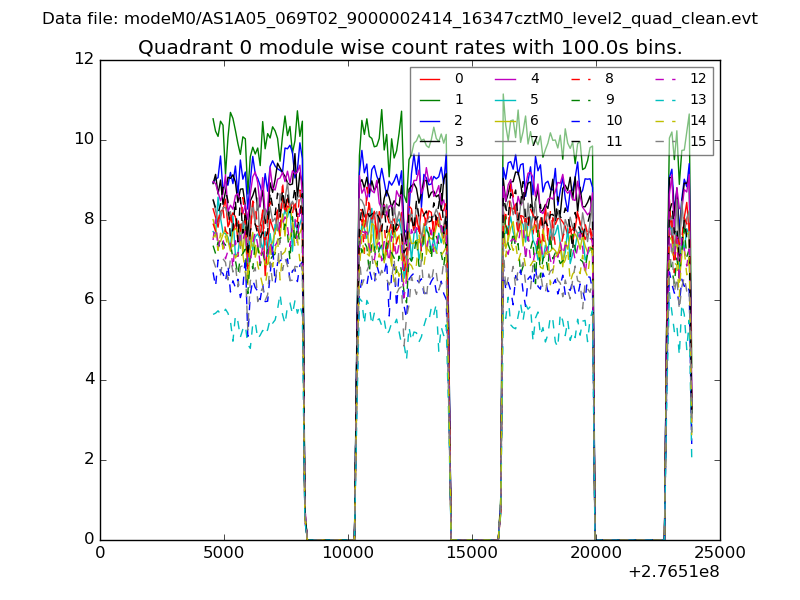

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

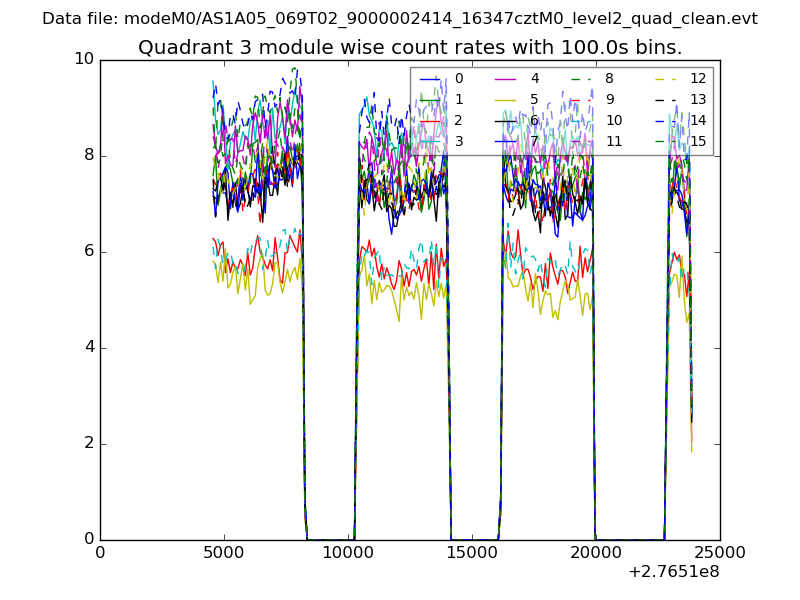

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

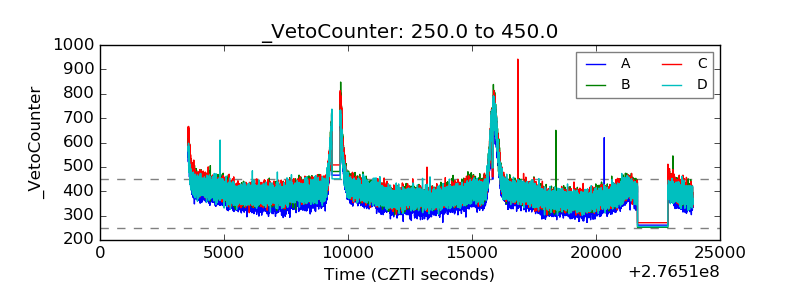

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

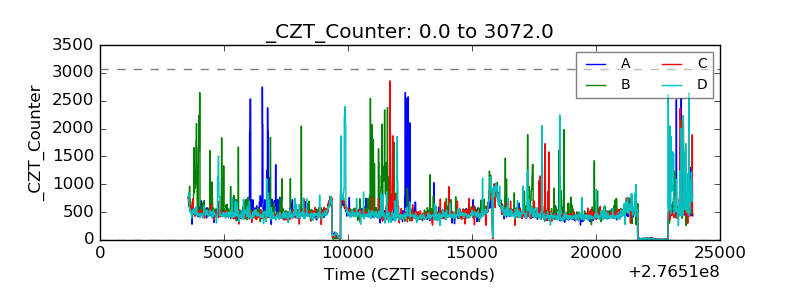

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
