| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T03_9000002416_16365cztM0_level2.evt | modeM0/AS1A05_069T03_9000002416_16365cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,703,040 | 94,187,520 |
| Size | 459.4 MB | 89.8 MB |
| Events in quadrant A | 3,165,060 | 606,507 |
| Events in quadrant B | 3,933,984 | 614,185 |
| Events in quadrant C | 3,326,261 | 588,325 |
| Events in quadrant D | 3,699,744 | 567,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14038 | 3 |
| B | 0 | 16209 | 2 |
| C | 0 | 14210 | 2 |
| D | 0 | 15942 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6818 | 34 | 0.498680% |
| B | 6818 | 82 | 1.202699% |
| C | 6818 | 75 | 1.100029% |
| D | 6818 | 115 | 1.686712% |

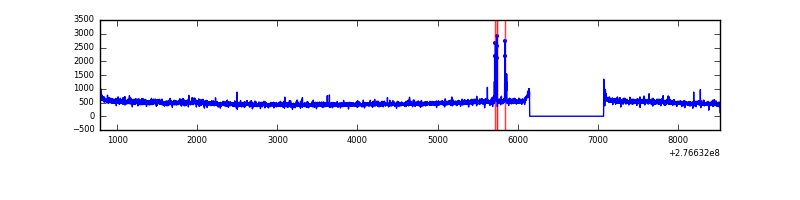

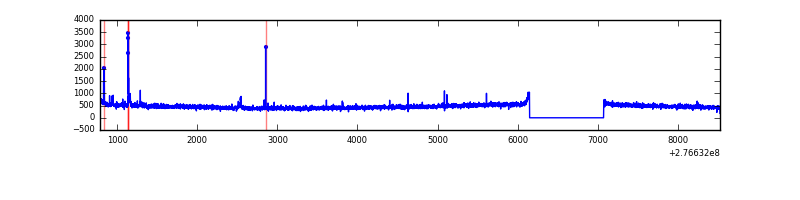

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7744 | 6820 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7744 | 6820 | 34 | 34 | 0.44% | 0.50% |  |
| C | 7744 | 6820 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7744 | 6820 | 87 | 87 | 1.12% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 44556 | 266.55 | 808 | 791 | 164.2 |
| A | 9 | 143 | 10207 | 57.34 | 808 | 791 | 164.2 |
| A | 0 | 226 | 7184 | 38.93 | 808 | 791 | 164.2 |
| B | 10 | 16 | 220309 | 1421.1 | 814 | 797 | 154.5 |
| B | 4 | 173 | 131466 | 845.94 | 814 | 797 | 154.5 |
| B | 15 | 35 | 112353 | 722.2 | 814 | 797 | 154.5 |
| C | 14 | 238 | 122021 | 656.61 | 785 | 789 | 184.6 |
| C | 3 | 233 | 91996 | 493.99 | 785 | 789 | 184.6 |
| C | 10 | 169 | 51852 | 276.56 | 785 | 789 | 184.6 |
| D | 1 | 52 | 446356 | 2332.85 | 785 | 762 | 191.0 |
| D | 12 | 110 | 168203 | 876.61 | 785 | 762 | 191.0 |
| D | 10 | 70 | 63916 | 330.63 | 785 | 762 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

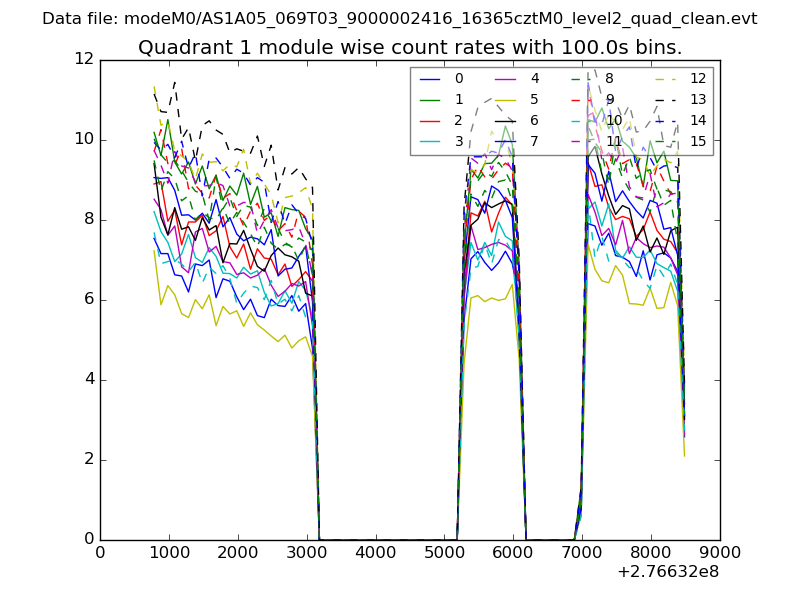

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

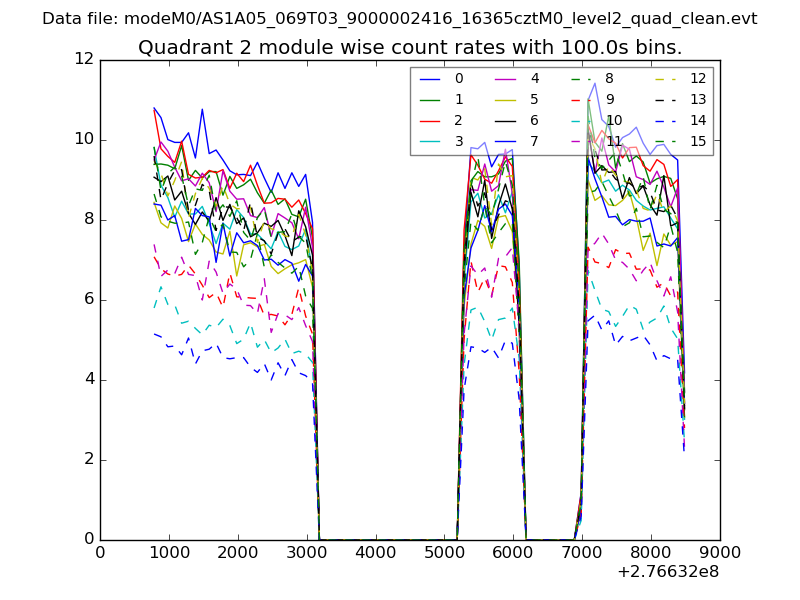

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

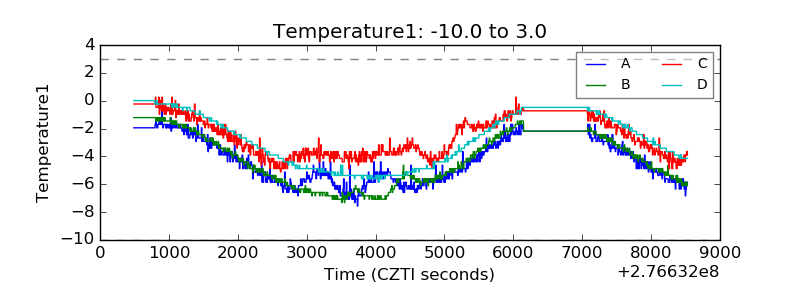

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

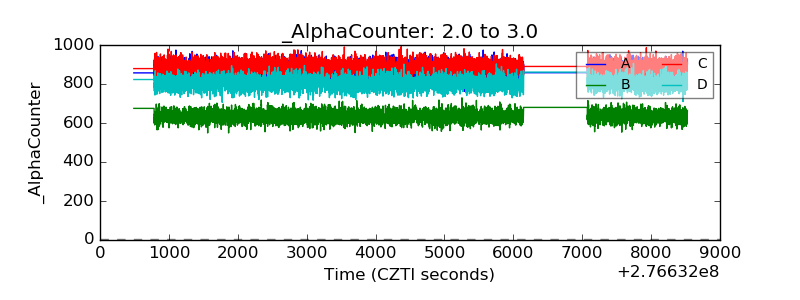

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

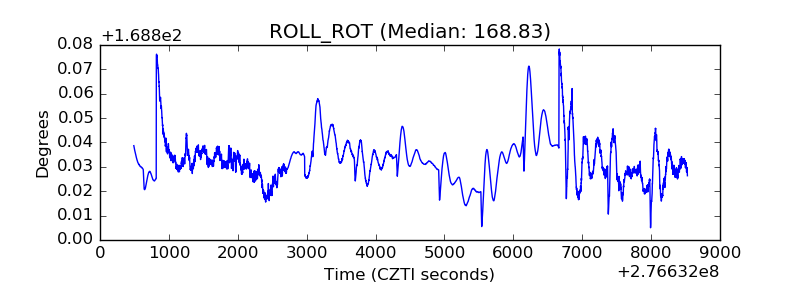

| _ROLL_ROT |  |

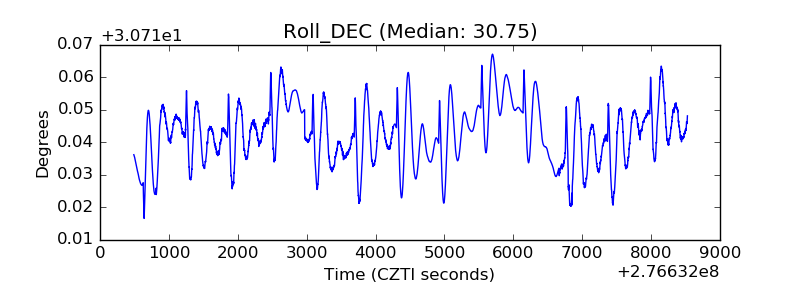

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
