| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T03_9000002416_16367cztM0_level2.evt | modeM0/AS1A05_069T03_9000002416_16367cztM0_level2_quad_clean.evt |
| Size (bytes) | 134,449,920 | 32,304,960 |
| Size | 128.2 MB | 30.8 MB |
| Events in quadrant A | 772,075 | 219,006 |
| Events in quadrant B | 1,125,208 | 221,168 |
| Events in quadrant C | 829,221 | 212,424 |
| Events in quadrant D | 1,230,576 | 203,767 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3362 | 1 |
| B | 0 | 4455 | 1 |
| C | 0 | 3455 | 1 |
| D | 0 | 4799 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1647 | 1 | 0.060716% |
| B | 1647 | 25 | 1.517911% |
| C | 1647 | 21 | 1.275046% |
| D | 1647 | 36 | 2.185792% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1648 | 1648 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1648 | 1648 | 13 | 13 | 0.79% | 0.79% |  |
| C | 1648 | 1648 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1648 | 1648 | 32 | 32 | 1.94% | 1.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 2463 | 53.35 | 199 | 194 | 42.5 |
| A | 15 | 174 | 2403 | 51.94 | 199 | 194 | 42.5 |
| A | 0 | 226 | 1843 | 38.77 | 199 | 194 | 42.5 |
| B | 10 | 16 | 136664 | 3368.77 | 202 | 197 | 40.5 |
| B | 15 | 35 | 132726 | 3271.56 | 202 | 197 | 40.5 |
| B | 3 | 209 | 18383 | 448.93 | 202 | 197 | 40.5 |
| C | 14 | 238 | 30590 | 641.24 | 197 | 198 | 47.4 |
| C | 3 | 233 | 28111 | 588.94 | 197 | 198 | 47.4 |
| C | 13 | 61 | 1395 | 25.26 | 197 | 198 | 47.4 |
| D | 1 | 52 | 417197 | 8279.54 | 196 | 190 | 50.4 |
| D | 12 | 110 | 30178 | 595.4 | 196 | 190 | 50.4 |
| D | 2 | 122 | 10430 | 203.31 | 196 | 190 | 50.4 |

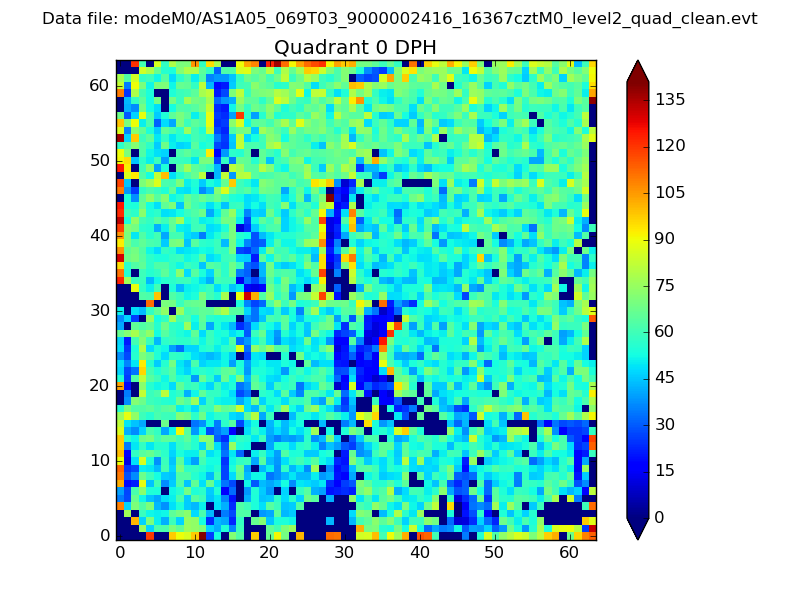

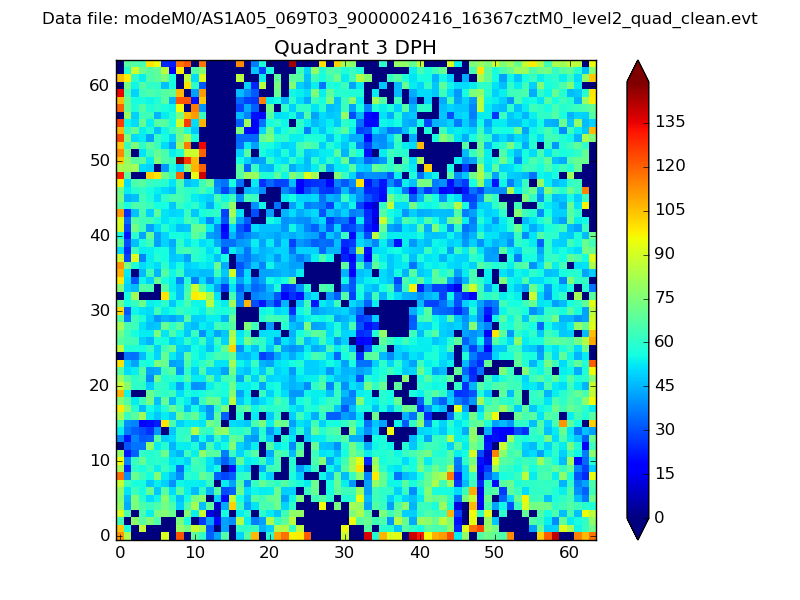

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

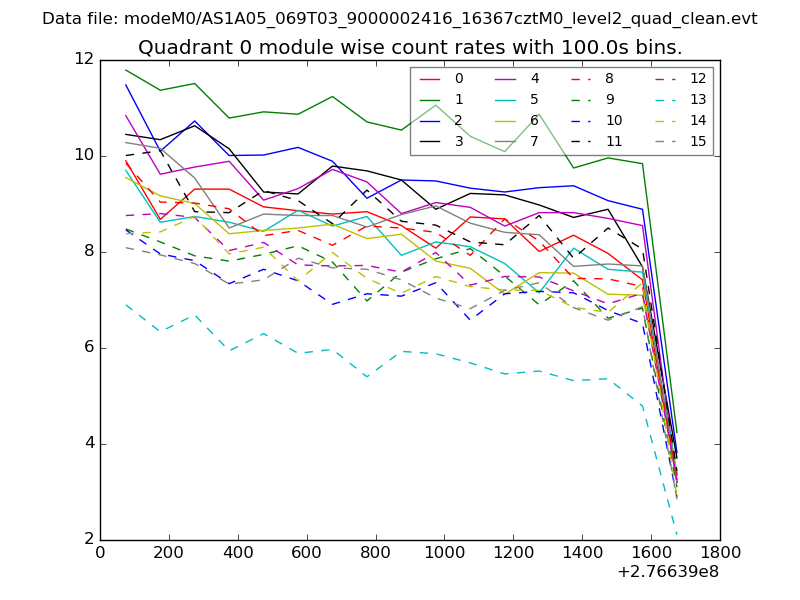

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

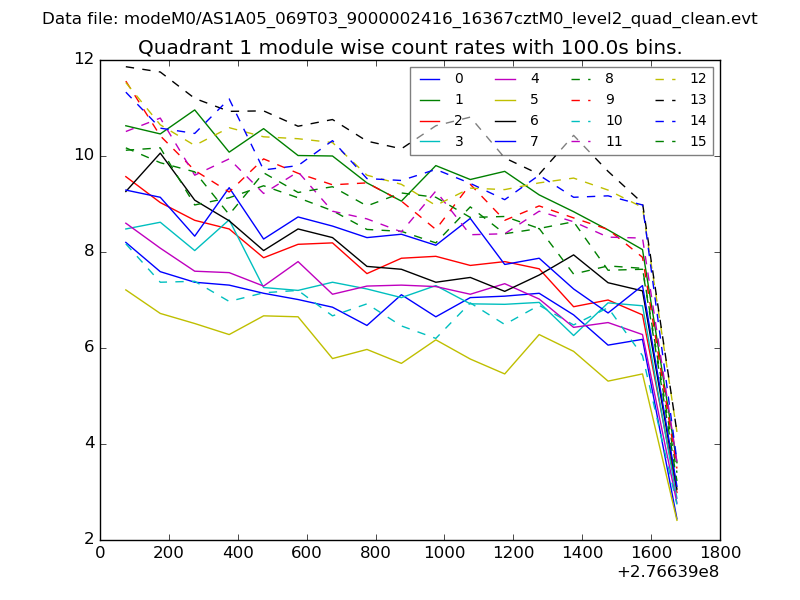

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

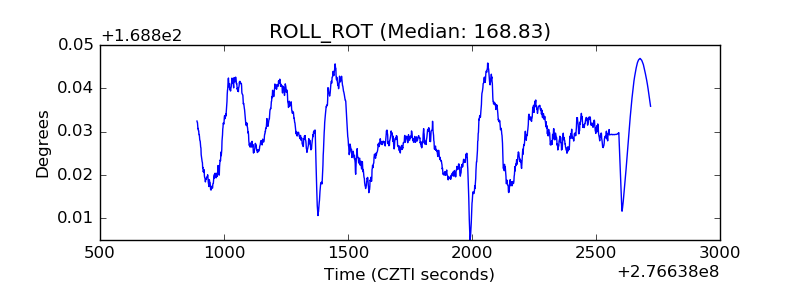

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
