| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_069T04_9000002418_16370cztM0_level2.evt | modeM0/AS1A05_069T04_9000002418_16370cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,699,200 | 72,440,640 |
| Size | 473.7 MB | 69.1 MB |
| Events in quadrant A | 3,350,856 | 449,067 |
| Events in quadrant B | 3,982,653 | 460,901 |
| Events in quadrant C | 3,960,527 | 427,586 |
| Events in quadrant D | 3,317,835 | 412,749 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13711 | 3 |
| B | 0 | 15717 | 2 |
| C | 0 | 15855 | 2 |
| D | 0 | 13895 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6353 | 32 | 0.503699% |
| B | 6353 | 84 | 1.322210% |
| C | 6353 | 139 | 2.187943% |
| D | 6353 | 42 | 0.661105% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

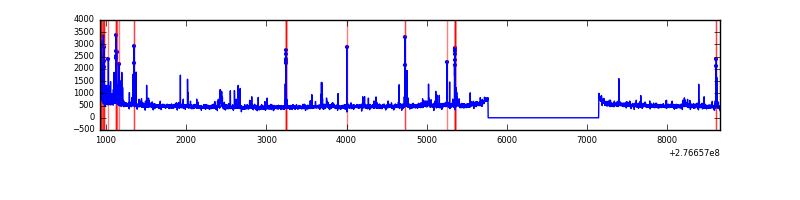

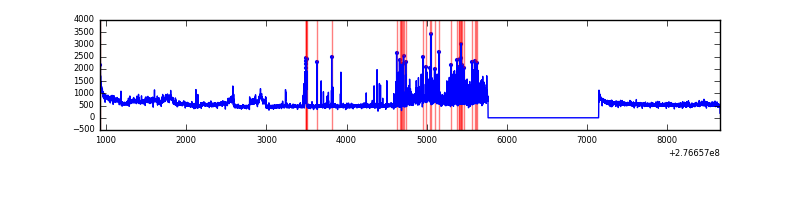

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 6355 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7734 | 6355 | 22 | 22 | 0.28% | 0.35% |  |
| C | 7734 | 6355 | 35 | 35 | 0.45% | 0.55% |  |
| D | 7734 | 6355 | 36 | 36 | 0.47% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 118759 | 716.83 | 833 | 819 | 164.5 |
| A | 15 | 223 | 20300 | 118.4 | 833 | 819 | 164.5 |
| A | 15 | 239 | 10878 | 61.14 | 833 | 819 | 164.5 |
| B | 10 | 16 | 347332 | 2192.11 | 842 | 822 | 158.1 |
| B | 15 | 35 | 147864 | 930.22 | 842 | 822 | 158.1 |
| B | 4 | 216 | 79743 | 499.27 | 842 | 822 | 158.1 |
| C | 3 | 233 | 747901 | 4099.48 | 792 | 800 | 182.2 |
| C | 14 | 238 | 124264 | 677.47 | 792 | 800 | 182.2 |
| C | 13 | 61 | 5648 | 26.6 | 792 | 800 | 182.2 |
| D | 1 | 52 | 127158 | 645.03 | 797 | 772 | 195.9 |
| D | 12 | 218 | 115984 | 588.01 | 797 | 772 | 195.9 |
| D | 10 | 70 | 28925 | 143.68 | 797 | 772 | 195.9 |

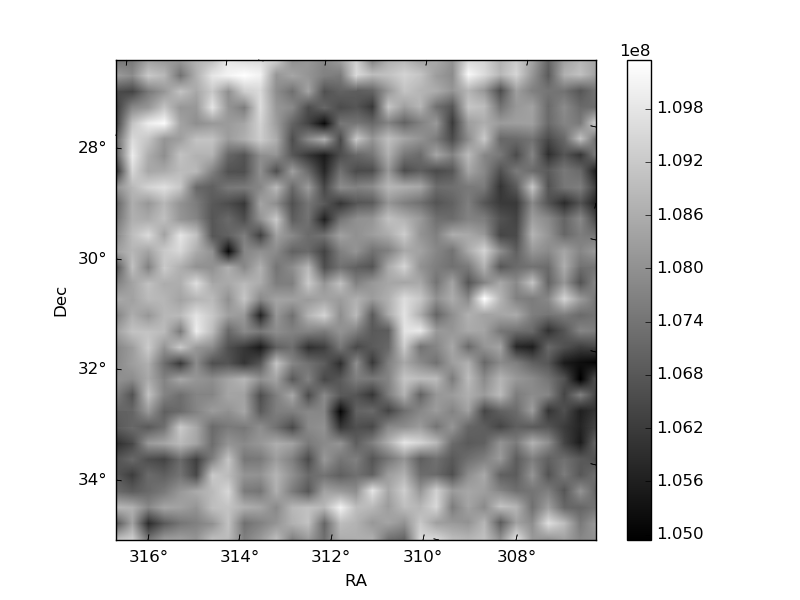

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

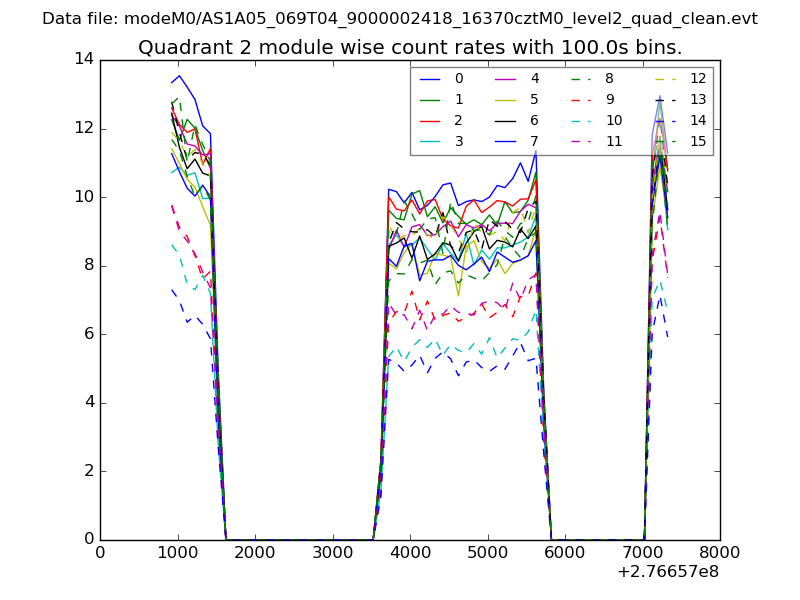

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

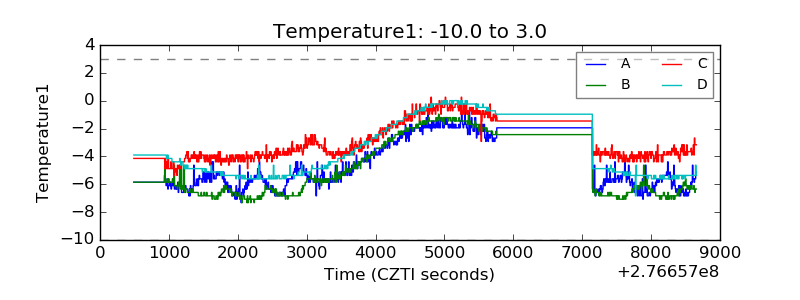

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

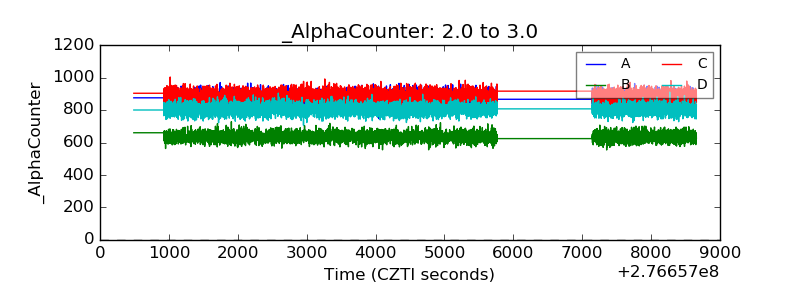

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

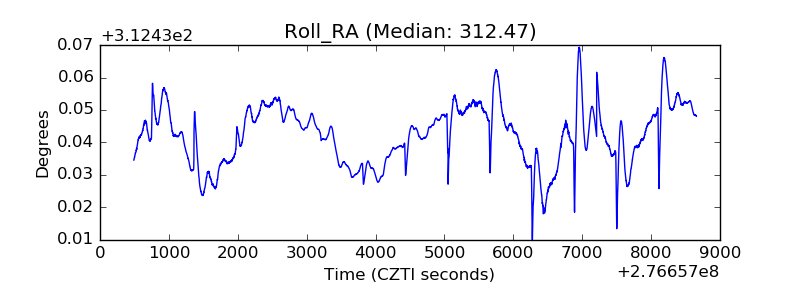

| _Roll_RA |  |

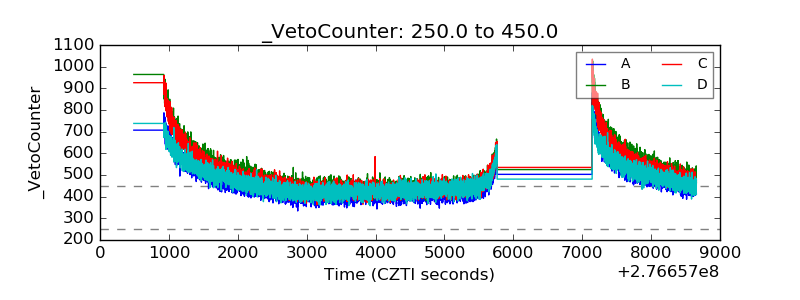

| Veto Counter |  |
